Aluminium Outdoor Waterproof IP66 LED 20W 30W 40W 50W 80W 100W All-in-One Solar Street Light Integrated Solar LED Street Light with Motion Sensor
SHINE ENERGY (SHENZHEN) CO., LTD.- Power Supply：Solar,DC
- Color Temperature：2200K-6500K
- Lamp Body Material：Aluminum Alloy
- Power：30W-80W
- Application：Square, Highway, Garden, Parking Lot
- IP Rating：IP66
Base Info
- Model NO.：SH14
- Certification：CB, CE, FCC, RoHS, SASO
- Input Voltage：12V,24V
- With Light Source：With Light Source
- LED Chips Brand：Lumi@LEDs
- Efficiency (Lm/W)：170m,W
- CRI(Ra)：70
- PV Voltage(V)：18V,36V
- Battery Type：LiFePO4
- Ik Degree：Ik09
- Solar Panel：Mono
- Operating Temperature：-20ºC to 60ºC
- Light Distribution：II-S, II-M, III-M
- Charge Time：6 Hours
- Working Time：2-3 Days (Auto Control)
- Warranty：5 Years
- Transport Package：Standard Sea-Worthy Box
- Specification：148.2*37.3*31.2cm
- Trademark：oem,odm
- Origin：Jiangsu, China
- HS Code：9405409000
- Production Capacity：10000PCS,Month
Description
5 years

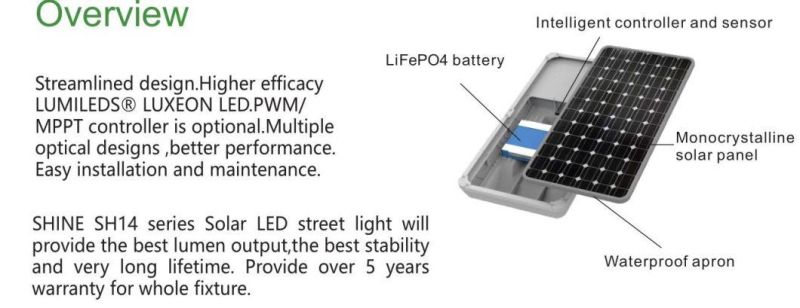

Overview
Streamlined design. Higher, brighter and efficient LED. PWM/MPPT controller is optional. Multiple optical designs, better performance. Easy installation and maintenance.
Features
* Flexible selection of high lumen and high luminous flux, customized the best solution of luminaire according to local sunshine.
* Integrated design, easy installation, each component can be easily replaced and maintained, saving csot.
* The intelligent controller matches the PIR infrared or intelligent microwave sensor to ensure the effective lighting time of the lamp.
* Adopting high efficiency monocrystalline silicon and conversion rate of 19.8% solar panels, grade A1 32650 battery cells excellent Lithium iron phosphate battery.
* Using special plug connector,color desing Fool-proofing,with anti-wrong connection function.
* Adopting adjustable mounted arm, can be adjusted in many angles, suitable for installation requirements of different latitude regions and different type poles.
* Professional waterproof design, protection grade IP66.
* Wind resistance rating 65m/s.
Key points

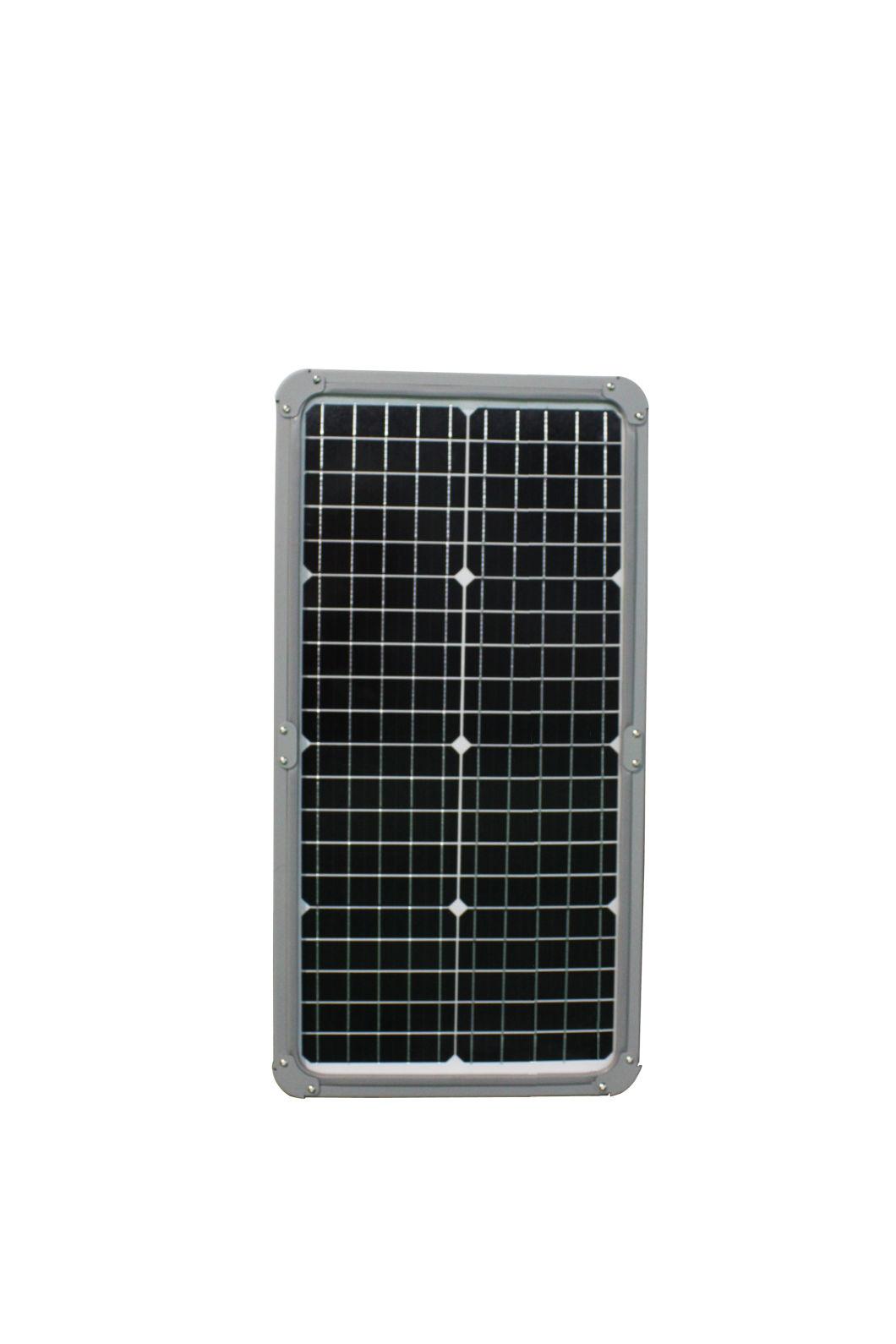

Solar Panel
Monocrystalline solar panels
25-year lifespan
Stable photoelectric conversion efficiency
advanced diffuse technology can ensure the uniformity of
conversion efficiency.
LIFEPO4 Battery
Excellent performance
High capacity
More safety
Withstand high temperatures 60ºC
Long lifespan,more than 2000 cycles

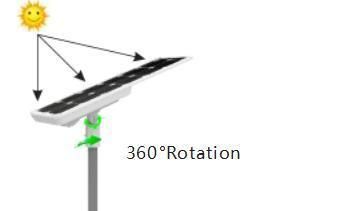

Adjusted Angle
The installation angle can be adjusted to make the solar panels face the sun and improve the charging efficiency to the greatest extent

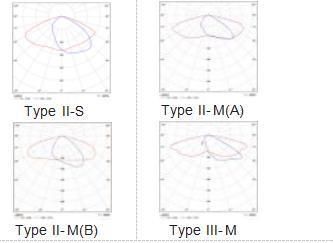

Mulitple Lenses
Optical options are available to meet the lighting needs of
customers on different roads, parking lots, squares, parks etc.

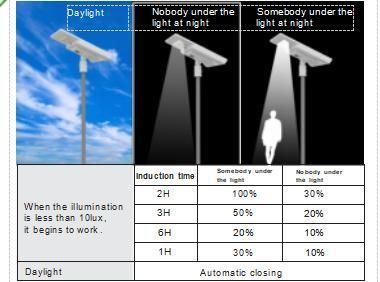

Sensor Control System
It can be set according to the requirements of customers

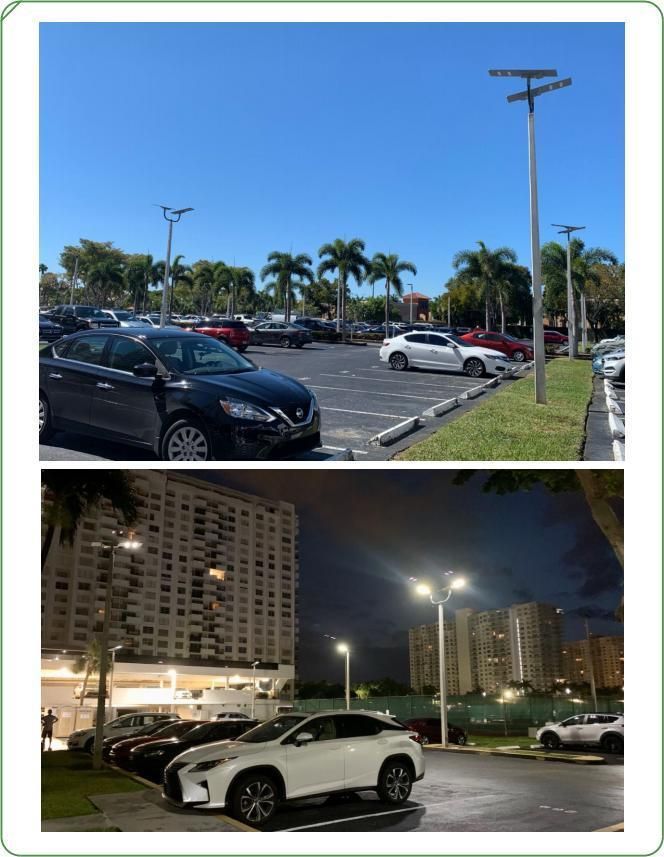

Practical Application
Company Introduction
SHINE is a national hig-tech enterprise devoted to research and development, production and sales of LED lighting and photovoltaic energy
storage.
SHINE has two factories. SHINE OPTO produces LED street lights and solar LED street lights, SHINE ENERGY produces photovoltaic panels,
lithium batteries, inverters and energy storage systems etc.
SHINE OPTO is located in Suzhou, Jiangsu province, covering more than 12,000 square meters. We have been cooperating with domestic
universities and research institutions to develop high efficient, energysaving, innovative LED lighting with excellent performance and unique
design. Our R&D laboratory, Cooperative Testing Laboratory of TUV Rheinland Group, isequipped with high and low temperature tester,
darkroom, IES tester, integrating sphere, IK/IP test instrument and so on.
SHINE has passed ISO9001: 2015 ISO14001: 2015 system certification and owns more than 200 patents in radiating structure, electronics and optics. Our led lighting is ENEC, TUV, CB, CE, EMC, LVD, UL/CUL, DLC approved and sold in more than 70 countries and areas.

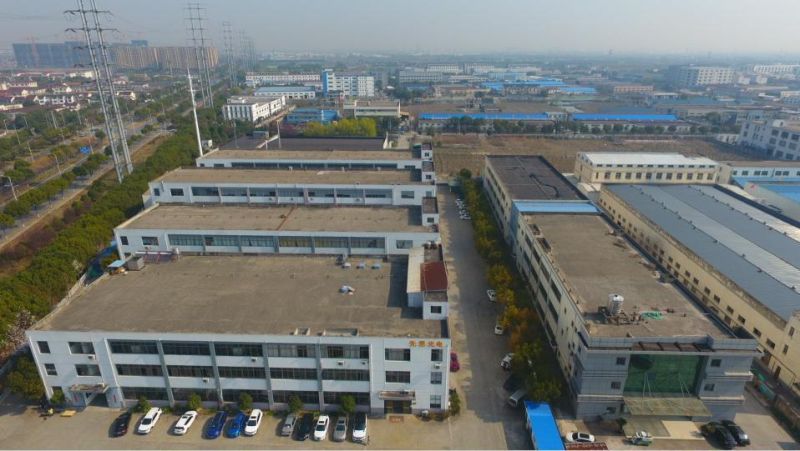

Factory
Every year we have 5-10 internation exhibitions abroad in different countries, USA, Argentina, Brazil, Chile, Germany, Hongkong and etc.
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 2-3 weeks if quantity is more than 200 pcs.
Q3. Do you have any MOQ limit for led light order?
A: MOQ. 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days arrive. Airline and sea shipping also optional.
Q5.How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the quotation, we will send trade assurance order to email. Customer confirms the order and do payment.
Fourthly We arrange the production.
Q6. Is it oK to print my logo on led light product?
A:Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5-10 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control syst and the defective rate will be less than 0. 2%.
Secondly, during the guarantee period. we will send new lights in the next order.
Welcome contact our sales manager: Lina Liu
You can scan QR code directly as below shows:
Our exhibitions in different countries:
