• Model NO.：82532
• Certification：CE, EMC, LVD, RoHS
• Input Voltage：DC12V,DC24V,AC100-240V
• Light Source：With Light Source
• LED Chips Brand：CREE,Bridgelux, Osram
• LED Source：3*1W,3*2W Single Color,3*3W RGB

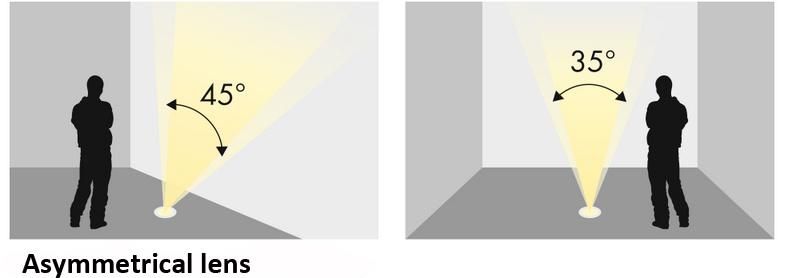

• Lens Angle：8 ,15 ,25 ,30 ,45 ,60,90 Degree,Asymmetrical Lens
• Product Size：Dia108mm*H90mm
• Operating Temperature：-20~+40 Centigrate
• Warranty：2 Years
• Driver：Built-in Constant Current Output
• Glass：Clear, Diffused Tempered Glass

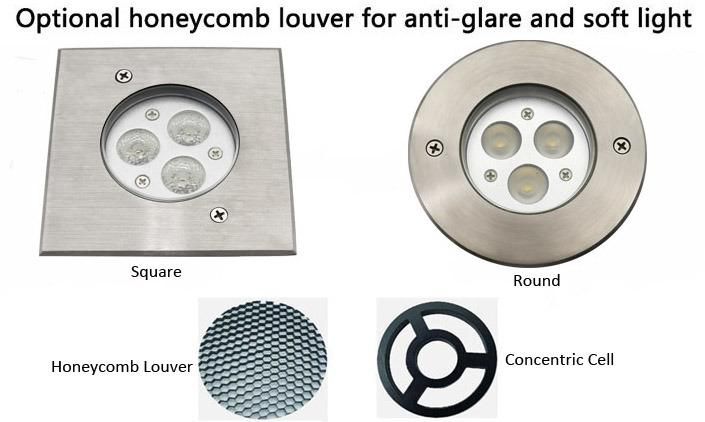

• Accessories：Honeycomb Louver, Concentric Cell Optional
• Mounting Sleeve：ABS
• Transport Package：24X24X29(8PCS,CTN),G. W: 7.5kgs,CTN
• Specification：CE & RoHS
• Trademark：JP lighting
• Origin：Dongguan, Guangdong, China
• HS Code：94054090
• Production Capacity：30000 PCS,Months

Basic Info.

Model NO. 82532 Certification CE, EMC, LVD, RoHS Input Voltage DC12V/DC24V/AC100-240V Light Source With Light Source LED Chips Brand CREE/Bridgelux/ Osram LED Source 3*1W/3*2W Single Color/3*3W RGB Lens Angle 8 /15 /25 /30 /45 /60/90 Degree/Asymmetrical Lens Product Size Dia108mm*H90mm Operating Temperature -20~+40 Centigrate Warranty 2 Years Driver Built-in Constant Current Output Glass Clear/ Diffused Tempered Glass Accessories Honeycomb Louver/ Concentric Cell Optional Mounting Sleeve ABS Transport Package 24X24X29(8PCS/CTN)/G. W: 7.5kgs/CTN Specification CE & RoHS Trademark JP lighting Origin Dongguan, Guangdong, China HS Code 94054090 Production Capacity 30000 PCS/Months

Product Description

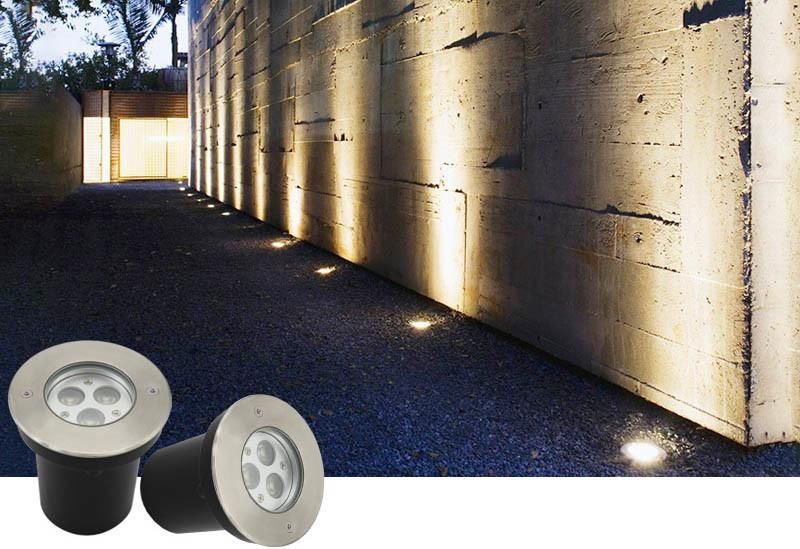

IP67 3W 6W 9W LED Landscape Light Outdoor LED Up Light LED Underground Light Garden Up Light LED Inground Light with Stainless Steel Front Cover for Plaza/Park/Courtyard/Pedestrian Mall/ Landscape/Architectural Lighting

Feature and Benefits: 1.IP67 waterproof for outdoor walk/path/ parking lot/garden/square lighting use;
2. Input Voltage:12V/24VDC standard;

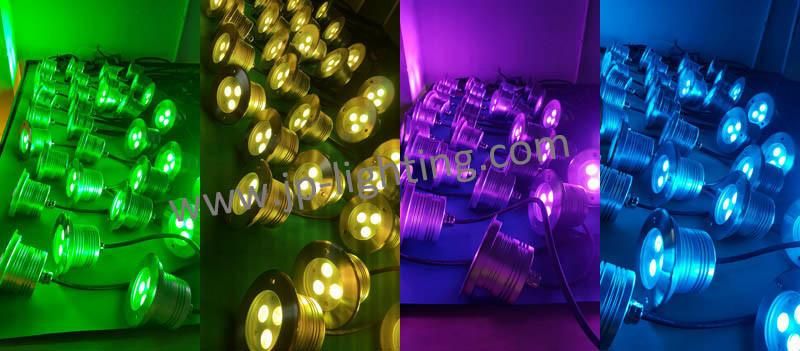

3. Rich Color for options: Single Color and RGB Color;
4. RGB version can be worked with DMX+DMX Decoder or remote controller;
5. 316 Stainless steel front cover+tempered step glass+aluminum alloy can be withstand car traffic;
6. Using high-quality and high-precision material and structural waterproof, easy to maintain.
 Main Specification:
Housing: Outdoor dark grey powder coated aluminum T=60-80um Adhesion of ISO class 1/ASTM class 4B
Front Cover: 304# or 316# Stainless Steel
LED Source: 3x1W/3x2W/3X1 RGB/3x2W RGB/3x3W RGB 3in1 LED
Lens: Optical lens, efficiency ≥85%
Glass: Tempered step glass T=8mm
Glass pressure capacity: Full area=2500kgs
Gasket: Molding shaped silicone seal
Operating temperature: -20ºC to 40ºC
Power cable: H05RN-F 2x0.75mm² L=0.5m (low voltage)
                      H05RN-F 3x0.75mm² L=0.5m (Single color/high voltage)
                      H05RN-F 4x0.75mm² L=0.5m (for RGB)
Mounting sleeve: ABS

Products Model:

Item No.	Lighting Source	Lens beam angle (°)	Consumption(Watt)	Input Voltage(V)	IK rate
82531(S/AS)	3x1W LED	8°/15°/25°/30°/45°/60°/90°/ Asymmetrical lens	3.2	DC12V/DC24V	09
82531H(S/AS)	3x1W LED	8°/15°/25°/30°/45°/60°/90°/ Asymmetrical lens	3.2	AC100-240V	09
82532(S/AS)	3x2W LED	8°/15°/25°/30°/45°/60°/90°/ Asymmetrical lens	6.2	DC12V/DC24V	09
82532H(S/AS)	3x2W LED	8°/15°/25°/30°/45°/60°/90°/ Asymmetrical lens	6.2	AC100-240V	09
82533(S/AS)	3x1W RGB LED	8°/15°/25°/30°/45°/60°/90°/ Asymmetrical lens	3.2	DC12V/DC24V	09
82534(S/AS)	3x2W RGB LED	8°/15°/25°/30°/45°/60°/90°/ Asymmetrical lens	5.8	DC12V/DC24V	09
82536(S/AS)	3x3W RGB 3in1 LED	8°/15°/25°/30°/45°/60°/90°/ Asymmetrical lens	9.2	DC12V/DC24V	09

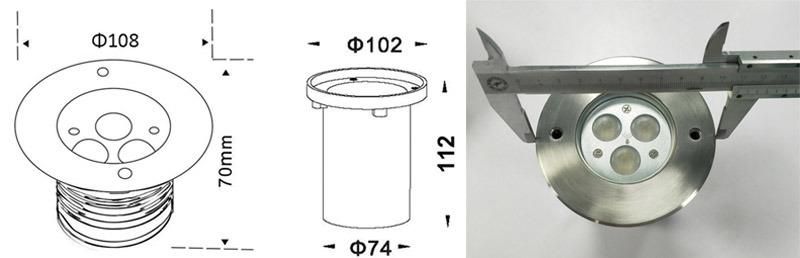

Products Size:

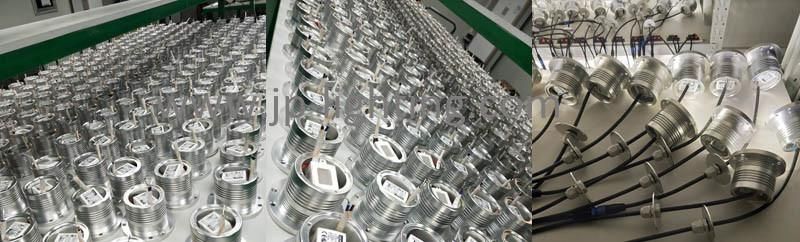

Products Picture:

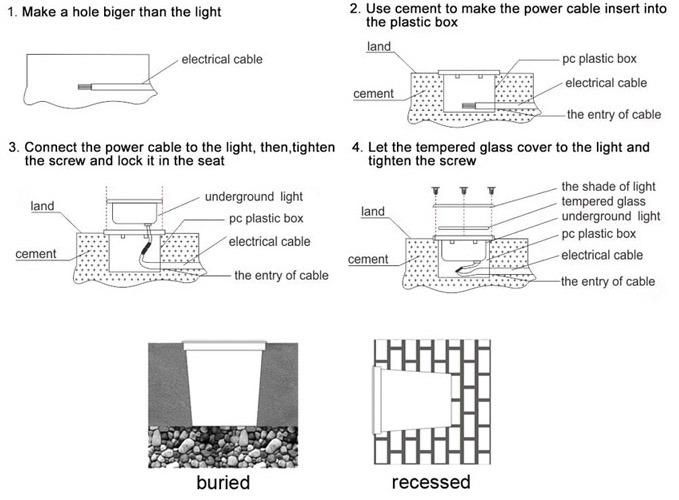

Products Installation:

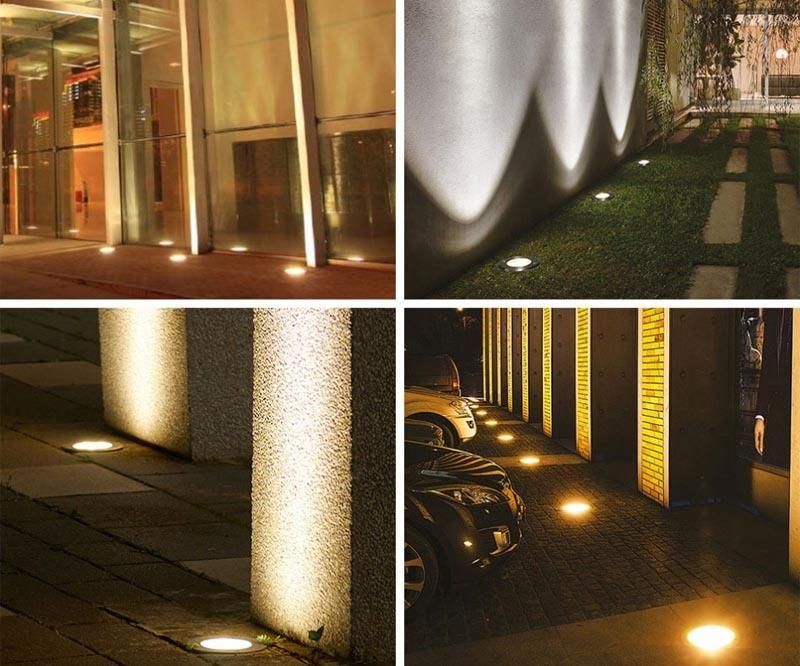

Application:
Used for Park,Garden, Corridor, Pathway, Road and other outdoor lighting.

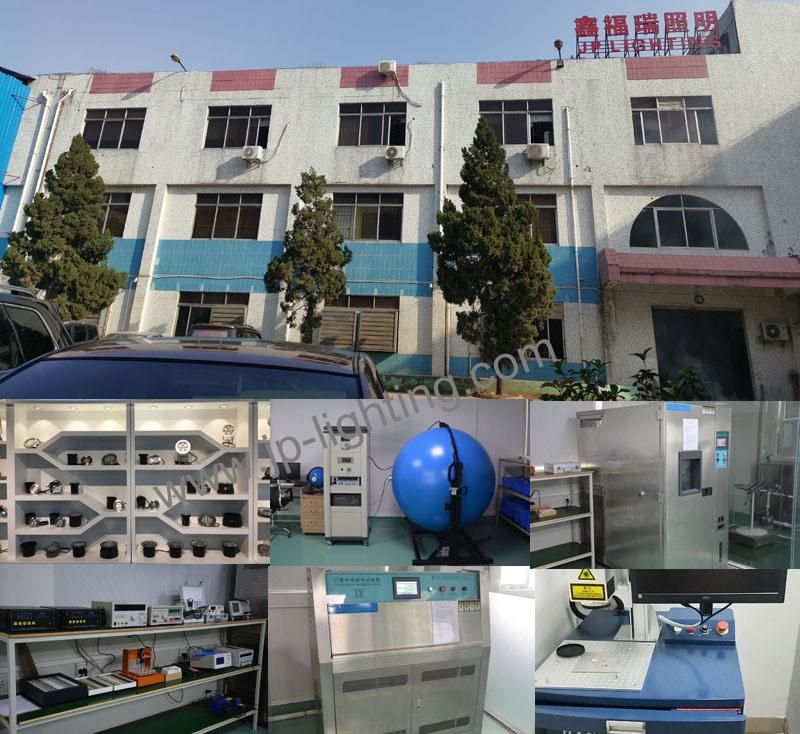

Company Picture

Packaging and shipping

FAQ

Are you a manufacturer?
Yes, We are a professional manufacturer with 15 years experience.

What is your main product?
1.Outdoor LED wall light
2.LED garden spot/spike light
3.LED inground light
4.LED underwater light(fountain light, swimming poool light, underwater spot light)
5.LED wall washer light

What is the company sample system?
1.Sample charge should prepaid.
2.Sample can be customized,If the order QTY is more than 1000Pcs.

How we can pay for?
1.30% advanced payment. 70% balance payment.
2.We accept L/C, T/T, Western Union, and Paypal.
3.Our shipping terms is EXW, FOB, CIF

How about the delivery time?
1.About 5 work days for sample making
2.15-30 work day for mass products production time. It is up to the quantity

What information should I let you know when I want to make a inquiry?
1.Which body color do you want?
2.What kind of light color do you prefer?
3.How long did you need about light cable?
4.Which voltage ( low voltage or high voltage)?
5.What kind of beam angle did you need?
6.How many quantity do you need?

Why choose us?
1.One-stop services:  Innovative design, professional product light effect. Excellent product quality, sincere service concept. For exterior lighting provides an integrated, one-stop integrated lighting solution!

2.Experience R&D, production and sales team: We have an mature and experienced team. Some members have more than 15 years of work experience in the field of lighting. JP Lighting factory covers an area of 2,000 square meters and the annual sales of more thank $10 million.

3.Strict quality control process: JP lights use the high quality components. All material must be strictly screened. All JP lights will undergo strict testing before shipping, including integrating sphere testing, aging test, waterproof test, etc. Due to rich experience and professionalism, JP Lighting's product defect rate is strictly controlled within 1%.

4.Products worldwide with high reputation: We participate in various industry lighting exhibitions, our products are all over Asia, Europe, Oceania, Africa and Central and South America, Middle East. All products have got great comments for high quality and excellent service.
