• Model NO.：JYT11-400E
• Operating Voltage：85-265V
• Input Voltage：90-305V
• LED Chips Brand：Bridgelux
• Transport Package：Carton
• Origin：Ningbo

1

Model

JYT11-400E

2

Input voltage

AC90-305V 50/60HZ

3

power

500W

4

Driver efficiency

≥90%

5

Power factor

≥0.95

6

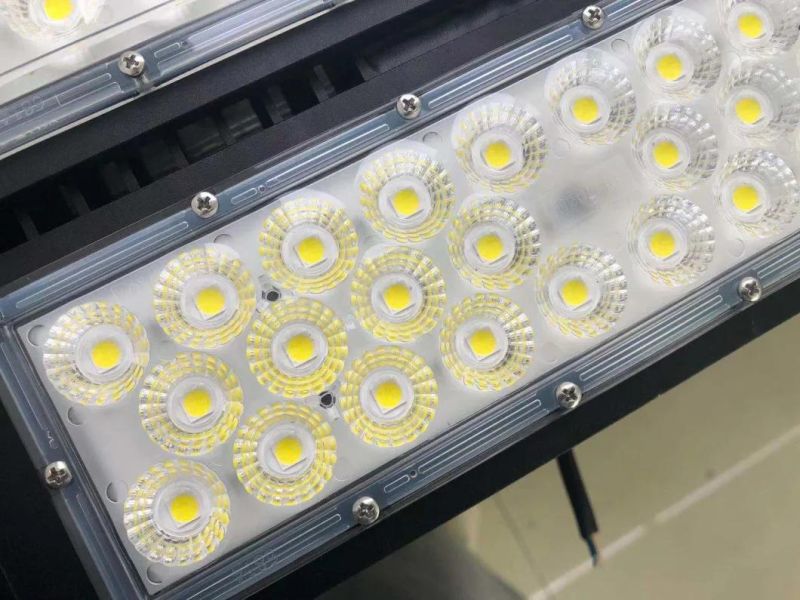

  LED quantity

112pcs(5 modules)

7

     LED type

5050

8

Luminous efficiency

130-170lm/W

9

  Color temperature

5700K

10

CRI

70 ≥

11

Beam angle

40°

12

      Ts

≤40ºC

13

Operation temperature

-30ºC~+45ºC,10%~90%RH

14

Storage temperature

-30ºC~50ºC

15

LED life

>50,000h

16

housing material

               6063-T5 AL +  PC

17

      SIZE(mm)

335*422*379

18

  Carton size (mm)

340*440*165

19

IP

IP66

20

Wind resistance level

Level 14 (42m/s)

21

   IK

≥IK09

22

     Warranty

5 years

23

    Driver

 Inconvenient/meanwell

2.Features

a) ·Replace 700W metal halide lamp

b)·Good junction temperature & insulation

c)·High output and excellent thermal

d)·Light weight and attractive appearance

e)·Universal voltage 100~305Vac

f)·50,000 hours rated average life

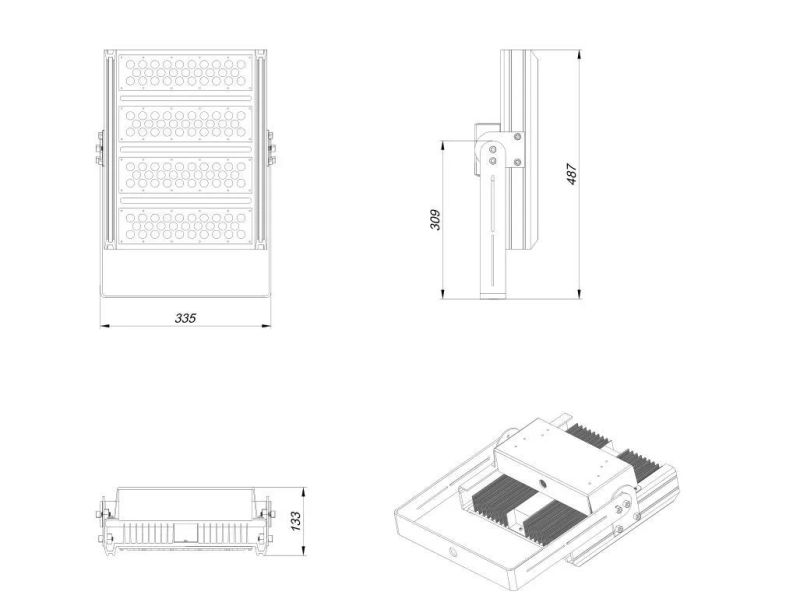

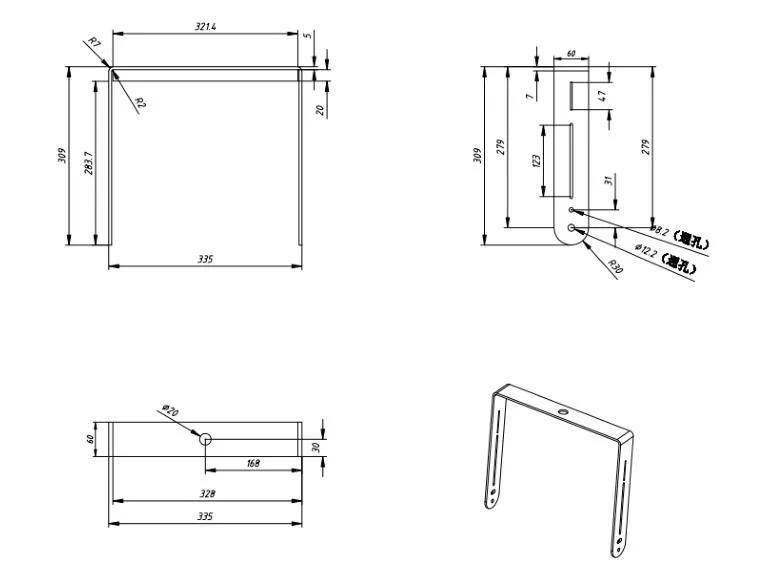

3.Dimension

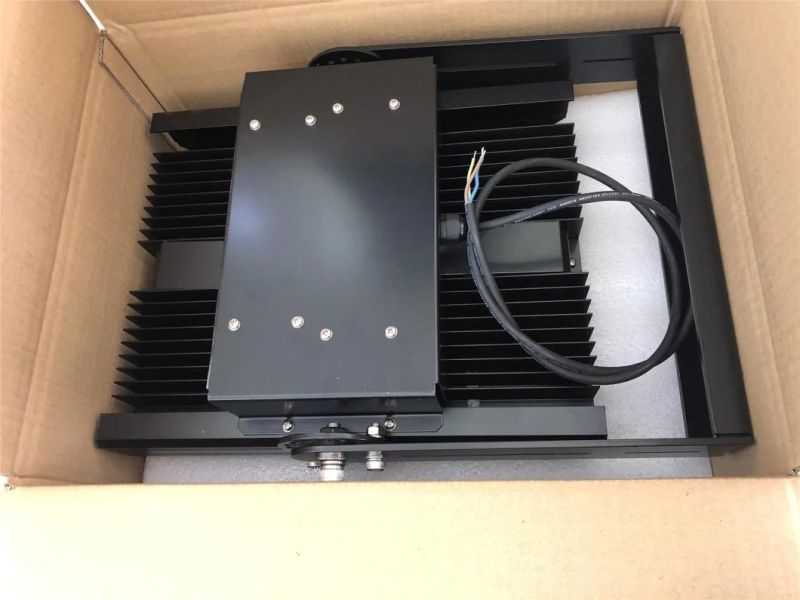

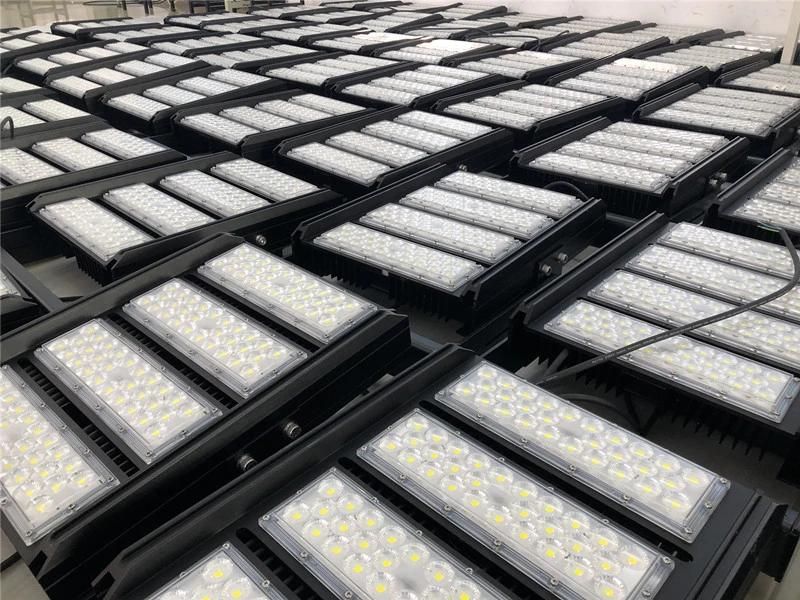

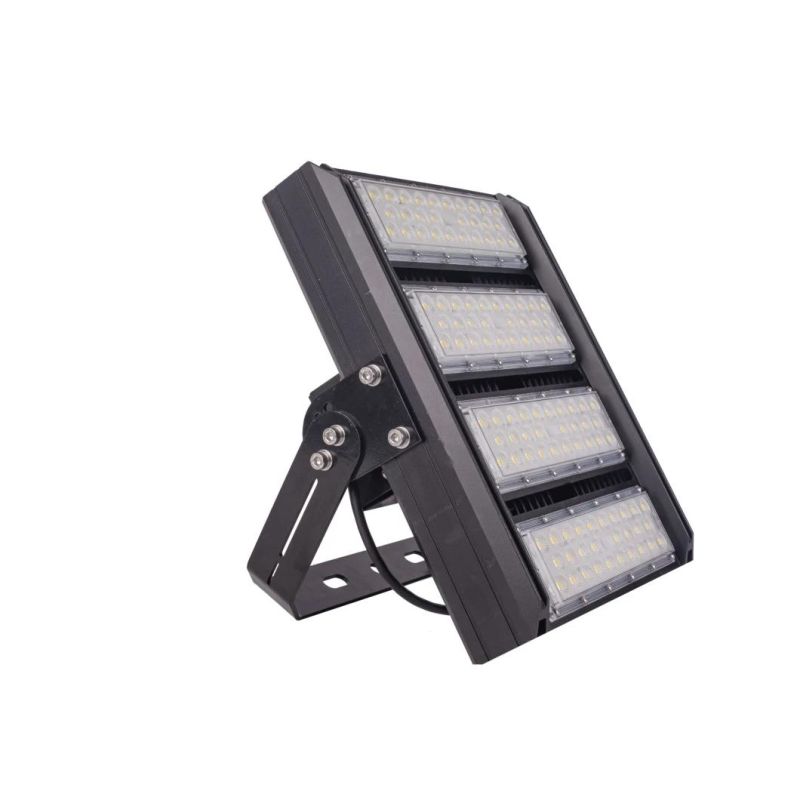

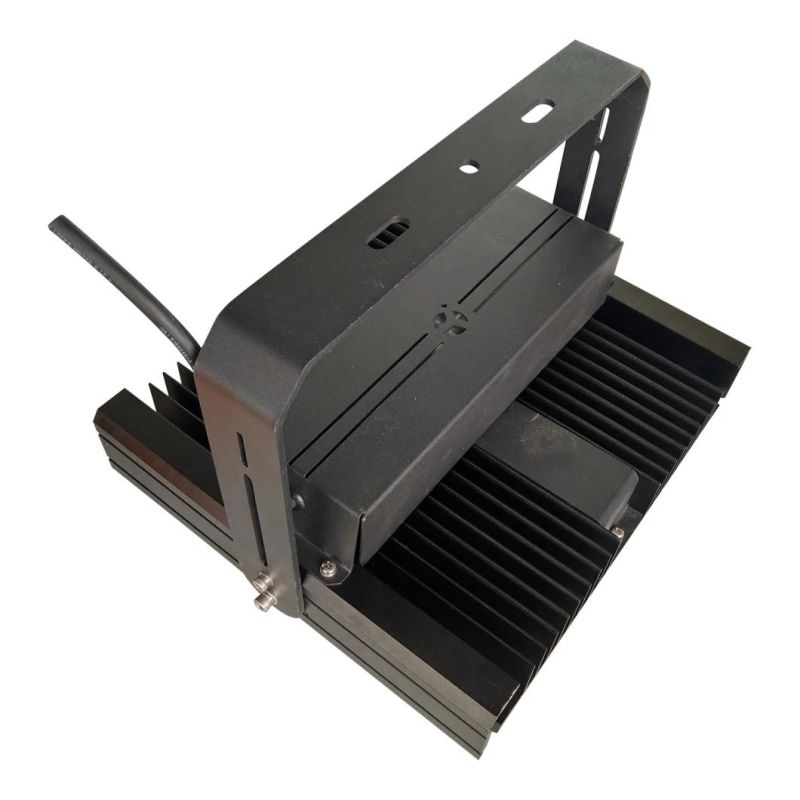

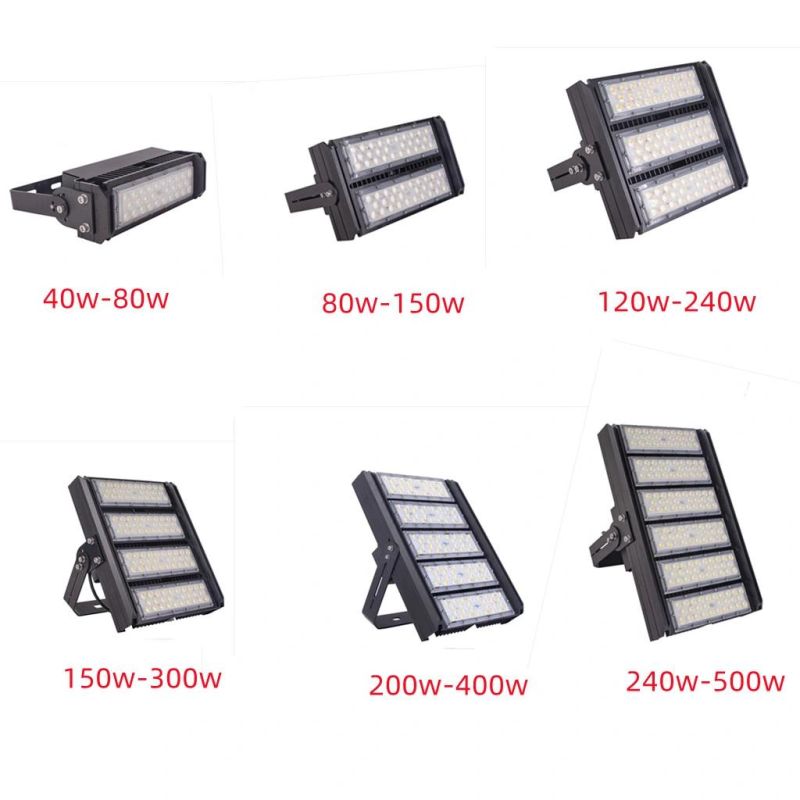

4 .About Product















4.Application

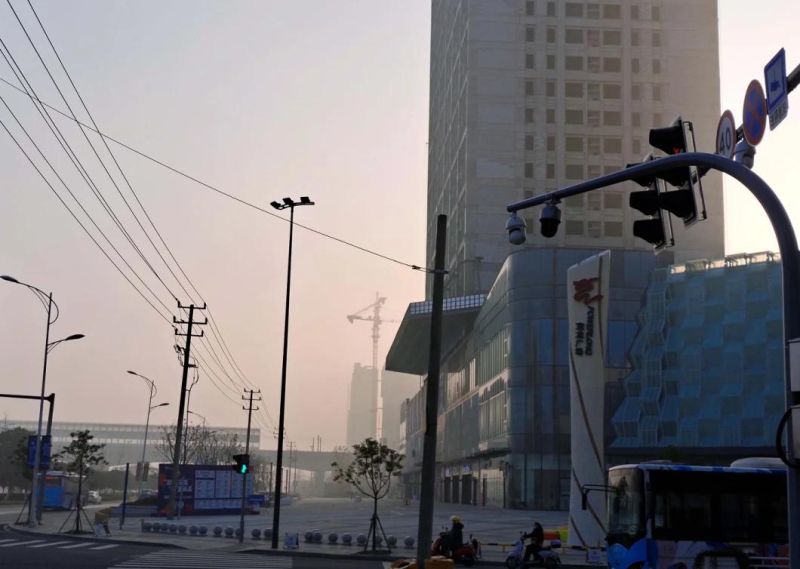

·Area Lighting

·Architecture Lighting

·Stadium Lighting

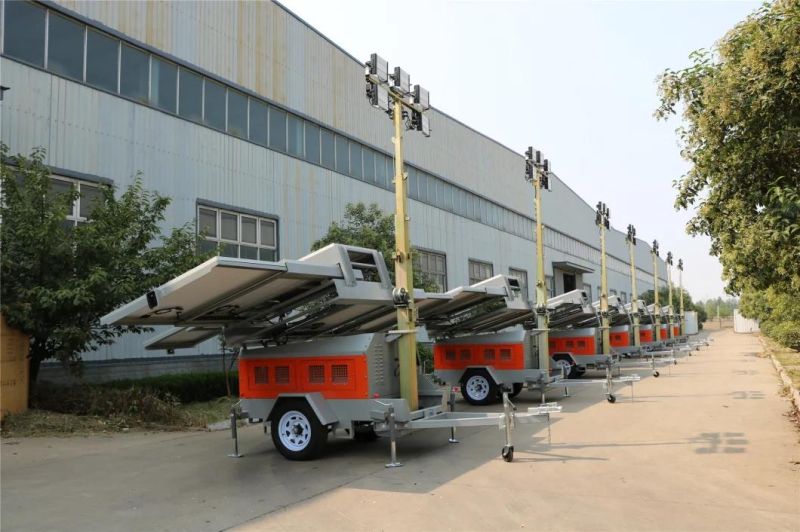

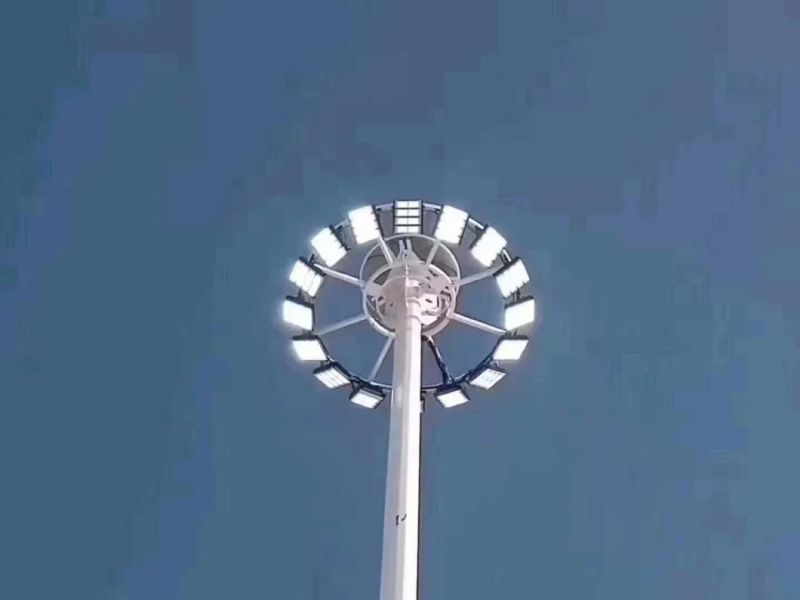

·Light Tower
