Spot Light Outdoor LED Flood Lights CE RoHS Approval Lighting LED Floodlights 10W 20W 30W 50W 80W 100W 150W 200W Road Project Lighting IP65 LED Flood Light
Ningbo Sunle Lighting Electric Co., Ltd.- Color Temperature：Cool White
- Lamp Body Material：Aluminum Alloy
- Power：30W
- Projection Distance：12-18m
- Application：Park, Square, Factory, Garden
- IP Rating：IP65
Base Info
- Model NO.：SLFAP83
- Certification：CE, RoHS
- Operating Voltage：100-240V
- Input Voltage：AC100-240
- LED Chips Brand：a Variety of Chips to Choose From
- Item：LED Flood Light
- Power Factor：>0.5
- Power Efficiency：>0.9
- CRI：>70
- Luminous Efficacy：90 Lm,W
- Operating Temperature：-4 Degrees Fahrenheit to +113 Degrees Fahrenheit
- Storage Temperature：-40 Degrees Fahrenheit to +140 Degrees Fahrenheit
- LED Type：SMD
- Switching Cycle Before Failure：50,000 Times
- Warranty：3 Years
- Specification：160.7*123.2*29.6mm
- Trademark：sunle
- Origin：Ningbo
- Production Capacity：10000 Pieces,Year
Description
Without Driver 12 PCS 2835 LED CHIPS SLFAP82 20W SMD 20W 70 CW,NW,WW IP65 121*95.3*26.1 >0.5 15CM H05RN-F3G0.75mm2 rubber cable 2000LM 2.5KV BLV 24 PCS 2835 LED CHIPS SLFAP83 30W SMD 30W 70 CW,NW,WW IP65 161*123.2*29.6 >0.5 15CM H05RN-F3G0.75mm2 rubber cable 3000LM 2.5KV BLV/EMC 36PCS 2835 LED CHIPS SLFAP85 50W SMD 50W 70 CW,NW,WW IP65 207*161*31.5 >0.5 15CM H05RN-F3G0.75mm2 rubber cable 5000LM 2.5KV BLV/EMC 60PCS 2835 LED CHIPS SLFAP810 80W SMD 80W 70 CW,NW,WW IP65 269*209*34 >0.5 15CM H05RN-F3G0.75mm2 rubber cable 8000LM 2.5KV BLV/EMC 96 PCS 2835 LED CHIPS SLFAP810 100W SMD 100W 70 CW,NW,WW IP65 269*209*34 >0.5 20CM H05RN-F3G0.75mm2 rubber cable 10000lm 2.5KV BLV/EMC 120 PCS 2835 LED CHIPS SLFAP815 150W SMD 150W 70 CW,NW,WW IP65 269*209*34 >0.5 20CM H05RN-F3G0.75mm2 rubber cable 15000lm 2.5KV BLV/EMC 180PCS 2835 LED CHIPS SLFAP820 200W SMD 200W 70 CW,NW,WW IP65 330*250*34 >0.5 20CM H05RN-F3G0.75mm2 rubber cable 20000lm 2.5KV BLV/EMC 240 PCS 2835 LED CHIPS SLFAP830 300W SMD 300W 70 CW,NW,WW IP65 445*334*45.5 >0.5 20CM H05RN-F3G0.75mm2 rubber cable 30000lm 2.5KV BLV/EMC 360 PCS 2835 LED CHIPS SLFAP840 400W SMD 400W 70 CW,NW,WW IP65 490*410*48 >0.5 20CM H05RN-F3G0.75mm2 rubber cable 40000lm 2.5KV BLV/EMC 480 PCS 2835 LED CHIPS

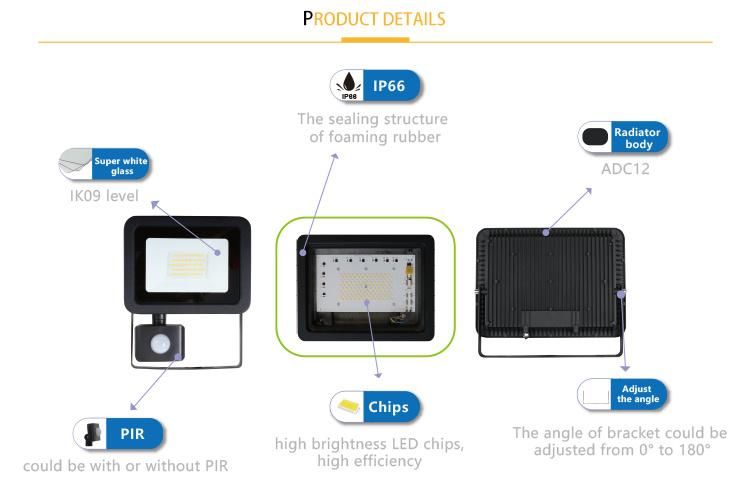

Features

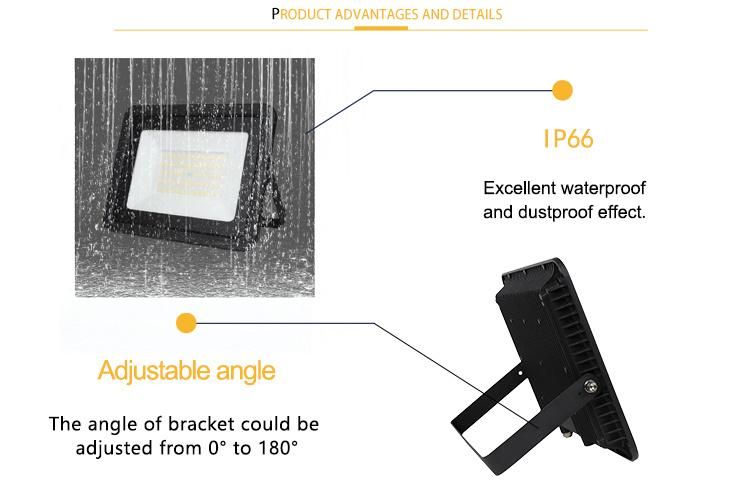

IP65 waterproof/dust proof/explosion proof/IK08

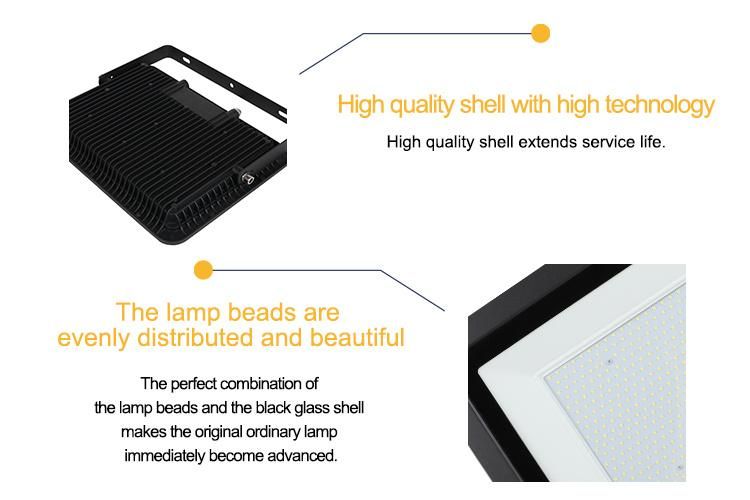

Pure Aluminum shape good at heat dissipation

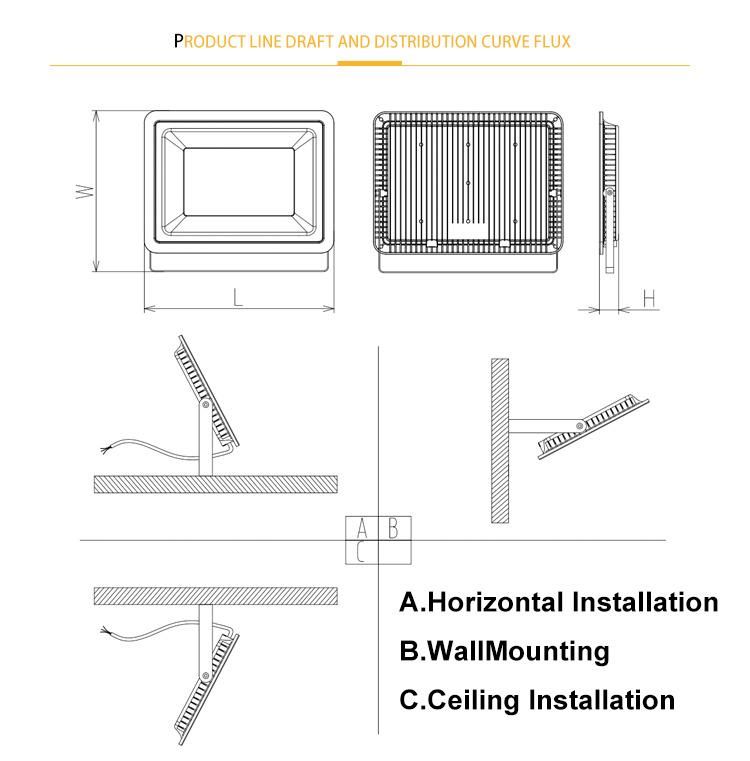

Angle Bracket,easy to install by drill
Easy replacement and installation
SMD 3030 Ra>70/SDCM<7
50,000 times switching cycle before failure
Total harmonic distortion(THD)<20%
Application
Commercial Lighting:Large retailers,School,Billboard,Building etc.
Public Lighting:Airports,Stadium,Train stations,Bus stations etc.
Industrial Lighting:Manufacture Warehouses,Parking lots,Exhibition centers,Gas stations,Toll stations etc.
Electrical Characteristics
Input Voltage:AC180-240V / AC127V / AC100-240V
50/60Hz
Power Efficiency:>=0.90
Temperature Characteristics T-ambient 25ºC
Temperature
Operating -20~+45ºC
Storage -40~+60ºC
Matters needing attention
Before installing the lighting fixtures, please read this instruction manual carefully.
The lighting fixtures should be installed, connected and tested by a certified electrician based
on the local regulations.
Lamps should always be installed or replaced carefully.
Please check the local voltage in accordance with the product requirements before installation.
Revamping only can be done when the power is off and the lamp is completely cooled down.
When clean the lamp, make the power off and let it cool down completely, clean the fixture with a soft cloth and a standard PH neutral detergent, stainless steel should be maintained regularly.
Don't cover the fixtures with flammable materials.
Replace should be made by the manufacturer or his service agent or certified electrician in order to avoid a hazard.
