• Model NO.：dx-122w
• Input Voltage：AC85~285V
• With Light Source：With Light Source
• LED Chips Brand：Bridgelux
• LED Driver：Meanwell
• LED Lumen Output：>130lm,W
• Warranty：3 Years
• Place of Origin：Jiangsu, China (Mainlan
• Transport Package：Carton or Wooden Case
• Specification：CE SGS ROHS FCC ISO
• Trademark：DX (Dingxin)
• Origin：Yangzhou China
• HS Code：54094090
• Production Capacity：50000PCS,Month

Basic Info.

Model NO. dx-122w Input Voltage AC85~285V With Light Source With Light Source LED Chips Brand Bridgelux LED Driver Meanwell LED Lumen Output >130lm/W Warranty 3 Years Place of Origin Jiangsu, China (Mainlan Transport Package Carton or Wooden Case Specification CE SGS ROHS FCC ISO Trademark DX (Dingxin) Origin Yangzhou China HS Code 54094090 Production Capacity 50000PCS/Month

Product Description

Brief Introduction For LED Street Lights and LED Street Lamps.
High Power LED Street Lights had already become the most economic, environmental friendly and energysaving products in the world.
Our DX Solar Marked LED Street Lights Including:Single Arm LED Street Lights;Double Arms LED Street Lights,LED Flood Lights,
LED Tube Lights,LED Bulbs,Etc.

DX SOLAR Advantages of LED Street Lights and LED Street Lamps.
DX SOLAR Marked LED Street Lights adopt:High Quality Cree,Bridgelux,Epistar Chip,100LM/150LM/W; Special quadric optical lens which
cast the rays of every LED onto a rectangular area,Getting better lighting effect for drivers and pedestrian; High transparent toughened glass and
stainless steel or high purity aluminum reflector making higher lamp efficiency 0.95 to the road;High quality LED Constant Current Driver, efficiency
at least 90%,makes our lamp works more stable;Design with Special LED PCB with in series and in parallel lines;Lamp wire according to GB/ISO/CE
standard with Red + and Black -
Material Descriptions:

1. ) Lamp Body: High-Pressure Die-Casting Aluminum. Corrosion Resistant

2. ) Application with Polyester Substance in its Surface.

3. ) Implement of Reflect: Made of High Purity Aluminum.

4. ) Cover: High Strength and High Transparent Toughened Glass

5. ) Fastener Bolt and Screws: Stainless Steel

6. ) Arm Diameter: 60mm

7. ) IP65

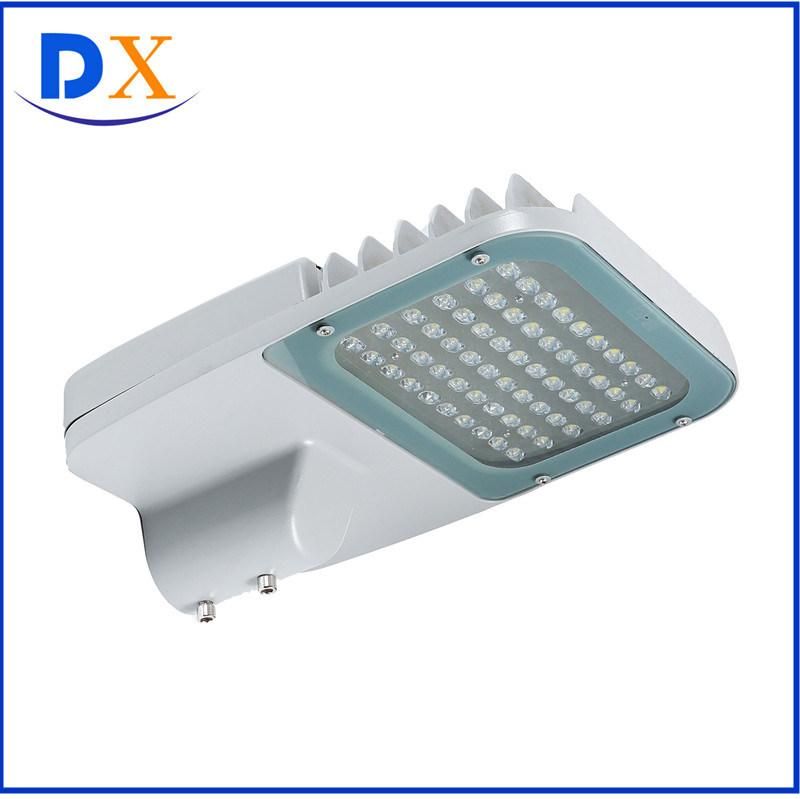

60W High Power LED Street Lamp

LED Power	60W
LED Lighting Efficiency	7200LM
Body Size	495*210*50mm
Lamp Efficiency	>92%
Central Illuminance	>32LX
CT	5500-6500 (Cold White)
Ra	>75%
Power Factor	>0.95
IP	65
Working Temperature	-40 degree to +60 degree
Lifespan	>80000 Hours
G. Weight	6 KGS

Pole Painting and Different Pole Style For Choosing
