ADC12 Aluminum 5 Years Warranty IP66 800W 1000W 1200W SMD LED Stadium Flood Lighting

LUOHE HILIGHT TECHNOLOGY CO., LTD.
  • Color Temperature：2700-6500K
  • Lamp Body Material：Aluminum
  • Power：1000W
  • Projection Distance：>35m
  • Application：Park, Square, Factory, Garden, Stadiums
  • IP Rating：IP66

Base Info

  • Model NO.：OED-SP4-1000W
  • Certification：CE, EMC, FCC, LVD, RoHS, SAA
  • Operating Voltage：AC 85~305V
  • Input Voltage：220V
  • LED Chips Brand：Lumleds 5050
  • Item Name：1000W SMD LED Stadium Floodlight
  • Color Temperature(CCT)：2700~6500K
  • Lamp Luminous Flux(Lm)：140, 000~150, 000lm
  • Lamp Luminous Efficiency(Lm/W)：140~150
  • Working Temperature(ºC)：-40- +60 Deg
  • Lifetime：50, 000 Hours
  • Quality Warranty：5 Years
  • Transport Package：Carton
  • Specification：645 x 380mm
  • Trademark：OED
  • Origin：China
  • HS Code：9405409000
  • Production Capacity：5, 000PCS,Month

Description

Item name960W /1000W SMD LED football court led floodlightPower 960W / 1000WLight SourceLumleds 5050LED Qty480 pcsInput VoltageAC 85~305V   50/60Hz, Meanwell ELG LED driverColor Temperature2700-6500KLight effect140~150LM/WLumen134,400~144,000LMPower Factor≥0.95CRIRa.≥80Defend gradeIP66Viewing angle25°  45°  60°MaterialsDie-casting AluminumOperating Temp.-40ºC to +60ºCApplicationsStadium,outdoor lighting, square, football field,etc.Qty / CTN1PCN.W.30.2KGG.W.32.7KGLamp dimensionsΦ645×380mmCarton size87 × 69 × 28cmLifetime50,000 hoursQuality warranty5 yearsCertificatesCE,ROHS, EMC, LVD, ISO9001ADC12 Aluminum 5 Years Warranty IP66 800W 1000W 1200W SMD LED Stadium Flood Lighting


ADC12 Aluminum 5 Years Warranty IP66 800W 1000W 1200W SMD LED Stadium Flood Lighting

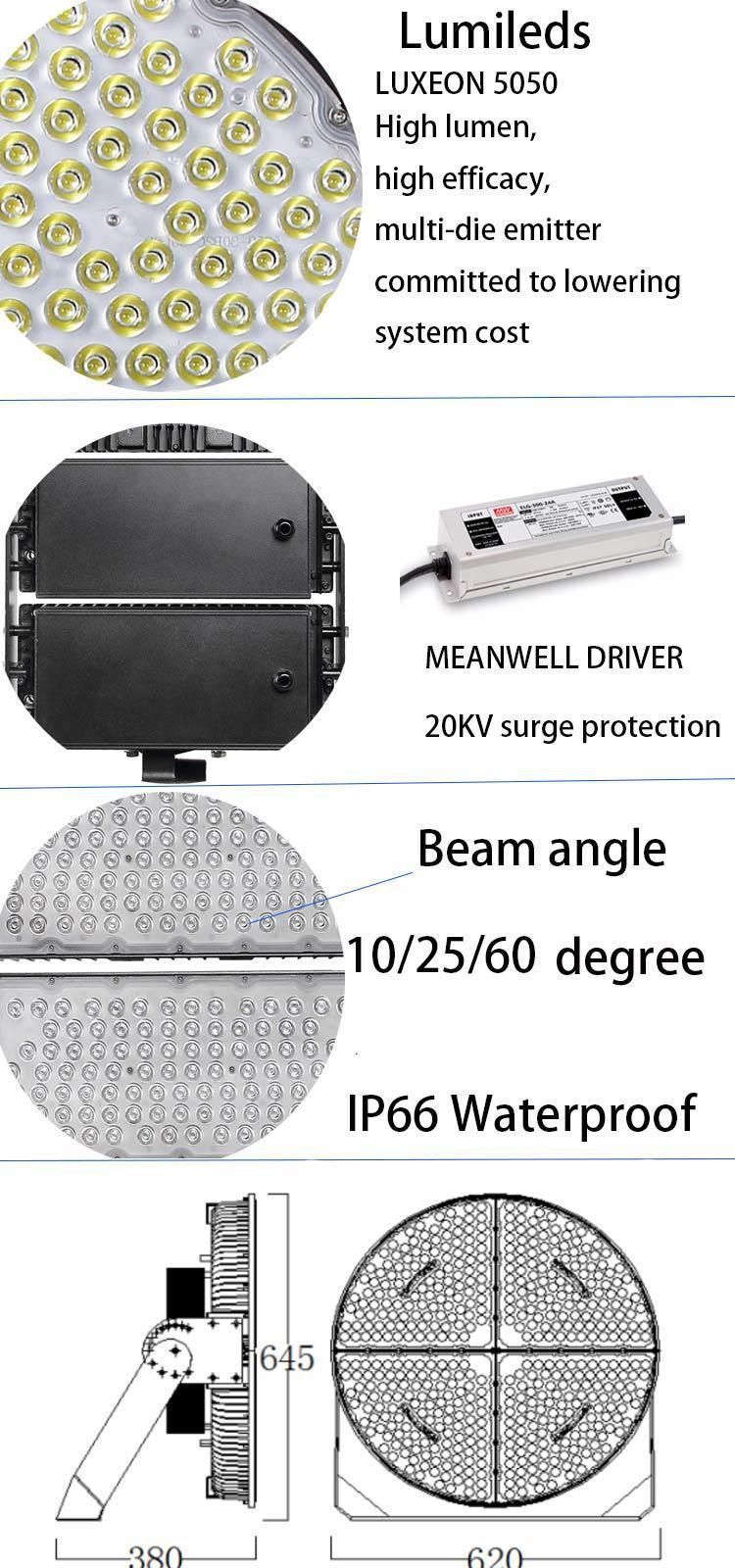

Better quality:
1. Lumleds Luxeon 5050 SMD, 140-150LM/W at the finished lamp, and 180-200LM/W for each SMD itself.  CCT for 3000K, 4000K, 5000K, 6000K available.
2. Meanwell LED power supply, ELG series. 20KV surge protection.
3. Multi-beam angles for option: 25° / 45° / 60°
4. IP66 weather proof.
5. IK08, anti-wind L17, robust design and aluminum fins for better dissipation.
6. Our engineers will make use of lighting design software called DIALux to simulate the illuminance on the ground.


ADC12 Aluminum 5 Years Warranty IP66 800W 1000W 1200W SMD LED Stadium Flood Lighting
ADC12 Aluminum 5 Years Warranty IP66 800W 1000W 1200W SMD LED Stadium Flood Lighting

ADC12 Aluminum 5 Years Warranty IP66 800W 1000W 1200W SMD LED Stadium Flood Lighting


Product manual:
1.LED stadium light adopts Lumleds 5050 SMD, energy saving 140-150LM/W high brightness and higher color rendering index > 80ra.
2. Die-casting aluminum housing, black oxidation finish and heat conduction treatment to improve the heat generated by the lamp board and the power source of the lamp, which can be quickly exported to the outside the lamp, lifetime 50,000 hours.
3. Meanwell brand constant current supply, high efficiency, low heat, high constant current accuracy.
4. Unique structure, high efficiency and energy saving, green and environmental protection.

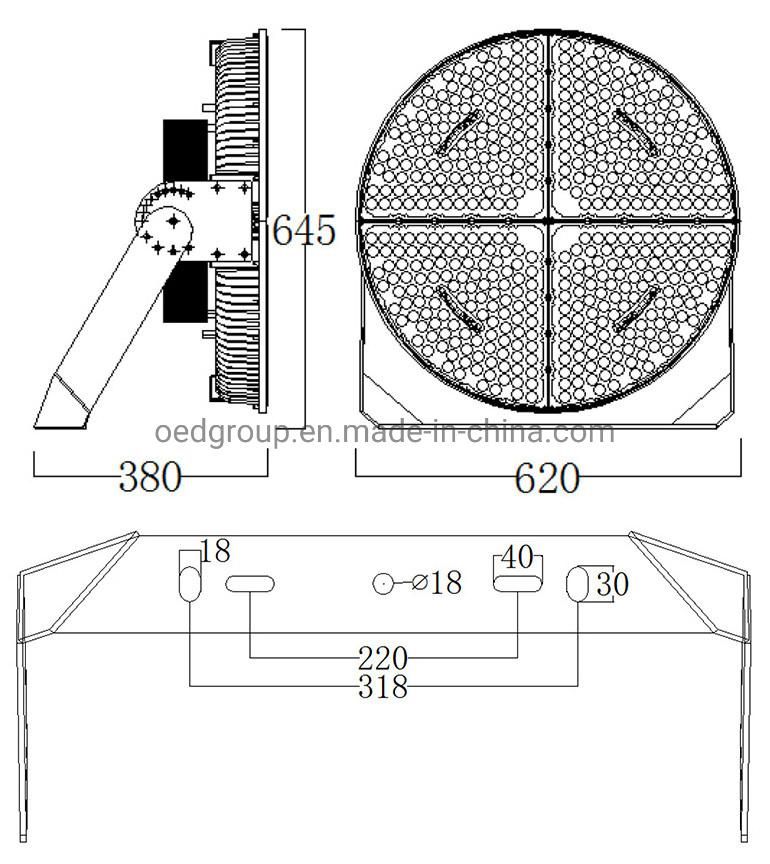

IP66 960W 1000W 1200W LED stadium Light Dimensions:
ADC12 Aluminum 5 Years Warranty IP66 800W 1000W 1200W SMD LED Stadium Flood Lighting

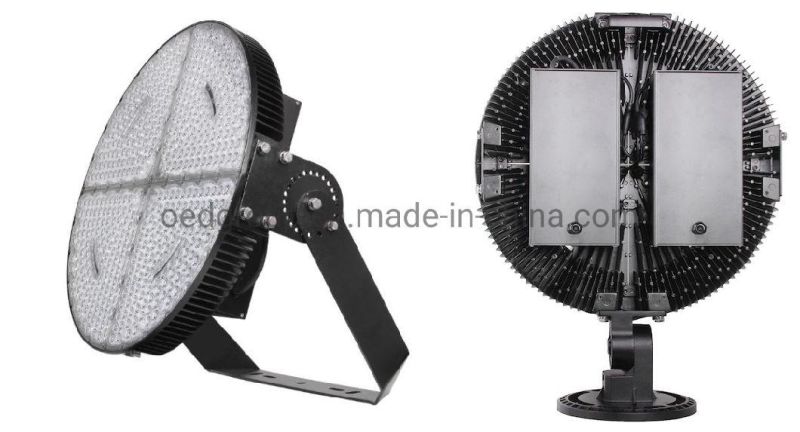

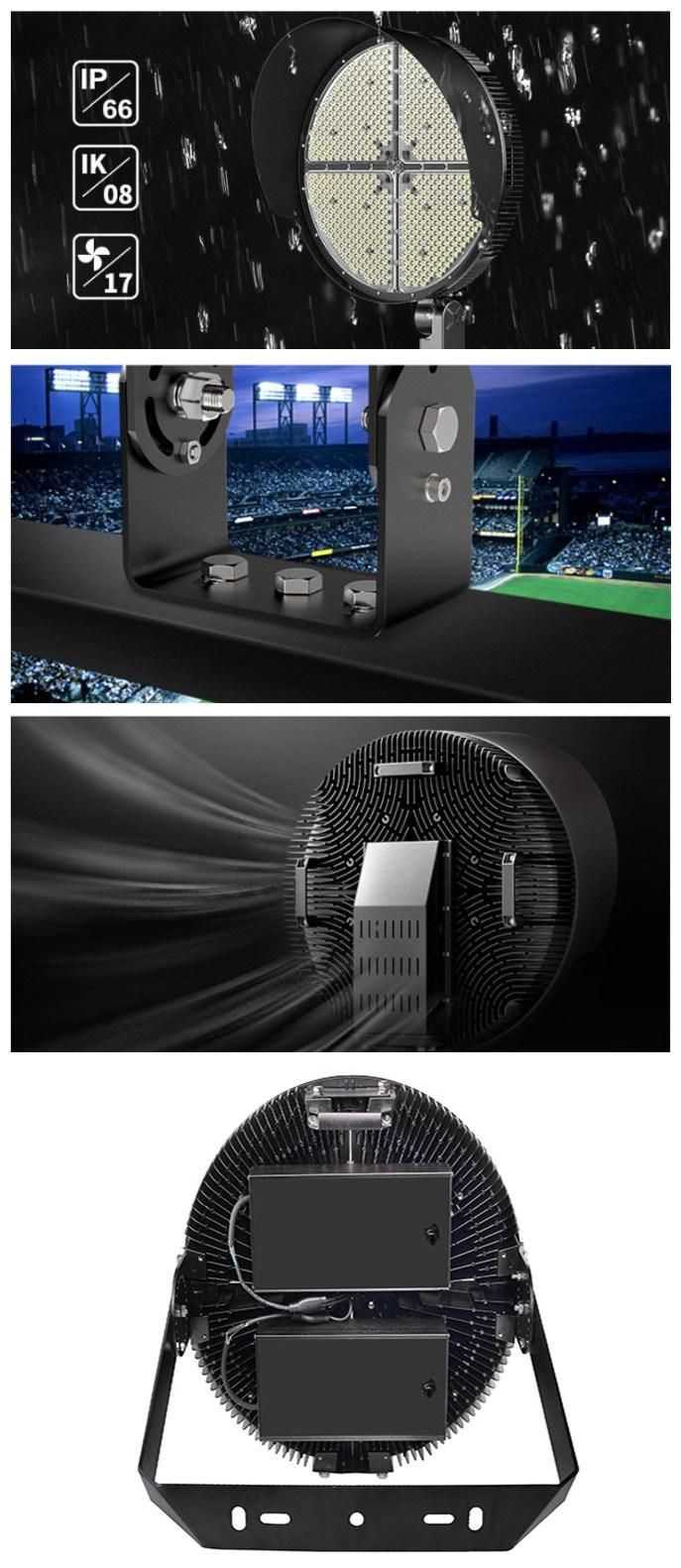

Features:
1. Aluminum material, the light with narrow beam angle can be more focused and goes further away.
2. Waterproof IP66 for indoor or outdoor use.
3. Optical PC lens, 25 / 45 / 60 beam angle for option.
4. 5050 Lumleds chips, superior efficiency, 140~150 LM/W.
5. Every unit independent heat sink design increase air contact and area, which makes better ventilstion and heat dissipation.
6. 20KV surge protection,Wide input voltage AC85-305V, offering superior performance and reliability.
7. Driver cover,protect drivers and make better in heat-dissipation.

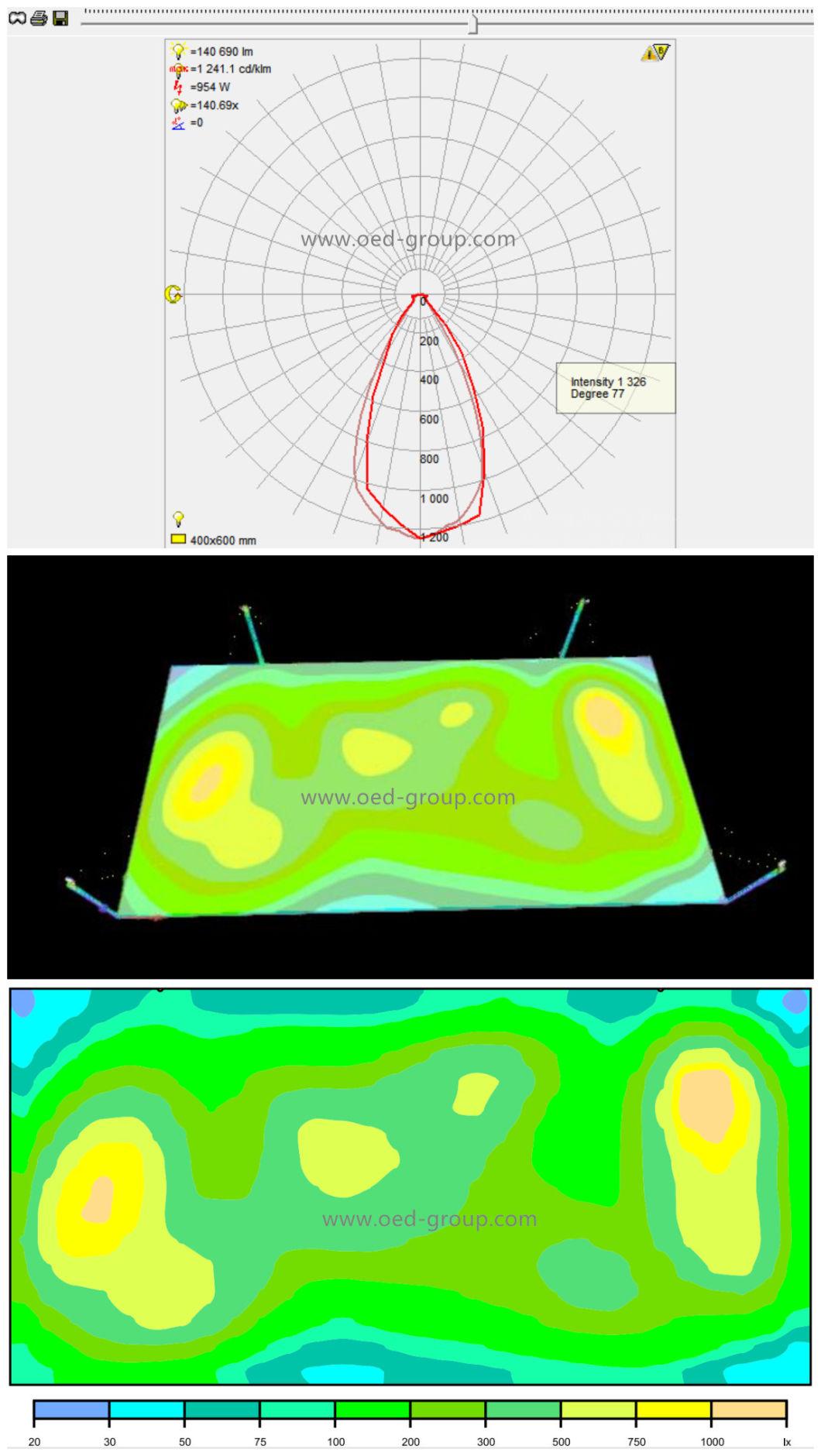

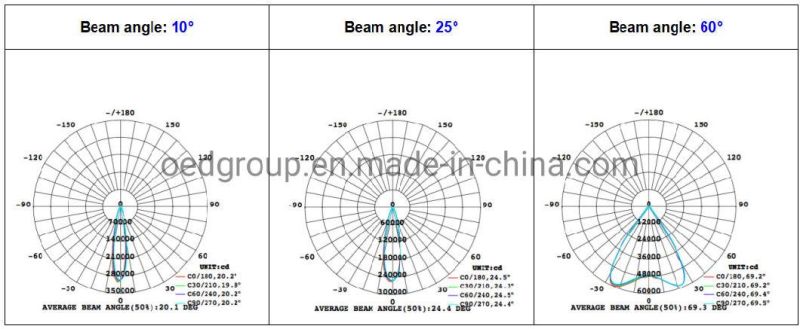

Luminous Distribution:
ADC12 Aluminum 5 Years Warranty IP66 800W 1000W 1200W SMD LED Stadium Flood Lighting

Application:

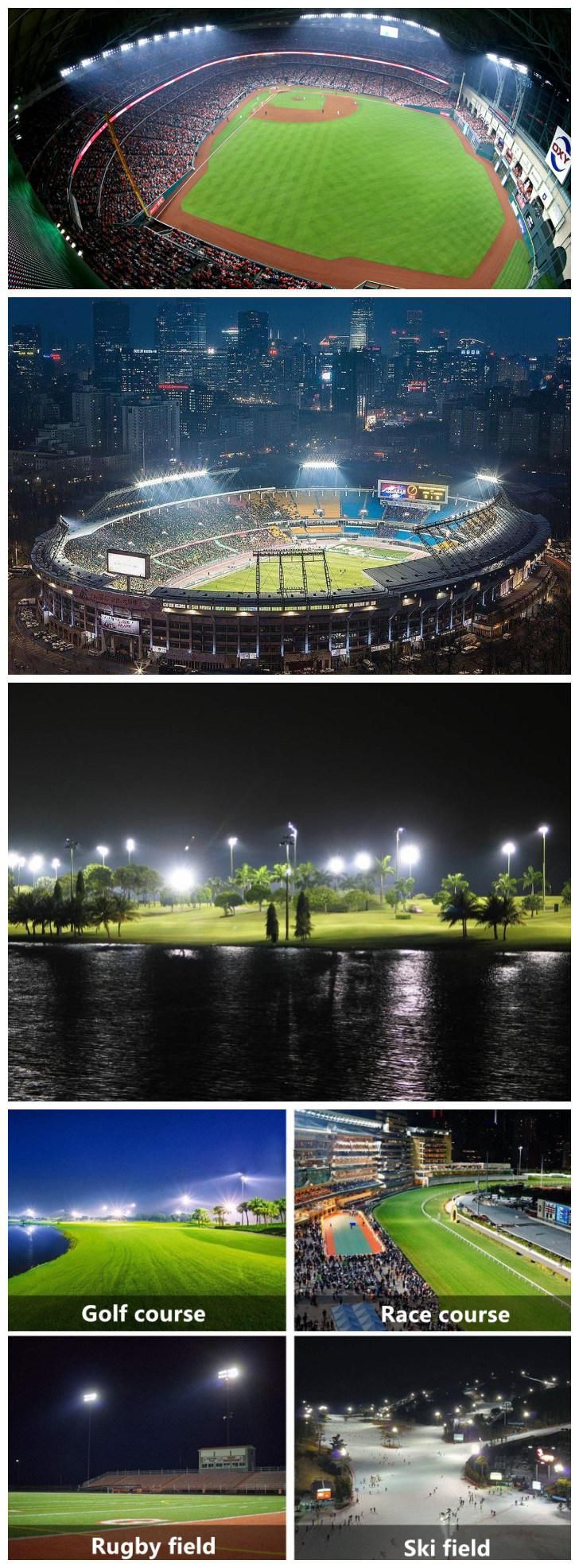

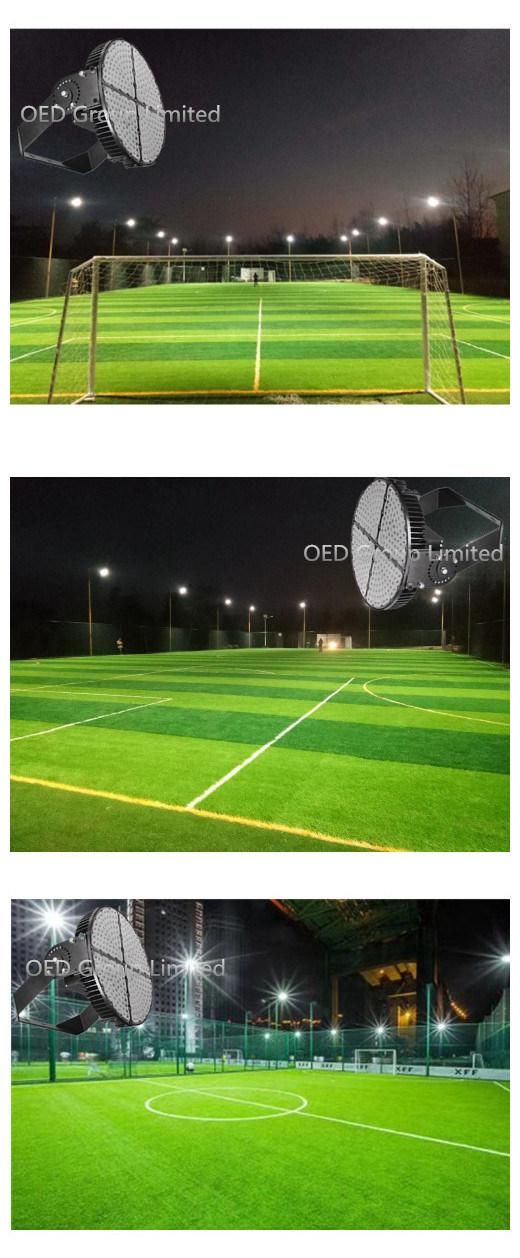

Applicable to football stadium, baseball stadium, ski field, rugby field, race course, golf course, seaport, airport,dock, large parks lighting etc.
ADC12 Aluminum 5 Years Warranty IP66 800W 1000W 1200W SMD LED Stadium Flood Lighting


ADC12 Aluminum 5 Years Warranty IP66 800W 1000W 1200W SMD LED Stadium Flood Lighting

Installation instructions:
1. Non-specialist electricians please do not repair or modify this product without authorization;
2. Please turn off the power before installation;
3. Before installation, please check whether the voltage marked on the lamp is consistent with the input voltage to be connected;
4. In order to ensure the service life of the product, please do not use it in a place with strong acid mist;
5. Pay attention to shock protection during installation and transportation;
6. Before installation, ensure that the installation position can withstand 10 times the weight of the product, and install it in a flat place without vibration, no swing, no fire hazard;
7. If the lamp fails, please place the lamp in one place and send it back to the company for inspection and repair.
8. If the lamp body or wire is damaged, please stop using it immediately.

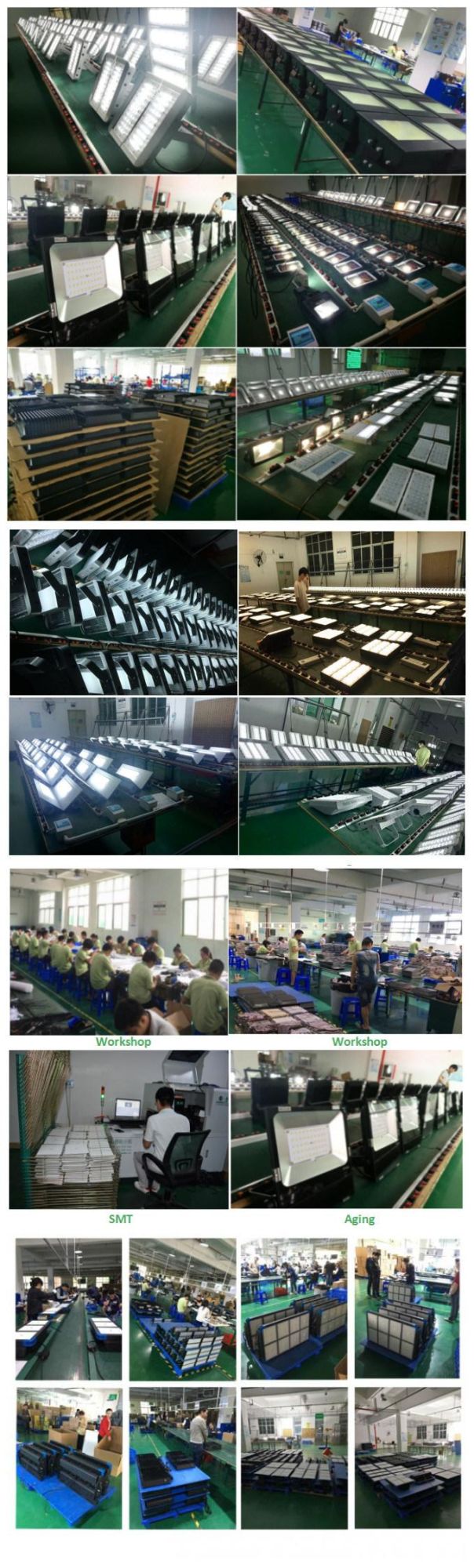

Our company & workshop:
We have 8 production lines at production department, including assembling, inspection and aging test lines.
Production ability: 8-10 days for 500pcs LED stadium light, and 15-16 working days for 3000pcs LED stadium Light at common requirements.
ADC12 Aluminum 5 Years Warranty IP66 800W 1000W 1200W SMD LED Stadium Flood Lighting
ADC12 Aluminum 5 Years Warranty IP66 800W 1000W 1200W SMD LED Stadium Flood Lighting

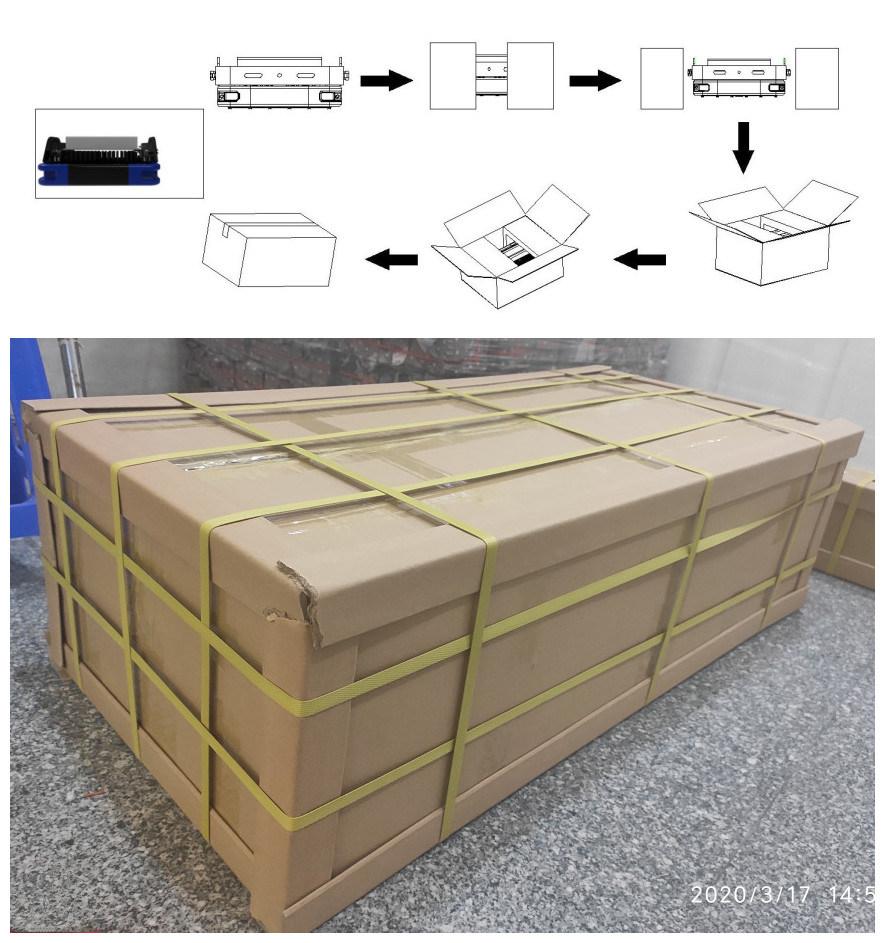

Packing & Aging test:
Each Lamp must pass 24 hours aging test and high voltage surge test before we make packing and make delivery.

ADC12 Aluminum 5 Years Warranty IP66 800W 1000W 1200W SMD LED Stadium Flood Lighting


Our Services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. Excellent design team with designers of more than 12 years experience, can offer professional advice for practical application;
3.  5000,000 pcs light source annual production capacity, the products export to EU market, American market, Russia, Kazakhstan, Australia, South Africa, Zimbabwe, Vietnam, etc;
4. Good OEM & ODM business ability, 6 production lines meet your shipping requirement;
5. Export port Shenzhen, Hongkong or Shanghai;
6. Discount available for bulk order;
7. High quality component and material, Osram, Bridgelux, 3030SMD, 5050SMD, Epistar LED chips, MW / Sosen / HT/ TUV SAA CE listed driver etc, depend on your needs.

Payment Terms:
TT Bank Transfer, support 30% deposit and 70% before delivery;
PayPal, western union, Alipay etc.
NO O/A.

Delivery time:
Samples and less than 100pcs in 3-5 working days;
500pcs in 8-10 working days;
3000pcs in 15-16 working days.

About Shipping:
Samples sent by DHL, TNT, FedEX, UPS, SF Express, Aramex etc. Door to door, you may pay customs tax depends on your customs policy.
By air or by sea for bulky orders available.

FAQ:
1. Are you factory supplier?
Yes, we are manufacturer of LED lamps since 2008 and we have our own factory, supply duable super quality items and reliable after-sale service.

2. Do you supply OEM or ODM?
Yes, we can supply OEM and ODM serice with favorable price and we have our own mould workshop, your brand and logo can be printed on the items.

3. How long will it spend for our orders to be sent out?
It takes 3-5 days for samples at common requirements, and 10-15 days for big order such as 3000pcs stadium light.

4. What about your after-sales servie and warranty policy?
We offer 5 years warranty for this stadium light, by supplying you the lamp parts or new replacements for free during the warranty period for any non-human defective lamps.
