• Model NO.：Phenix 625
• Warranty：1 Year
• Certification：CE, CQC, RoHS, UL
• Electric Current Type：AC
• Input Voltage：AC 100V-240V
• Net Weight：11kg
• Size：766*108*213mm
• LED Source：6PCS*25W Full Rgbaw LED
• Rated Power：150W
• Control Signal：DMX512
• Control Mode：DMX1990,DMX512A,Stand Alone,Master and Slave,Sound
• Channel：5,6,11,18,23,30,38CH All Inside Menu.
• Light Effiacy：>41.1lm,W
• OEM or ODM：Available
• Operate Temperature：-20~+45celsius Degree
• Transport Package：1PCS,Carton
• Specification：CE, RoHs, UL, CQC
• Trademark：Longman
• Origin：China
• HS Code：9405409000
• Production Capacity：5, 0000 PCS, Month

Basic Info.

Model NO. Phenix 625 Warranty 1 Year Certification CE, CQC, RoHS, UL Electric Current Type AC Input Voltage AC 100V-240V Net Weight 11kg Size 766*108*213mm LED Source 6PCS*25W Full Rgbaw LED Rated Power 150W Control Signal DMX512 Control Mode DMX1990/DMX512A/Stand Alone/Master and Slave/Sound Channel 5/6/11/18/23/30/38CH All Inside Menu. Light Effiacy >41.1lm/W OEM or ODM Available Operate Temperature -20~+45celsius Degree Transport Package 1PCS/Carton Specification CE, RoHs, UL, CQC Trademark Longman Origin China HS Code 9405409000 Production Capacity 5, 0000 PCS/ Month

Product Description

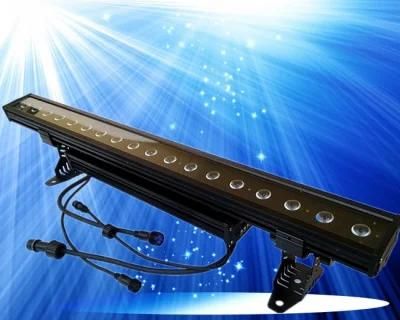

Rgbaw Outdoor LED Lights IP65 DMX512 LED Wall Washer


Features:
 1.High quality LED light source, 25W COB RGBAW
 2.Precise Lens curve,better color mixing,SDC<0.005.
 3.11926Lumens Output,hight effieciency light output 90% Lumens within 10% Intensity field angle.
 4.With Function ID and adress ID, for 1 controller to run more lights
 5.32 Bit MCU,Dim 4 Square law dimming for 0-100%, no visible shock at low DMX Value.
 6.Display auto turn off when no operation and Auto show DMX signal come or not
 7.Independent circuit driving, each 450mA,even ampere distribute.
 8.NTC temperature control system inside, could show temperature at real time;
 9.More than 15000 Hours Longevity for SMPS and Main board.
 10.Field Angle standard 30°,could choose other angle, and also frosted piece and 30x 90° third optical piece.

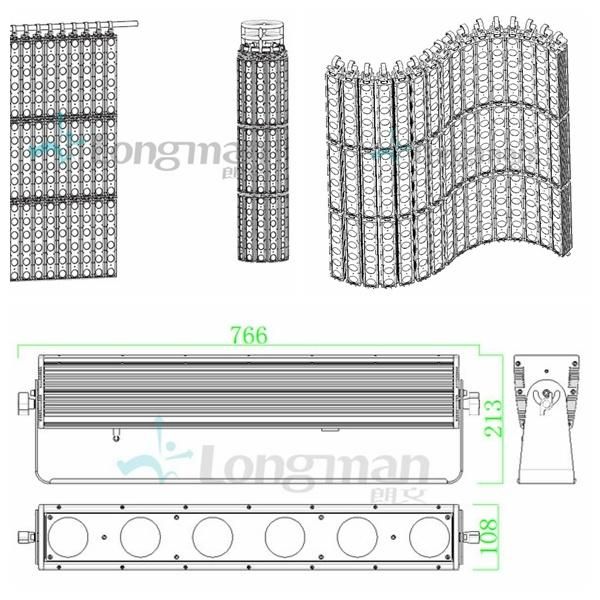

Installation:

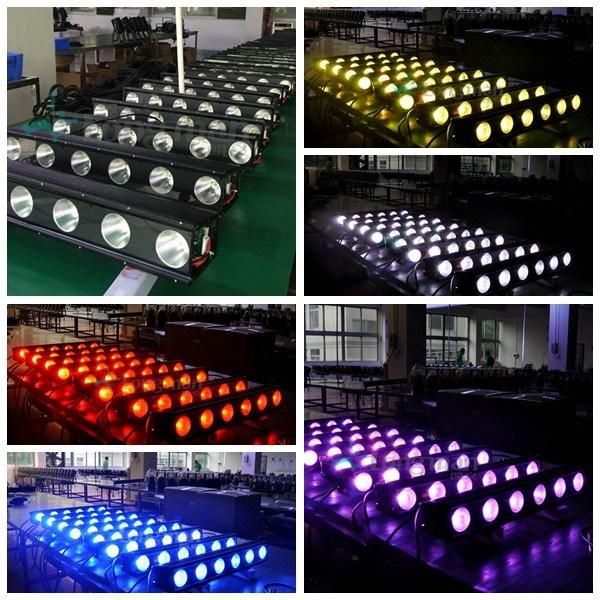

Producing pictures:

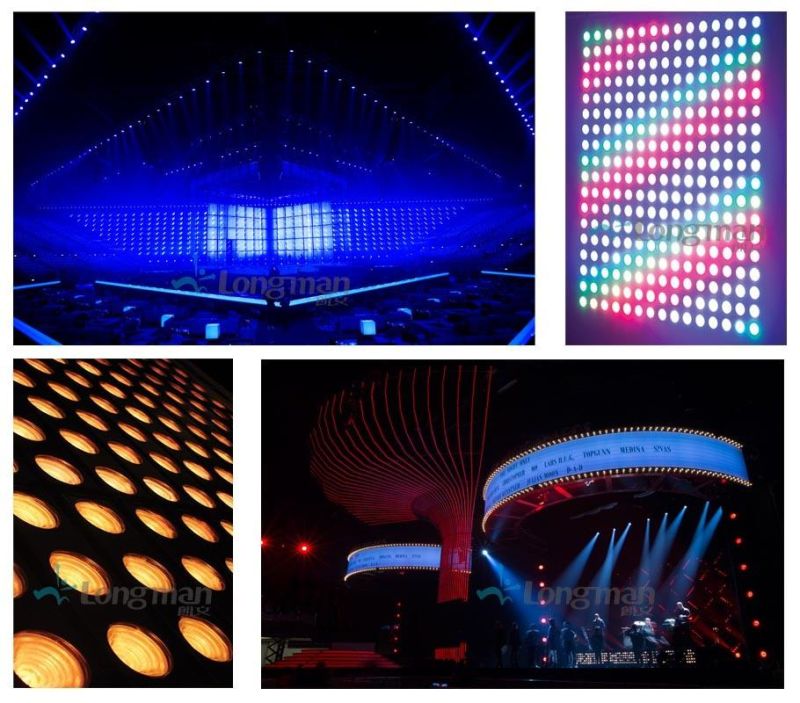

Applications:





Specification:

Voltage input	AC 100V-240V 47-63Hz PF:>0.7
Voltage output	DC15V,longevity 15000Hours
Rated power	150W(132@220V 50Hz)
Luminaire Efficiency	>0.9,Light Effiacy >41.1lm/W.
Light source	6pcs*25W Full RGBAW LED,6 pixels,450mA driving total 5960Lumens output
LED CCT	R=625nm,G=525nm,B=460nm,A=590nm,W=6500K,offer multi-Color and many white color,SDC<0.005.
Field Angle(10%)	standard 97 °(4174Cd on axis),60°Etc optional.
Control signal	DMX512,32 bit Dim4 square law dimming, smooth in low DMX Value, no vision shock,PWM>1500Hz,Flicker free.
Control mode	DMX1990/DMX512A/stand alone/master and slave/Sound Active
Chanel option	5/6/11/18/23/30/38CH all inside menu.
Display	Touch disaply,Could choose auto turn off no operation,Auto show DMX signal come or not
Housing material	Extrusion aluminium,anodized matt black, customized other color and barndoor.
Safty	Class II, Powercon Blue and white souket, Endure 5ms 1.5KV shock,Flame Rating V-1, Protect Rated IP65.
Operate temperature	-20~+45ºC,Light board peak temperature 80ºC by neutral cooling and with NTC protection.
Cerficated	Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750.
Weight	11KG,with 3mm thick bracket
Size	766*108*213mm

Exhibitions:

Shipping:
Our products can be shipped by Sea, by Air, or by Express.which methods to be used is based on

the weight and size of the package, and with consideration of customer's requirements.

by sea: 20-40days;

by air: 5-10days ;

by express: 3-6days

Why choose us:

1. Price: we are factory, able to offer better price .

2. Good quality: we are experienced in quality control; Through CE, RoHs,UL certification.

3. On time delivery: delivery the goods on time;

4. Professional seller: good communication in patient and well know our products;

5. MOQ: depent on different lights.

6. ODM&OEM :good ODM&OEM and custom engineering services.



FAQ:


1. Are you a factory or trading company? Yes , We are a factory.

2. Where is your factory located? How can I visit there? Our factory address is :  No.2 XiaheRoad, Baiyun Industrial Area , Jianggao Town, Baiyu District, Guangzhou,  China ,about 30 minutes away from Bai yun Airport by metro. All our clients, no matter where you are from, all are most welcome to visit us !

3. Which products we have? We produce different kinds of LED Light . Our product: A. LED Moving Spot and Wash; B. Studio Light; C. Indoor Parcan; D. Professional Wash; E. Audience and DJ; F. Outdoor Parcan; G. Outdoor Washer; H. Black Light; J. Control System; K. Dramatic architectural and landscape lighting.

4. How to get the latest price? If you want the latest price, Please Email or call us with the items names or NO. What are you interested in ,together with your details(name,details address,telephone,etc),we will send to you as soon as possible.

5. Does the products have any certificate? Yes, our products have CE,ROHS ,UL and SGS certificate .

6. What's the Payment method? All methods can be discussed.

7. How to Place an order? Please kindly send us you order by email ,we will confirm the PI with you .we wish to know the below:Delivery information,company name, address details,phone/fax number,destination,transportation way ;Product information: item number,size,quantity,logo,etc.

LED Wall Washer from China professional LED Wall Washer manufacturer.
If you have specific parameters and requirements for LED Wall Washer, customization is available.
