• Model NO.：LED Street Light Housing MLT-SLH-GM-II
• With Light Source：Without Light Source
• LED Chips Brand：Semileds
• Model No.：LED Street Light Housing Mlt-Slh-GM-II
• Dimension of Housing：69.5cm(L)*29.0cm(W)*10.6cm(H)
• Fixture Material：Die-Casting Aluminum Alloy
• Surface Finish Color：Sanded Gray or Customized Color
• Material of Diffuser：High Transmittance Tempered Glass
• Effective MCPCB Mounting Size：205.5mm(L)*155mm(W)
• Recommended LED Power：120W to 150W
• Driver Box Dimension：245mm(L)*100mm(W)*62mm(H)
• Pole Mounting：Accommodates up to Φ65mm Pipe
• Adjustable Slip Fitter：-15°to +15°
• Standard Photocell：Optional
• Quick Disconnection Terminal Block：Optional
• Transport Package：Form Box with Export Carton
• Specification：LED Street Light Housing MLT-SLH-GM-II
• Trademark：Moonlight
• Origin：China
• HS Code：9405990000
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. LED Street Light Housing MLT-SLH-GM-II With Light Source Without Light Source LED Chips Brand Semileds Model No. LED Street Light Housing Mlt-Slh-GM-II Dimension of Housing 69.5cm(L)*29.0cm(W)*10.6cm(H) Fixture Material Die-Casting Aluminum Alloy Surface Finish Color Sanded Gray or Customized Color Material of Diffuser High Transmittance Tempered Glass Effective MCPCB Mounting Size 205.5mm(L)*155mm(W) Recommended LED Power 120W to 150W Driver Box Dimension 245mm(L)*100mm(W)*62mm(H) Pole Mounting Accommodates up to Φ65mm Pipe Adjustable Slip Fitter -15°to +15° Standard Photocell Optional Quick Disconnection Terminal Block Optional Transport Package Form Box with Export Carton Specification LED Street Light Housing MLT-SLH-GM-II Trademark Moonlight Origin China HS Code 9405990000 Production Capacity 5000PCS/Month

Product Description

LED Street Light Housing MLT-SLH-GM-IILed street light housing, led street lamp housing, led street light casing

Brief Introduction

This LED street light housing fixture MLT-SLH-GM-II is the large size of SMD LED street light housing fixture from Moonlight LED street light G series. Modern design, precision die-casting molded and superior corrosion resistant coating finish housing with standard twist lock photocell mounting platform, make this housing can be used for variety of LED roadway lighting applications.

Feature

• Durable aluminum alloy die-casting LED street light housing for heavy-duty outdoor lighting applications.
• Ribbon-free and compact design.
• Easy drainage system.
• Separate LED light engine and driver box for easy maintenance.
• Tool-less design for replace the LED driver without any tool.
• Large driver box complies with variety of drivers and dimming options.
• Both cover and bottom of the driver box have the GND bosses for security.
• Plastic electrostatic spraying to resist corrosion, chipping and fading.
• Adjustable knuckle slip fitter help to adjust the led street light fixture on-site for optimal photometric performance, which make sure that the light distributions, are specifically adapted to the real needs of the area to be lit.
• Side-entry or post-top mounting. Universal mounting pieces allows precise adjustment on-site.
• 5mm high light transmittance tempered glass diffuser.
• Silicon gaskets.
• SUS304 stainless steel bolts for fastening.
• The powder coated die-cast clips make it a harmonious overall with the rest of the luminaire.
• Twist lock photocell mounting platform for lighting control.
• Quick disconnection terminal block mounting platform for disconnect the power supply for linemen handling security.
• IP66 rated, protect from all dust and harsh weather.
• Standard sanded gray finish.
• Easy to assemble, install and linemen friendly maintain.

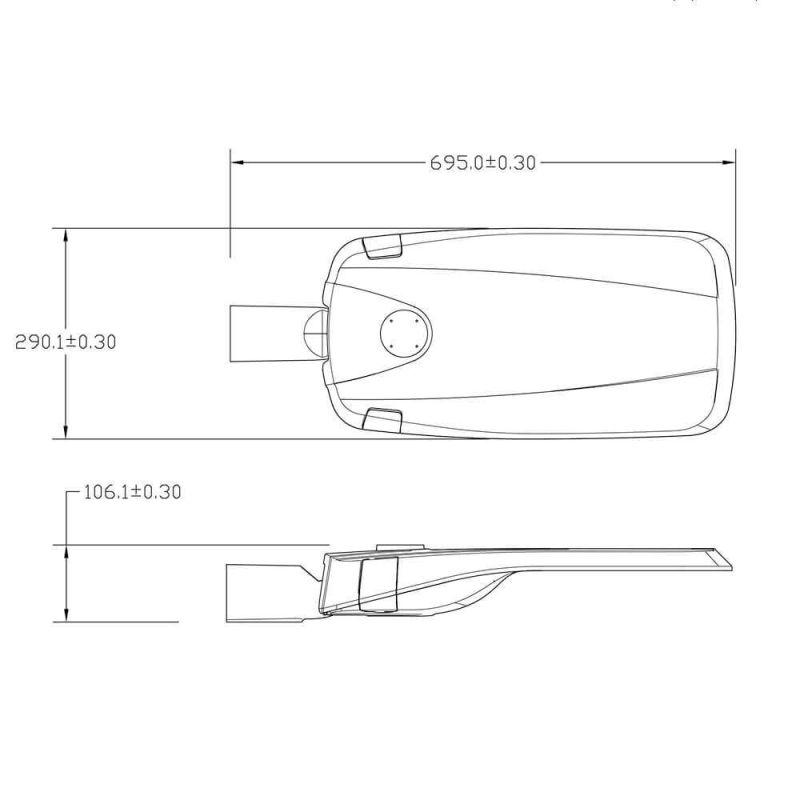

Mechanical Dimensions


 Parameter


• Model No.	LED Street Light Housing MLT-SLH-GM-II
  Dimension of Housing	69.5cm(L)*29.0cm(W)*10.6cm(H)
  Fixture Material	Die-casting Aluminum Alloy
  Surface Finish Color	Sanded Gray or Customized color
  Material of Diffuser	High Transmittance Tempered glass
  Effective MCPCB Mounting Size	205.5mm(L)*155mm(W)
  Recommended LED Power	120W to 150W
  Driver Box Dimension	245mm(L)*100mm(W)*62mm(H)
  Pole Mounting	Accommodates up to Φ65mm pipe
  Adjustable Slip Fitter	-15°to +15°
  Standard Photocell	Optional
  Quick Disconnection Terminal Block	Optional
  IP Rating	IP66

Application

• This heavy-duty, modern design and cost-effective LED street light housing fixture is typically used as 120W-150W LED street lighting fixture. LED street lighting is used extensively in urban settings, along small town downtown main streets, in residential neighborhoods, in commercial districts, public squares, in industrial parks, at interstate highway interchanges, bridges, and rural intersections.

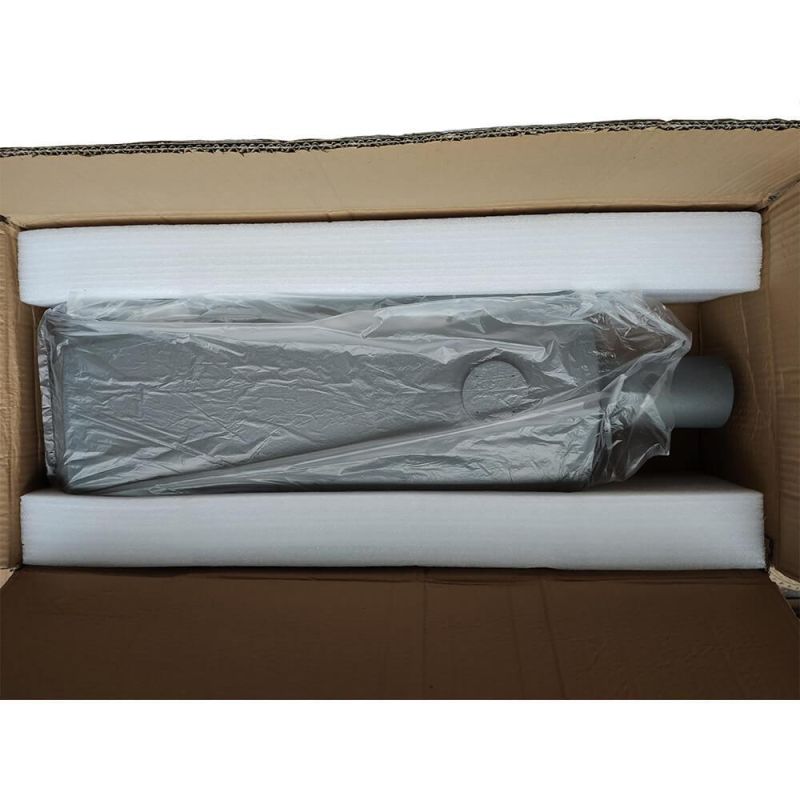

Packing

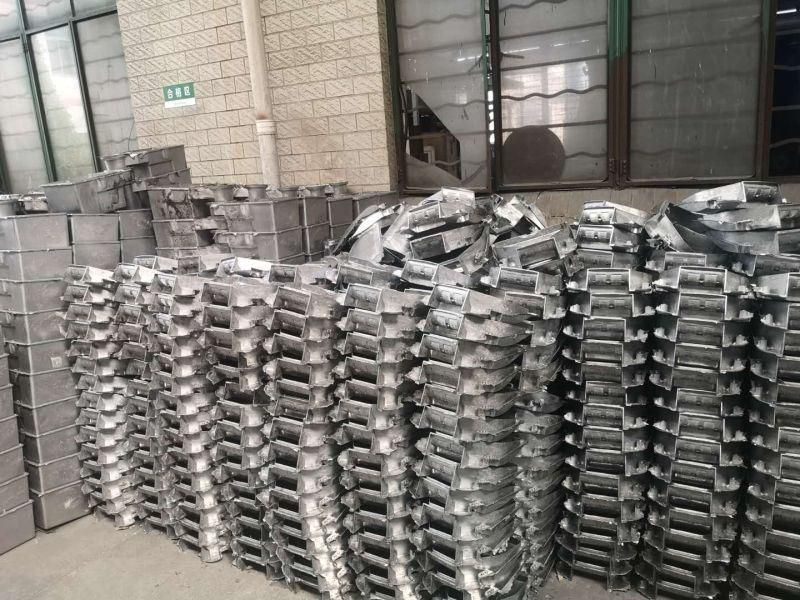

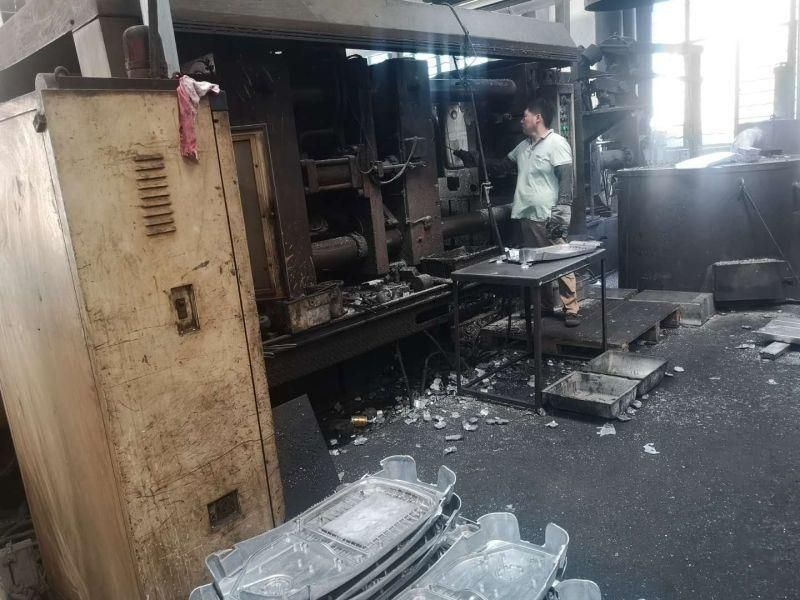

Factory Show


LED Street Light Housing Supplier Main Street Light Housings:

FAQ

Q1: How could I get a sample?
A1: Email us the models and quantity of our LED light housings you need, and tell us your express account number for shipment, then we send you the PI. When you have transferred the money, send us the TT copy for check. We will send out samples within 3 working days after we get the payment for general models of our LED lighting fixtures.

Q2: How to place an order?
A2: Email order details to sales department including items model number, quantity, destination port (we need it to calculate the shipping cost), selling countries, consignee's contact information including detail address and phone fax number and email address, notify party, etc.

Q3: Could we place order by OEM or ODM style to produce our own brand products in your factory?
A3: Of course you can. Welcome to do OEM or ODM Order for our LED lighting fixtures. What you need to do is to send us the Drawing of your style with products, and we will submit sample or prototype of LED light housings to you for your approval.

Q4: What kind of shipment will you use?
A4: EMS, TNT, DHL, FEDEX, AIR WAY, SEALAND. Because our LED lighting fixtures especially LED street light housings are very heavy, normally we will choose the most economic way for the shipment. But if you need the samples urgently, please kindly remind us.

Q5: How soon we can get the shipment?
A5: It depends on your models of LED light housings you have selected and order volume. Please tell us the models and quantity, so we can confirm with you via Email.
