20m~40m CE Certified LED Flood High Mast Light Lighting Pole

Eastar Electric Group Co., Ltd.
  • Color Temperature：Pure White
  • Lamp Body Material：Aluminum
  • Pole Height：20~45m
  • Power：1000~3000W
  • Projection Distance：50m
  • Usage：Square

Base Info

  • Model NO.：YSD-GGD-002
  • IP Rating：IP67
  • Certification：CCC, CE, CQC, EMC, Energy Star, RoHS
  • Input Voltage：220V
  • LED Chips Brand：Bridgelux
  • Transport Package：Bubble Pack, Non-Woven Fabric
  • Specification：pole, led flood light, lifting system
  • Trademark：EASTAR
  • Origin：Yangzhou City, Jiangsu Province
  • HS Code：9405409000
  • Production Capacity：1000 Sets,Month

Description

HeightFrom 15 m to 45mSuit for Airport ,seaport,plaza,stadium ,square,highway station,street way ,etcShape Round or polygonMaterialQ345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2Torrance of dimension-0.02Lighting source400W~2000W high pressure sodium flood light, LED flood light, metal halide lightLamp plateVarious figure of selection ,material with hot dip galvanization steel frameLifting system Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute,Equipped e;antiferromagnetism brake and break -proof device,manual operation applied under power cutElectric appliance control deviceElectric appliance box to be be the hold of the pole ,lifting operation could be 5 meter away from the pole through wire .Time control and light control could be equipped to realize full-load lighting mode and part lighting modeSurface treatment Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client requiredJoint of polesInsert mode,inner flange mode,face to face joint modeDesign of poleAgainst earthquake of 8 gradeWind Speed 150KM/HThickness 6mm/8mm/10mm



Lifting system

  • Latch barrel with inner mounting bracket locker is mounted to an underside of the mast-top pulley assembly. Furthermore, all steel cables are not exposed and more effectively protected.
  • Latching mechanism latched on steering arms is able to release strain on steel cables when in the operation position. The process of latching on and off is stable and without vibration.
  • The bumper is designed on the luminary mounting bracket for avoiding direct damage between mast-top assembly and the raising luminary mounting bracket.

  • The leveling device for luminary support bracket is easy to operate and convenient to adjust level.

    Special designed red-flag indicator has obvious visual effects and reflects actual situation of latching operation.

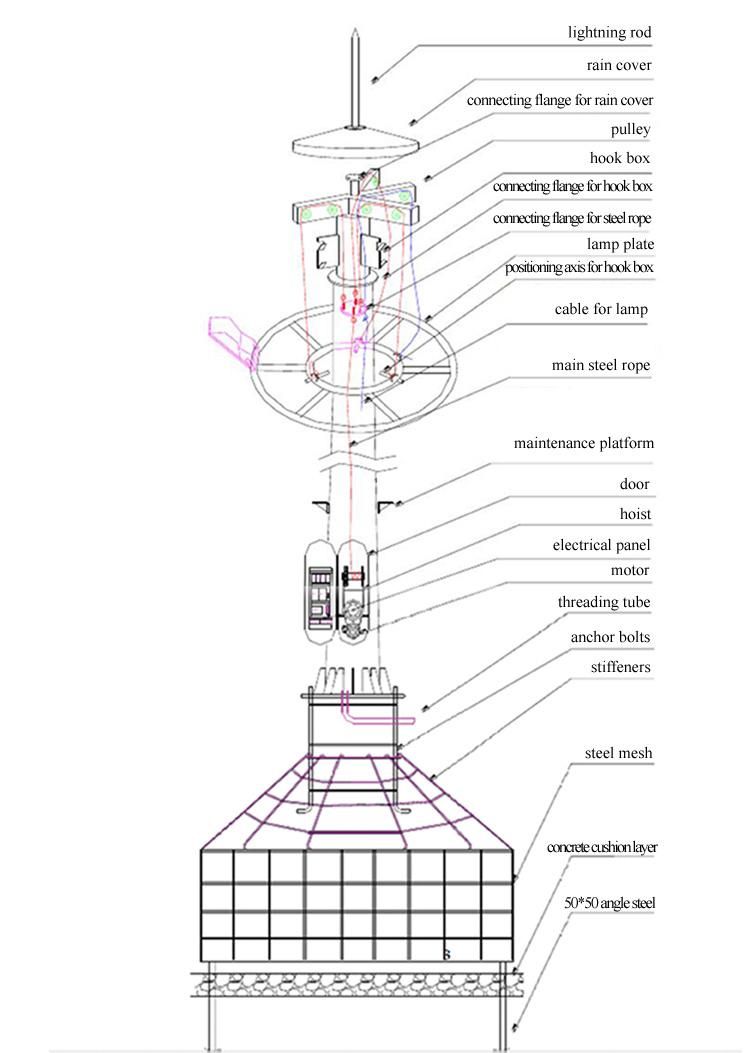

Product Structure

20m~40m CE Certified LED Flood High Mast Light Lighting Pole

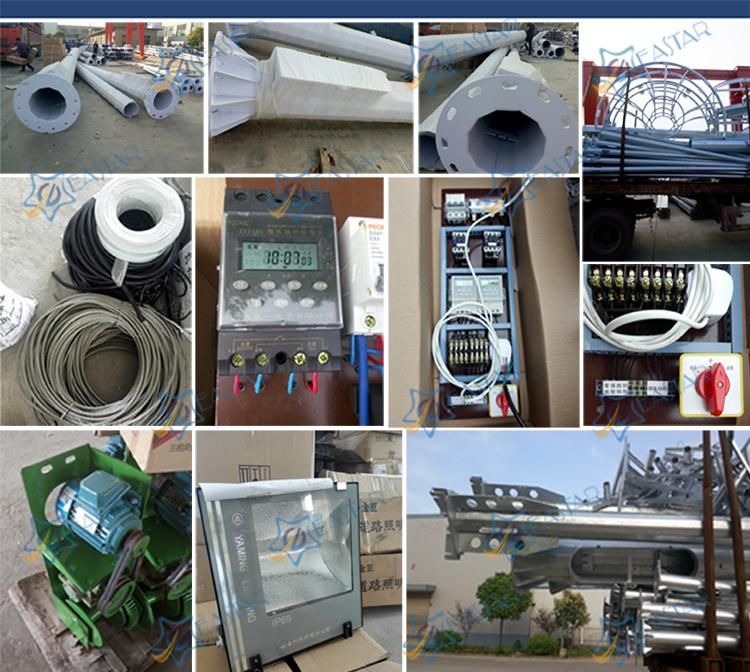

Detailed Components

20m~40m CE Certified LED Flood High Mast Light Lighting Pole

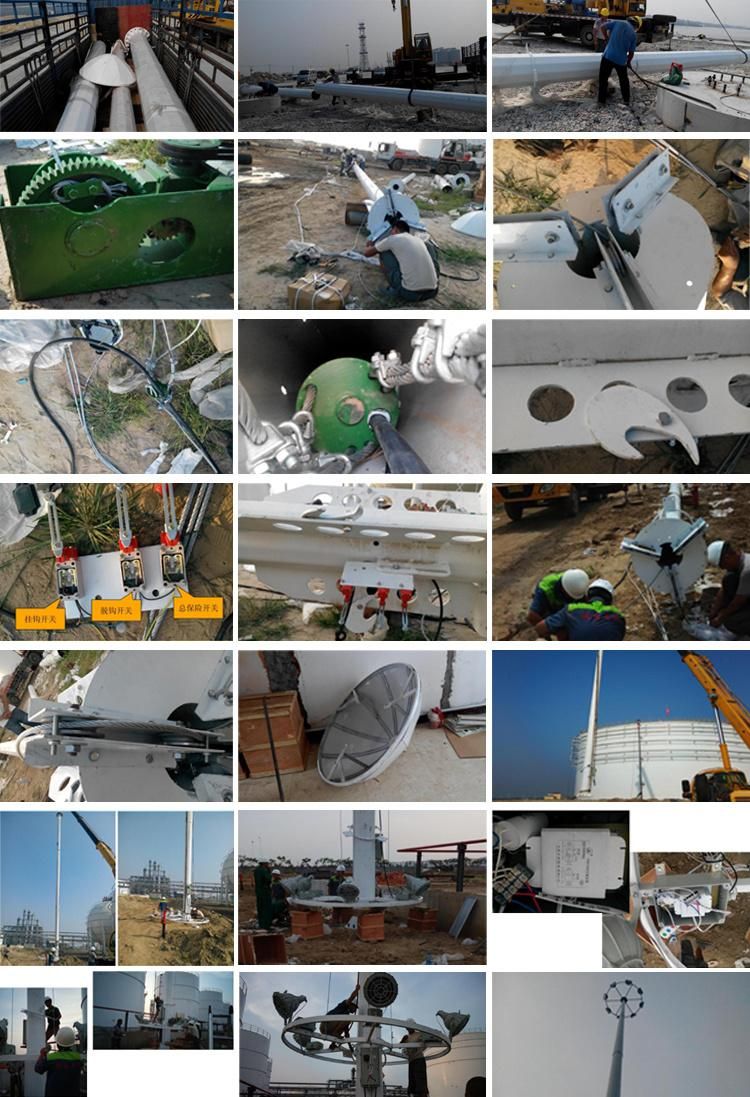

Installation Process

20m~40m CE Certified LED Flood High Mast Light Lighting Pole

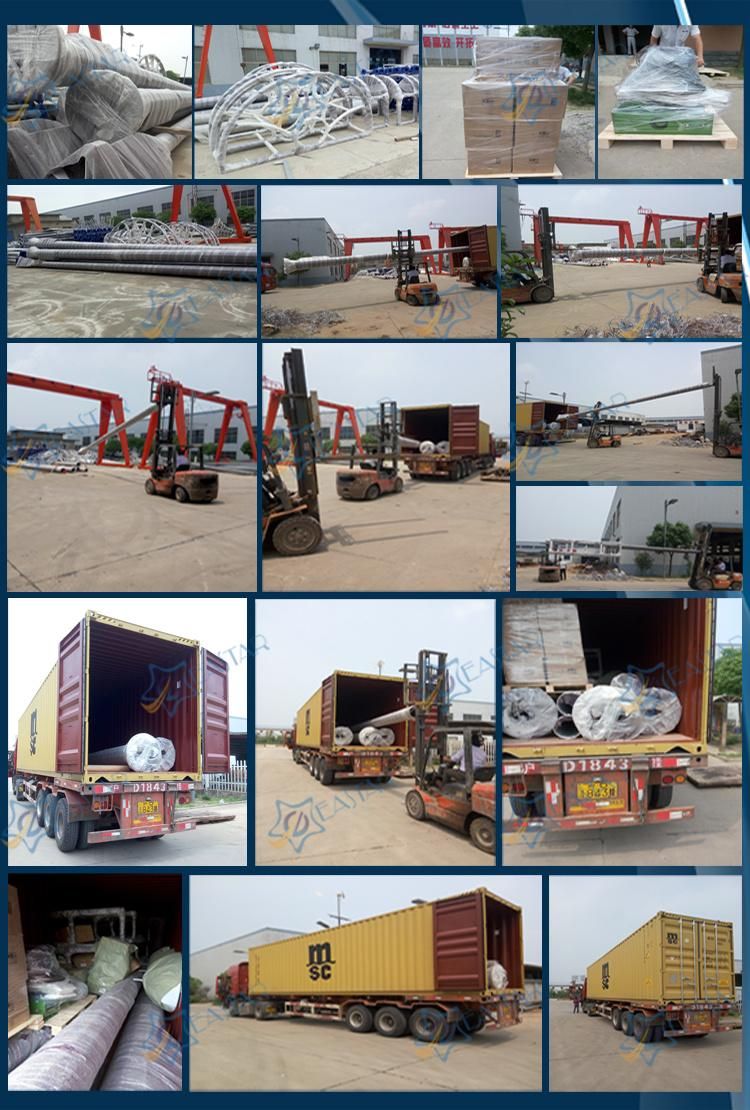

Packing and Shipping
20m~40m CE Certified LED Flood High Mast Light Lighting Pole

20m~40m CE Certified LED Flood High Mast Light Lighting Pole
