• Model NO.：DF-J-MY24
• Certification：CCC, CE, EMC, FCC, RoHS, UL, ECE R65, R10(EMC) ,SAE J845 Class 1
• Operating Voltage：DC10-30V
• Input Voltage：12V
• LED Chips Brand：Osram
• Warranty：3 Yeas
• Transport Package：Cartoon Box
• Specification：111*118MM
• Trademark：Veise
• Origin：Guangzhou, China
• Production Capacity：50000PCS,Month

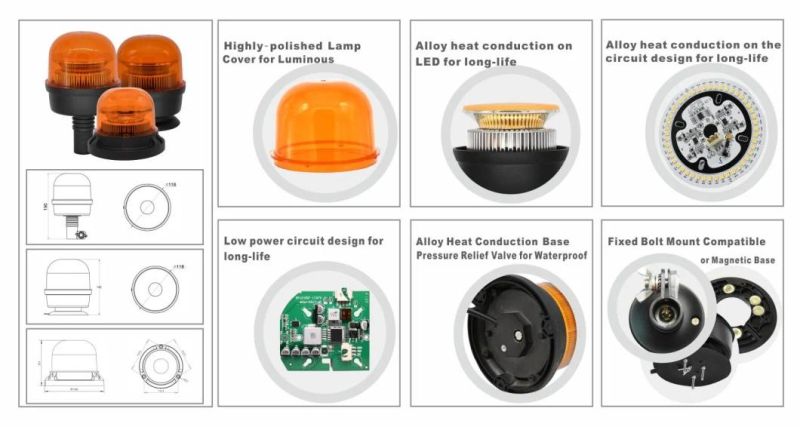

ModelDF-J-MY24Maximum power consumption28WType of light source24X1W high brightness LEDWaterproof level100% IP69K(100KPa)Anti-fog technology100% nitrogen filledThermal pressure relief processStainless steel waterproof breathable valveWarning light color:Amber, red, blue (optional)MaterialDie-cast aluminum alloy base (ADC12) + aluminum alloy heat dissipation column + aluminum base PCB board + PC lampshadePrecision molded Fresnel lens materialPCAlarm modeSingle mode double flashViewing angle360°Light intensity304cd/m²(0°~JSC Average)Flash frequency2 Hz ≤F ≤ 4 HzInternational quality standardsECE R65/ R10(EMC)Installation methodFlange base three-hole screw fixation and magnet base adsorption type (optional)Seismic rating10GWarranty time3 YearsOperating temperature-40ºC to +65ºCOperating voltage rangeDC10-32VWeight700gDimensions140(H) x118(D) mm












• FAQ
  Q: Are you trading company or manufacturer ?

  A: We are factory.


  Q: How long is your delivery time?

  A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.


  Q: Do you provide samples ? is it free or extra ?

  A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


  Q: What is your terms of payment ?

  A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
  If you have another question, pls feel free to contact us as below:
