• IP Rating：IP65
• Certification：CCC, CE, CQC, GS, RoHS, SASO, UL
• Input Voltage：220V
• LED Chips Brand：Bridgelux

Basic Info.

IP Rating IP65 Certification CCC, CE, CQC, GS, RoHS, SASO, UL Input Voltage 220V LED Chips Brand Bridgelux

Product Description

High Mast  Light Pole
Incepted in the year 2008, HAITONG is consistently growing in the respected domain by offering high quality products to all commercial patrons. HAITONG is leading manufacturer and China national project participator, LED High Mast Light poles, LED Solar Street Light poles, LED Isolated Drivers, LED Bay Light, LED Street Light etc, which are finely prepared by professionals following preset standards for quality. Professionals follow latest technology for the manufacturing of these products in order to be ahead in competitive market. We ensure longer working life of these products.

Please check high mast light pole parameters below, Contact David K Chin for special needs.


Pole specification


Pole Height	From 15 m to 50m

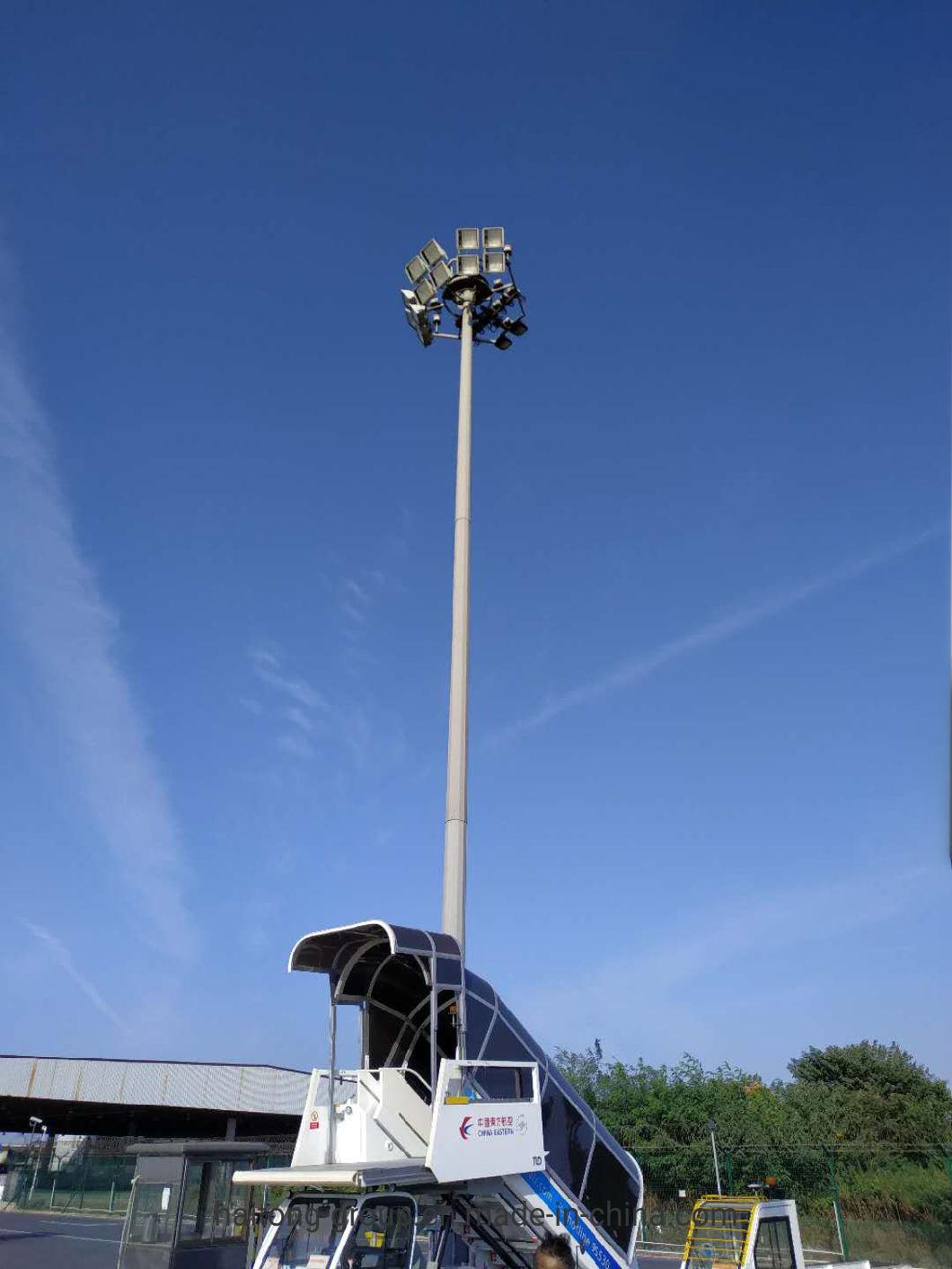

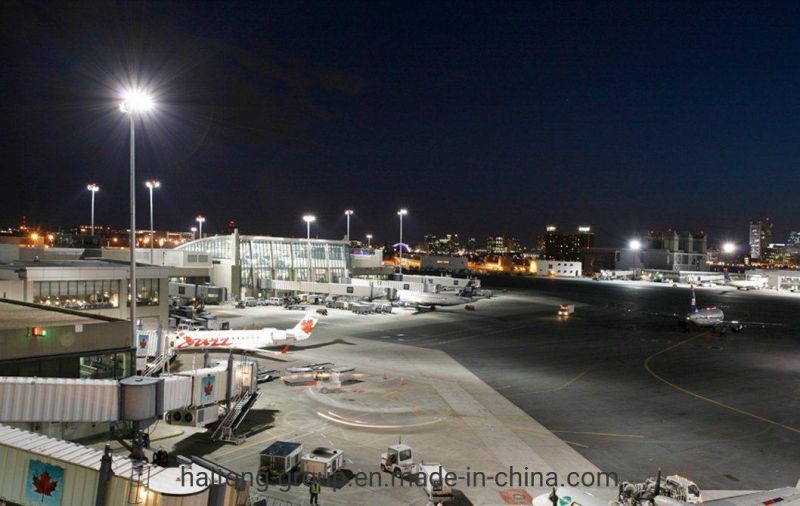

Installation Place	Airport ,seaport,plaza,stadium ,square,highway station,street way ,etc
Shape	round or polygon
Steel Material	Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2
Torrance of Dimension	+- 2%

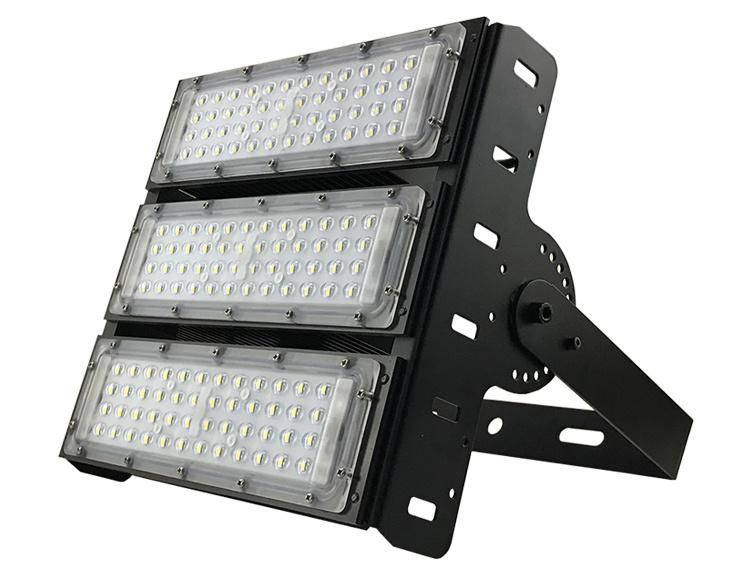

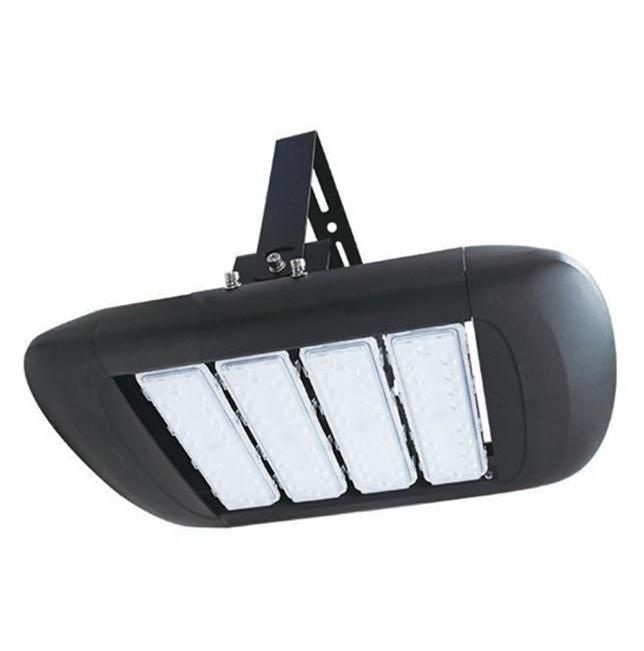

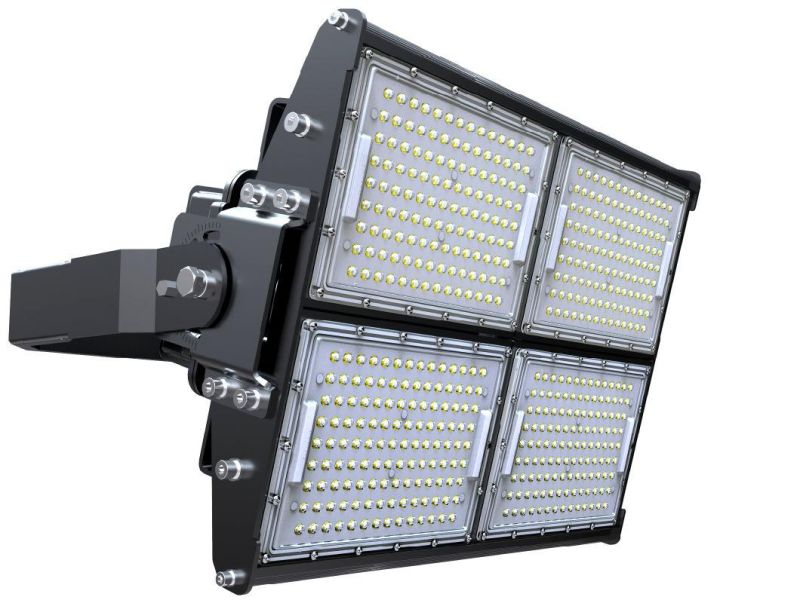

The Luminaire	400 W- 5000 W  led flood light or high pressure sodium flood light , light extension : up to 30 000 m²

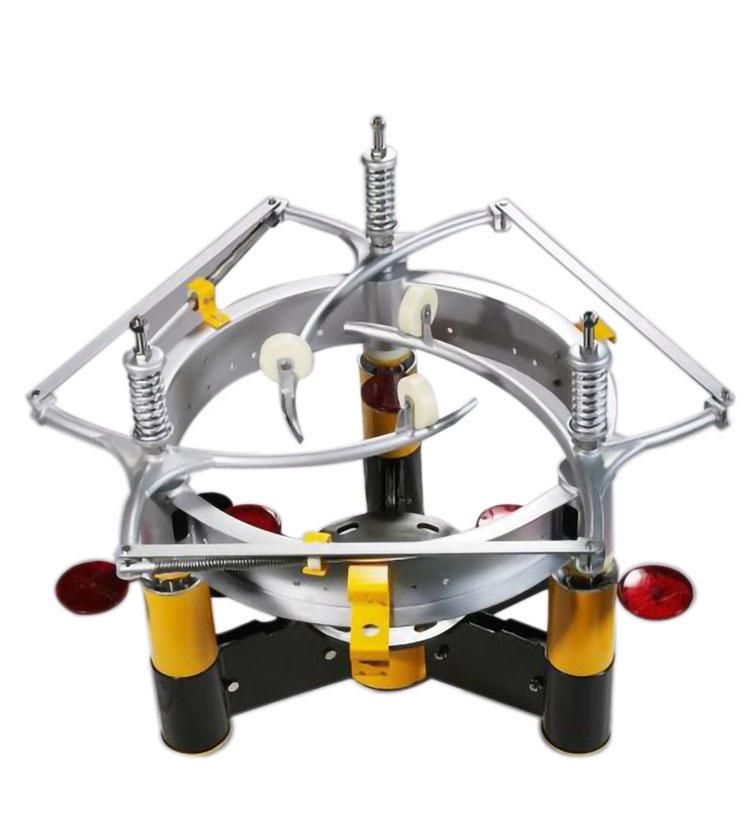

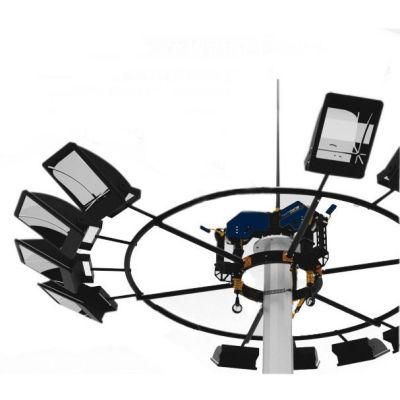

Lantern Carriage	Various figure of selection ,material with hot dip galvanization steel frame

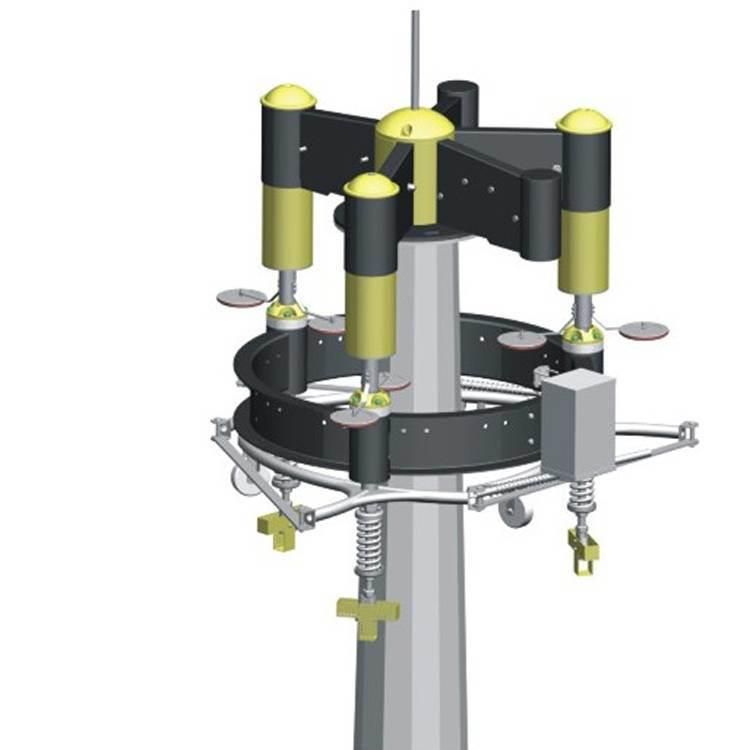

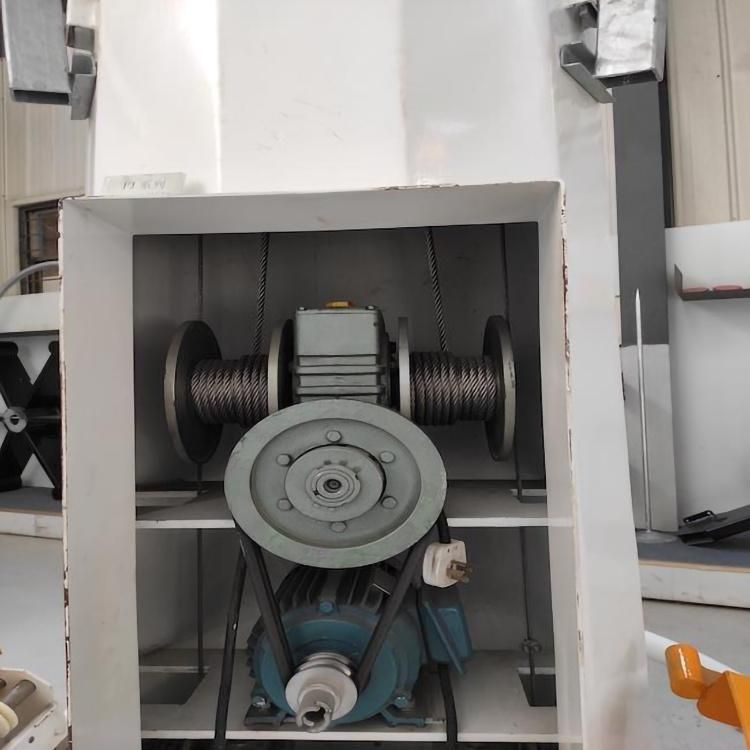

Raising and Lowering System	Motor assembly is fixed in the inner of pole with raising speed of 3~5 meter per minute  Equipped e; anti-ferromagnetism brake and break -proof device,manual operation  applied under power cut
Electric Appliance Control Device	Electric appliance box to be be the hold of the pole ,raising and lowering operation could be 5 meter away from the mast through wire . Time control and power control could be equipped to fulfill full-load lighting mode or dimming mode
Surface Treatment	Hot dip galvanized Following ASTM A 123, color polyester powders or any other  technique standards as client required.

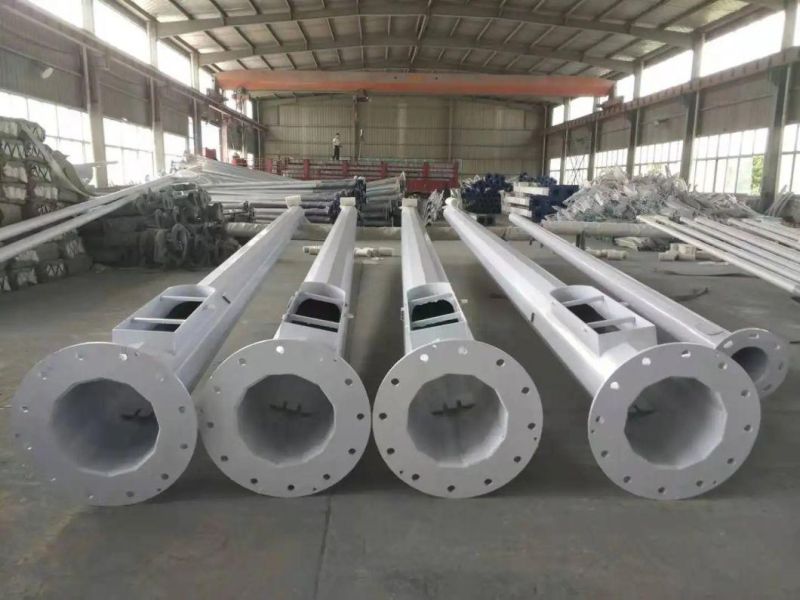

Joint of Poles	Inserting mode,inner flange mode,face to face joint mode .
Earthquake Resistance Design	Against earthquake of 8 grade
Wind Withstand	140 Km/Hour

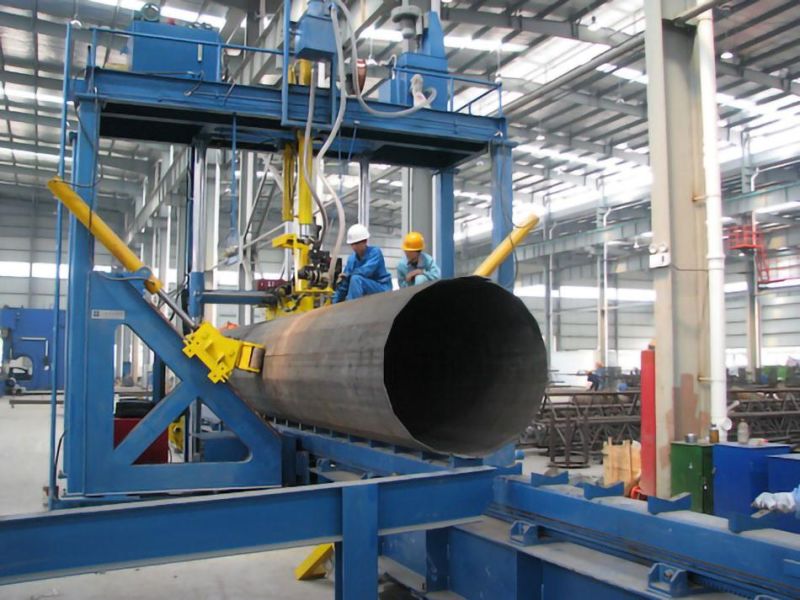

Welding	We has past flaw testing.Internal and external double welding makes the welding  in shape
Thickness	From 6 mm to 20 mm
Production Process	Raw material test→Cutting→Molding or bending →Welding (longitudinal )→Dimension verify→Flange welding→Hole drilling→Calibration→Deburring→Galvanization or  powder coating , painting→Recalibration→Thread→Packages

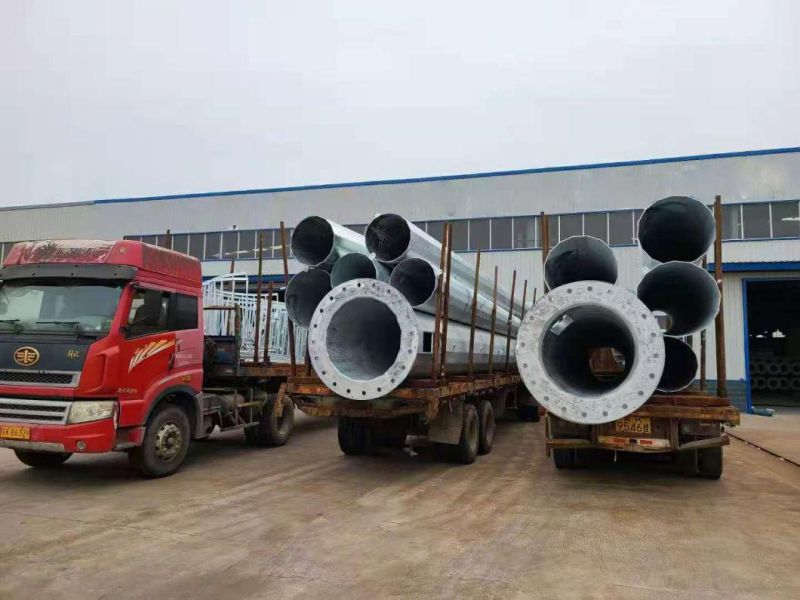

Packages	Our poles as normal cover by felt at the top and bottom ,anyway also  can following to client requirement
