Marine Rate Stainless Steel Floodlights 250W-5000K-IP67 Waterproof High Power LED Osram 150lumen/W Crab-Trawler-Fishing Boat-Seiners Boat Floodlight
LCD (HK) -CESP LIGHTING CO., LIMITED- Color Temperature：Pure White
- Lamp Body Material：Aluminum+Stainless Steel 316
- Power：80W-600W
- Projection Distance：500m-2500m
- Application：Park, Square, Factory, Garden, Fishing Boat, Vessel, Marine, Offshore Rig etc
- IP Rating：IP67
Base Info
- Model NO.：LCD-FA-055,655-LNXXXX
- Certification：CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE, TUV, Iecex, Atex
- Operating Voltage：85-265V
- Input Voltage：220V
- LED Chips Brand：Osram, CREE, Luxeon
- Transport Package：Carton Box
- Trademark：LCD brand
- Origin：Shenzhen City, China
- HS Code：85395200
- Production Capacity：50000PCS , Year
Description
Basic Info.
Model NO. LCD-FA-055/655-LNXXXX Certification CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE, TUV, Iecex, Atex Operating Voltage 85-265V Input Voltage 220V LED Chips Brand Osram, CREE, Luxeon Transport Package Carton Box Trademark LCD brand Origin Shenzhen City, China HS Code 85395200 Production Capacity 50000PCS / YearProduct Description
FA : 80W~600W Lensed LED FloodlightKey Features:
• High luminous efficacy using LUXEON SMD3030 or SMD5050 LED chips
• Super slim rugged design (maximum depth 60mm)
• Custom designed case for effective heat dissipation
• In house LED driver technology
• Impact resistant tempered glass
• Bracket designed with +/-160° angle with 5° interval locking system
• Designed to eliminate water ingress
• Optional Dusk to Dawn available
• IP67 rating
• 5 years warranty
FA SPECIFICATION
| Model Number | LCD-FA-083/103-LNXXX | LCD-FA-153-LNXXX | LCD-FA-203-LNXXX | LCD-FA-253-LNXXX |
| Fitting Colour | RAL 9010 white | RAL 9010 white | RAL 9010 white | RAL 9010 white |
| Input Voltage | 90-305V 50-60Hz | 90-305V 50-60Hz | 90-305V 50-60Hz | 90-305V 50-60Hz |
| Output Load | 80W | 100W | 150W | 200W |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Lumens | 12000-15000lm | 22500lm | 30000lm | 37500lm |
| Beam Angle | 16 different optic beams | 16 different optic beams | 16 different optic beams | 16 different optic beams |
| Colour (K) | 3000K, 4000K,6000K | 3000K, 4000K,6000K | 3000K, 4000K,6000K | 3000K, 4000K,6000K |
| CRI | >75 | >75 | >75 | >75 |
| Efficacy (lm/W) | up to155 lumen/w | up to155 lumen/w | up to155 lumen/w | up to155 lumen/w |
| Housing | Die cast Aluminium Case | Die cast Aluminium Case | Die cast Aluminium Case | Die cast Aluminium Case |
| Working Temperature | -30°C ~ +50°C | -30°C ~ +50°C | -30°C ~ +50°C | -30°C ~ +50°C |
| Protection | IP67 | IP67 | IP67 | IP67 |
| Weight | 4KG | 4.3KG | 5.4KG | 6.5KG |
| Dimensions | 315 x 245 x 57mm | 315 x 245 x 57mm | 4 x 290 x 57mm | 420 x 329 x 57mm |

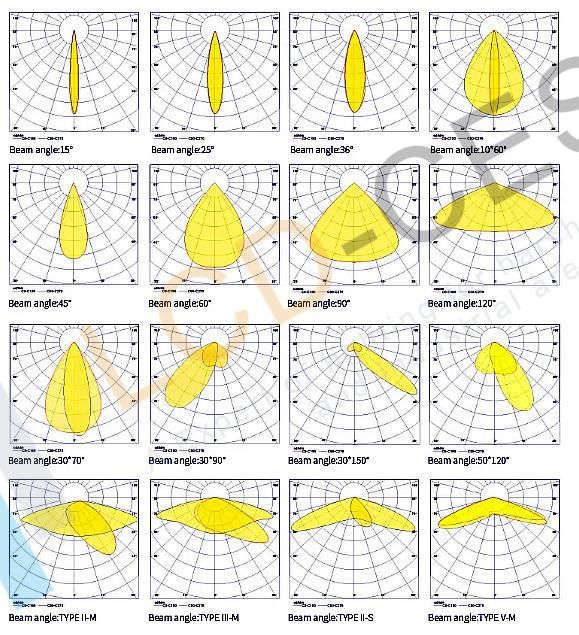

LIght distribution curve
| Model Number | LCD-FA-303-LNXXX | LCD-FA-353-LNXXX | LCD-FA-403-LNXXX | LCD-FA-603-LNXXX |
| Fitting Colour | RAL 9010 white | RAL 9010 white | RAL 9010 white | RAL 9010 white |
| Input Voltage | 90-305V 50-60Hz | 90-305V 50-60Hz | 90-305V 50-60Hz | 90-305V 50-60Hz |
| Output Load | 250W | 300W | 400W | 600W |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Lumens | 45000lm | 52500lm | 60000lm | 90000lm |
| Beam Angle | 16 different optic beams | 16 different optic beams | 16 different optic beams | 16 different optic beams |
| Colour (K) | 3000K, 4000K,6000K | 3000K, 4000K,6000K | 3000K, 4000K,6000K | 3000K, 4000K,6000K |
| CRI | >75 | >75 | >75 | >75 |
| Efficacy (lm/W) | up to155 lumen/w | up to155 lumen/w | up to155 lumen/w | up to155 lumen/w |
| Housing | Die cast Aluminium Case | Die cast Aluminium Case | Die cast Aluminium Case | Die cast Aluminium Case |
| Working Temperature | -30°C ~ +50°C | -30°C ~ +50°C | -30°C ~ +50°C | -30°C ~ +50°C |
| Protection | IP67 | IP67 | IP67 | IP67 |
| Weight | 10.4Kg | 10.8KG | 13KG | 20.8KG |
| Dimensions | 530 x 385 x 60mm | 530 x 385 x 60mm | 420 x 658 x 57mm | 530 x 772 x 60mm |
