• Model NO.：Rb-PAL-200W
• Certification：CE, EMC, LVD, RoHS, VDE
• Input Voltage：AC100-277V
• Item No.：Rb-PAL-200W
• LED Chips：Lumileds High Brightness LED Chip
• CCT：3000K, 4000K, 5000K, 6000K
• Luminous Flux：28000lm
• IP Rate：IP65 Waterproof Dustproof
• Power Efficiency：>90%
• LED Driver：Meanwell Driver
• Power Factor：>0.98
• Color Rendering Index：>78
• Warranty：5 Years
• Transport Package：1PCS,Box
• Specification：CE,RoHS,SAA
• Trademark：rayborn
• Origin：China
• HS Code：9405409000
• Production Capacity：40, 000PCS,Month

200W LED Flood Light Main Technical ParametersItem No.:RB-PAL-200WInput Voltage:AC 100~277VFreqency Range:50Hz~60HzDriver:Meanwell DriverLed Chip:LumiledsPower Factor:>0.98Power Efficiency:>93%LED Power200WLED QTY: 200pcsLED Working Voltage:DC 40~48VSystem Consumption:203WLED Luminous FluxWarm White26000LMPure White28000LMCool White28000LMViewing Angle:140x90 degreeCenter IlluminanceHeight 7M183LUXHeight 10M89LUXHeight 12M62LUXIlluminance AreaHeight 7MDia.466CM  points visibleHeight 10MDia.666CM points visibleHeight 12MDia.799CM points visibleIlluminance Uniformity:>0.6Color TemperatureWarm White3000-3500KPure White4000-5300KCool White5300-6000KColor Rendering IndexRa>80Light Distribution:LED points visibleLight Design:LED+The secondary light distribution lensLED Junction Temperature:≤115ºCWorking Temperature:-35ºC~55ºCIP Grade:IP66Working Life-span:50000 HPower Line:1.0 mm three lineConnect WireBrownLBlueNYellow / GreenGCertificateCE/ROHSHousing color:Black/BrownProducs Size:571*291*90mm
Outdoor Parking lot LED Flood light Feature :
LED Chip: SMD3030 LED Chips which is the most famous Brand in chips field, high efficiency and long lifespan>50000 hours .

Power Supply: Use Meanwell driver, IP65 and high quality, it improved lights performance. Power efficiency ≥92.

Color temperature: Provide a range of color temperatures from 3000, 4000,5000 and 6000 Kelvin helping to enhance a building's exterior.

Optics:  hermetically sealed providing IP65.
Great light uniformity: LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.

Beam angel : 85*140/90*140/100*140 degree beam angles optional .

Housing: Fishbone style high efficiency heat sink,elegant appearance and modular design, each module is 50W .Die cast aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180oC.
Power box free tool to open, easy installation and maintenance .

Cable: silicon rubber cable for power input. Fasten with screw in the cable gland.

Warranty: 5 years warranty on the entire luminaire. Do not attempt to take housing apart as this will ruin the seal and void all warranty.
Certification:  FCC CE RoHS approval.

Quality Control: Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance.

Bracket Adjustable: 11 kinds of installation brackets,east to change. Adjustable stainless steel mounting bracket allows you to direct light where you need it.


Outdoor Parking lot LED Flood light Competitive Advantage :
1. CE & RoHS & SAA IP65 approved, Quality Guaranteed
2. Imported original Bridgelux & Lumileds & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 3-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 5 years warranty and 50.000 hours lifespan


Outdoor Parking lot LED Flood light Installation Caution :
1. Please turn off the power before installation and ensure that the installation site can support the weight of the fixture.
2. In order to prevent the lamp off, make sure the installation is correct.
3. Do not use in a corrosive gas.
4. Do not cover any material in the body.
5. For safety, please tangible take a good ground.
6. Decomposition of the product, modification, or improper construction .


Outdoor Parking lot LED Flood light Applications:
1. Playground and stadium lighting.
2. Parking lot and airport lighting.
3. Highway and Railway tunnel lighting.
4. Bridge and culvert lighting.
5. Square,garden,and building lighting.


Outdoor Parking lot LED Flood light over 24hours aging test :
Before shipping, all the LEDlights will be over 24 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, defective rate is controlled  less than 0.1%. Quality is ensured, you can be assured.

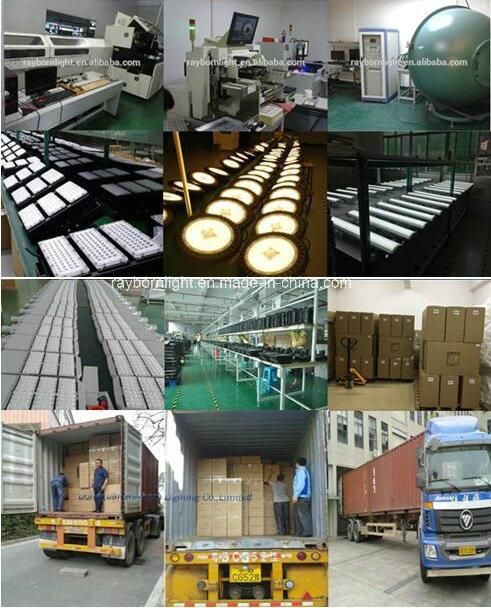

Rayborn Company viewing :

Rayborn Lighting Co.,Ltd is a professional manufacturer ,focus on Industrial LED lights and commerical LED lights research ,devolopment ,production,sales ,on service,was in High-end operation and service provider in High-power led .Under the country "saving "polics,we are striving to create environment protection ,energy saving ,long life lighting and earned a reputation of being a quality supplier of LED lighting .

We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.


Payment terms:
1. Payment: T/T, L/C at sight, Western Union ,Paypal available
2. Samples can be available within 5-7 working days; Order: 10-20Days
3. Shipping freight is quoted under your requests
4. Shipping port:Shenzhen , China
5. Discounts are offered based on order quantities


Rayborn services:
•1. Your inquiry related to our products or prices will be replied in 24hours.
•2. OEM & ODM are welcomed, OEM brand is available.
•3. Any defective products within warranty will get maintenance or replacement unconditionally.
•4. Protect your sales area


FAQ:
1. What is the general business process?
Answer : Send Inquiry to Rayborn. → Specification Confirmation → Quotation → Sample List Confirm → Proforma Invoice → Payment Bank Slip → Sample Delivery → Sample Satisfactory → Bulk Order List → Proforma Invoice → 30% Deposit Payment in Advance → Production Ready → 70% Balance bank slip → Delivery → After Sale Service

2. What is the warranty?
Answer : 5 years warranty is offered depending on different types of lights. If item fails due to quality problem during warranty, we can send new replacement with freight on ours immediately if urgently. Or we prefer to send replacement with next order.


3. What is the payment term?
Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable.

4. Can I add my logo on the product label?
Answer : Yes, but order quantity is requested depending on different lights.

5. I don't know how many LED Flood Light should I use, can you advise?
Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.

6. Do you have any MOQ limit for led light order?
Answer: Low MOQ, 1pc for sample checking is available .

7. How do you ship the goods and how long does it take to arrive?
Answer: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

8. How to proceed an order for led light?
Answer : Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.


9: How to deal with the faulty?
Answer : Firstly, Our products are produced in strict quality control system and the defective rate < 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will send out new replacement to you immediately for you to solve the problem.
