• Model NO.：BD-G-003
• IP Rating：IP65
• Certification：CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, VDE
• Input Voltage：220V
• LED Chips Brand：Bridgelux
• Height：3-45m
• Application：Main Road
• Shape：Multi-Pyramidal
• Surface Treat：Hot-DIP-Galvanized Steel Poles
• Lighting Bulbs & Tube：High LED Pressure Sodium Lamp
• Product Name：Gx Made Square Used High Mast Lights
• Used：Park Road
• Transport Package：Bubble
• Specification：CE ISO airport certificate
• Trademark：luyou
• Origin：Yangzhou China
• HS Code：940540900
• Production Capacity：1000set One Month

Height

From 18 m to 50m

Suit for

Airport ,seaport, plaza, stadium, square, highway station, street way ,etc

Shape

Round, Multi-pyramidal, Column form, polygonal or conical

Material

Q345B/A572,minimum yield strength>=345n/mm2

Q235B/A36,minimum yield strength>=235n/mm2

Torrance of dimension

+- 2%

Lighting Source

400 W- 5000 W high pressure sodium flood light, light extension :up to 30 000 m²

Light plate

Various figure of selection ,material with hot dip galvanization steel frame

Lifting system

Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute

Equipped e; ant ferromagnetism brake and break -proof device, manual operation applied under power cut

Electric appliance control device

Electric appliance box to be the hold of the pole ,lifting operation could be 5 meter away from the pole through wire .Time control and light control could be equipped to realize full-load lighting mode and part lighting mode

Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.

Joint of Poles

Insert mode, inner flange mode, face to face joint mode .

Design of pole

Against earthquake of 8 grade

Wind Speed

80 Km/Hour

Welding

We has past flaw testing. Internal and external double welding makes the welding in shape

Thickness

6 mm to 20 mm

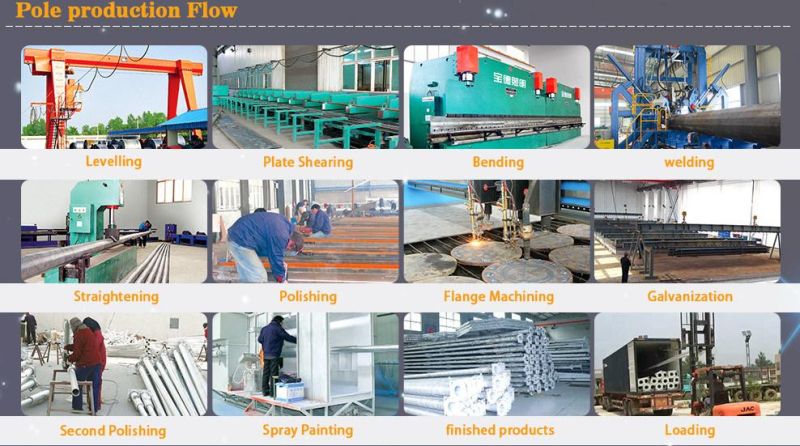

Production Process

Raw material test→Cutting→Molding or bending →Welding (longitudinal ) →Dimension verify→Flangewelding→Hole drilling →Calibration →Deburr →Galvanization or powder coating, Painting→Recalibration→Thread→Packaging

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required

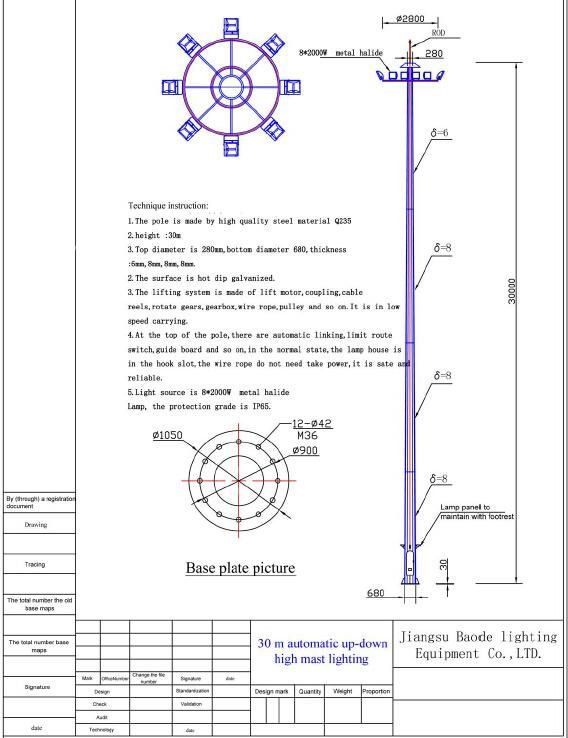

High Mast Lighting Pole Details

Lifting system

Latch barrel with inner mounting bracket locker is mounted to an underside of the mast-top pulley assembly. Furthermore, all steel cables are not exposed and more effectively protected.

Latching mechanism latched on steering arms is able to release strain on steel cables when in the operation position. The process of latching on and off is stable and without vibration.

The bumper is designed on the luminary mounting bracket for avoiding direct damage between mast-top assembly and the raising luminary mounting bracket.

The leveling device for luminary support bracket is easy to operate and convenient to adjust level.

Special designed red-flag indicator has obvious visual effects and reflects actual situation of latching operation.

Applications

Plaza High Mast Lighting pole

Airport High Mast Lighting pole

Highway High Mast Lighting pole

Storage-yard High Mast Lighting pole

Industrial-plant High Mast Lighting pole

Park High Mast Lighting tower

Dock High Mast Lighting tower

Stadiums High Mast Lighting tower

Overpass High Mast Lighting tower

Toll-station High Mast Lighting tower

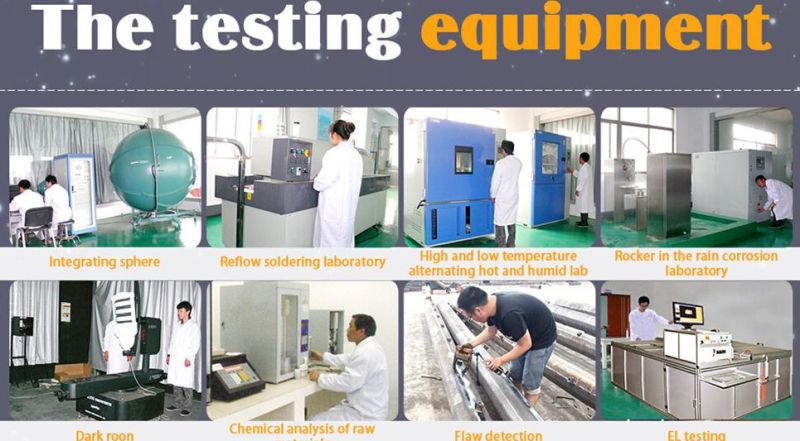

Testing:

Packages:

Bulb wrappings for high mast lighting poles, individual cartons for lamps and controlling equipments, etc. A 40' HP loads 7-20M/ 6-25M/ 5-30M/ 4-35M high mast lights.

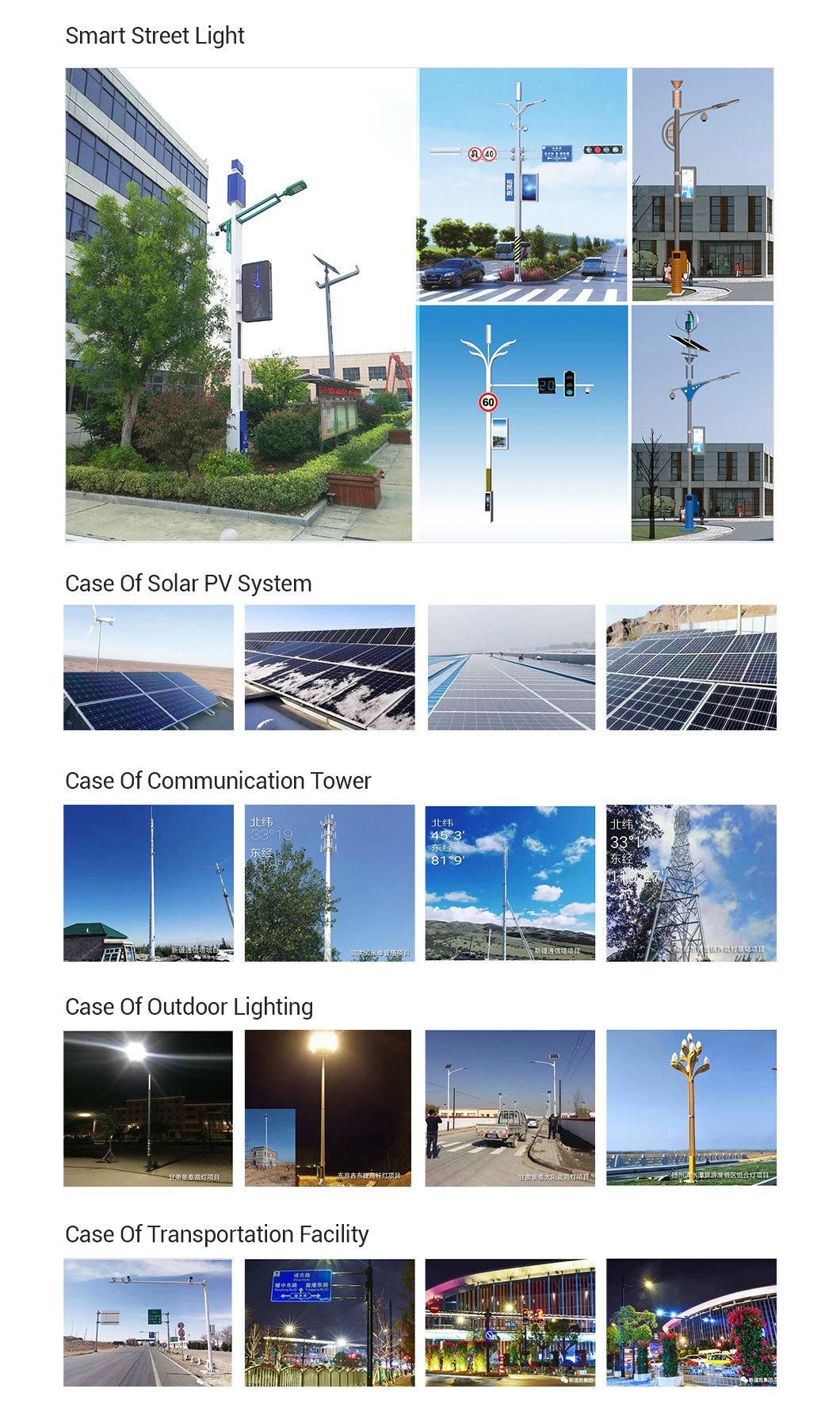

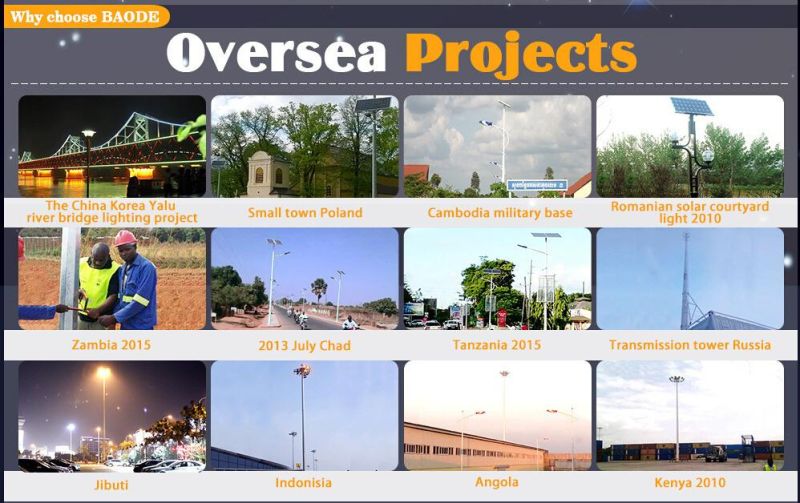

Our projects:

Lead Time
20 days on receipt of payment for 10 high mast lighting poles

Payment Terms
30% in advance and 70% before shipment for our products
