Outdoor Floodlight LED Stadium Light 150W 200W 250W 300W 400W 500W 600W Flood Light for Square Building Landscape Basketball Sport Court Projector Fixture

Rayborn Lighting Co., Ltd.
  • Color Temperature:Cool White
  • Lamp Body Material:Aluminum
  • Power:200W,300W,400W,500W,1000W
  • Projection Distance:18-25m
  • Application:Park, Square, Factory, Garden, Stadium Lighting
  • IP Rating:IP66

Base Info

  • Model NO.:RB-FLL-300WSD
  • Certification:CE, C-tick, EMC, ETL, FCC, GS, LVD, RoHS, SAA, SASO, VDE
  • Operating Voltage:100-240V
  • Input Voltage:90-305V,480V
  • LED Chips Brand:Osram
  • Type:LED Floodlight,LED Flood Light Outdoor
  • Lighting Bulbs & Tube:LED
  • Chip:5050,3030 SMD
  • Driver:Meanwell Hlg,Elg
  • Heatsink:Finned Radiator
  • Warranty:5 Years
  • Angle:60,90,120,60*150deg
  • CCT:3000K,4000K,5000K,6000K
  • Lumen:140lm,W
  • Body Material:Aluminum+PC
  • Transport Package:1PCS,Box
  • Specification:CE. EMC. LVD, ROHS, SAA
  • Trademark:RAYBORN
  • Origin:China
  • HS Code:9405409000
  • Production Capacity:30, 000PCS,Month

Description

Item No.:RB-FLL-300WSDInput Voltage:AC 100-277V 277-480V Meanwell DriverFreqency Range:50Hz~60HzPower Factor:>0.98Power Efficiency:>93%LED Power300WLED QTY:  5050/3030 chipLED Working Voltage:DC 46~48VSystem Consumption:    300WLED Luminous FluxWarm White    37200LMPure White   38500LMCool White    39000LMCenter Illuminance    8 Meter  1836 lux    9 Meter  1220lux    10 Meter 979 luxViewing Angle: 60/90/60*150degreeIlluminance Uniformity:>0.6Color TemperatureWarm White3000K~3500KNature White4000K~4500KPure White6000K~6500KColor Rendering IndexRa>80Light Distribution:LED points visibleLight Design:LEDLED Junction Temperature:115Working Temperature:-40~50IP Grade:IP66Working Life-span:50000 HPower Line:1.0mthree lineConnect WireBrownLBlueNYellow / GreenGThe color of the lamp shellBlack is availableCertificateCE/ROHS/EMC/SAANet Weight: 11.5KGRayborn 200W 300W 400W 500W Led Flood light Features:
LED flood light adopted optical light distribution, that is no glare, no light pollution, highly directional light and more even luminous beam.

1, High bright imported 3030/5050 LED chips
Led flood light with good heat dissipation, low light depreciation, pure light color, no double-shadow High intensity, high resistance of shock or vibration etc.

2, Universally wide range voltage(100-277V/277-480v/AC):
Led flood light advanced constant-current driver be used which can start quickly, be high safety and reliability.

3, Unique heat sink design:
Led flood light perfectly combine with power box, effectively transmit the heat, thereby lowering the body's temperature, ensure the life of LED chip and power driver.

4, Surface treatment:
Led flood light static sprayed leading to better heat-resisting, high weather resistance, corrosion resistant, water proof and dust proof.

5, All the leakage screw material is 304 stainless steel, and frame is hex screws.

6, Waterproof and dust proof:
Led floodlight Sealed by reliable silicone rubber, can bear heat above 150, no aging, good sealing of lamp, waterproof and dust proof.

7, Energy saving:
Led floodlight use high power LED and it is equipped with imported high efficient power, save more than 70% energy compare with sodium lamp.


Outdoor Floodlight LED Stadium Light 150W 200W 250W 300W 400W 500W 600W Flood Light for Square Building Landscape Basketball Sport Court Projector Fixture
Outdoor Floodlight LED Stadium Light 150W 200W 250W 300W 400W 500W 600W Flood Light for Square Building Landscape Basketball Sport Court Projector Fixture

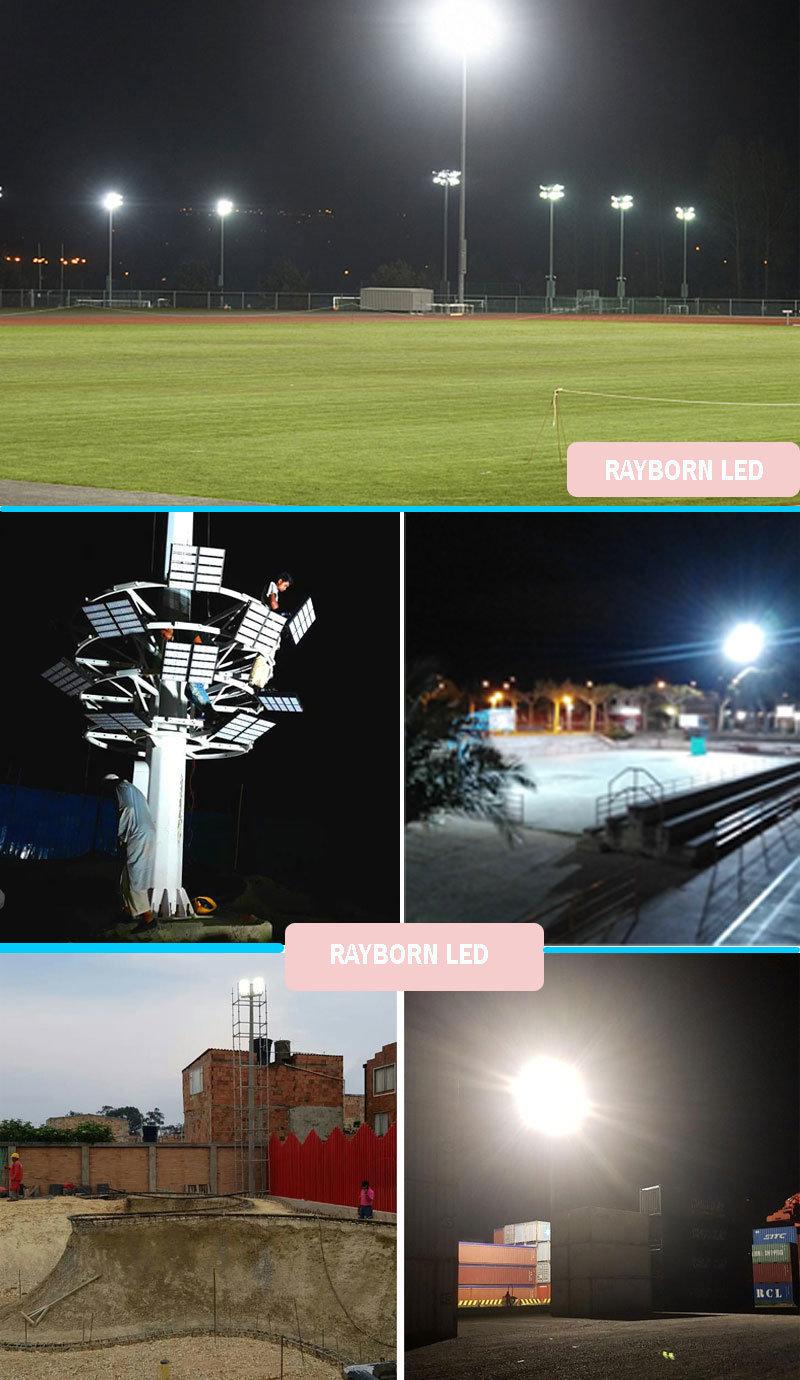

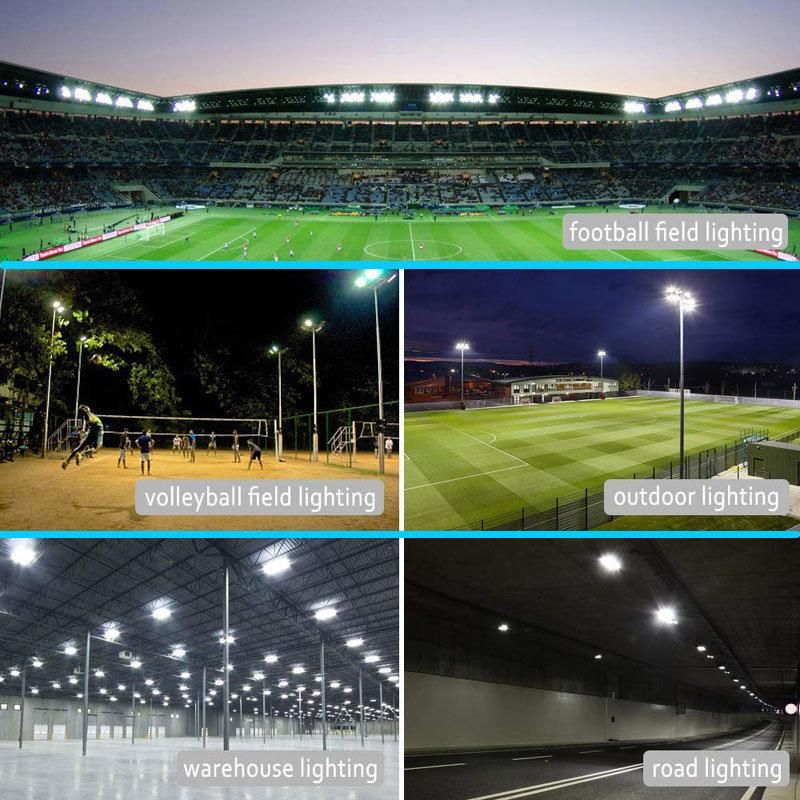

 277V/480V/100-277V LED Flood Light /LED Floodlight Applications:
Widely used in factory, gymnasium, boatyard, billboards, buildings, lawns, landscaping, offices, the site of light project and decorative lighting projects etc.
Outdoor Floodlight LED Stadium Light 150W 200W 250W 300W 400W 500W 600W Flood Light for Square Building Landscape Basketball Sport Court Projector Fixture
Outdoor Floodlight LED Stadium Light 150W 200W 250W 300W 400W 500W 600W Flood Light for Square Building Landscape Basketball Sport Court Projector Fixture

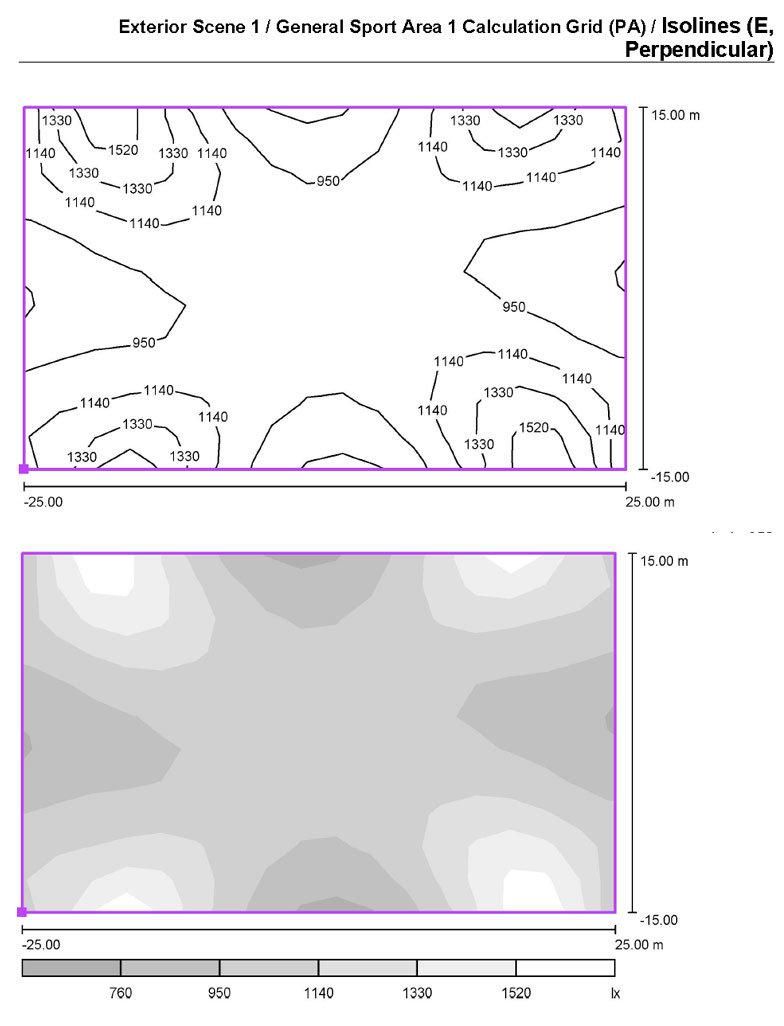

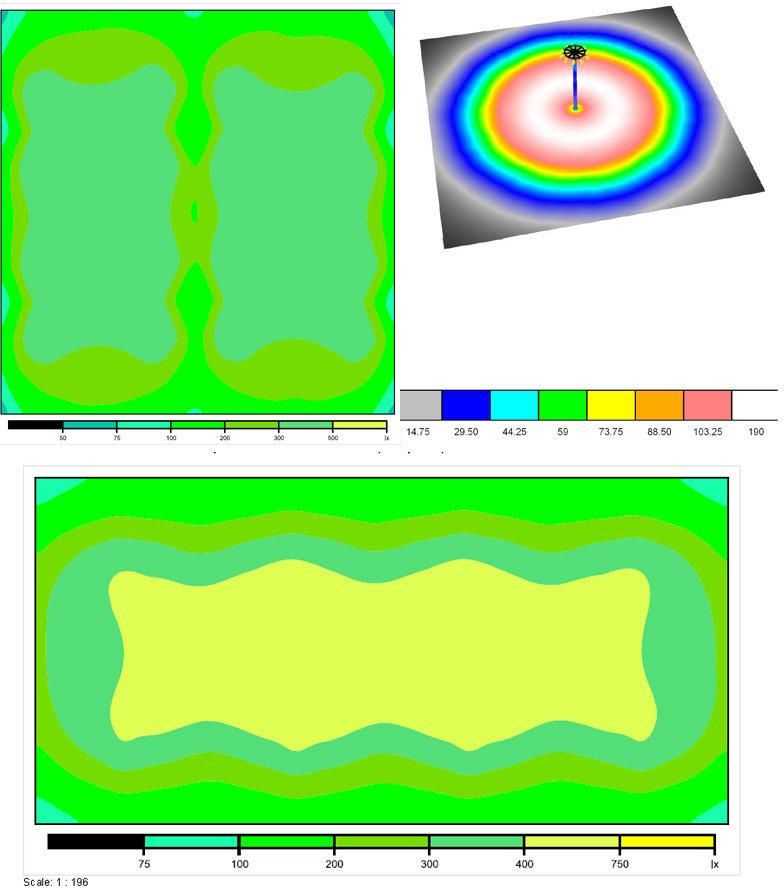

RAYBOR Flood Light Design Simulation:
Outdoor Floodlight LED Stadium Light 150W 200W 250W 300W 400W 500W 600W Flood Light for Square Building Landscape Basketball Sport Court Projector Fixture
Outdoor Floodlight LED Stadium Light 150W 200W 250W 300W 400W 500W 600W Flood Light for Square Building Landscape Basketball Sport Court Projector Fixture



FAQ:

1, Are you factory?
A:Yes, we produce LED flood lights for more than 7 years.

2, Can leadtime be more shorter because I am urgent?
A:Yes, please contact us urgent to check the details.

3, I want high quality LED flood light, can you do?
 A:Yes, quality is our culture,we only use best components to build our led flood lights.

4.Can we do our brand? Can you print or emboss our logo on the
tank? And our own brand box?
 A:Yes!

5. If there are some lights that can not work when i receive the goods?
A:Don't worry, we will give you same quantity of good lights for compensation in your next order.

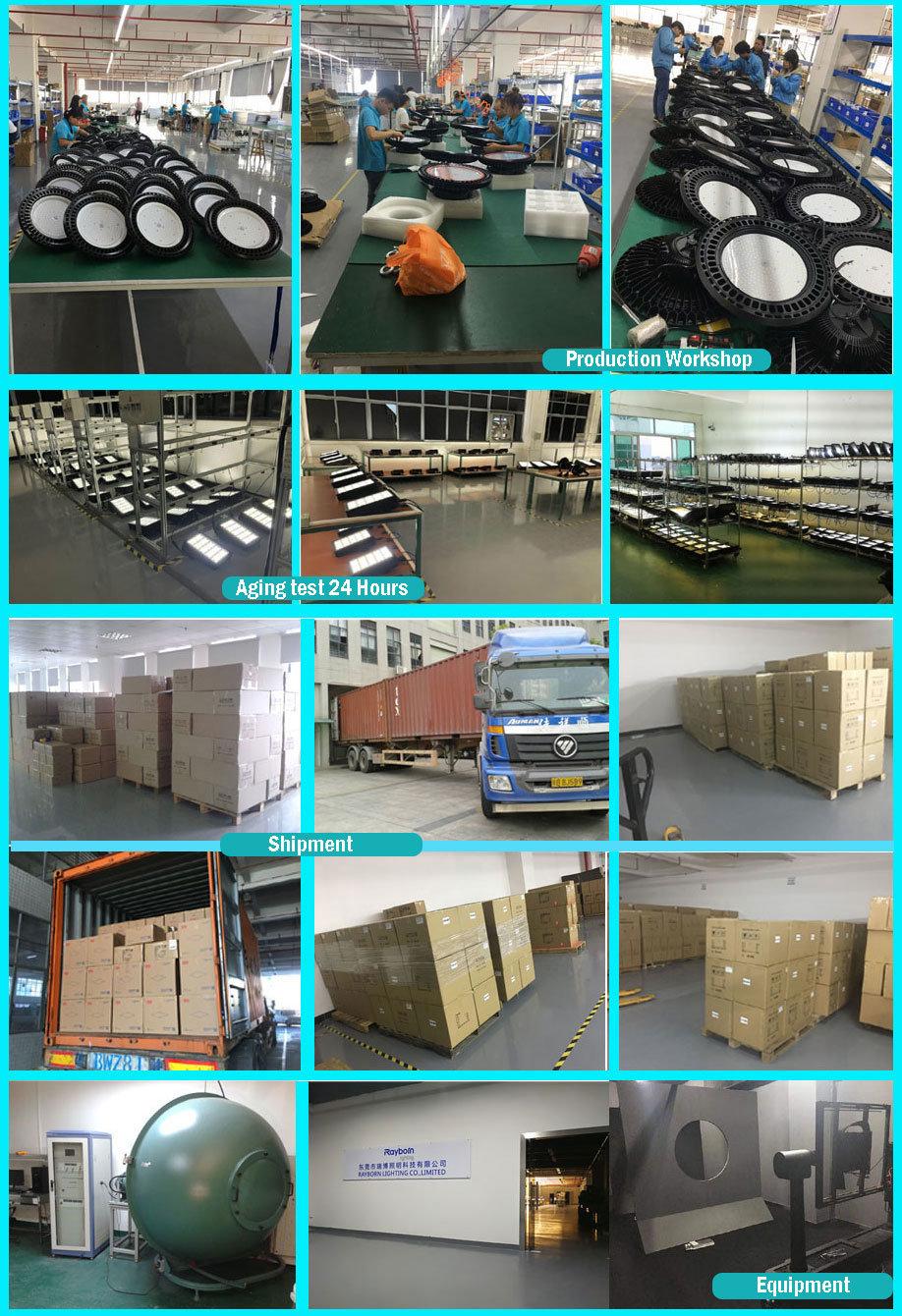

6.How does your factory do regarding quality control?
A:Quality is priority. people always attach great importance to quality
controlling from the very beginning to the very end.  Our factory has
gained CE,CCC,ROHS,FCC,ISO900, authentication.

7.Where is your factory located? How can I visit there?
A:Our factory is located in Dongguan City, GuangDong Province, China.


Welcome you visit us anytime!
