• Model NO.：JP-83262D
• IP Rating：IP65
• Certification：CE, EMC, LVD, RoHS
• Voltage：DC12V,DC24V,AC100-240V
• Light Source：With Light Source
• Material：Made of Die-Casting Aluminum
• Glass：Tempered Glass T=4mm
• LED Source：6PCS Single Color, RGB,RGBW LEDs
• Product Size：Dia 130mm*H165mm
• Input Voltage：12VDC,24VDC,100-240VAC
• Beam Angle：8,15 ,25,30,45 Degree
• Work Temperature：-20-40 Centigrate
• Life Span：>50000rhs
• Driver：Constant Current Output
• Ik：07
• Accessories：Anti-Glare Hood, Honeycomb Louver Optional
• Transport Package：36X19X31(4PCS,CTN),G. W: 8kgs,CTN
• Specification：CE & RoHS
• Trademark：JP lighting
• Origin：Guangdong Dongguan China
• HS Code：94054090
• Production Capacity：5000 PCS,Months

Basic Info.

Model NO. JP-83262D IP Rating IP65 Certification CE, EMC, LVD, RoHS Voltage DC12V/DC24V/AC100-240V Light Source With Light Source Material Made of Die-Casting Aluminum Glass Tempered Glass T=4mm LED Source 6PCS Single Color/ RGB/RGBW LEDs Product Size Dia 130mm*H165mm Input Voltage 12VDC/24VDC/100-240VAC Beam Angle 8/15 /25/30/45 Degree Work Temperature -20-40 Centigrate Life Span >50000rhs Driver Constant Current Output Ik 07 Accessories Anti-Glare Hood, Honeycomb Louver Optional Transport Package 36X19X31(4PCS/CTN)/G. W: 8kgs/CTN Specification CE & RoHS Trademark JP lighting Origin Guangdong Dongguan China HS Code 94054090 Production Capacity 5000 PCS/Months

Product Description

IP65 6W/12W/18W/24W Single Color/ RGB/RGWB High Power LED Garden Spot Light LED Yard Light Outdoor LED Spike Light LED Landscape Spot Light for Landscape, Architecture, Project Lighting

Feature and Benefits:1. High quality LED light source, low power consumption, high efficiency, long life span;2. IP65 waterproof ,dust-proof ,explosion-proof and anti-corrosion;3. Integrated structural design, ensure the luminous efficiency and life span; Adopt tempered clear glass and aging resistant silicon rubber sealing ring;4. Housing color option: Dark grey RAL7012 ,Sliver painting RAL9005,Matt black RAL9005;5. Rich Color for options: Single Color and RGB/RGBW Color;6. Easy to installation, 360 degree adjustable projection angle.

Main Specifications:
Housing: 12# Die-casting outdoor powder coated aluminum T=60-80µm
Glass: Tempered glass.T=4mm
Lens: Optical lens, efficiency≥85%
Cable gland: IP68 PG-9 copper and nickel coated
Gasket: Molding shaped silicone double seal
LED: CREE XP-E LED /EDISON LED
PCB:  Excellent heat conductivity aluminum,
coefficient of Heat Conductivity≥2.0w/mk
LED Colour Temperature:·2700K·3000k /·4000K·6000k
Driver :  Constant current output
Single color LED=1-circuit output
RGB 3in1 LED =3-circuit output
RGB 4in1 LED =4-circuit output
Power cable: H05RN-F2x0.75mm²,L=1m(low voltage)
                      H05RN-F3x0.75mm²,L=1m(high voltage)
                      H05RN-F4x0.75mm²,L=1m(for RGB)
                      H05RN-F5x0.75mm²,L=1m(for RGBW)
Operating Temperature: -20ºC~40ºC
Spike: PVC
Mounting base: Powder coated die-casting aluminum

Products Model:

Item No.	Light source	Lens beam angle(°)	Consumption(watt)	Input Voltage(V)	Ik rate
83261D	6x1W	8°/15°/20°/30° /45°/60°	6.5	DC24V/AC100-240V	07
83262D	6x2W	8°/15°/20°/30° /45°/60°	13.0	DC24V/AC100-240V	07
83266D	6x3W RGB3in1	20°/30° /45°/60°	18.3	DC24V	07
82669D	6x4W RGB W4in1	20°/30° /45°/60°	24	DC24V	07

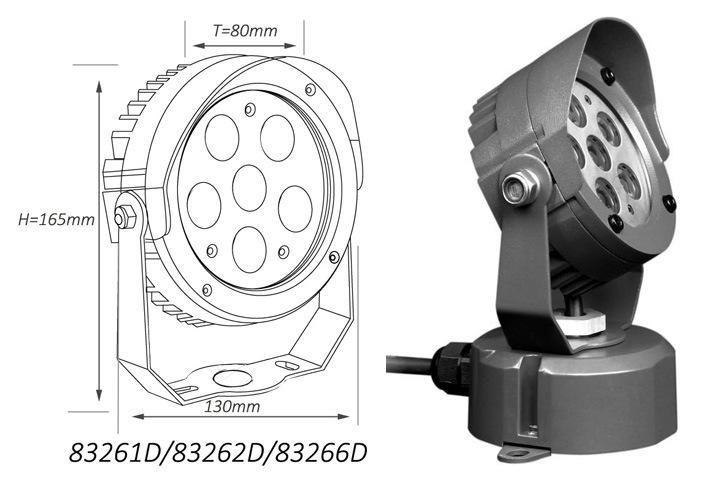

Products Size:

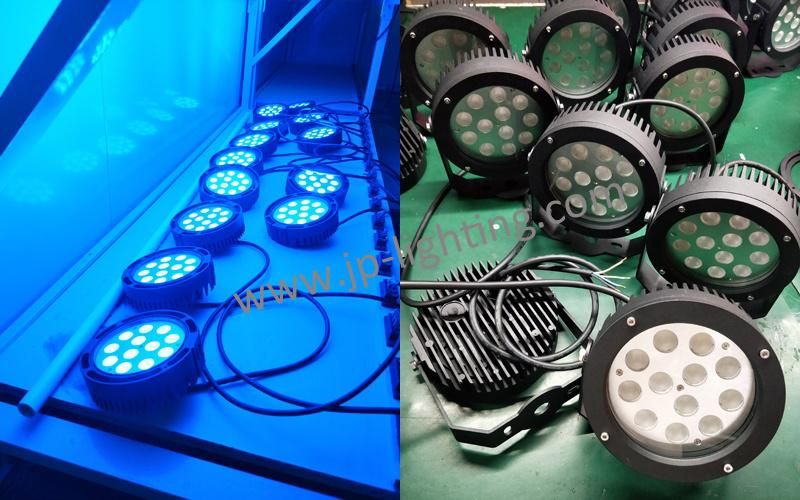

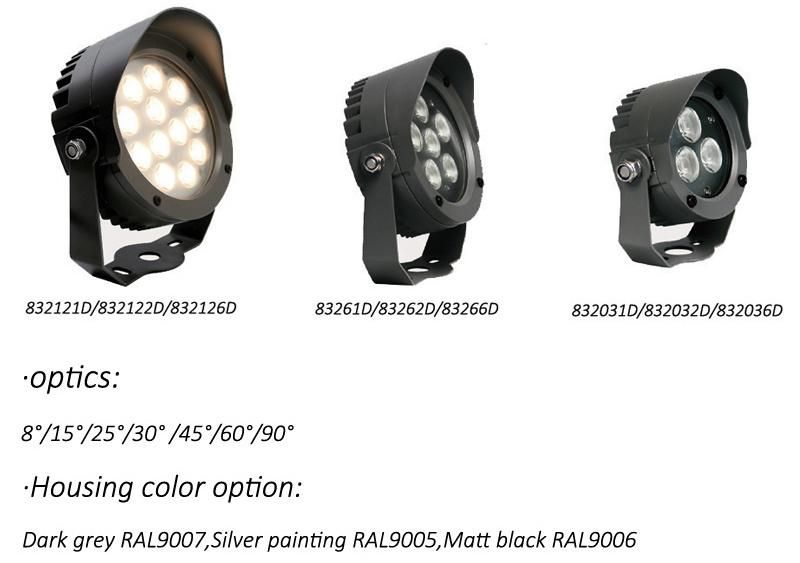

Products Picture:

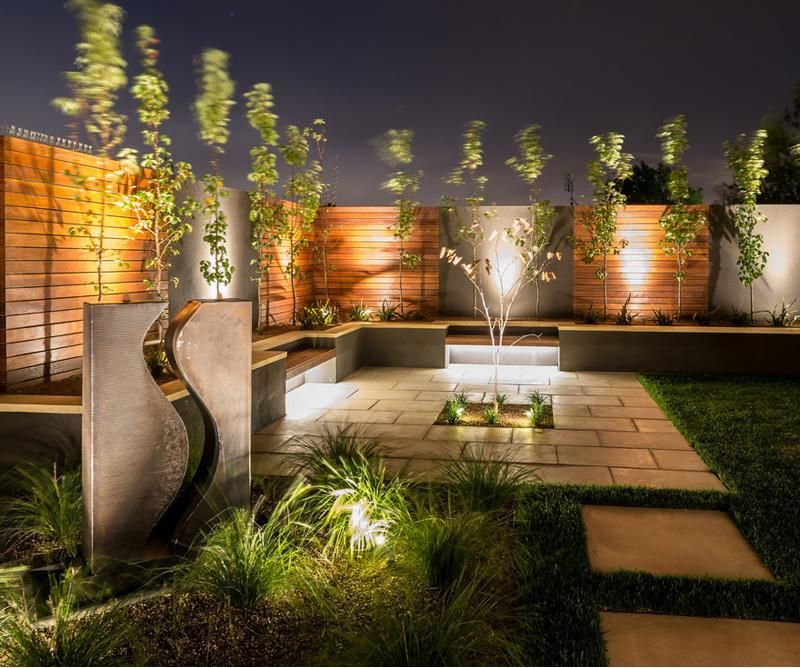

Application:
Garden lighting,Park lighting,Residential lighting,Square lighting and so on.

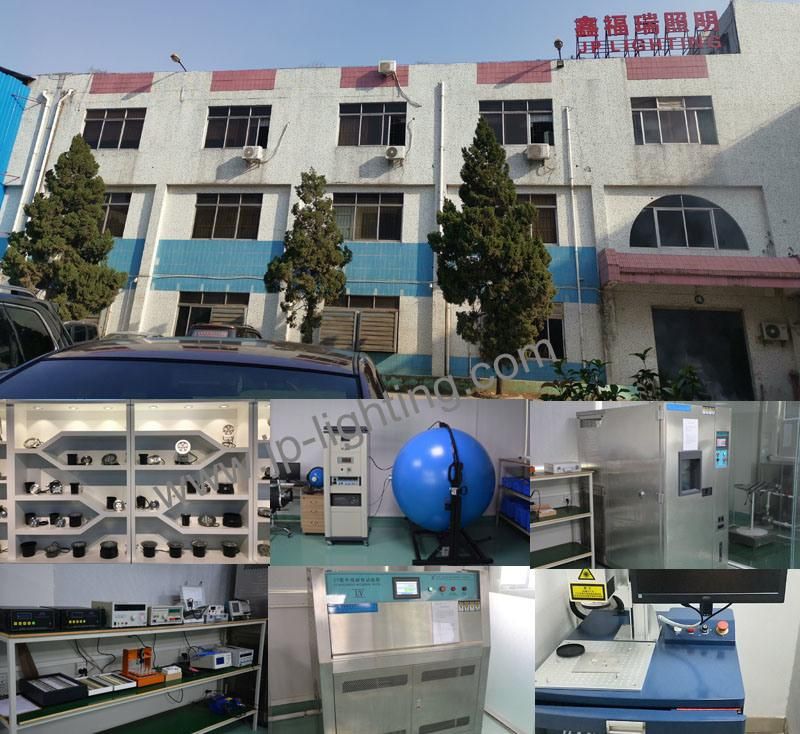

Factory Picture

Packaging and shipping

FAQ

Are you a manufacturer?
Yes, We are a professional manufacturer with 15 years experience.

What is your main product?
1.Outdoor LED wall light
2.LED garden spot/spike light
3.LED inground light
4.LED underwater light(fountain light, swimming poool light, underwater spot light)
5.LED wall washer light

What is the company sample system?
1.Sample charge should prepaid.
2.Sample can be customized,If the order QTY is more than 1000Pcs.

How we can pay for?
1.30% advanced payment. 70% balance payment.
2.We accept L/C, T/T, Western Union, and Paypal.
3.Our shipping terms is EXW, FOB, CIF

How about the delivery time?
1.About 5 work days for sample making
2.15-30 work day for mass products production time. It is up to the quantity

What information should I let you know when I want to make a inquiry?
1.Which body color do you want?
2.What kind of light color do you prefer?
3.How long did you need about light cable?
4.Which voltage ( low voltage or high voltage)?
5.What kind of beam angle did you need?
6.How many quantity do you need?

Why choose us?
1.One-stop services:  Innovative design, professional product light effect. Excellent product quality, sincere service concept. For exterior lighting provides an integrated, one-stop integrated lighting solution!

2.Experience R&D, production and sales team: We have an mature and experienced team. Some members have more than 15 years of work experience in the field of lighting. JP Lighting factory covers an area of 2,000 square meters and the annual sales of more thank $10 million.

3.Strict quality control process: JP lights use the high quality components. All material must be strictly screened. All JP lights will undergo strict testing before shipping, including integrating sphere testing, aging test, waterproof test, etc. Due to rich experience and professionalism, JP Lighting's product defect rate is strictly controlled within 1%.

4.Products worldwide with high reputation: We participate in various industry lighting exhibitions, our products are all over Asia, Europe, Oceania, Africa and Central and South America, Middle East. All products have got great comments for high quality and excellent service.
