• Model NO.：IK03-100W
• Certification：CE, EMC, RoHS
• Operating Voltage：85-265V
• Input Voltage：AC85-265V
• LED Chips Brand：Bridgelux
• Product Name：Outdoor LED Flood Light
• Color Temperature(CCT)：2700K-6500K
• Material：Die-Cast Aluminum
• Type：Energy Saving Outdoor LED Flood Light

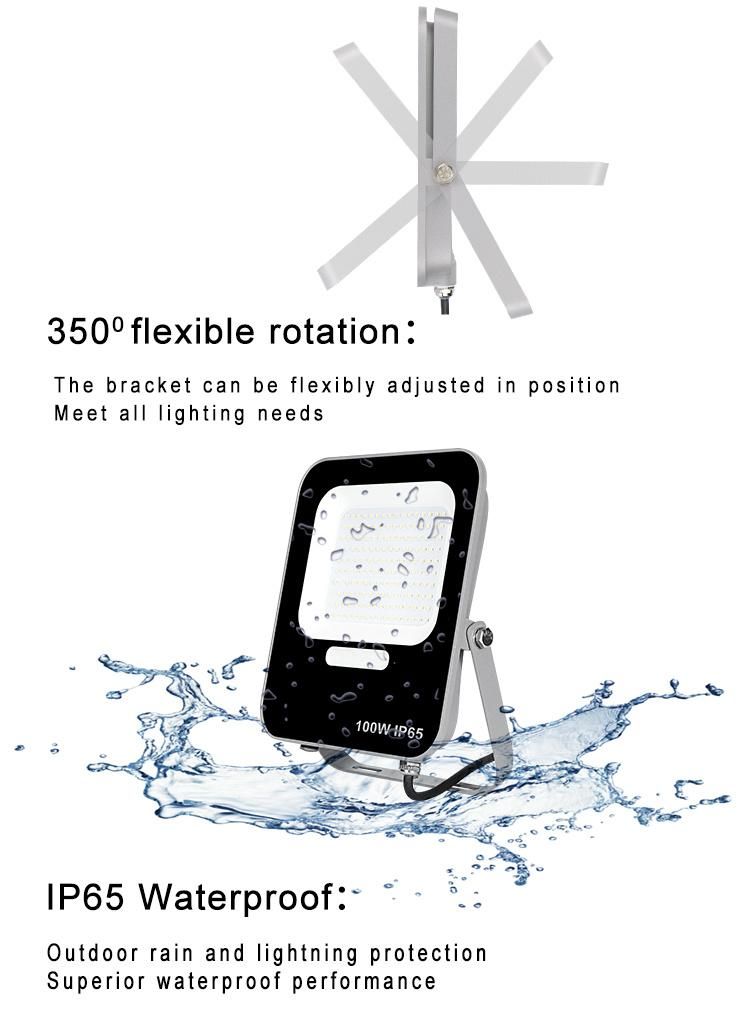

• IP Grade：IP 65 Waterproof
• Feature：High Brightness
• LED Chip：High Power LED Chip
• Shell Color：Grey,White
• Power Factor：PF>0.9
• Usage：Outdoor LED IP65 Floodlight
• Working Temperature (ºC)：-20~+50
• CRI (Ra>)：80
• LED Light Source：Sanan
• Lamp Luminous Efficiency(Lm/W)：90lm,W
• Working Hours (Hours)：50000
• Transport Package：Customize
• Specification：201.2*234*33mm
• Trademark：KCD
• Origin：China
• HS Code：940542
• Production Capacity：200000piece,Pieces,Month

Basic Info.

Model NO. IK03-100W Certification CE, EMC, RoHS Operating Voltage 85-265V Input Voltage AC85-265V LED Chips Brand Bridgelux Product Name Outdoor LED Flood Light Color Temperature(CCT) 2700K-6500K Material Die-Cast Aluminum Type Energy Saving Outdoor LED Flood Light IP Grade IP 65 Waterproof Feature High Brightness LED Chip High Power LED Chip Shell Color Grey/White Power Factor PF>0.9 Usage Outdoor LED IP65 Floodlight Working Temperature (ºC) -20~+50 CRI (Ra>) 80 LED Light Source Sanan Lamp Luminous Efficiency(Lm/W) 90lm/W Working Hours (Hours) 50000 Transport Package Customize Specification 201.2*234*33mm Trademark KCD Origin China HS Code 940542 Production Capacity 200000piece/Pieces/Month

Product Description

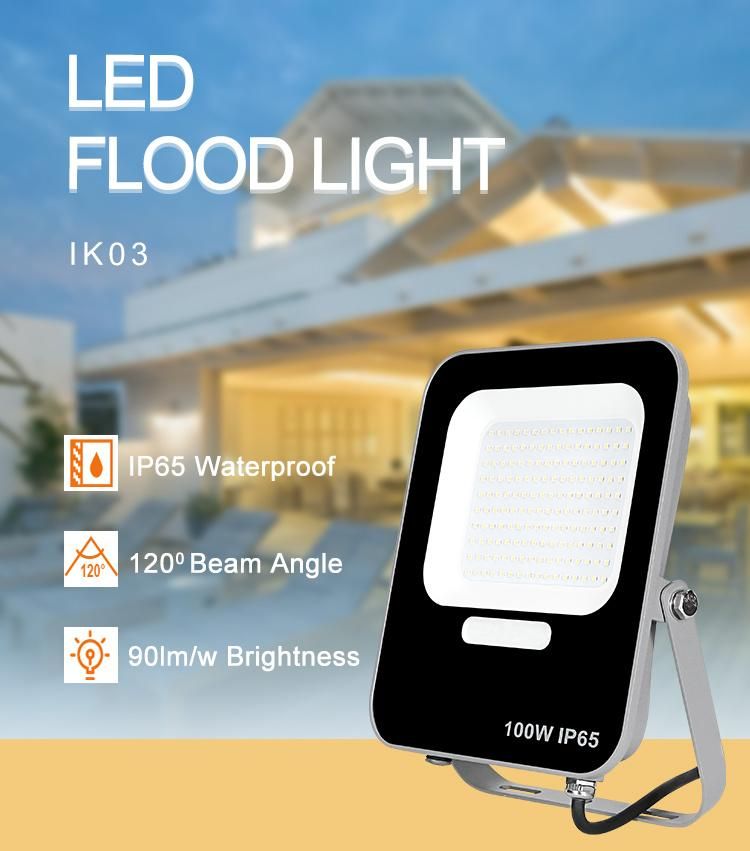

KCD high power ac dc 12v 24v ip66 lighting 100w 150w mini stadium led flood light with filter



Model NO.	Size:LxWxH(mm)	Power	Luminous Flux	PF	SPD
KCD IK03-20W	121.3*120.4*26.4mm	20W	90lm/w	>0.9	>2KV
KCD IK03-30W	136.8*158.6*32mm	30W	90lm/w	>0.9	>2KV
KCD IK03-50W	166.3*193.8*32.3mm	50W	90lm/w	>0.9	>2KV
KCD IK03-100W	201.2*234*33mm	100W	90lm/w	>0.9	>8KV
KCD IK03-150W	231*269*33mm	150W	90lm/w	>0.9	>10KV
KCD IK03-200W	266*309*33mm	200W	90lm/w	>0.9	>10KV

PRODUCT ADVANTAGES AND FEATURES

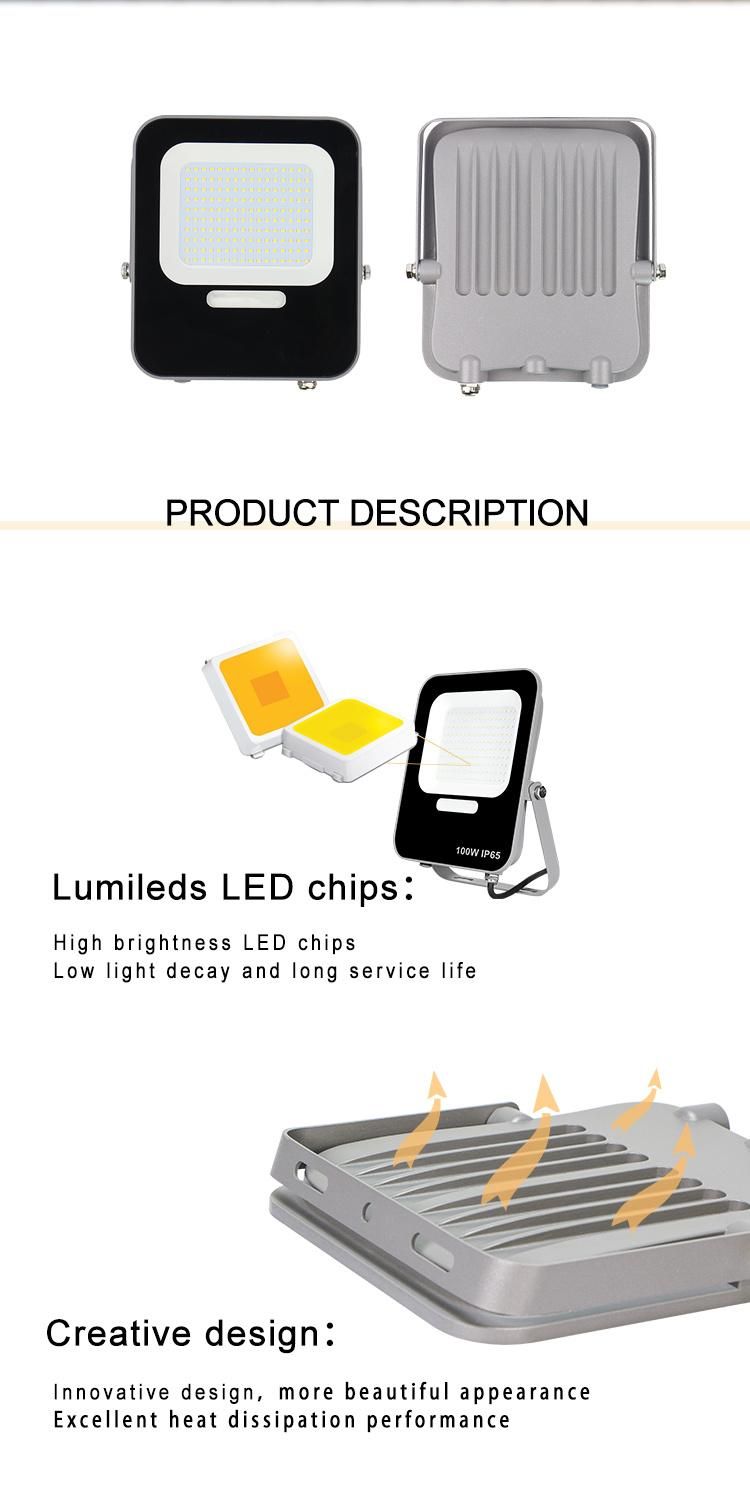

Integrated cooling design, elegant, efficient.

Streamline design,more beautiful appearance no accumulation.

ADC12# die-cast aluminum body,excellent heat performance,more durable.

Professional outdoor painting,stainless steel components,giving excellent performance in anti- corrsion and anti-rusting,widely used in different environment.

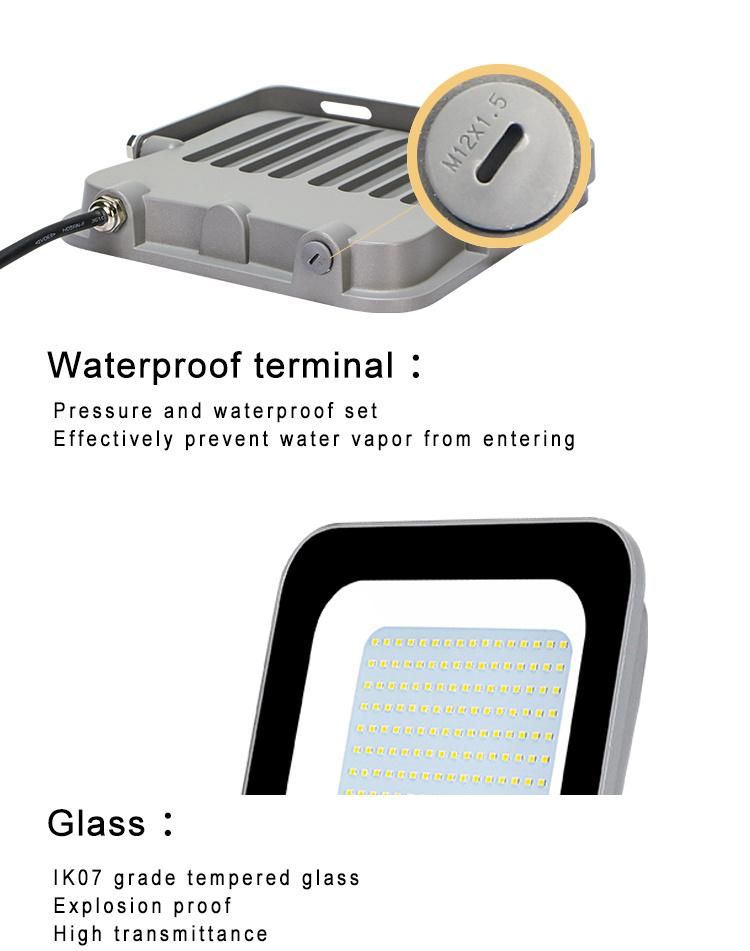

Light transmittance up to 94%,easy to improve in the future.

FAQ:

Q1:Can I have a sample order for led light?

Yes,we welcome sample order to test and check quality,Mixed samples are acceptable.



Q2.What about lead time?

Sample needs 3-5 days,mass productions time needs about 25 days for large quantity.



Q3.ODM or OEM is acceptaed?

Yes,we can do ODM&OEM,put your logo on the light or package both are available.



Q4.Do you offer the guarantee for the products?

Yes,we offer 2-5 years warranty to our products.



Q5.How do you ship the goods and how long does it take to arrive?

We usually ship by DHL,UPS,FedEx or TNT.It usally takes 3-5 days to arrive.Airline and shipping are also optional.


Q6.How is the after sales service?

We have a professional team which is in charge of after-sales service,also a service hot-line dealing with your complains and feedback.
