• Model NO.：ZGSM-LD30N
• Certification：CE, EMC, GS, LVD, RoHS, SAA
• Input Voltage：12v
• With Light Source：With Light Source
• LED Chips Brand：Lumileds
• Working Lifetime(Hour)：100, 000 Hours
• Packing Dimension：16.0 Kg
• Warranty：3 Years
• Solar Panel：Monocrystal 80W,18V
• Battery：93ah,3.2V
• Charge Time：5 Hours
• Constant Worttime at 100% Power：8 Hours
• Transport Package：Export Cartons, 1unit(S) ,CTN
• Specification：ISO 9001, ISO14001, CE, ROHS, FCC, TUV, SGS
• Trademark：ZGSM
• Origin：China
• HS Code：9405409000
• Production Capacity：100000 Piece,Pieces Per Month

Basic Info.

Model NO. ZGSM-LD30N Certification CE, EMC, GS, LVD, RoHS, SAA Input Voltage 12v With Light Source With Light Source LED Chips Brand Lumileds Working Lifetime(Hour) 100, 000 Hours Packing Dimension 16.0 Kg Warranty 3 Years Solar Panel Monocrystal 80W/18V Battery 93ah/3.2V Charge Time 5 Hours Constant Worttime at 100% Power 8 Hours Transport Package Export Cartons, 1unit(S) /CTN Specification ISO 9001, ISO14001, CE, ROHS, FCC, TUV, SGS Trademark ZGSM Origin China HS Code 9405409000 Production Capacity 100000 Piece/Pieces Per Month

Product Description

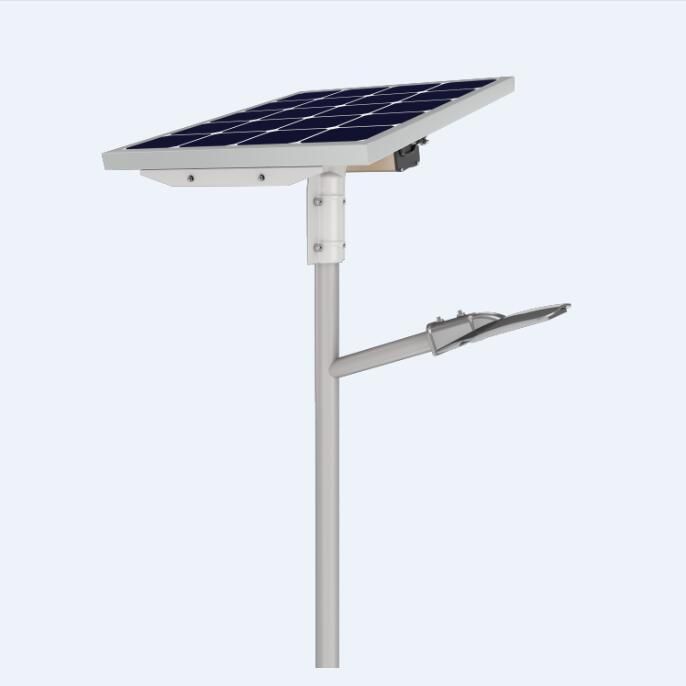

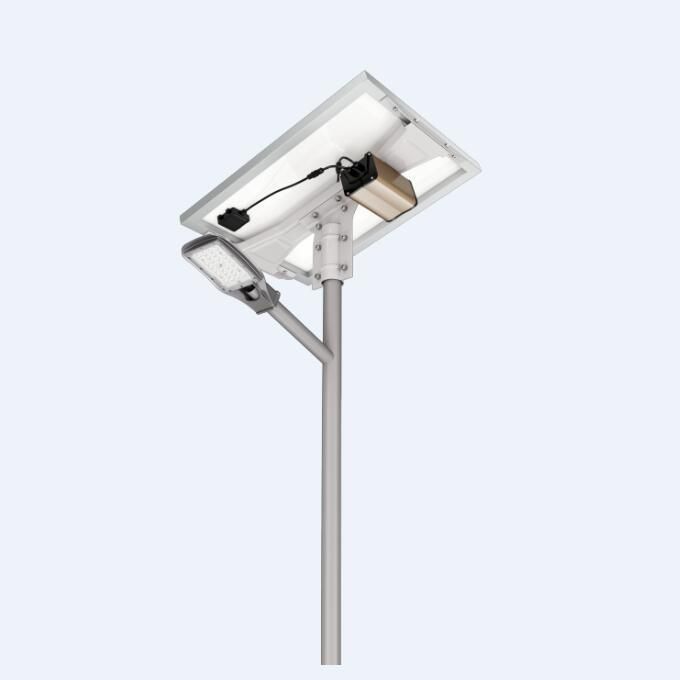

365 working days 30w All in 2 Solar led Street Light

 Overview

Quick DetailsLighting solutions service:DIALux evo layout
Light Source: LED
LED Input Voltage(V): 12v
Lamp Luminous Flux(lm): 5100
CRI (Ra>): 70
Working Temperature(ºC): -40 - +50
Working Lifetime(Hour): 100000
IP Rating: IP66
Certification: CE, RoHS
Warranty(Year): 3-YEAR
Place of Origin: Zhejiang, China
Brand Name: ZGSM
Model Number: ZGSM-LD30N
Beam Angle(°): TYPE II
Application: ROAD
Color: Dark Grey
Power Supply: Battery
Luminous Efficacy(lm/w): 170
Product name: Solar Street Light

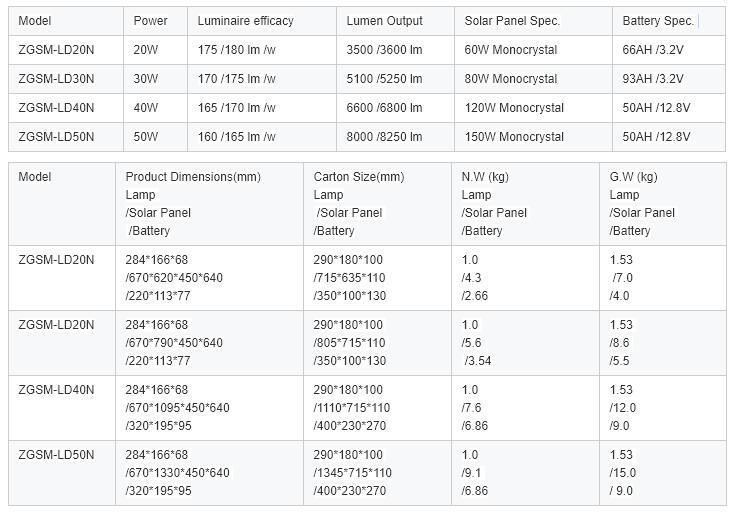

Power:20W/30W/40W/50W
Keyword: Solar Led Street Light Lamp
Material: Die-casting Aluminum
Type: Energy Saving Outdoor Led Street Light
LED Light Source: SMD5050
Battery: Lithium
IP Grade: IP 66

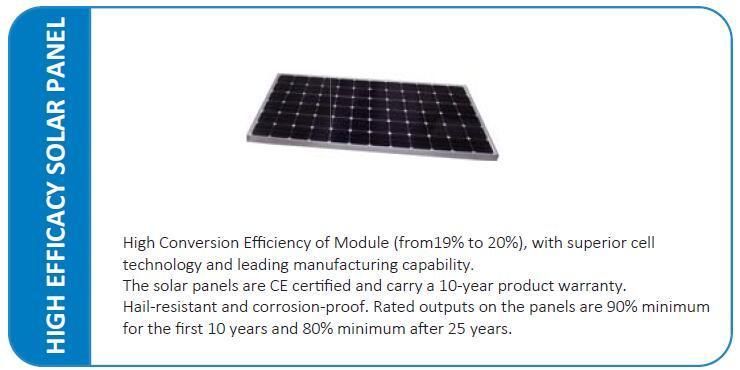

Solar panel: High Efficient Cell
Controller: MPPT Intelligent Controller

Supply AbilitySupply Ability:  50000.0 Unit/Units per Month
Packaging & DeliveryPackaging Details: 1unit/3ctn
Port: Shanghai/Ningbo
Lead Time :

Quantity(Units)	1 - 50	>50
Est. Time(days)	10	To be negotiated

Product Description


Detailed Images

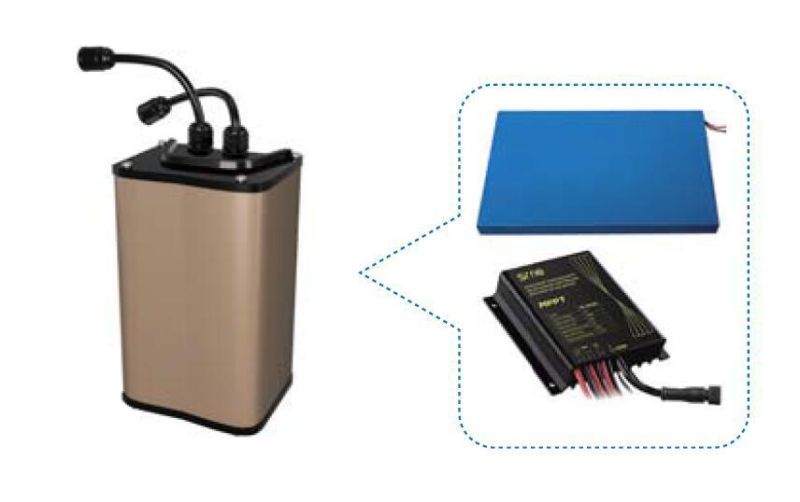

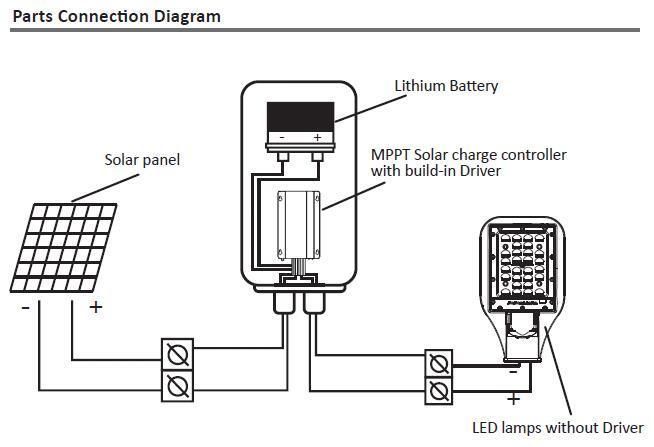

Adopts MPPT charging method,which increases the utilization of solar panel.Lithium battery low temperature charging protection, which effectively protects the battery .Intelligent computing, detecting the ratio of charge and discharge, to achieve the lights stay on 365 days.Working status indication, easy to maintain.







Product Presentation
