• Model NO.：ISSL-BRZ-100W-0914V
• Certification：CB, DLC, CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE, MPPT Charging
• Input Voltage：12V,24V
• With Light Source：With Light Source
• LED Chips Brand：(LED Lumen:195 Lm,W)
• Solar Panel Life-Span：25 Years
• Batteries Capacity/Type：25.6V,24ah(614.40.0wh),LiFePO4 Lithium
• Batteries Life-Span：8+ Years (2000 Circles)
• Controller Type：MPPT , Waterproof Class: IP68
• Sensor：Microwave Radar (PIR &Timing as Optional)
• LED Light Source Max LED Power：100W (36LEDs X 3modules)
• Max Lamp Lumen：9000-10000 Lm
• Life-Span：100, 000 Hous
• Viewing Angle：140°
• Full Charge Time by Solar：6 Hours Stc
• Discharge Time Bright Mode：More Than 12hours
• Discharge Time Dim Mode：More Than 60 Hours
• Mounting Height：8-9 M
• Space Between Lights：30-35m
• Warranty：3 Years
• Transport Package：Customary Carton,OEM Acceptable
• Specification：Light Body: 1510*470*200mm; Bracket: 650*235*325mm
• Trademark：ESAVIOR
• Origin：Guangzhou, China
• HS Code：9405409000
• Production Capacity：50, 000 Sets,Year

SUPERIOR (SILVER) SeriesMODEL NO. ISSL-BRZ-100WSolar PanelPower36V/120Wp (High Efficiency Monocrystalline PV)Life-span25 yearsBatteriesCapacity/Type25.6V/24AH (614.40WH) / LiFePO4 LithiumLife-span8+ years (2,000 circles)ControllerTypeMPPT / Waterproof class: IP68SensorMicrowave Radar ( PIR & Timing as optional )LED Light SourceRated Power12V/100W  (36LEDs X 3Modules)LED Brand (LED Lumen:195lm/W)Lumens(LM)9000-10000lmLife-span100,000 hoursViewing Angle140°Full Charge TimeBy Solar6 hours Discharge TimeBright Mode>12 hoursDim Mode>60 hoursWorking Temp.-30ºC~+80ºCColor Temp.Cool White 6000K (6000~6500k) / (Warm White 3000K, 4000K available)Mounting Height8-9mSpace Between Lights30~35mMaterialsaluminium alloyCertificateCE / ROHS / IP66/TUV-SUD ISO9001/ISO14001Warranty3 yearsPacking & WeightProduct Size1460*420*70mmNet Weight28.0kg (Light: 24kg; Bracket: 4kg)Carton TypeCustomary Carton/ OEM AcceptableCarton sizeLight Body: 1510*470*200mm; Bracket: 650*235*325mmQty/ctn1set per CTNGW. per Carton49.0kg/9.0kgPCS per Container20' GP330pcs40' GP770pcs

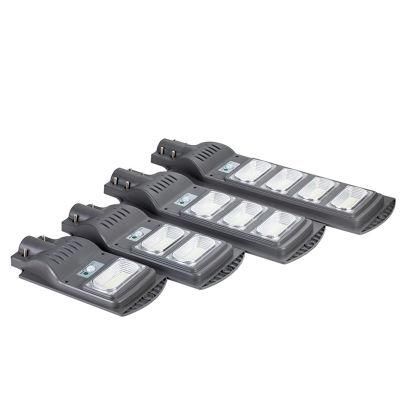

All in One 100W LED Solar Street Light Outdoor Flood Lamp with Motion Sensor

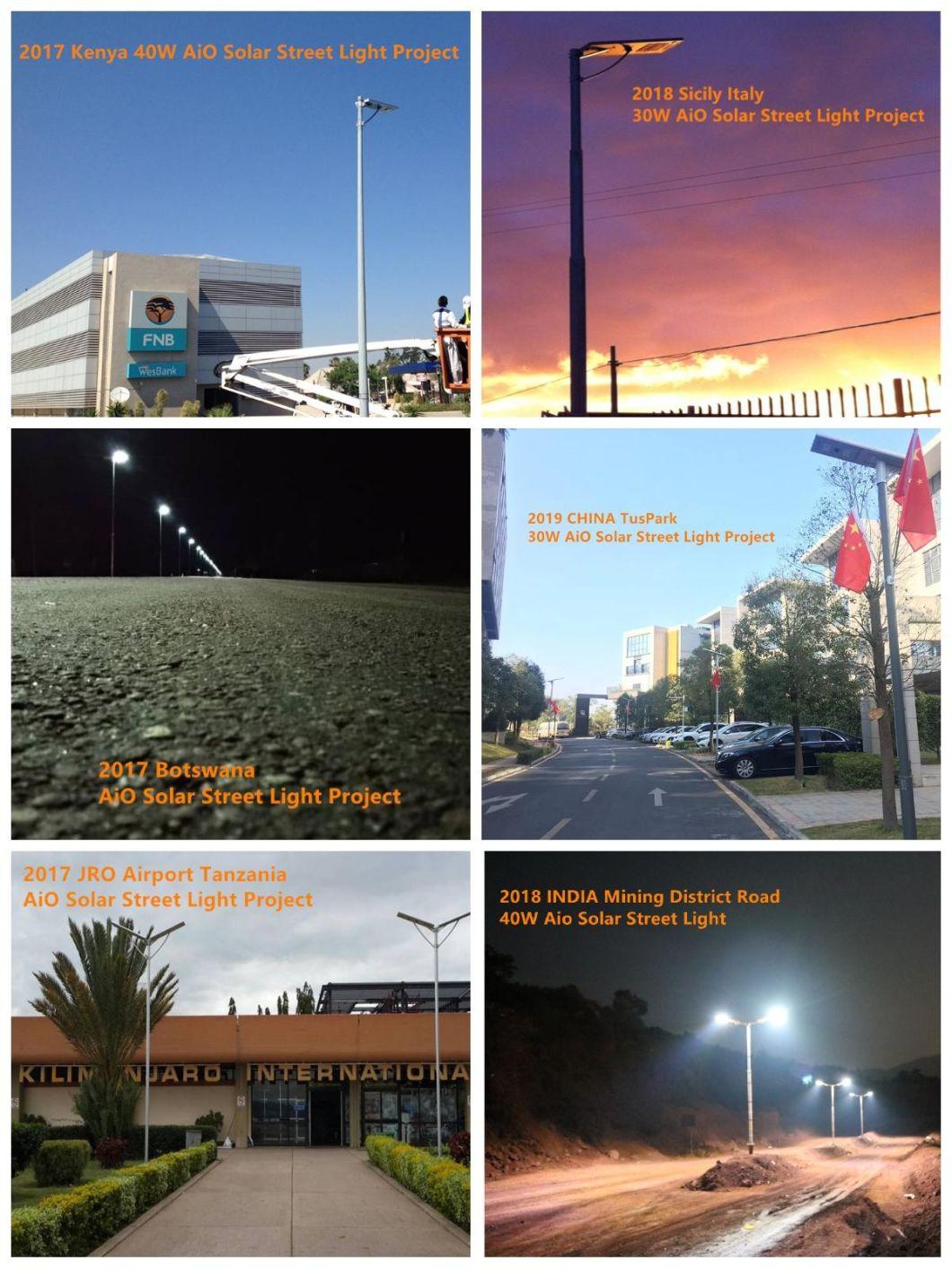

PROJECTS  SHOW



WHY ESAVIOR?

1. 10 years' experience in with global successful project reference on the Solar Lighting field.

2. 13 patents core technologies were awarded to our Solar Street Lights and IoT online Monitoring System for Solar Street Light.

3. ISO 9001/14001, IEC 60598/ IES TM-21 / IES RP-27.3-07 reports were awarded by TUV-SUD besides our existing CE/RoHs/IP66 certificates.

4. More than 90 countries' clients enjoy our solar street led lights, highly praised by UNDP, UNHCR, UNOPS, Red Cross, The World Bank and government.

5. Provides a modern manufacturing base which meets international global solar RD & Inspection Center ,has the most advanced inspection equipment and faultless QA system.

CERTIFICATES SHOW

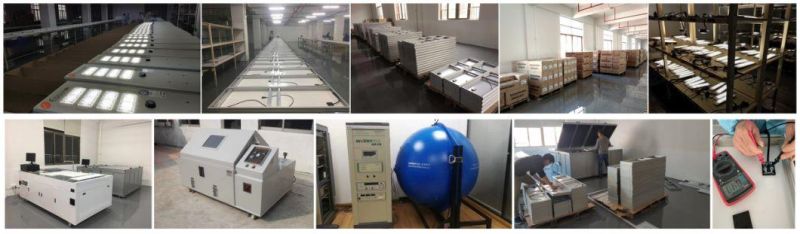

WORKSHOP SHOW


OVERSEAS EXHIBITIONS




RFQ:

Q1:Does the lamp light on automatically?

A:Yes, it will light on automatically at darkness no matter which mode except "OFF".

Q2:Can I order a samples for solar street light?

A:Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.

Q3:What about the lead time?

A:3 workdays for sample, 7-15workdays for batch order(more than 100pcs).

Q4:Do you offer guarantee for the products?

A:Yes, we offer 3-5 years warranty to our products.

Q5:Can the lamp be used in strong wind environment?

A:Of course yes, as we take Aluminum-alloy holder, solid and firm, Zinc plated, anti- rust corrosion.

Q6:What's the difference between Motion sensor and PIR sensor?

A:Motion sensor also called radar sensor, works by emitting high frequency electric wave and detecting people movement.PIR sensor works by detecting environment temperature changing, which usually is 3-5 meters sensor distance.But motion sensor can reach 10 meters distance and be more accurate and sensitive.

Q7:How to deal with the faulty?

A:Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.05%.Secondly, during the guarantee period, we will send replacements with new order for small quantity.

All in One 100W LED Solar Street Light Outdoor Flood Lamp with Motion Sensor
