• Model NO.：824121H
• Certification：CE, EMC, GOST, LVD, RoHS
• Input Voltage：DC12V,DC24V,AC100-240V
• Light Source：With Light Source
• LED Chips Brand：CREE,Bridgelux,Osram
• Mounting Sleeve：ABS
• Driver：Built-in Constant Current Output
• Glass：Clear, Diffused Tempered Glass
• LED Source：12*1W,12*2W,12*3W Single Color,12*3W RGB
• Transport Package：442X22X31(4PCS,CTN),G. W: 10.5kgs,CTN
• Specification：4PCS,CTN
• Trademark：JP Lighting
• Origin：Dongguan, Guangdong, China
• HS Code：94054090
• Production Capacity：30000PCS,Month

Basic Info.

Model NO. 824121H Certification CE, EMC, GOST, LVD, RoHS Input Voltage DC12V/DC24V/AC100-240V Light Source With Light Source LED Chips Brand CREE/Bridgelux/Osram Mounting Sleeve ABS Driver Built-in Constant Current Output Glass Clear/ Diffused Tempered Glass LED Source 12*1W/12*2W/12*3W Single Color/12*3W RGB Transport Package 442X22X31(4PCS/CTN)/G. W: 10.5kgs/CTN Specification 4PCS/CTN Trademark JP Lighting Origin Dongguan, Guangdong, China HS Code 94054090 Production Capacity 30000PCS/Month

Product Description

IP67 New Style Lighting 12w 24w Led UndergroundLights Inground Light

LED inground light, LED underground light, LED Floor Recessed Light, LED Floor Up Light, LED walk over light, LED Outdoor Spot, LED spot light, IP67 LED Fitting, LED Floor Luminaire

Feature and Benefits:1. IP67 waterproof for outdoor walk, path, parking lot, garden, square lighting use;
2. Input voltage:12V/24VDC and 100-240VAC optional;
3. Single color and RGB color optional;
4. 12x1W/12x2W single color, 12x1W RGB, 12x2W RGB, 12x3W RGB 3in1 optional;
5. Optional PWM, 0/1-10V, DALI dimmable or DMX512 controllable support;                                                                                                                    6. The size of back box is optional.
 Main Specification:
Housing: Outdoor dark grey powder coated aluminum T=60-80um Adhesion of ISO class 1/ASTM class 4B
Front Cover: 304# or 316# Stainless Steel
LED Source: 12x1W/12x2W single color/12x1W RGB/12x2W RGB/12x3W RGB 3in1 LED
Lens: Optical lens, efficiency ≥85%
Glass: Tempered step glass T=8mm
Glass pressure capacity: Full area=2250kgs
Gasket: Molding shaped silicone seal
Operating temperature: -20ºC to 40ºC
Power cable: H05RN-F 2x0.75mm² L=0.5m (low voltage)
           H05RN-F 3x0.75mm² L=0.5m (Single color/high voltage)
           H05RN-F 4x0.75mm² L=0.5m (for RGB)
Mounting sleeve: ABS

Products Model:

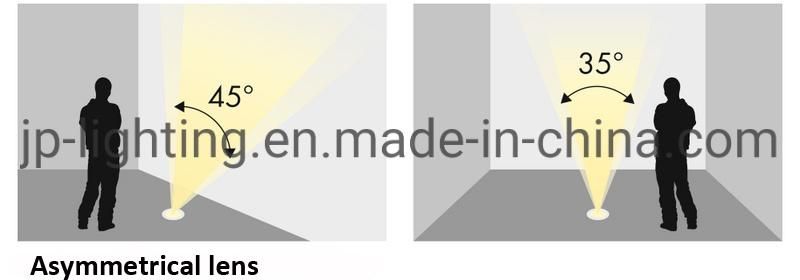

Item No.	Lighting Source	Lens beam angle (°)	Consumption(Watt)	Input Voltage(V)	IK rate
824121(AS)	12x1W LED	8°/15°/25°/30°/45°/60°/90°/ Asymmetrical lens	12.6	DC12V/DC24V	08
824121H(AS)	12x1W LED	8°/15°/25°/30°/45°/60°/90°/ Asymmetrical lens	12.6	AC100-240V	08
824122(AS)	12x2W LED	8°/15°/25°/30°/45°/60°/90°/ Asymmetrical lens	25.4	DC12V/DC24V	08
824122H(AS)	12x2W LED	8°/15°/25°/30°/45°/60°/90°/ Asymmetrical lens	25.4	AC100-240V	08
824123(AS)	12x1W RGB LED	8°/15°/25°/30°/45°/60°/90°/ Asymmetrical lens	11.8	DC12V/DC24V	08
824124(AS)	12x2W RGB LED	8°/15°/25°/30°/45°/60°/90°/ Asymmetrical lens	23.5	DC12V/DC24V	08
824126(AS)	12x3W RGB 3in1 LED	8°/15°/25°/30°/45°/60°/90°/ Asymmetrical lens	34.6	DC24V	08

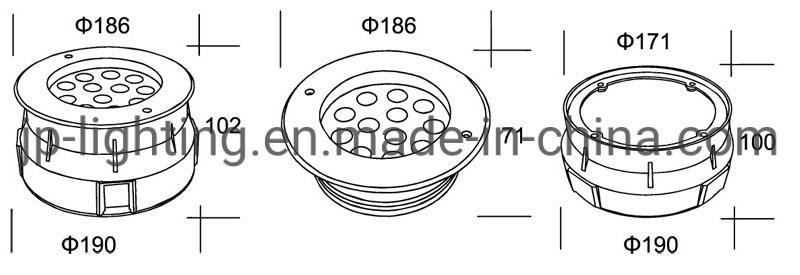

Products Size:

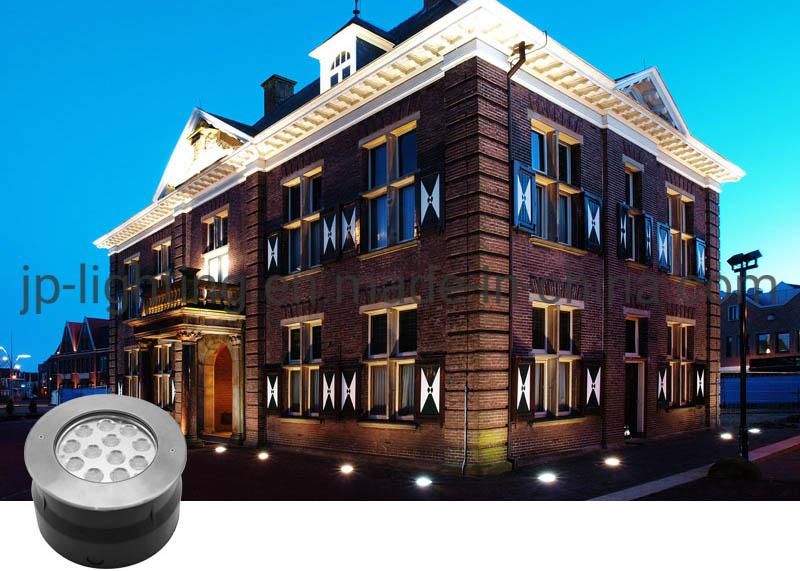

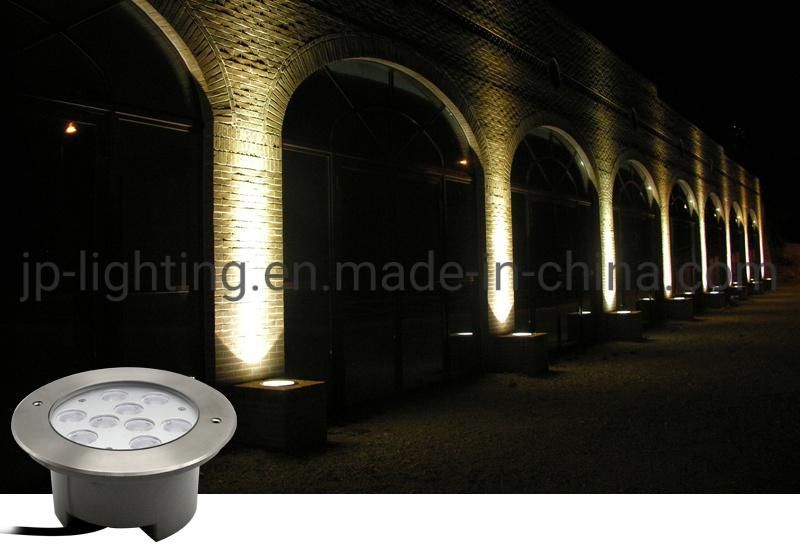

Products Picture:

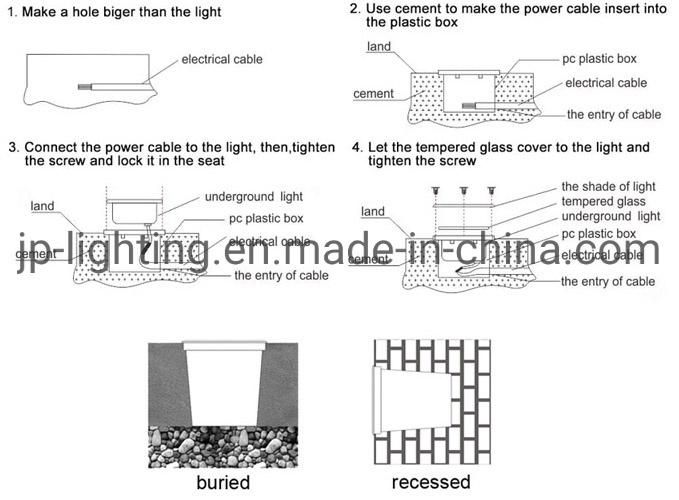

Products Installation:

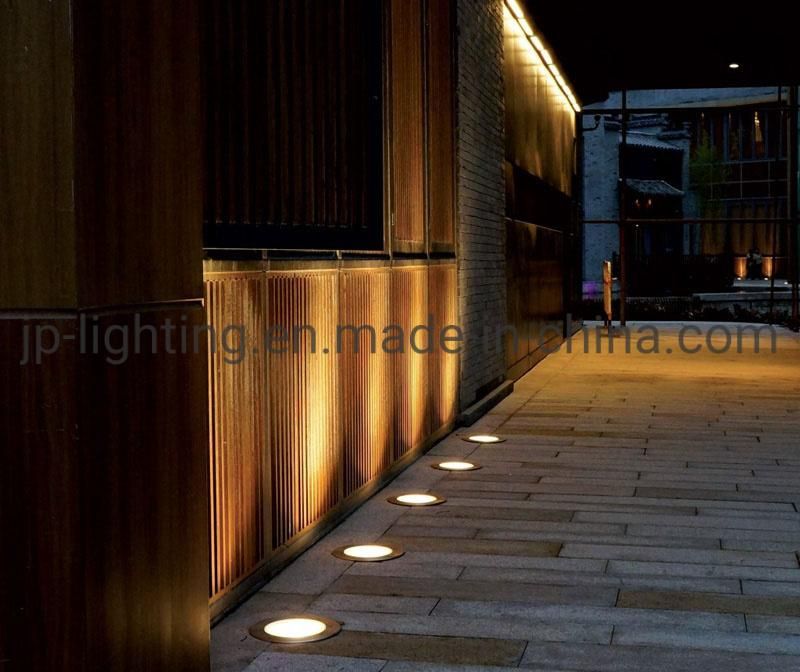

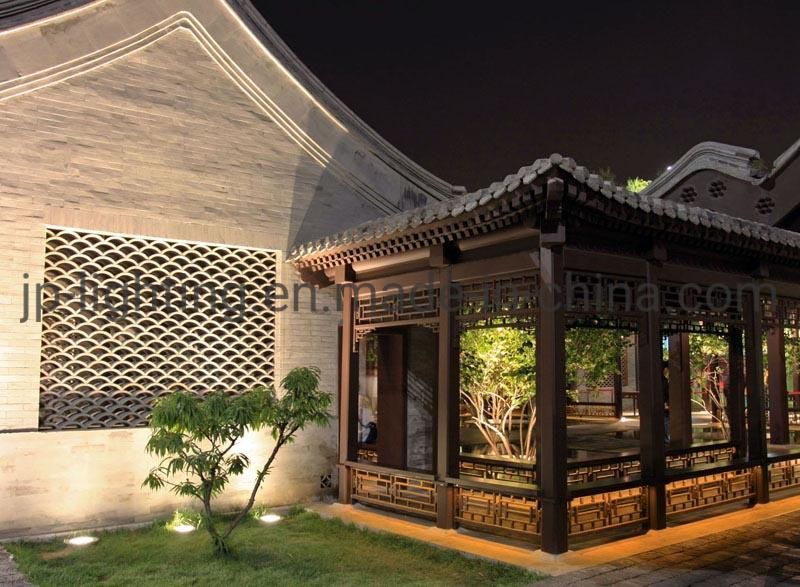

Application:
Used for Park,Garden, Corridor, Pathway, Road and other outdoor lighting.

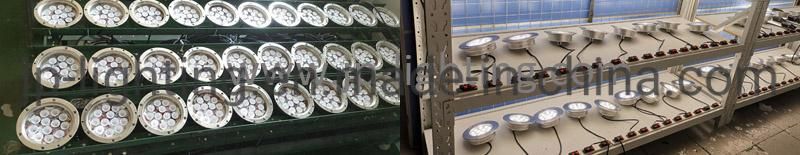

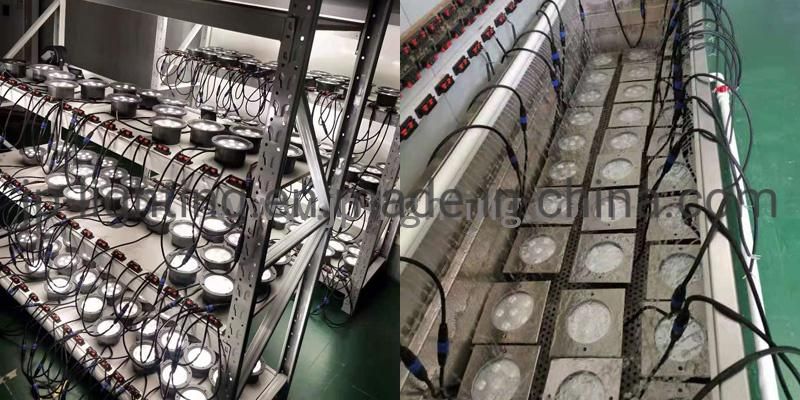

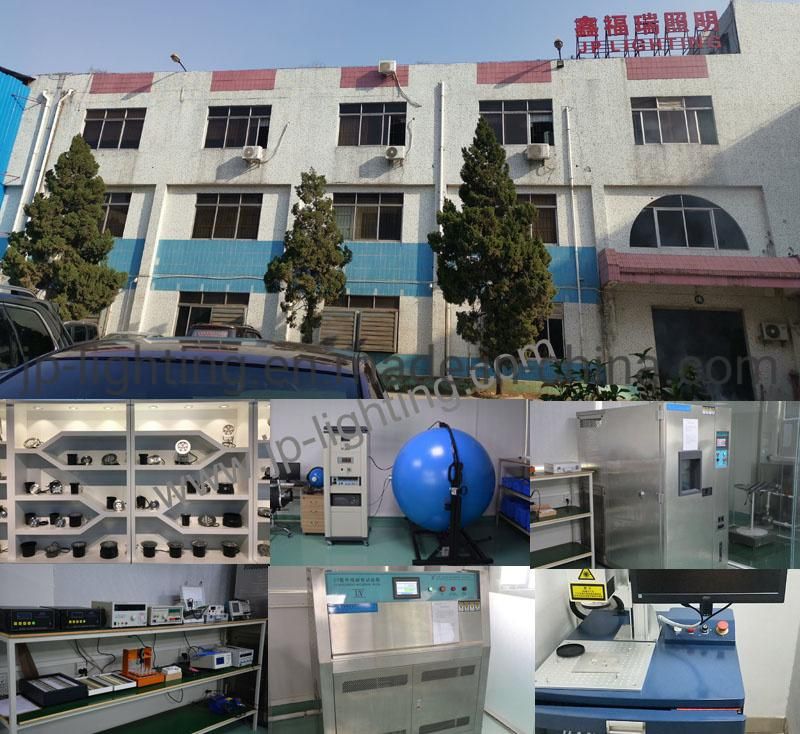

Factory Picture

FAQ

Are you a manufacturer?
Yes, We are a professional manufacturer with 15 years experience.

What is your main product?
1.Outdoor LED wall light
2.LED garden spot/spike light
3.LED inground light
4.LED underwater light(fountain light, swimming poool light, underwater spot light)
5.LED wall washer light

What is the company sample system?
1.Sample charge should prepaid.
2.Sample can be customized,If the order QTY is more than 1000Pcs.

How we can pay for?
1.30% advanced payment. 70% balance payment.
2.We accept L/C, T/T, Western Union, and Paypal.
3.Our shipping terms is EXW, FOB, CIF

How about the delivery time?
1.About 5 work days for sample making
2.15-30 work day for mass products production time. It is up to the quantity

What information should I let you know when I want to make a inquiry?
1.Which body color do you want?
2.What kind of light color do you prefer?
3.How long did you need about light cable?
4.Which voltage ( low voltage or high voltage)?
5.What kind of beam angle did you need?
6.How many quantity do you need?

Why choose us?
1.One-stop services:  Innovative design, professional product light effect. Excellent product quality, sincere service concept. For exterior lighting provides an integrated, one-stop integrated lighting solution!

2.Experience R&D, production and sales team: We have an mature and experienced team. Some members have more than 15 years of work experience in the field of lighting. JP Lighting factory covers an area of 2,000 square meters and the annual sales of more thank $10 million.

3.Strict quality control process: JP lights use the high quality components. All material must be strictly screened. All JP lights will undergo strict testing before shipping, including integrating sphere testing, aging test, waterproof test, etc. Due to rich experience and professionalism, JP Lighting's product defect rate is strictly controlled within 1%.

4.Products worldwide with high reputation: We participate in various industry lighting exhibitions, our products are all over Asia, Europe, Oceania, Africa and Central and South America, Middle East. All products have got great comments for high quality and excellent service.
