IP66 Outdoor High Power Waterproof Garden Three Security Flood Lights
Ningbo Sunle Lighting Electric Co., Ltd.- Color Temperature：Cool White
- Lamp Body Material：Aluminum Alloy
- Power：20-600W
- Projection Distance：18-25m
- Application：Park, Square, Factory, Garden
- IP Rating：IP66
Base Info
- Model NO.：SLF20
- Certification：CE, RoHS
- Operating Voltage：100-277V
- Input Voltage：AC100-277V
- LED Chips Brand：a Variety of Chips to Choose From
- Warranty：5 Years
- Power Efficiency：>0.90
- Luminous Efficacy：130lm,W
- Energy Efficiency Class：a++
- Starting Time：<0.5s
- Switching Cycle Before Failure：>100, 000times
- Lifespan：>50000hrs
- Specification：A variety of specifications can be selected
- Trademark：sunle
- Origin：Ningbo
- Production Capacity：10000 Pieces,Year
Description

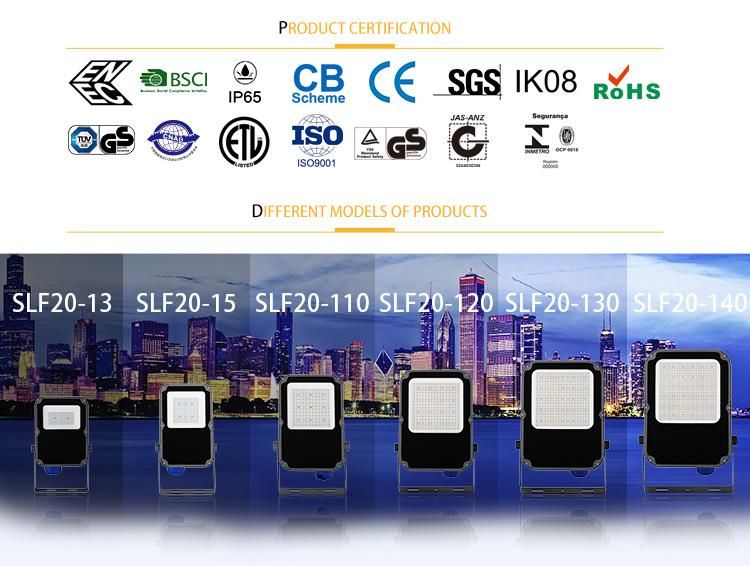

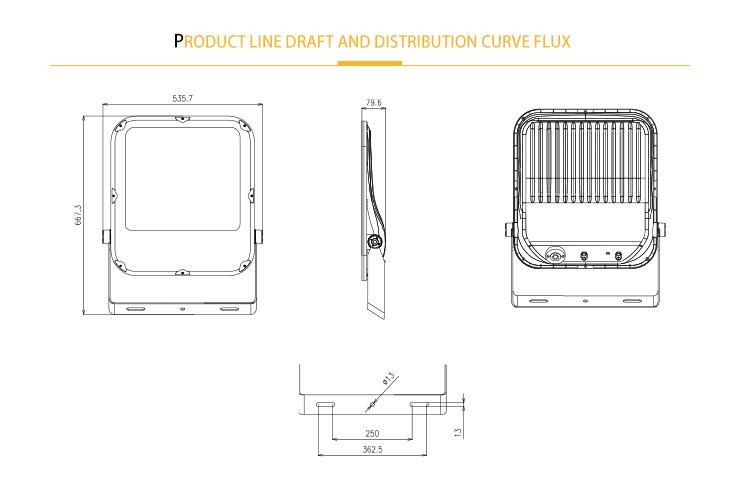

2700-6500KF20-15 200W 20W 398*249*69mm F20-110 300W 30W 456*308*73mm F20-120 400W 40W 529*360*73mm F20-130 600W 60W 562.4*472.4*79mm F20-140 800W 80W 667.3*535.7*79.6mm
Application
Commercial Lighting:Tunnel,Supermarkets,Large retailers,School,Billboard,Building etc.
Public Lighting:Tunnel,Airports,Stadium,Train stations,Bus stations etc.
Industrial Lighting:Manufacture Warehouses,Parking lots,Exhibition centers,Gas stations,Toll stations etc.

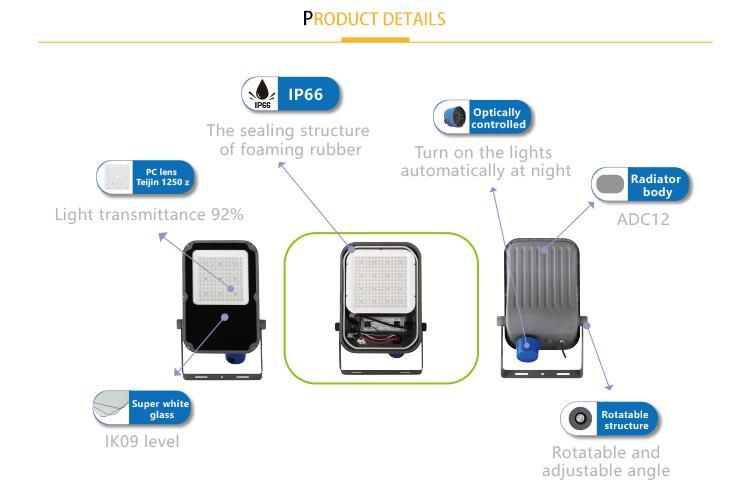

Features

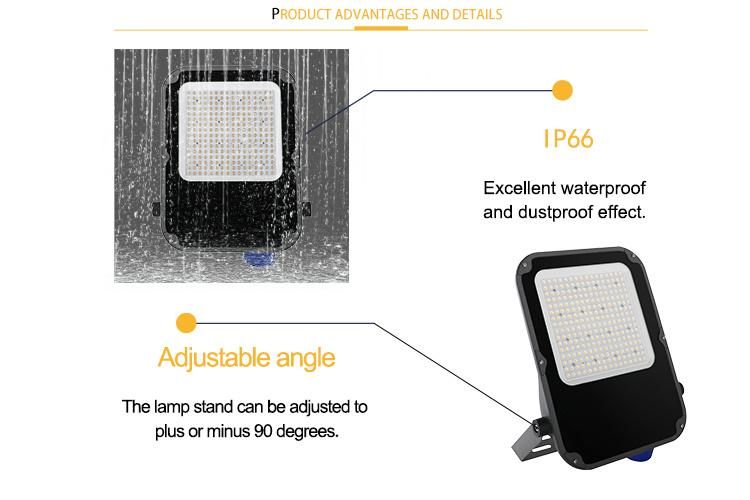

IP66 waterproof/dust proof/explosion proof/IK09

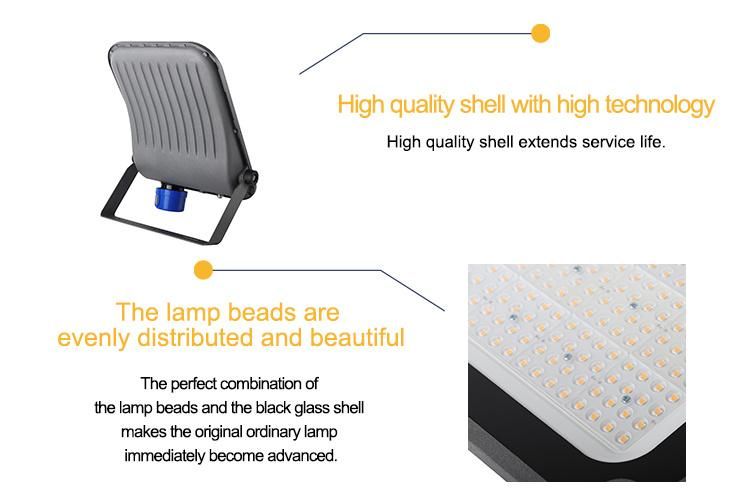

Pure Aluminum shape good at heat dissipation
Angle Bracket,easy to install by drill
Easy replacement and installation
SMD 3030 Ra>70/SDCM<6
100,000 times switching cycle before failure
Total harmonic distortion(THD)<10%
Matters needing attention
Before installing the lighting fixtures, please read this instruction manual carefully.
The lighting fixtures should be installed, connected and tested by a certified electrician based on the local regulations.
Lamps should always be installed or replaced carefully.
Please check the local voltage in accordance with the product requirements before installation.
Revamping only can be done when the power is off and the lamp is completely cooled down.
When clean the lamp, make the power off and let it cool down completely, clean the fixture with a soft cloth and a standard PH neutral detergent, stainless steel should be maintained regularly.
Don't cover the fixtures with flammable materials.
Replace should be made by the manufacturer or his service agent or certified electrician in order to avoid a hazard.
Application Commercial Lighting:Tunnel,Supermarkets,Large retailers,School,Billboard,Building etc.
Public Lighting:Tunnel,Airports,Stadium,Train stations,Bus stations etc.
Industrial Lighting:Manufacture Warehouses,Parking lots,Exhibition centers,Gas stations,Toll stations etc.
Features
IP66 waterproof/dust proof/explosion proof/IK09
Pure Aluminum shape good at heat dissipation
Angle Bracket,easy to install by drill
Easy replacement and installation
SMD 3030 Ra>70/SDCM<6
100,000 times switching cycle before failure
Total harmonic distortion(THD)<10%
Matters needing attention
Before installing the lighting fixtures, please read this instruction manual carefully.
The lighting fixtures should be installed, connected and tested by a certified electrician based on the local regulations.
Lamps should always be installed or replaced carefully.
Please check the local voltage in accordance with the product requirements before installation.
Revamping only can be done when the power is off and the lamp is completely cooled down.
When clean the lamp, make the power off and let it cool down completely, clean the fixture with a soft cloth and a standard PH neutral detergent, stainless steel should be maintained regularly.
Don't cover the fixtures with flammable materials.
Replace should be made by the manufacturer or his service agent or certified electrician in order to avoid a hazard.
