Modern IP65 Waterproof Light Solar Outdoor Garden Lights

Ningbo Sunle Lighting Electric Co., Ltd.
  • Power Supply：AC
  • Color Temperature：2700K-6500K
  • Lamp Body Material：Aluminum Alloy
  • Power：100W
  • Application：Square, Highway, Garden, Parking Lot
  • IP Rating：IP66

Base Info

  • Model NO.：SLT07
  • Certification：CE, RoHS
  • Input Voltage：100V-240V
  • With Light Source：With Light Source
  • LED Chips Brand：a Variety of Brands to Choose From
  • Power Efficiency：>0.90
  • Warranty：5 Years
  • Luminous Efficacy：120-130 Lm,W
  • Freqency Range：50Hz-60Hz
  • Energy Efficiency Class：a++
  • Thd：<0.15
  • Switching Cycle Before Failure：>100,000times
  • Starting Time：<0.5s
  • Lifespan：>50000hrs

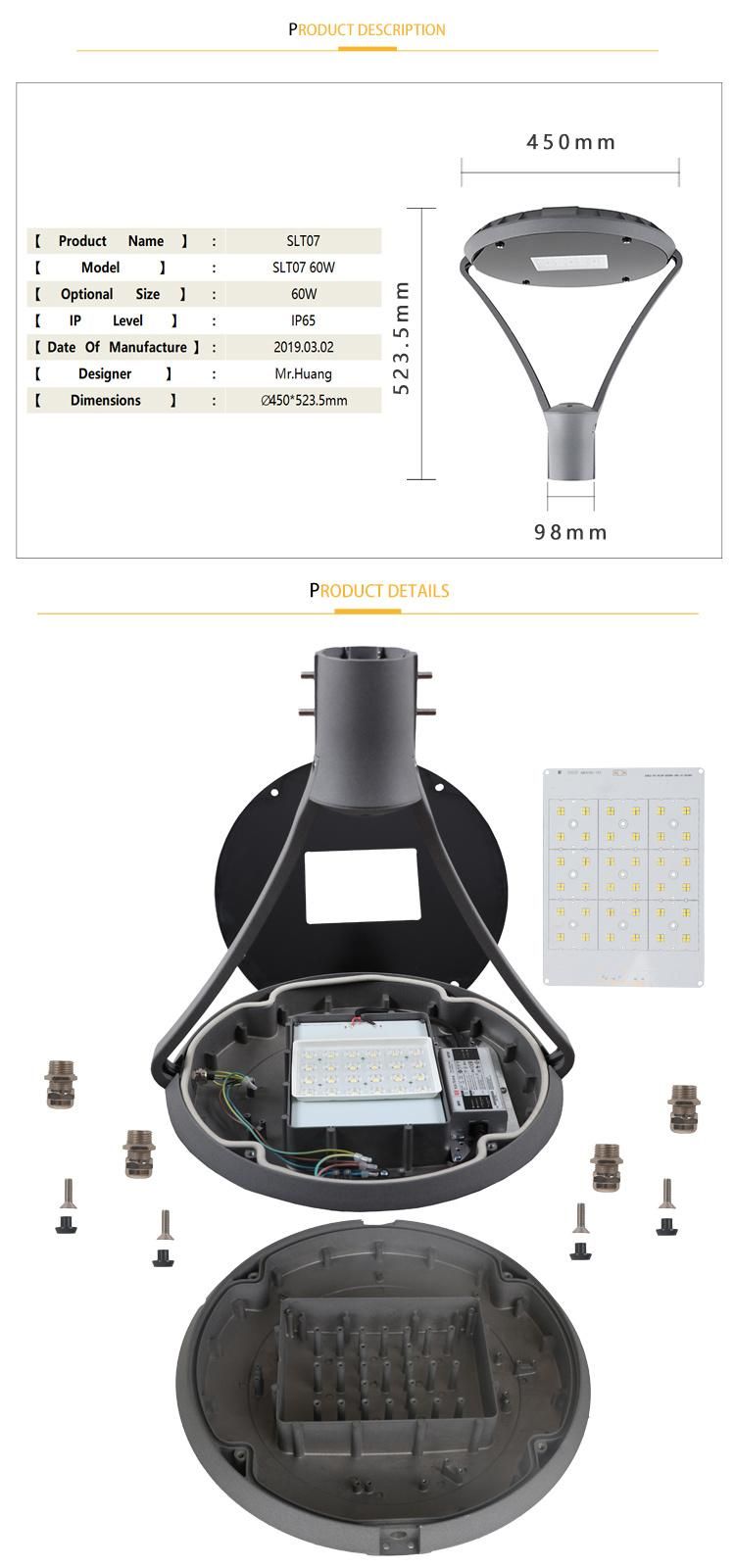

  • Specification：450*450*523.5mm
  • Trademark：sunle
  • Origin：Ningbo
  • Production Capacity：10000 Pieces,Year

Description

           L(MM)W(MM)H(MM)Product size (T07)450450523.5Product size   Packing size  (T07)490490550Packing size    Modern IP65 Waterproof Light Solar Outdoor Garden LightsModern IP65 Waterproof Light Solar Outdoor Garden LightsModern IP65 Waterproof Light Solar Outdoor Garden LightsModern IP65 Waterproof Light Solar Outdoor Garden Lights
Application
It is mainly applied to branch road, factory, school, garden, various residential communities and courtyards. The installation height is 4-8m and the installation torque is 16Nm.

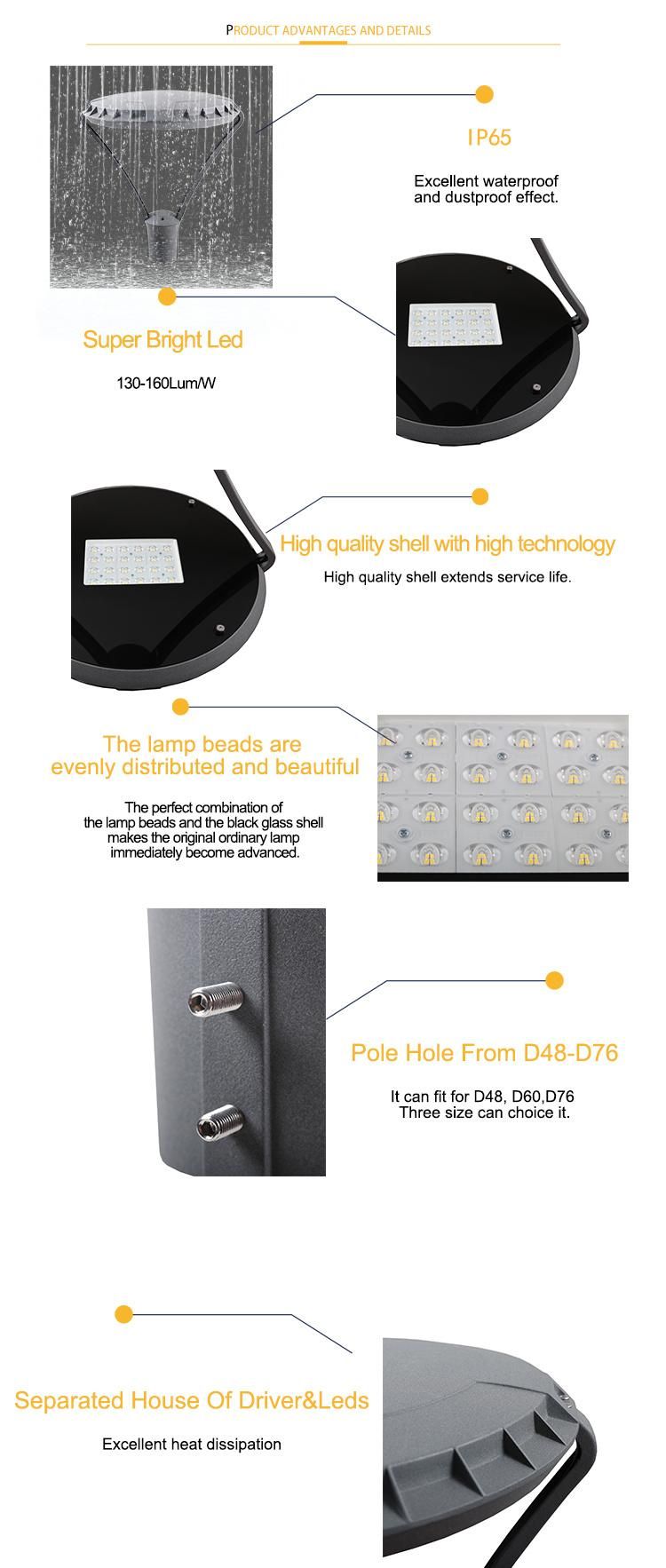

Features
IP66 waterproof/dust proof/explosion proof/IK09
Aluminum shape good at heat dissipation
It can also be installed vertically
SMD 3030/ 5050/ Ra>70/SDCM<6
100,000 times switching cycle before failure
Total harmonic distortion(THD)<10%

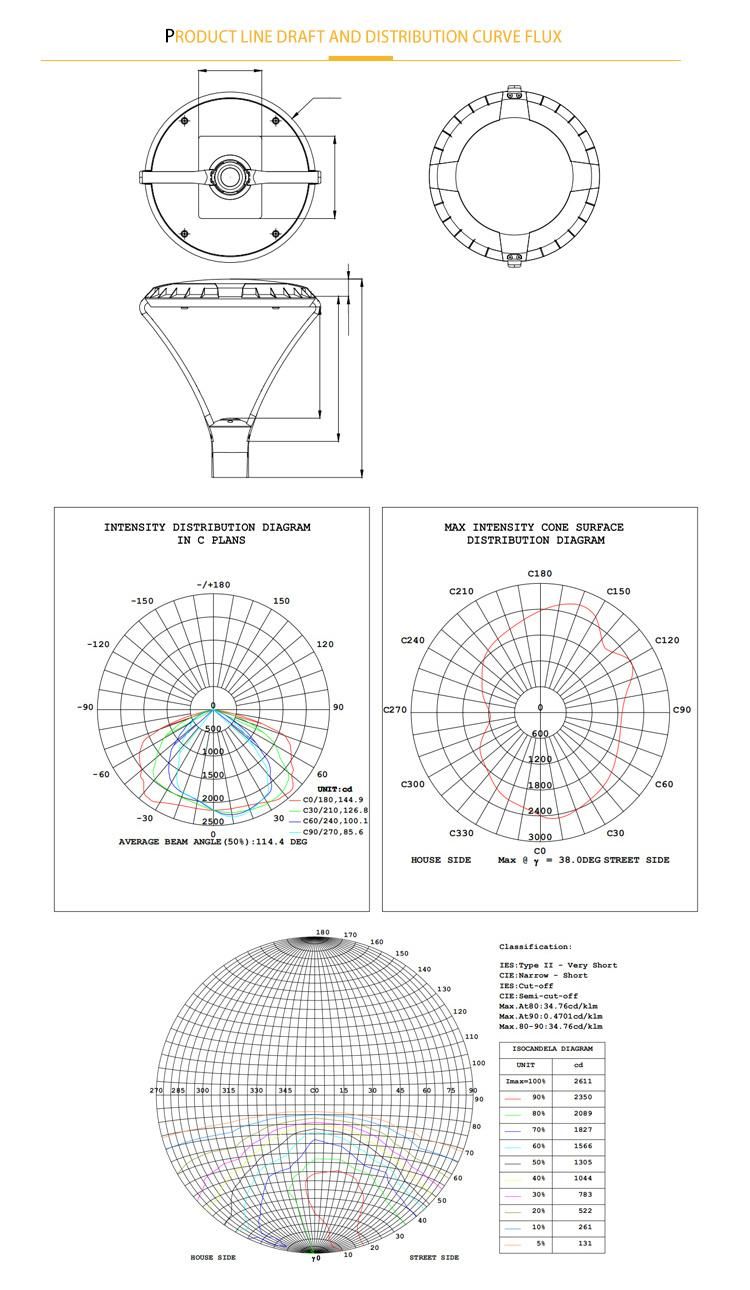

Excellent post light control design, the whole lamp can achieve T II-M, T III-M.
Pass 3G vibration test
Our Advantages
Easy to install.
Strong system expansion ability and increase sensor devices.
Low power consumption, large capacity , high stability.
Matters needing attention
Before installing the lighting fixtures, please read this instruction manual carefully.
The lighting fixtures should be installed, connected and tested by a certified electrician based on the local regulations.
Lamps should always be installed or replaced carefully.
Please check the local voltage in accordance with the product requirements before installation.
Revamping only can be done when the power is off and the lamp is completely cooled down.
When clean the lamp, make the power off and let it cool down completely, clean the fixture with a soft cloth and a standard PH neutral detergent, stainless steel should be maintained regularly.
Don't cover the fixtures with flammable materials.
Replace should be made by the manufacturer or his service agent or certified electrician in order to avoid a hazard.
