• Model NO.：JHTD-SL-001
• Operating Voltage：AC85-277V 50,60Hz
• Input Voltage：AC85-277V 50,60Hz
• LED Chips Brand：According to Requires
• Beam Angle：80*140 Degrees
• CRI：> 80ra

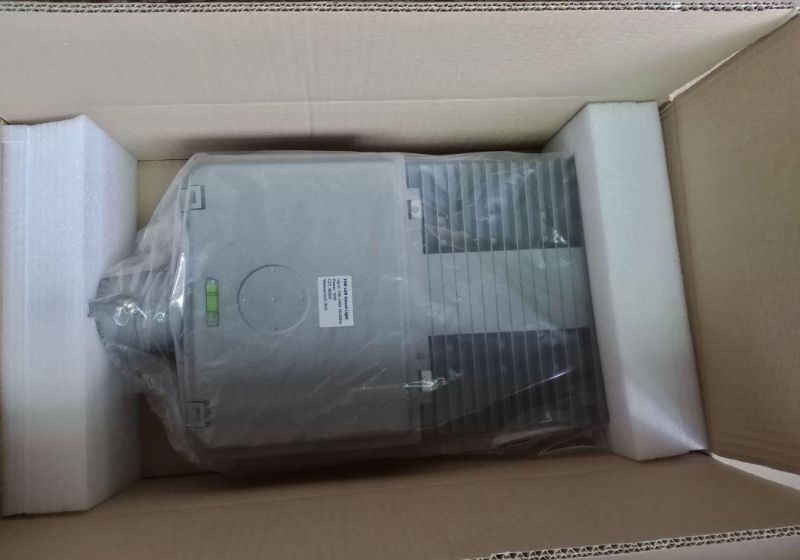

• Transport Package：Carton Box
• Specification：685*265*80mm
• Trademark：customizable
• Origin：Cn
• HS Code：85395000
• Production Capacity：10, 000PCS,Month

Basic Info.

Model NO. JHTD-SL-001 Operating Voltage AC85-277V 50/60Hz Input Voltage AC85-277V 50/60Hz LED Chips Brand According to Requires Beam Angle 80*140 Degrees CRI > 80ra Transport Package Carton Box Specification 685*265*80mm Trademark customizable Origin Cn HS Code 85395000 Production Capacity 10, 000PCS/Month

Product Description

Power: 100W 150W 200W 250W
Light Efficacy: 140-170Lm/w

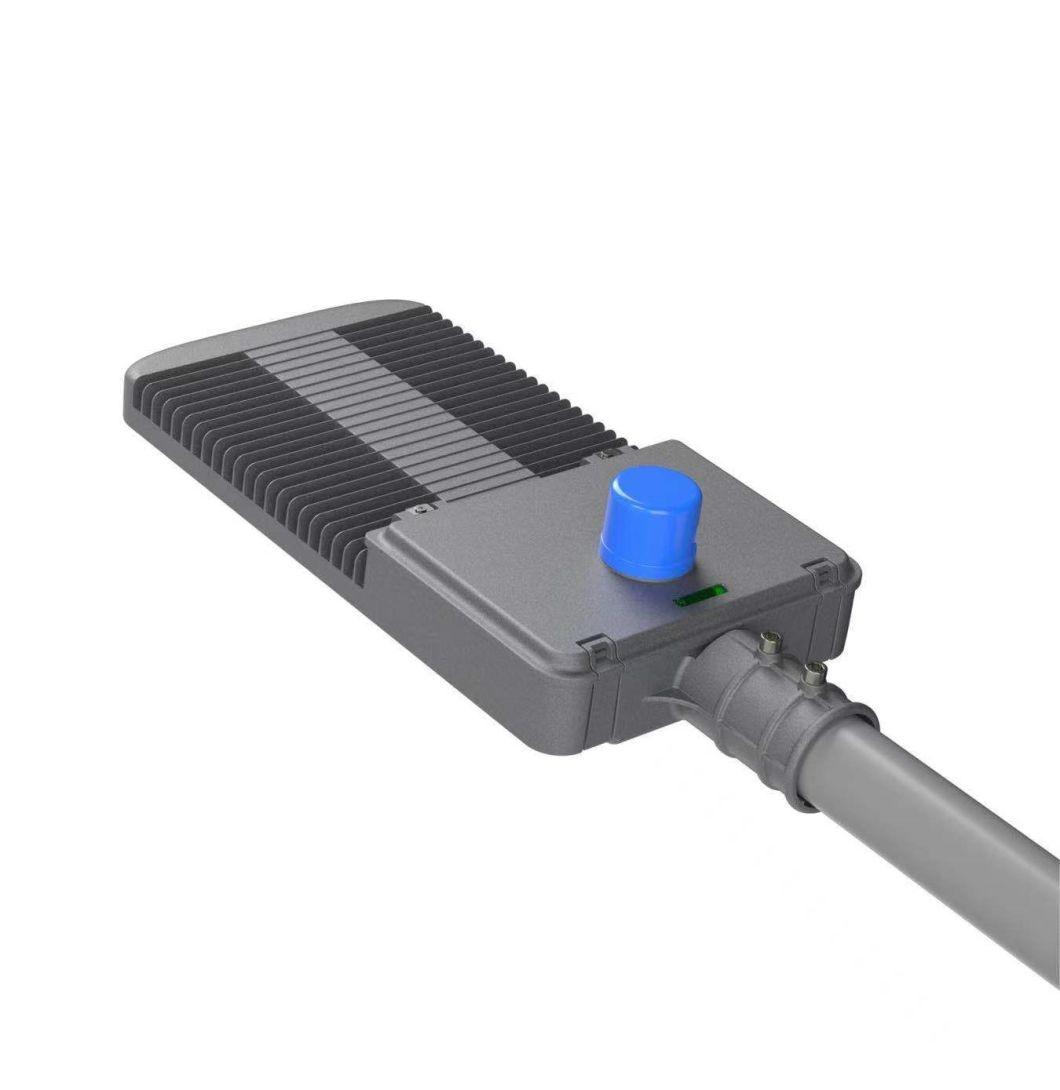

Smart Control: photocell, motion sensor, 1-10V dimming
Applications: sports stadium, outdoor playing fields, warehouse, plant, stages, etc.
Small order is accepted.

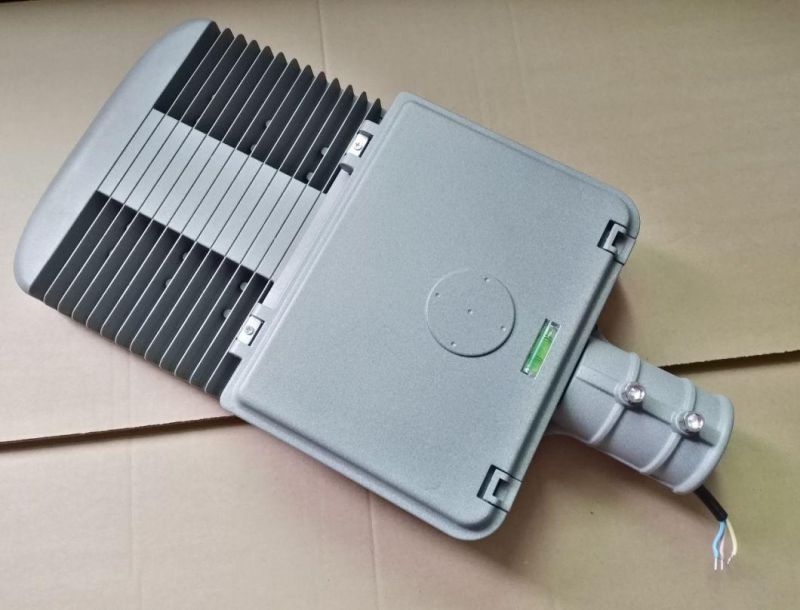

1. Housing & Heatsinks
Self-designed housing, made of extrusion process and die casting, unique and thick, of good strength and hardness, dimensional stability and long life;
Strong structure can endure 17-grade typhoon;
Pure aluminum heatsink, made of cold forging process, heat dissipation performance up to more than 226W/m.k, largely prolong the LED lifespan to over 50,000 hours and reduce the light decay;
Ingress protection & impact protection rating: IP66 & IK08.




2. Finishing
Fine powder-coated surface, protect the light housing and avoid it from rusting;
Black and blue together increases the light's industrial look;
Standard colors: black and blue;
Other colours can be customized.





3. Technical Description
Luminous efficacy up to 150lm/w, LED's lifetime over 60,000hours;
UV resistant and durable polycarbonate optical lenses give out high-uniformity light;
Standard voltage range is 85-277VAC, other wide voltage can be cusotmized;
External 10KV SPD can provide extra surge protection;
Working temperature requirement: -35 to +50 centigree;
Beam angle of 10, 25, 45, 60, 90 degree, along with the elongated bracket(arm) can suit for virtually any application.

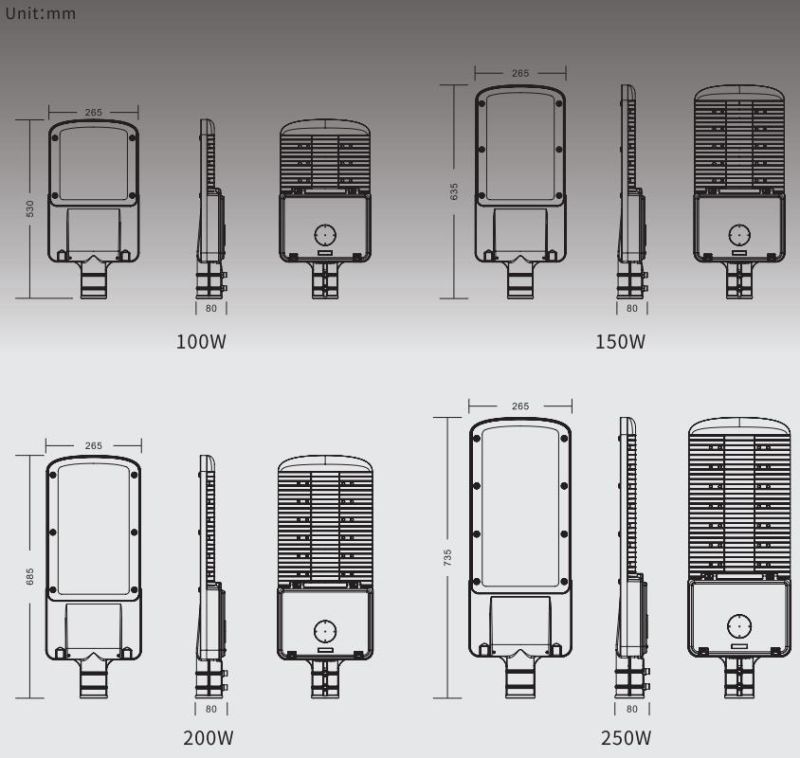

4. Dimmension






5. Installations
Flexible with the bracket of 180 degree rotation and extended "L"-shaped bracket, can meet precise installations in many places;

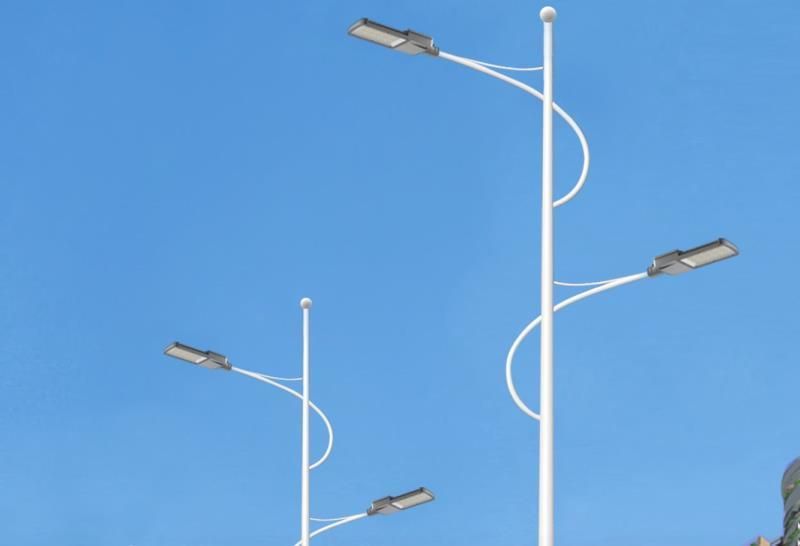

Pole mounting, wall mounting, bracket mounting.

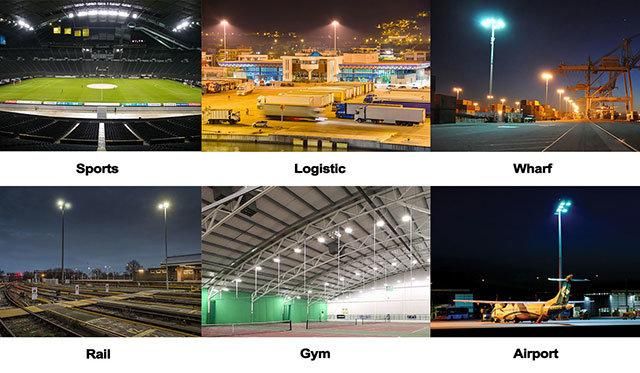

6. Applications
