• Model NO.：OED-SP6-300W
• Input Voltage：AC 188~277V 50,60Hz
• LED Chips Brand：Filips SMD5050
• Item Name：300W IP66 LED Basketball Court Light
• Lamp Luminous Efficiency(Lm/W)：145lm,W
• Color Temperature(CCT)：2700-6500K
• CRI：80
• Viewing Angle：20&Deg,30°,60° P50
• Lifetime：50,000 Hours
• Warranty：5 Years
• Transport Package：Carton
• Specification：368 x 330 x 149mm
• Trademark：OED
• Origin：China
• HS Code：9405409000
• Production Capacity：8000PCS,Month

Basic Info.

Model NO. OED-SP6-300W Input Voltage AC 188~277V 50/60Hz LED Chips Brand Filips SMD5050 Item Name 300W IP66 LED Basketball Court Light Lamp Luminous Efficiency(Lm/W) 145lm/W Color Temperature(CCT) 2700-6500K CRI 80 Viewing Angle 20&Deg,30°,60° P50 Lifetime 50,000 Hours Warranty 5 Years Transport Package Carton Specification 368 x 330 x 149mm Trademark OED Origin China HS Code 9405409000 Production Capacity 8000PCS/Month

Product Description

300W IP66 LED high bay outdoor stadium light for football court tennis court basketball court lighting

Technical Data:

Item name	IP66 300W SMD module LED basketball court light
Power	300W
Light Source	Filips SMD5050
LED Quantity	138 pcs
LED Driver	MEANWELL ELG  Driver
Input Voltage	AC 188~277V 50/60Hz
Color Temperature	2700-6500K
Light effect	145LM/W
Lumen	43,500LM
CRI	Ra.≥80
IP	66
Viewing angle	20°,30°,60°  P50
Materials	Aluminum
Operating Temp.	-40ºC ~ +60ºC
Applications	Stadium, field, arena,tunnel,park,bridge,etc.
Qty / CTN	1PC
N.W.	6.3KG/PC
Lamp dimensions	368 x 330 x 149mm
Carton size	45 x 41 x 22cm
Lifetime	50,000 hours
Quality warranty	5 years
Certificates	CE,ROHS, EMC, LVD, ISO9001

Product Features:

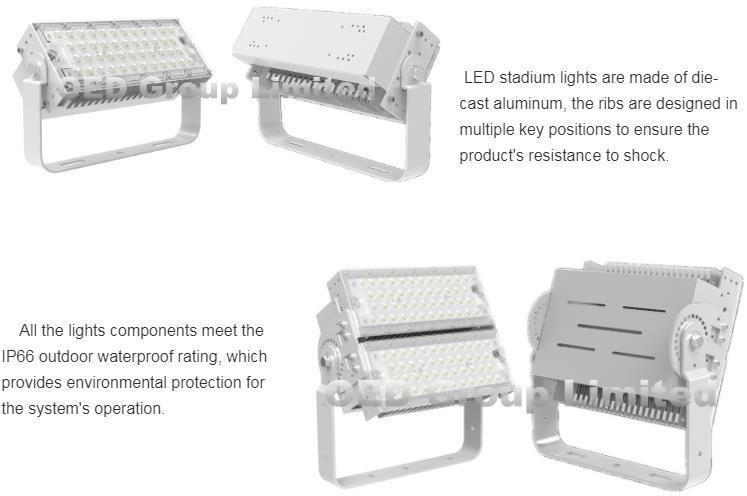

-LED lamp is Die-casting aluminium body powder coated.

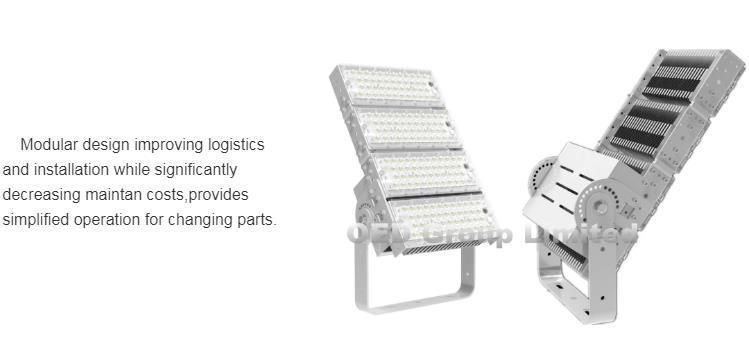

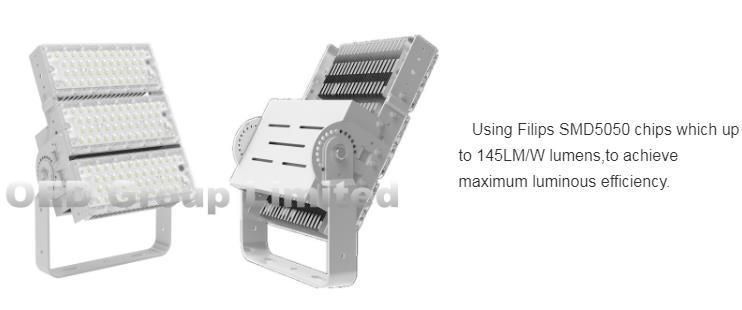

 -Modular LED source design, each modular with 46pcs Filips SMD5050 chips.
 -Light Effect up to 145LM/W.
 -Beam angle 20°,30°,60°,P50 optional.
 -50,000hrs rated average design life.
 -Up to 5-7 years warranty.
Product Details:

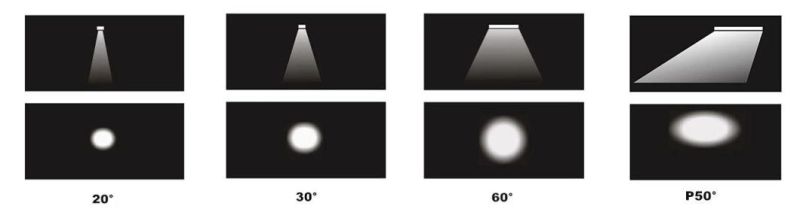

Beam angle:

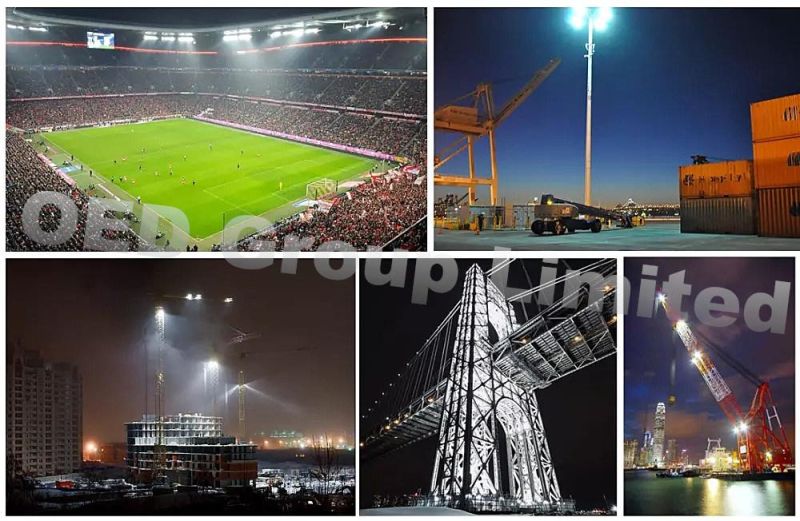

Application:
    It can be widely used in sport stadium,tennis court,basketball court,golf course,tunnel,square,playground,bus station,airport,architecture,parking lot etc.

Installation instructions:

1. Non-specialist electricians please do not repair or modify this product without authorization;

2. Please turn off the power before installation;

3. Before installation, please check whether the voltage marked on the lamp is consistent with the input voltage to be connected;

4. In order to ensure the service life of the product, please do not use it in a place with strong acid mist;

5. Pay attention to shock protection during installation and transportation;

6. Before installation, ensure that the installation position can withstand 10 times the weight of the product, and install it in a flat place without vibration, no swing, no fire hazard;

7. If the lamp fails, please place the lamp in one place and send it back to the company for inspection and repair.

8. If the lamp body or wire is damaged, please stop using it immediately.

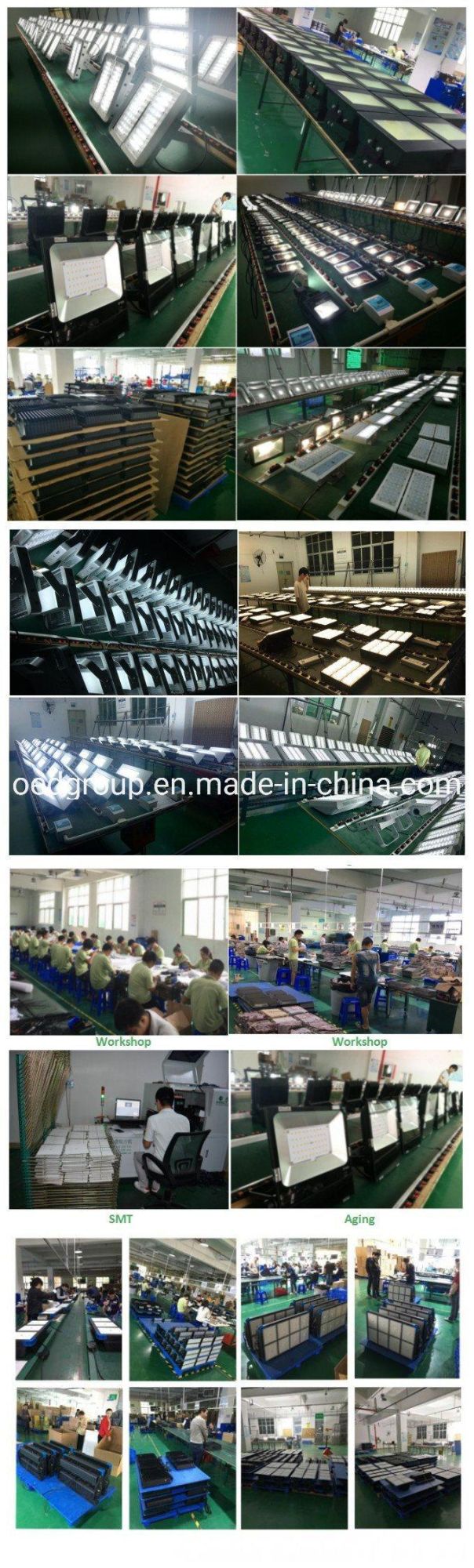

Our workshop:
    We have 6 production lines at production department, including assembling, inspection and aging test lines.
    Production ability: 3-5 days for 100pcs LED module stadium highbay light , and 10-15 working days for 1000pcs LED module stadium highbay light at common requirements.
    Each Lamp must pass 24 hours aging test and high voltage (3KV) surge test before we make packing and make delivery.
Our Services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. Excellent design team with designers of more than 12 years experience, can offer professional advice for practical application;
3.  5000,000 pcs light source annual production capacity, the products export to EU market, American market, Russia, Kazakhstan, Australia, South Africa, Zimbabwe, Vietnam, etc;
4. Good OEM & ODM business ability, 6 production lines meet your shipping requirement;
5. Export port Shenzhen, Hongkong or Shanghai;
6. Discount available for bulk order;
7. High quality component and material, Osram, Bridgelux, 3030SMD, 5050SMD, Epistar LED chips, MW / Sosen / HT/ TUV SAA CE listed driver etc, depend on your needs.

Payment Terms:
TT Bank Transfer, support 30% deposit and 70% before delivery;
PayPal, western union, Alipay etc.
NO O/A.

Delivery time:
Samples and less than 100pcs in 3-5 working days;
500pcs in 7-8 working days;
2000pcs in 15 working days.

About Shipping:
Samples sent by DHL, TNT, Fed EX, UPS, SF Express, Aramex etc. Door to door, you may pay customs tax depends on your customs policy.
By air or by sea for bulky orders available.

FAQ:
1. Are you factory supplier?
Yes, we are manufacturer of LED lamps since 2008 and we have our own factory, supply duable super quality items and reliable after-sale service.

2. Do you supply OEM or ODM?
Yes, we can supply OEM and ODM serice with favorable price and we have our own mould workshop, your brand and logo can be printed on the items.

3. How long will it spend for our orders to be sent out?
It takes 3-5 days for samples at common requirements, and 10-15 days for big order such as 2000pcs LED highbay stadium lights.

4. What about your after-sales servie and warranty policy?
We offer 5 years warranty for this LED highbay stadium lights, by supplying you the lamp parts or new replacements for free during the warranty period for any non-human defective lamps.
