• Model NO.：ZGSM-ST18-100M
• Certification：CE, EMC, LVD, RoHS
• Input Voltage：100-240V, 277V AC
• With Light Source：With Light Source
• LED Chips Brand：Bridgelux
• LED Driver：Inventronics
• Rating：Ik10
• Optic：Type II, Type III
• Lumen Output：3030 Version: 12000 Lm
• Transport Package：Export Cartons
• Specification：455 x205 x135 mm
• Trademark：ZGSM
• Origin：China
• HS Code：9405409000
• Production Capacity：1200 PCS,Day

Basic Info.

Model NO. ZGSM-ST18-100M Certification CE, EMC, LVD, RoHS Input Voltage 100-240V/ 277V AC With Light Source With Light Source LED Chips Brand Bridgelux LED Driver Inventronics Rating Ik10 Optic Type II, Type III Lumen Output 3030 Version: 12000 Lm Transport Package Export Cartons Specification 455 x205 x135 mm Trademark ZGSM Origin China HS Code 9405409000 Production Capacity 1200 PCS/Day

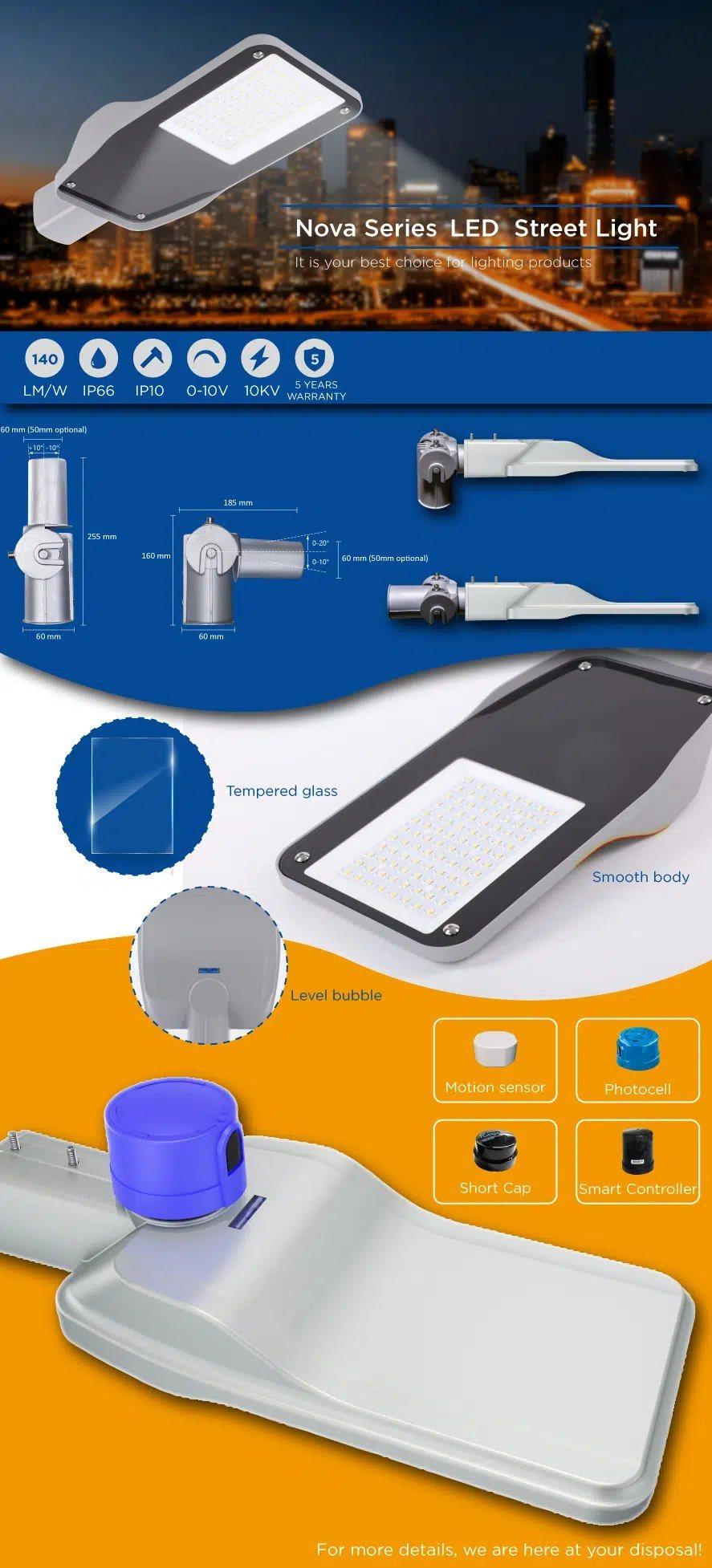

Product Description

Product Description

Series No	Series Nova
Power	30W, 40W, 50W, 60W, 80W, 100W,120W, 150W
Efficacy	130-140lm/W
Input Voltage	100-240/277 VAC, 50 / 60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request)
IP Rating	IP66
IK Rating	IK09
CCT	3000K, 4000K, 5000K, 5700K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	Type II, Medium; Type III, Medium;
Mounting Option	Side entry or Vertical pole mounted( with extra adapter)
Warranty	5 Years
Certification	CE, ROHS, LM79, LM80, TM-21, ISTMT, IEC62471
Control	Photocell, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control

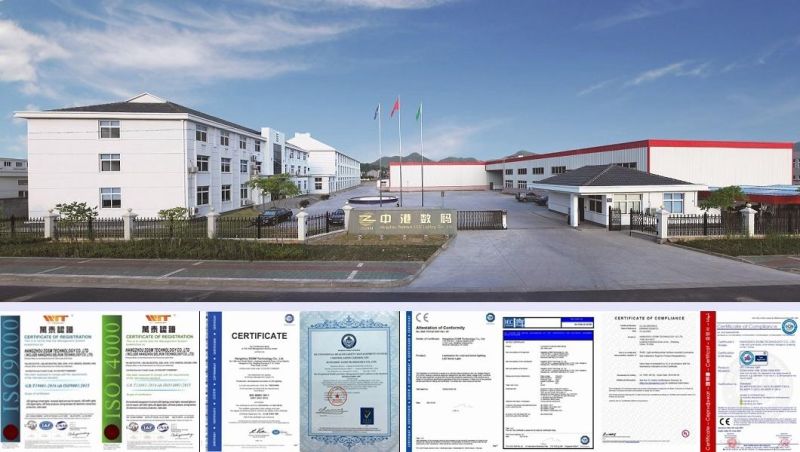

Our Company

FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Samples within 3 days, big order within 1-2 weeks.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-7 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%. Secondly, during the warranty period, we will repair or replace defected products.
