• Model NO.：RB-STC-150W
• Certification：CE, EMC, ETL, LVD, RoHS, UL
• Input Voltage：220v
• With Light Source：With Light Source
• LED Chips Brand：Semileds
• Warranty：5years
• Transport Package：One Piece One Carton
• Specification：Waterproof outdoor IP65
• Trademark：Rayborn
• Origin：China
• HS Code：940540
• Production Capacity：40000PCS,Month

Item No.:RB-STC-150WInput Voltage:AC 100~277VFreqency Range:50Hz~60HzDriver:Meanwell HLGLed Chip:SMDPower Factor:>0.96Power Efficiency:>90%LED Power120WLED QTY:72pcsLED Working Voltage:DC 30~36VSystem Consumption:123WLED Luminous FluxWarm White18780LMPure White18790LMCool White18000LMViewing Angle:140/80 degreeCenter IlluminanceHeight 10M25.6LUXHeight 20M6.4LUXHeight 30M2.9LUXIlluminance AreaHeight 10MDia.1746CM  points visibleHeight 20MDia.3492CM points visibleHeight 30MDia.5238CM points visibleIlluminance Uniformity:>0.6Color TemperatureWarm White3000K~3500KPure White5000K~5700KCool White6000K~6500KColor Rendering IndexRa>80Light Distribution:LED points visibleLight Design:LED+ secondary light distribution lensLED Junction Temperature:≤115ºCWorking Temperature:-30ºC~55ºCIP Grade:IP65Working Life-span:50000 HPower Line:1.0 mthree lineConnect WireBrownLBlueNYellow / GreenGCertificateCE/UL/ROHSProducs Size:587*292*98mm

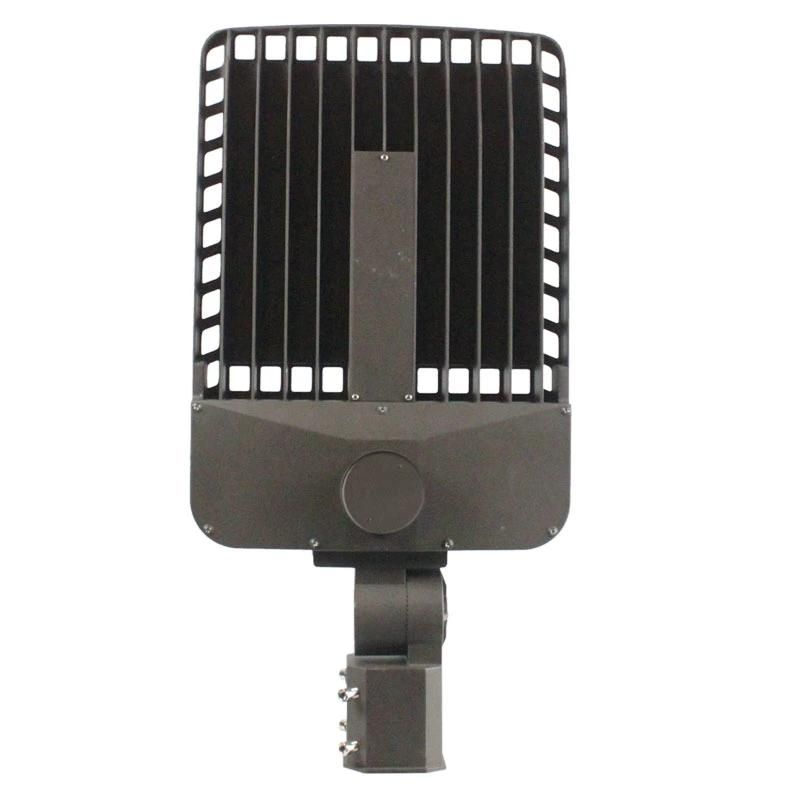

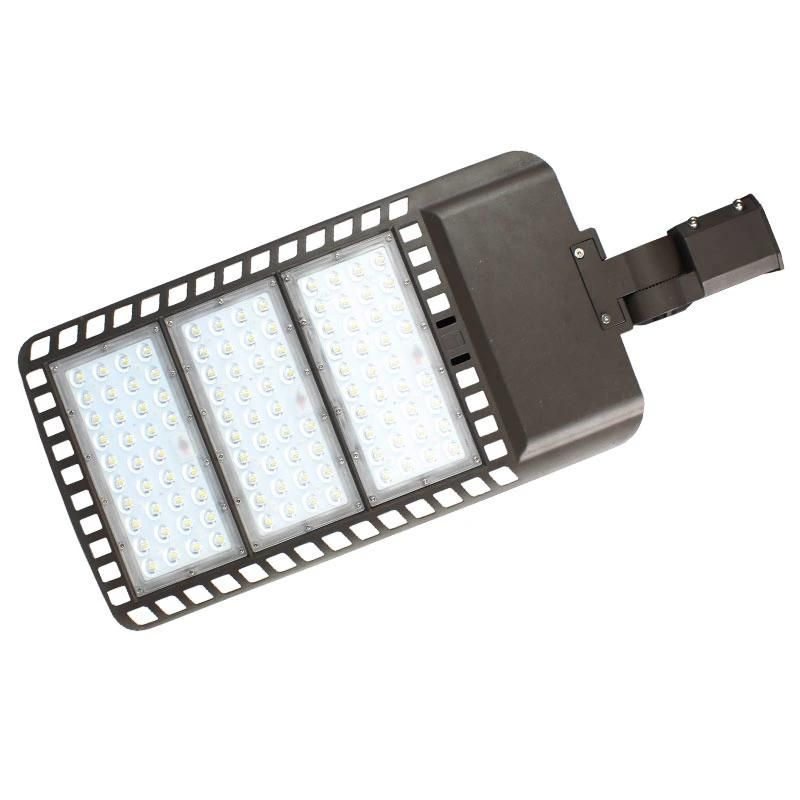

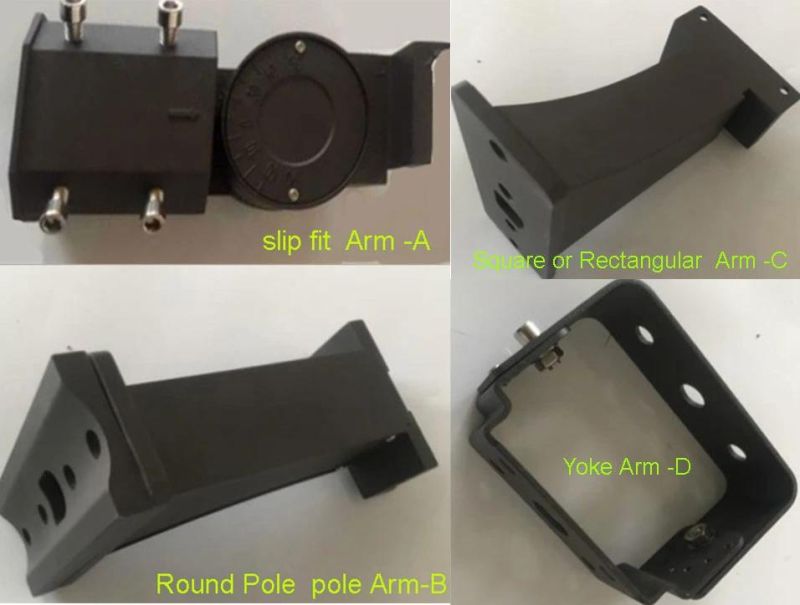

Shoebox led street light with 4 kind connect:

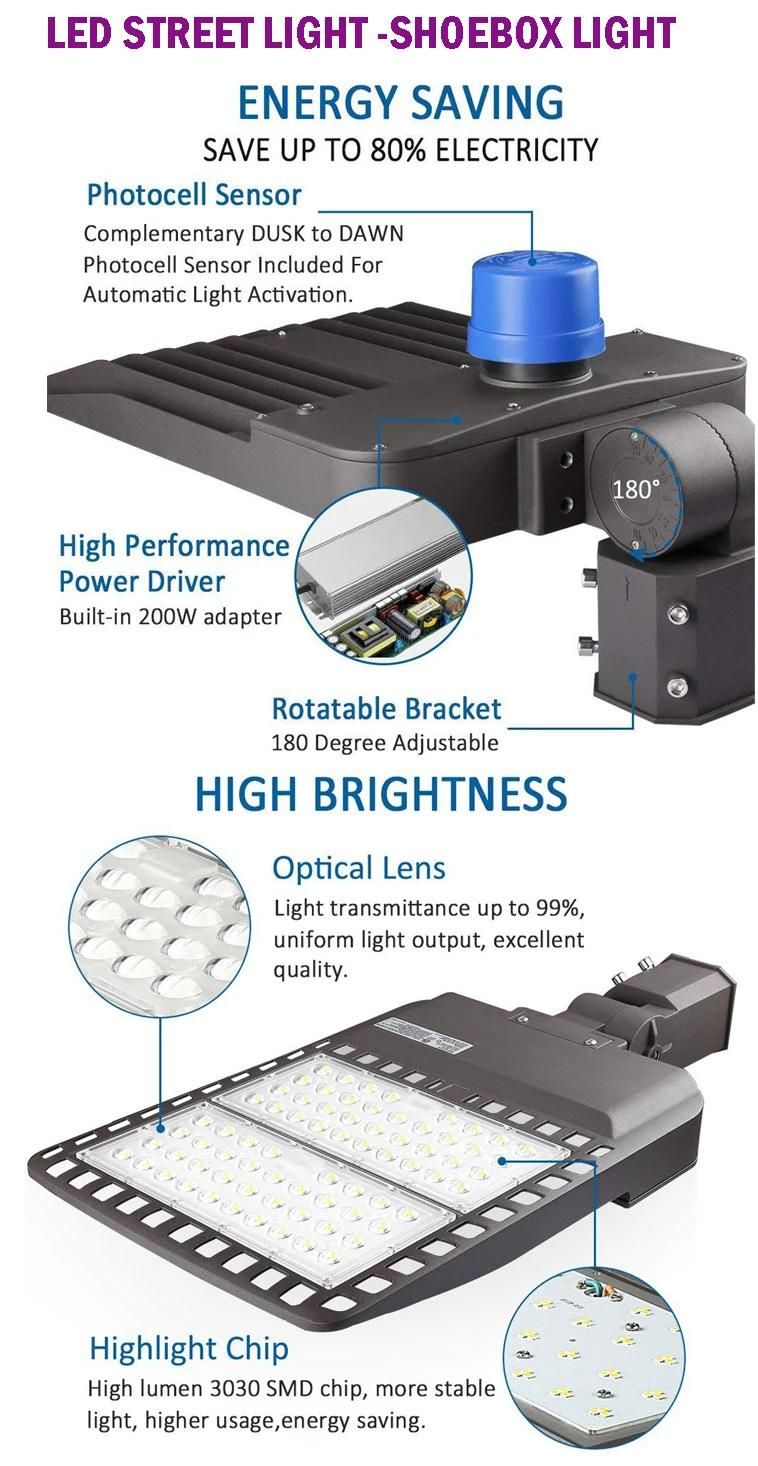

High Power LED Street Lamp Lighting Features:

Die casting aluminum alloy housing, electrostatic spraying treatment, coating withstand high temperature, acid & alkali resistance and anti-aging
Arc-shaped heat sink, self-cleaning ability improved by residue including dust easily carry away with rainfall
Installation angle adjustable, horizontal and vertical installation available
Independent optical system for each LED, light transmittance over 93%, high lamp luminous efficacy

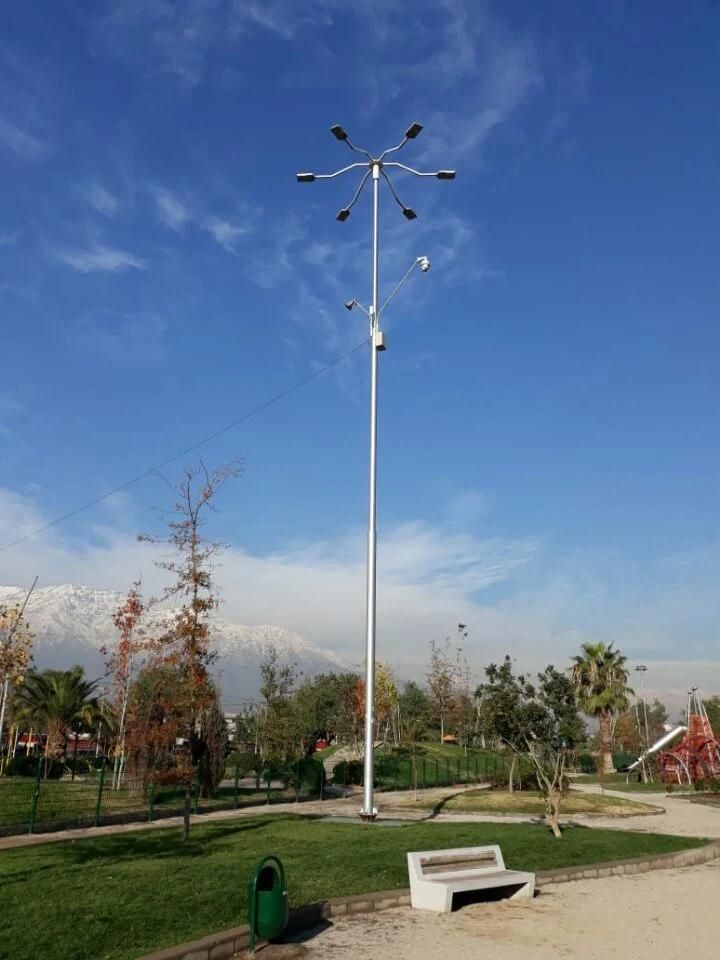

Applications:
High way, city main street, slip street, fast lane, residential street, municipal roads,
Gas stations, parking lot, , parks, yards, inhabitancy area, factories and some other places where need lighting.

Payment terms :
1. Payment: T/T, L/C at sight, Western Union ,Paypal available
2. Samples can be available within 5-7 working days; Order: 10-20Days
3. Shipping freight is quoted under your requests
4. Shipping port:Shenzhen , China
5. Discouts are offered based on order quantities


FAQ :
1, Are you factory?
A:Yes, we produce LED street lights for more than 10 years.

2, Can leadtime be more shorter because I am urgent?
A:Yes, please contact us urgent to check the details.

3, I want high quality LED street light, can you do?
 A:Yes, quality is our culture,we only use best components to build our led street lights.

4.Can we do our brand? Can you print or emboss our logo on the
tank? And our own brand box?
 A:Yes!

5. If there are some lights that can not work when i receive the goods?
A:Don't worry, we will give you same quantity of good lights for compensation in your next order.

6.How does your factory do regarding quality control?
A:Quality is priority. people always attach great importance to quality
controlling from the very beginning to the very end.  Our factory has
gained CE,CCC,ROHS,FCC,ISO900, authentication.

7.Where is your factory located? How can I visit there?
A:Our factory is located in Dongguan City, GuangDong Province, China.

Welcome you visit us anytime!
