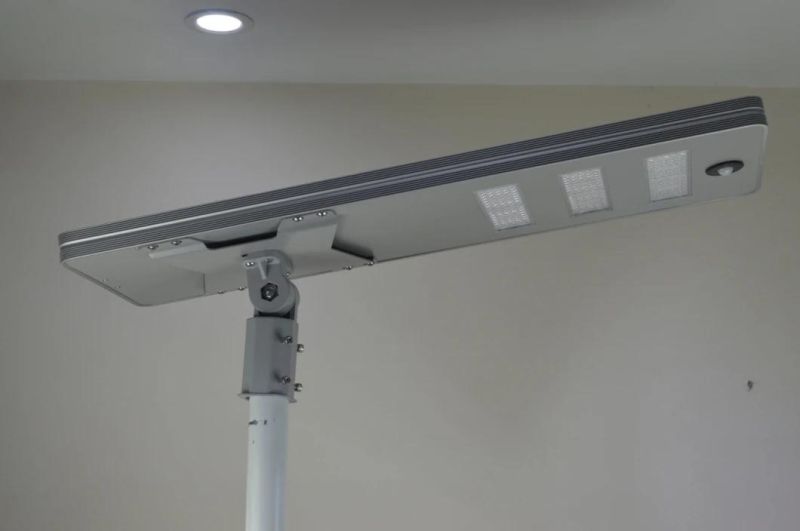

• Model NO.：DL-SLPAD-60W
• Certification：CE, EMC, LVD, RoHS
• Input Voltage：12v
• With Light Source：With Light Source
• LED Chips Brand：Bridgelux
• Net Weight：16kg
• Solar Panel：Mono Solar Panel with 21.5% Efficiency
• Warranty：3-10 Years
• Transport Package：Carton,Wooden Frame
• Specification：90*39*16cm
• Trademark：DAWN
• Origin：China
• HS Code：9405409000
• Production Capacity：210000 Units,Year

Model:DL-SLPAD-60WSolar panel power:18V 80W high efficiency monocrystalline siliconLamps material:Aluminium alloyBattery Type:Lithium battery/LiFePO4 batteryCertificate:CE(EMC&LVD) ,RoHS,IP65 & ISO,other certificates are available Lumen (LM):8400-9600lmGuarantee period:3-10 yearsCharge time(by sun):6 hours in strong sunshineSaving mode:3-5 continuous rainy and cloudy daysWorking TEMP( ºC )-30ºC~60ºCCCT (K):6000-6500K(standard),2800-3300K,4000-4500KMounting height(m):6-8mDistance between 2 lights:20-25mLighting Ajustable Angle:120º*120º/80*150ºQ'ty/ctn:

1 set/ctn

Parameter for 20-200W All In One Solar Street Light:Model NO.DL-SLPAD-20WDL-SLPAD-30WDL-SLPAD-40WDL-SLPAD-50WDL-SLPAD-60WDL-SLPAD-80WDL-SLPAD-100WDL-SLPAD-120W

DL-SLPAD -150W

DL-SLPAD-200WLamp Power20W30W40W50W60W80W100W120W150W200WLed ChipsOSRAM/Nichia/BridgeluxLumen2800-3200lm4200-4800lm5600-6400lm7000-8000lm8400-9600lm11200-12800lm14000-16000lm16800-19200lm21000-24000lm28000-32000lmSolar Panel Power18V 40W18V 40W18V 50W18V 70W18V 80W18V 90W18V 120W18V 140W36V 160W36V 160WSolar Panel Type High Efficiency Monocrystalline SiliconSolar Panel Lifetime25 YearsBattery TypePowerful Lithium Battery with 8-10 Years LifetimeInstalling Height5-6m5-6m5-6m6-8m6-8m8-9m9-10m9-10m10-12m12-15mInstalling Distance 15-18m15-18m18-20m20-25m20-25m25-30m25-30m25-30m25-30m30-32mGuarantee3-10 Years
