• Certification：CE, EMC, LVD, RoHS
• Input Voltage：24v
• With Light Source：With Light Source
• Color：Silvery or Black
• Packing Type：1 Unit ,CTN
• Ik Rating：Ik 10
• Lumen Output：13200lm
• Transport Package：Cartons
• Specification：120w
• Trademark：ZGSM
• Origin：China
• HS Code：94055000
• Production Capacity：3500PCS,Month

Basic Info.

Certification CE, EMC, LVD, RoHS Input Voltage 24v With Light Source With Light Source Color Silvery or Black Packing Type 1 Unit /CTN Ik Rating Ik 10 Lumen Output 13200lm Transport Package Cartons Specification 120w Trademark ZGSM Origin China HS Code 94055000 Production Capacity 3500PCS/Month

Product Description

120w modular designed solar power led street light


Solar series products untilize quality and efficient solar panel,long lifespan battery,LED sourced lighting fixture and intelligent solar charge controller. With the superior performance of corollary equipments,the efficiency is reaching up to above 16%.

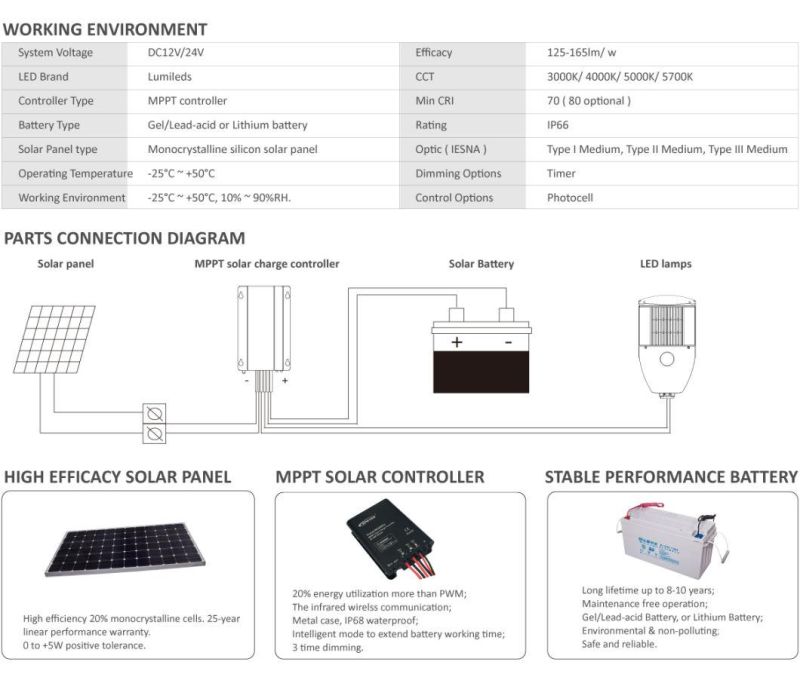

1,key component of solar energy LED street light
1) LED street light;2) LED controller(time controller+light controller);3) Solar panel;4) Battery


2,Functions of Various part
1) Advantage of high power LED
l  High efficiency
l  Low electricity cost
l  Energy efficiency
l  High brightness
l  No strobe frequency
l  Solid-stage
l  Long life
l  High impact resistance, High Stability
l  good weather ability

2) Solar panel
The solar panel is the hard core of the solar street light system, is also the value highest part. Its function is transforms sun's emissivity into the electrical energy,or escorts to the accumulator to save,or impetus load work.

3)Solar controller
The function of the solar energy controller is to control the whole system's working condition,and has the overdischarge Protection function to the the accumulator. In the big temperature difference place, the qualified controller should also have the temperature compensation function. Other additional function like light-operated switch,time switch must be the option of the controller

4) Battery
Generally it is the lead-acid battery, also can use nickel hydrogen battery, nickel cadmium cell or lithium battery. Its function is store up the electrical energy which sent out from the solar cell when it has the illumination.


3,Operational principle of solar LED street light
Utilizing photovoltaic effect principle, maked the solar panel. Daytime, the solar panel receives the solar radiant energy and translate into the electrical energy output, pass charge controller, Stores up in the accumulator cell. Night when the illumination gradually reduces to about 10Lux, the solar panel open-circuit voltage is about 4.0V,charge controller sense the voltage, accumulator discharge to the lamp.

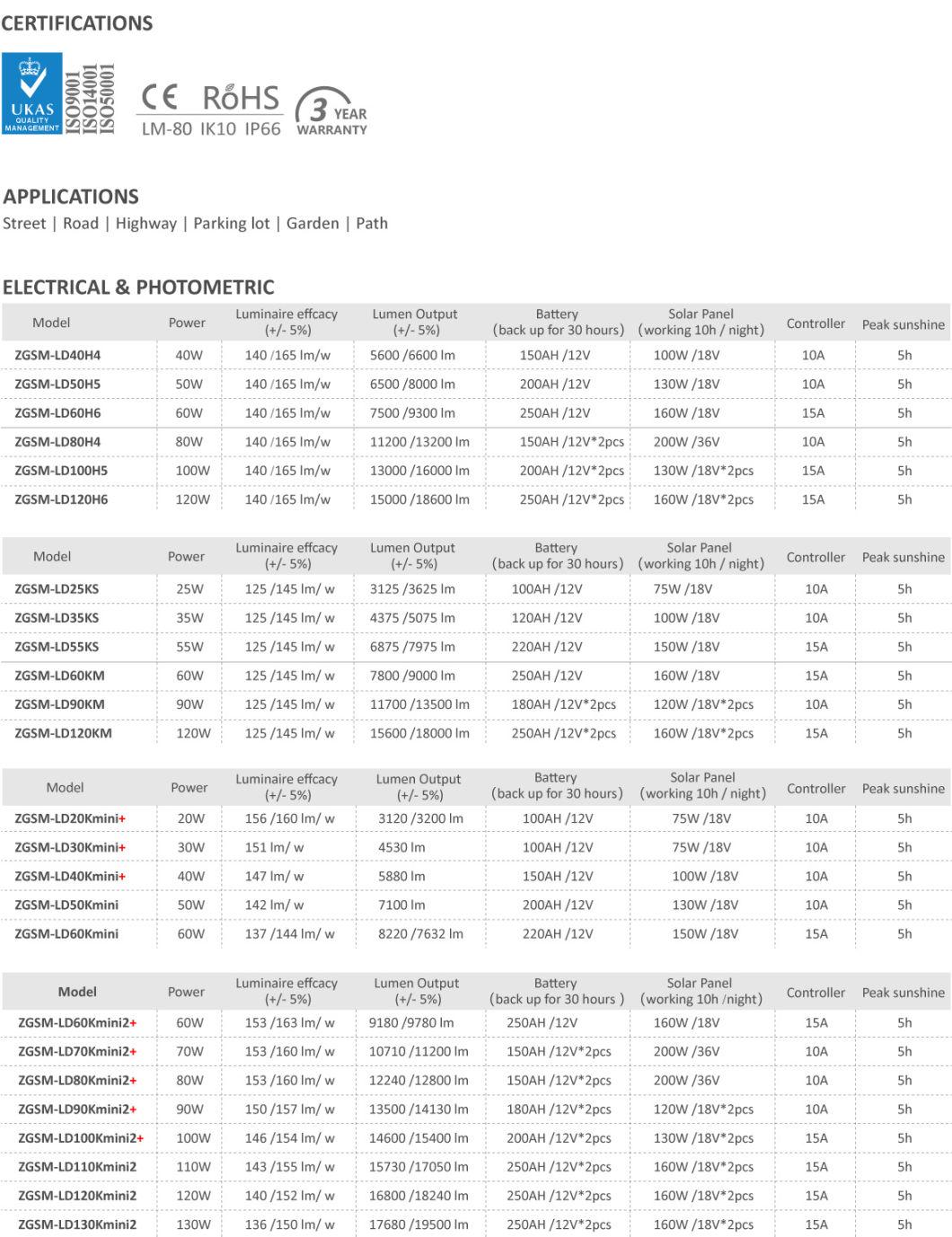

4,Product catalogue

Nominal Wattage	35W	65W	100W
Max Current	DC 3.24A-12V	DC 3.01A-24V	DC 4.63A-24V
CCT	3000K, 4000K, 5000K, 5700K	3000K, 4000K, 5000K, 5700K	3000K, 4000K, 5000K, 5700K
IP Rating	IP66, IK10	IP66, IK10	IP66, IK10
Lens	PC	PC	PC
Installation height	4-6m	6-8m	8-10m

5,Components specification

Luminaire specification

Model No.	ZGSM-35H	ZGSM-65H	ZGSM-100H
Working voltage	12V DC	24V DC	24V DC
Nominal wattage	35W	65W	100W
Lumen output	3675 lm	6825 lm	10500 lm

Battery specification

Power	35W	65W	100W
100HA	Max 24Hrs	Max 25Hrs	Max 16Hrs
150HA	Max 36Hrs	Max 38Hrs	Max 25Hrs
200HA	Max 48Hrs	Max 51Hrs	Max 33Hrs
300HA	Max 72Hrs	Max 77Hrs	Max 50Hrs

Solar panel configuration(Ten hours` work a day)

Power	35W	65W	100W
AES @3hrs	solar panel: 200W	solar panel: 400W	solar panel: 500W
AES @4hrs	solar panel: 150W	solar panel: 300W	solar panel: 400W
AES @5hrs	solar panel: 150W	solar panel: 200W	solar panel: 300W
AES @6hrs	solar panel: 100W	solar panel: 200W	solar panel: 300W
AES @7hrs	solar panel: 100W	solar panel: 150W	solar panel: 250W

      AES:Average effective duration of sunshine
Controller

Power	35W	65W	100W
Charge-Discharge current Max	20A	20A	20A

6,Our services
1.Reply your inquiry in 24 working hours.
2.Customized design is available,OEM and ODM are welcomed.
3.Delivery the goods to our customer all over the word with speed and precision.
4.Offer customer the lowest price with high quality product
5.We can supply C/O (Certificate of Origin), saving approx 20% import duty.
