• Model NO.：ZGSM-LD90LMA
• Certification：CE, EMC, LVD, RoHS, ENEC
• Input Voltage：AC 100-240V ,277V, DC 24V
• With Light Source：With Light Source
• LED Chips Brand：Lumileds
• CRI：70
• SPD：Standard 10kv
• Optic Lens：1m,2m,3m,5s,2m-Bls,1m-S
• Driver Brand：Meanwell ,Inventronics Driver
• LED Brand：Lumileds
• Nominal Voltage：AC 100-240V ,277V, DC 12V ,24V
• Transport Package：1 Unit,Carton
• Trademark：ZGSM
• Origin：China
• HS Code：9405409000
• Production Capacity：50, 000 PCS,Month

Basic Info.

Model NO. ZGSM-LD90LMA Certification CE, EMC, LVD, RoHS, ENEC Input Voltage AC 100-240V /277V, DC 24V With Light Source With Light Source LED Chips Brand Lumileds CRI 70 SPD Standard 10kv Optic Lens 1m,2m,3m,5s,2m-Bls,1m-S Driver Brand Meanwell /Inventronics Driver LED Brand Lumileds Nominal Voltage AC 100-240V /277V, DC 12V /24V Transport Package 1 Unit/Carton Trademark ZGSM Origin China HS Code 9405409000 Production Capacity 50, 000 PCS/Month

Product Description

Series No	Series L
Power	27W, 37W, 56W, 70W, 90W, 120W
Efficacy	125-155lm/W
Input Voltage	100-240/277 VAC, 50 / 60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request)
IP Rating	IP66
IK Rating	IK08
CCT	3000K, 4000K, 5000K, 5700K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	Type I, Medium; Type II, Medium; Type III, Medium; Type V, Short

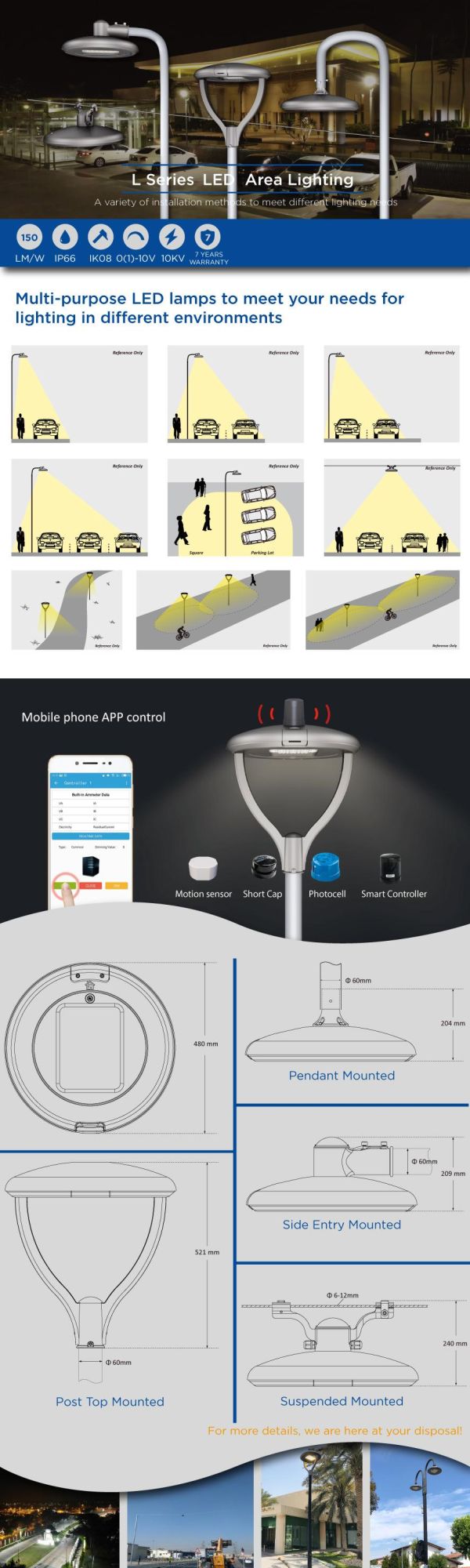

Mounting Option	Post-Top Mounted /Pendant Mounted /Side Entry Mounted /Suspended Mounted
Warranty	5 Years
Certification	ENEC, CE, CB, ROHS,  LM79, LM80, LM82, LM84, TM-21, ISTMT, IEC62471/62788
Control	Photocell, DALI Dimmable, Motion Sensor, Non-Dimmable, 1-10V Dimmable, Zigbee or Lora Control
