• Model NO.：ZGSM-LD100Kmini2
• Certification：CE, RoHS, ENEC
• Input Voltage：100-240V
• With Light Source：With Light Source
• LED Chips Brand：Lumileds 3030
• LED Driver：Meanwell or Inventronics
• LED Chip：Lumileds 3030 , 5050 LED Chips
• CCT：5700K, 5000K, 4000K, 3000K
• Transport Package：Carton
• Trademark：ZGSM or OEM
• Origin：China
• HS Code：9405409000
• Production Capacity：50000PCS,Month

Basic Info.

Model NO. ZGSM-LD100Kmini2 Certification CE, RoHS, ENEC Input Voltage 100-240V With Light Source With Light Source LED Chips Brand Lumileds 3030 LED Driver Meanwell or Inventronics LED Chip Lumileds 3030 / 5050 LED Chips CCT 5700K, 5000K, 4000K, 3000K Transport Package Carton Trademark ZGSM or OEM Origin China HS Code 9405409000 Production Capacity 50000PCS/Month

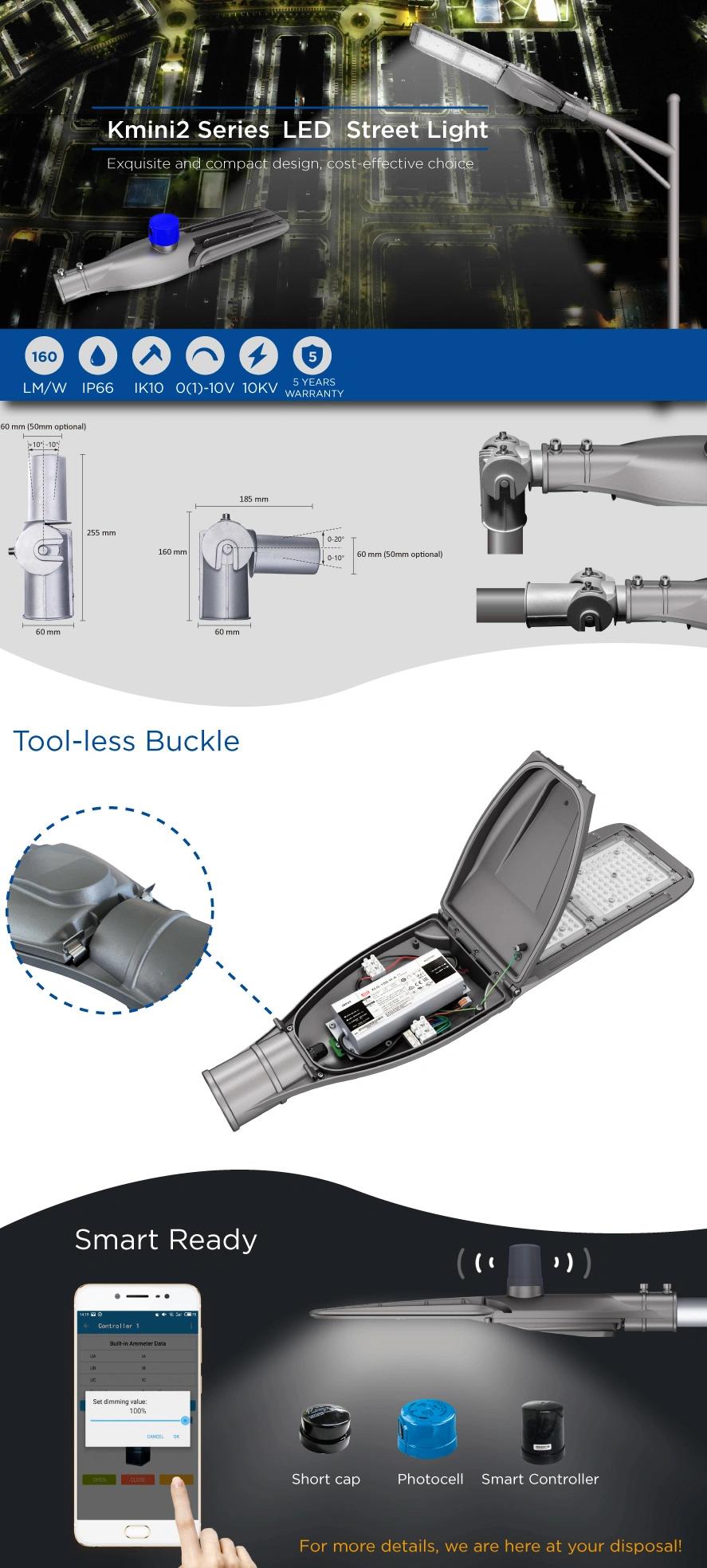

Product Description

Series No	Series Kmini2
Power	60W, 70W, 80W,90W, 100W, 110W, 120W, 130W, 150W
Efficacy	130-160lm/W
Input Voltage	100-240/277 VAC, 50 / 60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request)
IP Rating	IP66
IK Rating	IK10
CCT	3000K, 4000K, 5000K, 5700K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	Type II, Medium;
Mounting Option	Side entry or Vertical pole mounted ( with extra adapter)
Warranty	5 Years
Certification	ENEC, CE, CB, ROHS, LM79, LM80, LM82, LM84, TM-21, ISTMT, IEC62471/62788
Control	Photocell, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control

FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Samples within 3 days, big order within 1-2 weeks.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements . Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-7 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less  than 0.1%. Secondly, during the warranty period, we will repair or replace defected products.
