• Model NO.：LLX-DWL
• Shape：Ngon
• Irradiated Area：10-15m²
• Switch Type：Touch Switch
• Base Type：LED
• IP Rating：IP65
• Shade Type：Frosted Glass
• Certification：CCC, CE, EMC, ETL, FCC, LVD, RoHS, SAA, UL, Dlc
• Voltage：110--277
• Suitable Location：Wet
• Beam Angle：110
• Size：209*134*122
• Life Time：50000
• Warranty：5 Years
• Chip：CREE
• Driver：Meanwell,Inventronic,Universelite
• CRI：>70
• Lumen Efficiancy：100-130lpw
• Transport Package：Carton
• Specification：AL+Glass
• Trademark：longlux
• Origin：China
• Production Capacity：500000

Basic Info.

Model NO. LLX-DWL Shape Ngon Irradiated Area 10-15m² Switch Type Touch Switch Base Type LED IP Rating IP65 Shade Type Frosted Glass Certification CCC, CE, EMC, ETL, FCC, LVD, RoHS, SAA, UL, Dlc Voltage 110--277 Suitable Location Wet Beam Angle 110 Size 209*134*122 Life Time 50000 Warranty 5 Years Chip CREE Driver Meanwell/Inventronic/Universelite CRI >70 Lumen Efficiancy 100-130lpw Transport Package Carton Specification AL+Glass Trademark longlux Origin China Production Capacity 500000

Product Description

Feature
1. High transmittance PC lens
2. Color options: Bronze& Black&White
3. Options: 1)Motion sensor 2)Photocell
4. 5 years warranty
5. Battery backup option
6. Authorised UL&DLC 4.2 certificates

Specification

Model	LLX-DWL-15	LLX-DWL-20	LLX-DWL-24	LLX-DWL-30	LLX-DWL-42	LLX-DWL-60	LLX-DWL-80	LLX-DWL-100	LLX-DWL-120
Power (W)	15	20	24	30	42	60	80	100	120
Voltage (V)	110--277	110--277	110--277	110--277	110--277	110--277	110--277	110--277	110--277
Hz	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60
CCT (K)	4000-5700	4000-5700	4000-5700	4000-5700	4000-5700	4000-5700	4000-5700	4000-5700	4000-5700
Luminous Flux @5000K, 120° (LM)	1350	1800	2160	2700	3800	5700	7600	10000	12000
CRI	70	70	70	70	70	70	70	70	70
Super bright chip	Cree	Cree	Cree	Cree	Cree	Cree	Cree	Cree	Cree
Driver	Universelite	Universelite	Universelite	Universelite	Universelite	Universelite	Universelite	Universelite	Universelite
Material	AL+PC	AL+PC	AL+PC	AL+PC	AL+PC	AL+PC	AL+PC	AL+PC	AL+PC
Suitable Locations	wet	wet	wet	wet	wet	wet	wet	wet	wet
Beam angle	110°	110°	110°	110°	110°	110°	110°	110°	110°

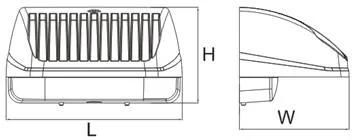

Size(MM)	209*134*122	209*134*122	209*134*122	257*140*160	257*140*160	320*190*253	320*190*253	400*205*268	400*205*268
Life Time (H)	50000	50000	50000	50000	50000	50000	50000	50000	50000

IMPORTANT SAFETY INFORMATION:
Input Voltage: AC 100-277V, 50/60Hz
Working Temperature: -25ºC~40ºC
This fitting must be wired in accordance with the National Electrical Code and applicable local codes and ordinances.
Installation and servicing this fitting should be performed by qualified electrician only.
Before installation or maintenance, turn off electric power and allow the fitting to be cool.
Proper grounding is required to insure personal safety. Carefully observe grounding procedure under installation section.
Ensure all electrical connections are secure & that there are no loose strands.
Install the fitting in a well-ventilated environment, keep away from corrosive/explosive materials, flammable gas or electric dust.
Violent shaking or impact should be avoided when the fitting is working.
To weather proof your outdoor installation, be sure to seal all holes, conduit plugs with silicone caulking.

SUGGESTED METHOD OF INSTALLATION:
ALWAYS SWTICH OFF THE MAINS SUPPLY BEFORE INSTALLATION.

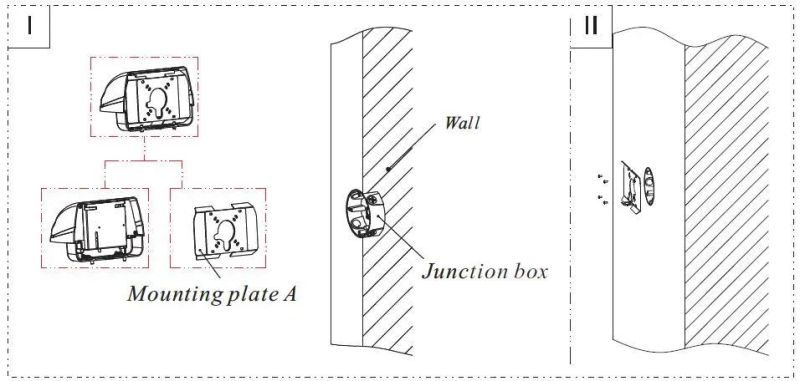

STEP 1: Take off mounting plate A from the fitting. (Fig. I)
STEP 2: Mount the mounting plate A to the Junction box in the wall. (Fig. II)
Place adhesive gasket first if necessary.
STEP 3: Hold the fitting, connect the wires and push the wires back to the junction box in the wall.

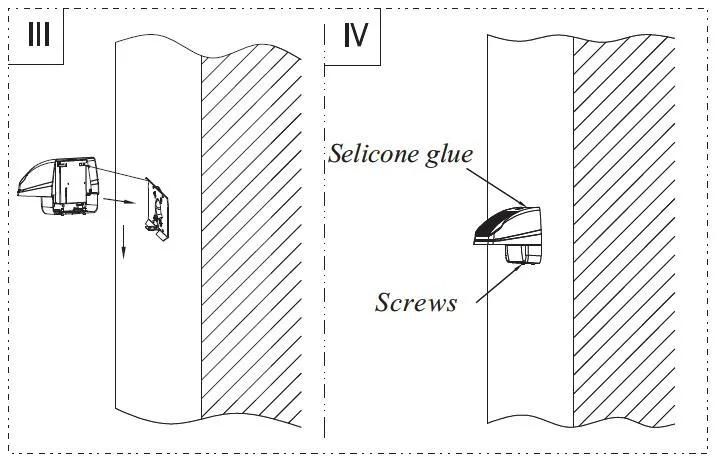

Seat the fitting on the mounting plate A and swing down into the place. (Fig.III)
STEP 4: Tighten the screws to make the fitting secured, apply silicone glue around the fitting where it touch the wall, for better sealing. (Fig. IV)


WIRING INSTRUCTION OF MAIN CABLE:

WARNING:
The product must be grounded and installed in accordance with the National Electrical Code and all local codes.
Failure to do so may increase the RISH OF PERSONAL INJURY, PROPERTY DAMAGE, FIRE AND DEATH.
