Reflector Flood Light Waterproof IP65 Garden Spotlight PIR Motion Sensor Wall Outdoor Light
Ningbo Sunle Lighting Electric Co., Ltd.- Color Temperature：Three Color Temperatures Can Be Choose
- Lamp Body Material：Die-Casting Aluminium Body
- Power：20W
- Projection Distance：12-18m
- Application：Park, Square, Factory, Garden
- IP Rating：IP65
Base Info
- Model NO.：SLFAP82
- Certification：CCC, CE, EMC, FCC, GS, LVD, RoHS, SAA, SASO
- Operating Voltage：85-265V
- Input Voltage：100-265V
- LED Chips Brand：200-260V
- Item：LED Floodlight UL Long-Distance LED Flood Light
- Rendering Index：80
- Power Factor：More Than 0.95
- Cable：15cm H05rn-F3g0.75mm2 Rubber Cable
- Luminous：2200lm
- LED Driver：IC Linear Driver; AC Driver
- Lamp Efficiency：More Than 0.9
- Warranty：3years
- Transport Package：Carton
- Specification：121*95.3*26.1mm
- Trademark：SUNLE
- Origin：China
- HS Code：9405500000
- Production Capacity：10000,Month
Description
Basic Info.
Model NO. SLFAP82 Certification CCC, CE, EMC, FCC, GS, LVD, RoHS, SAA, SASO Operating Voltage 85-265V Input Voltage 100-265V LED Chips Brand 200-260V Item LED Floodlight UL Long-Distance LED Flood Light Rendering Index 80 Power Factor More Than 0.95 Cable 15cm H05rn-F3g0.75mm2 Rubber Cable Luminous 2200lm LED Driver IC Linear Driver; AC Driver Lamp Efficiency More Than 0.9 Warranty 3years Transport Package Carton Specification 121*95.3*26.1mm Trademark SUNLE Origin China HS Code 9405500000 Production Capacity 10000/MonthProduct Description

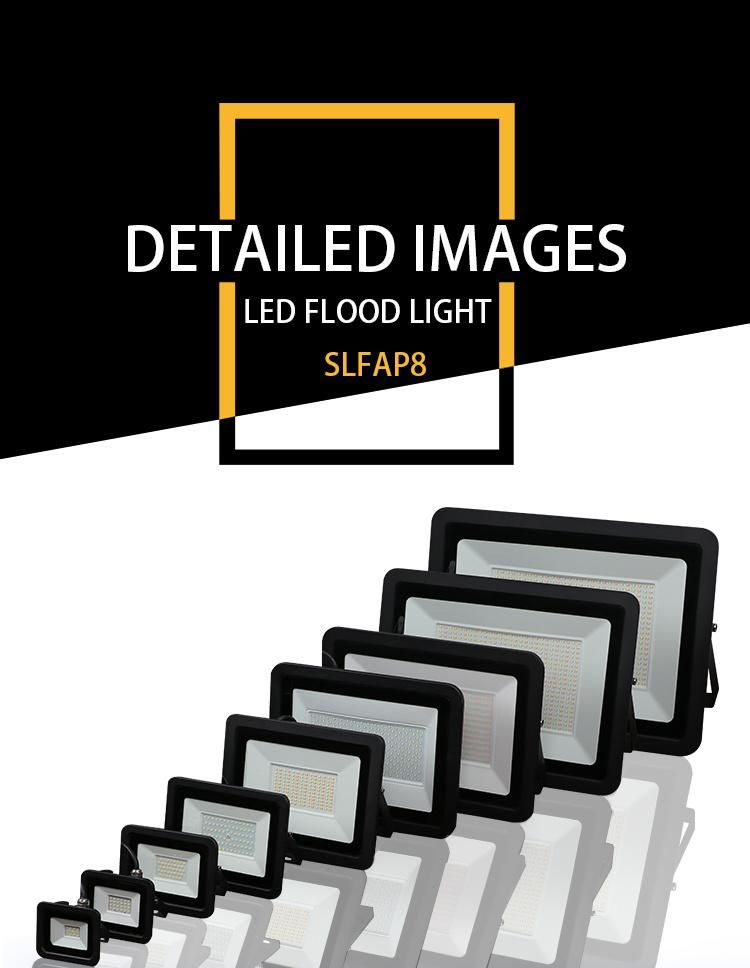

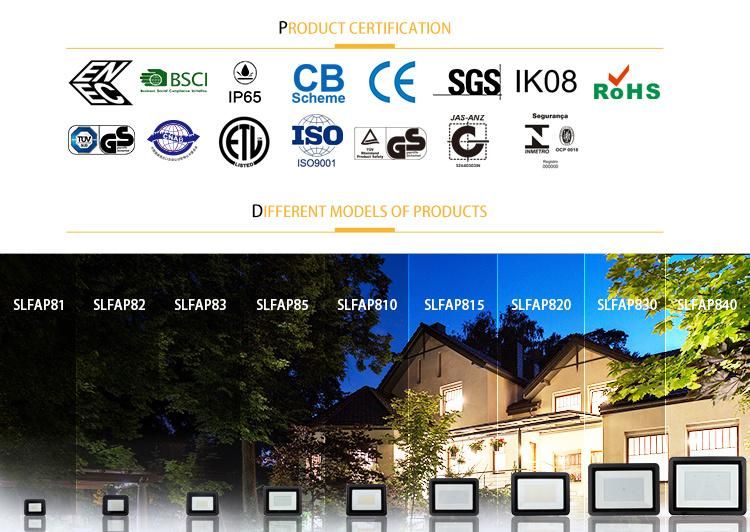

| Item | Actual Wattage | Rendering Index | Color Temp(K) | IP Grade | Dimension(cm) | Power factor | Cable | Voltage | luminous | PASS BLV/EMC |
| SLFAP81 10W | SMD 10W | 80 | CW,NW,WW | IP65 | 104*83.4*25.7 | >0.9 | 15CM H05RN-F3G0.75mm2 rubber cable | AC180-265V 50/60HZ | 900LM | BLV |
| SLFAP82 20W | SMD 20W | 80 | CW,NW,WW | IP65 | 121*95.3*26.1 | >0.9 | 15CM H05RN-F3G0.75mm2 rubber cable | AC180-265V 50/60HZ | 1800LM | BLV |
| SLFAP83 30W | SMD 30W | 80 | CW,NW,WW | IP65 | 161*123.2*29.6 | >0.9 | 15CM H05RN-F3G0.75mm2 rubber cable | AC180-265V 50/60HZ | 2700LM | BLV |
| SLFAP85 50W | SMD 50W | 80 | CW,NW,WW | IP65 | 207*161*31.5 | >0.9 | 15CM H05RN-F3G0.75mm2 rubber cable | AC180-265V 50/60HZ | 4500LM | BLV |
| SLFAP810 80W | SMD 80W | 80 | CW,NW,WW | IP65 | 269*209*34 | >0.9 | 15CM H05RN-F3G0.75mm2 rubber cable | AC180-265V 50/60HZ | 7200LM | BLV/EMC THD<10% |
| SLFAP810 100W | SMD 100W | 80 | CW,NW,WW | IP65 | 269*209*34 | >0.9 | 20CM H05RN-F3G0.75mm2 rubber cable | AC180-265V 50/60HZ | 9000lm | BLV/EMC THD<10% |
| SLFAP815 150W | SMD 150W | 80 | CW,NW,WW | IP65 | 330*250*34 | >0.9 | 20CM H05RN-F3G0.75mm2 rubber cable | AC180-265V 50/60HZ | 13500lm | BLV/EMC THD<10% |
| SLFAP820 200W | SMD 200W | 80 | CW,NW,WW | IP65 | 388*288*36 | >0.9 | 20CM H05RN-F3G0.75mm2 rubber cable | AC180-265V 50/60HZ | 18000lm | BLV/EMC THD<10% |
| SLFAP830 300W | SMD 300W | 80 | CW,NW,WW | IP65 | 445*334*45.5 | >0.9 | 20CM H05RN-F3G0.75mm2 rubber cable | AC180-265V 50/60HZ | 27000lm | BLV/EMC THD<10% |
| SLFAP840 400W | SMD 400W | 80 | CW,NW,WW | IP65 | 490*410*48 | >0.9 | 20CM H05RN-F3G0.75mm2 rubber cable | AC180-265V 50/60HZ | 36000lm | BLV/EMC THD<10% |

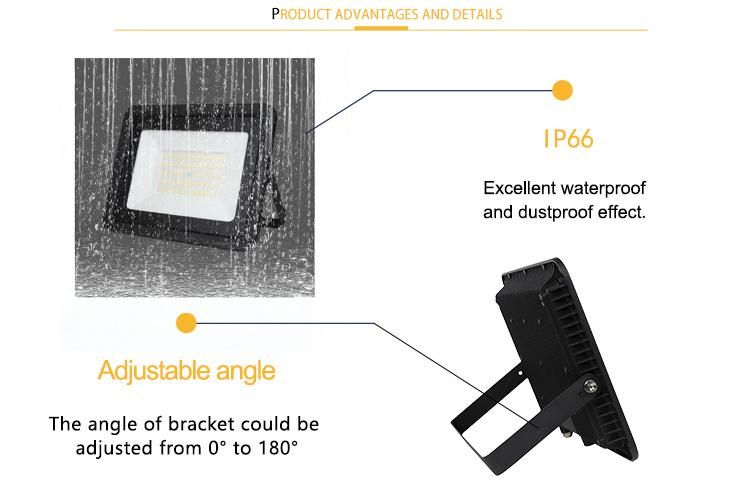

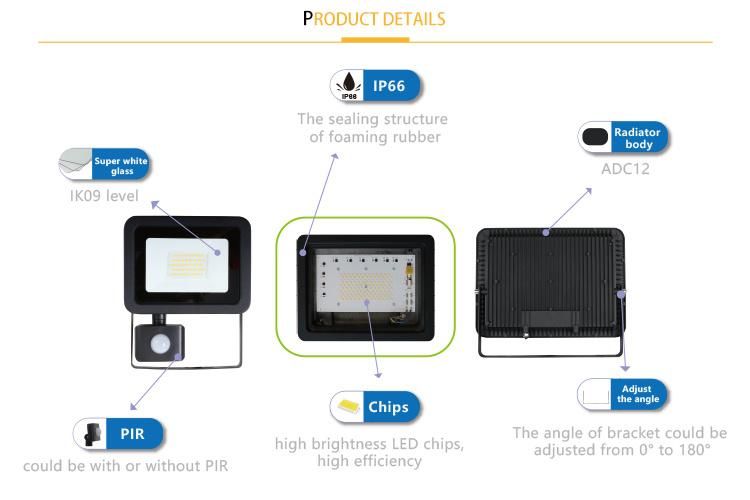

Features:1.IP65 waterproof/dust proof/explosion proof/IK08

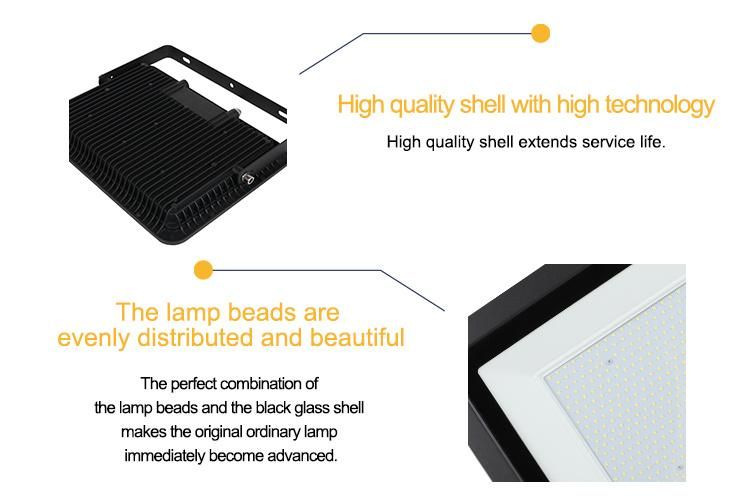

2.Pure Aluminum shape good at heat dissipation

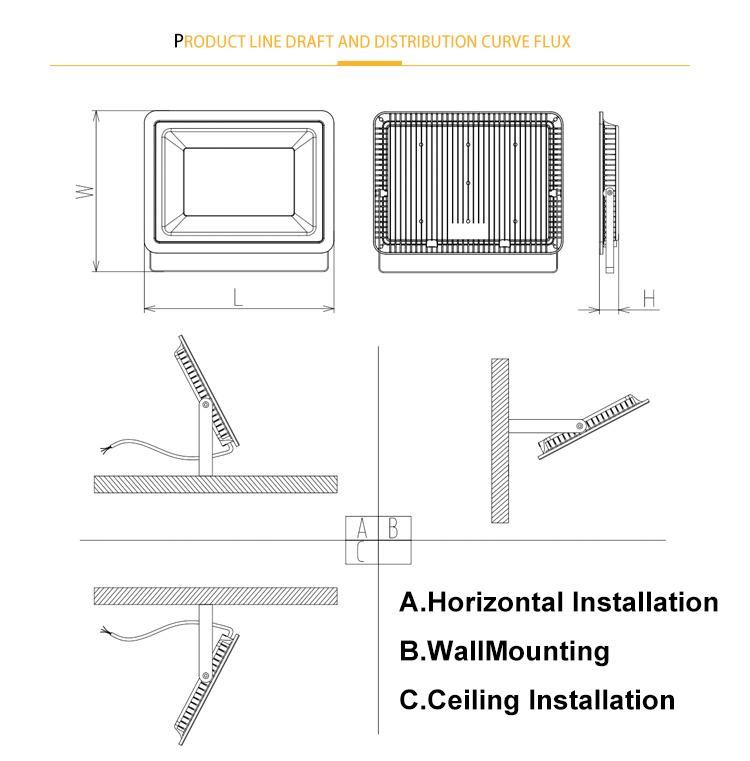

3.Angle Bracket,easy to install by drill
4.Easy replacement and installation
5.SMD 3030 Ra>70/SDCM<7
6.50,000 times switching cycle before failure
7.Total harmonic distortion(THD)<20%
