Alumbrado Publico LED Class I/II Street Lamp 240W LED Lights

HANGZHOU ZGSM TECHNOLOGY CO., LTD.
  • Power Supply：AC
  • Color Temperature：3000-5700K
  • Lamp Body Material：Aluminum Alloy
  • Power：20W-240W

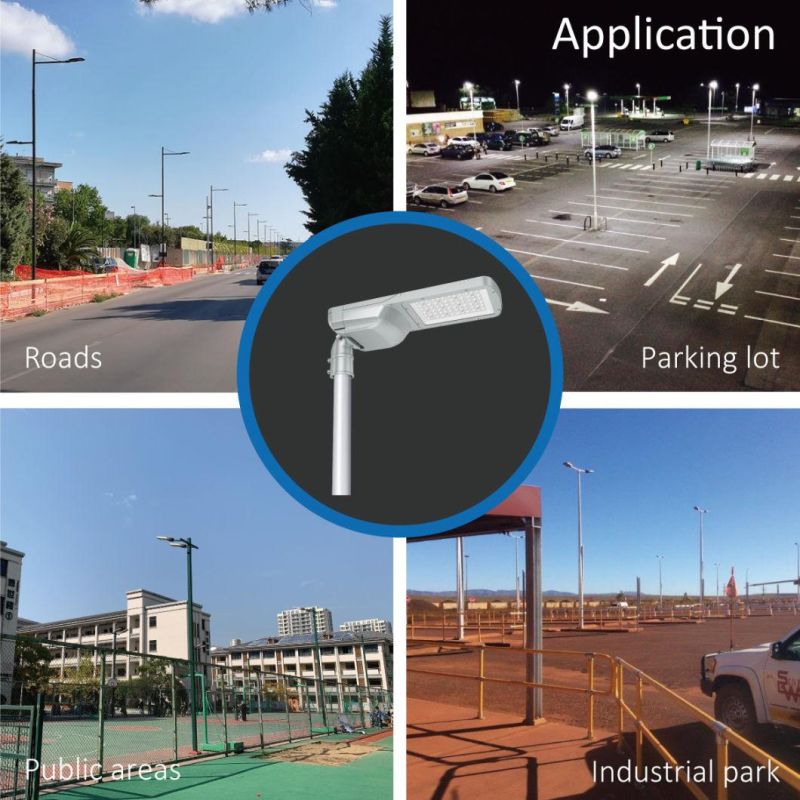

  • Application：Square, Highway, Garden, Parking Lot
  • IP Rating：IP66

Base Info

  • Model NO.：ZGSM-ST17-240L
  • Certification：CE, EMC, FCC, GS, LVD, RoHS, SASO, ENEC
  • Input Voltage：100-240V
  • With Light Source：With Light Source
  • LED Chips Brand：Lumileds
  • Life：100000h
  • Power Source：DC,AC Optional
  • Diffuser：Tempered Glass
  • Product Name：LED Street Lights
  • IP：IP66
  • Ik：Ik10
  • Efficiency：145-165lm,W
  • Transport Package：Export Cartons
  • Specification：ISO 9001, ISO14001, CE, ROHS, FCC, TUV, SGS
  • Trademark：ZGSM
  • Origin：China
  • HS Code：94054090
  • Production Capacity：50000PCS,Month

Description

Basic Info.

Model NO. ZGSM-ST17-240L Certification CE, EMC, FCC, GS, LVD, RoHS, SASO, ENEC Input Voltage 100-240V With Light Source With Light Source LED Chips Brand Lumileds Life 100000h Power Source DC/AC Optional Diffuser Tempered Glass Product Name LED Street Lights IP IP66 Ik Ik10 Efficiency 145-165lm/W Transport Package Export Cartons Specification ISO 9001, ISO14001, CE, ROHS, FCC, TUV, SGS Trademark ZGSM Origin China HS Code 94054090 Production Capacity 50000PCS/Month

Product Description

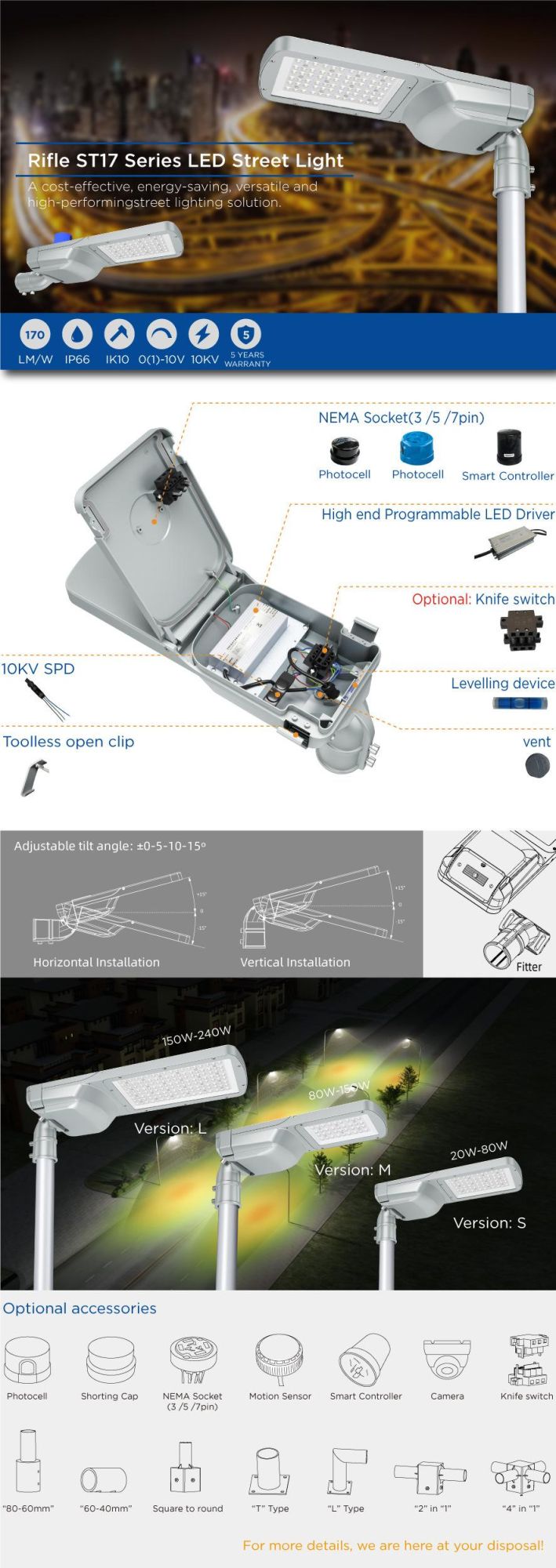

Alumbrado Publico LED Class I/II Street Lamp 240W LED Lights

Series NoSeries Rifle
Power20W, 40W, 60W, 80W, 100W,120W, 150W, 160W, 180W, 200W, 240W
Efficacy140-170lm/W
Input Voltage100-240/277 VAC, 50 / 60 Hz
Power Factor>0.95
Surge Protection10KV (Default) / 20KV (available on request)
IP RatingIP66
IK RatingIK10
CCT3000K, 4000K, 5000K, 5700K
CRIRa>70 (Default) / Ra>80
Operating Temperature-40°C to + 50°C
Beam AngleType II, Medium; Type III, Medium;
Mounting OptionSide entry or Vertical pole mounted
Warranty5 Years
CertificationENEC, CE, CB, ROHS, LM79, LM80, LM82, LM84, TM-21, ISTMT, IEC62471/62788
ControlPhotocell, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control

Alumbrado Publico LED Class I/II Street Lamp 240W LED Lights
LED Road Lamp for Public Street Lighting with ENEC Certificate
