• Model NO.：OED-FL08-1000W
• Certification：CE, EMC, FCC, LVD, RoHS, SAA, TUV
• Input Voltage：AC85-265V
• LED Chips Brand：3030SMD Filips
• LED Chip：Filips 3030
• IP Level：IP65
• PF：0.95
• CRI：Ra.80
• Driver：Meanwell or TUV,FCC,SAA Driver
• Warranty：5 Years , 3 Years
• Item Name：1000W LED Stadium Light
• Transport Package：Export Carton with Foam
• Specification：L. 920 * W. 570 * T. 130mm
• Trademark：OED
• Origin：China
• HS Code：9405409000
• Production Capacity：8000,Month

Basic Info.

Model NO. OED-FL08-1000W Certification CE, EMC, FCC, LVD, RoHS, SAA, TUV Input Voltage AC85-265V LED Chips Brand 3030SMD Filips LED Chip Filips 3030 IP Level IP65 PF 0.95 CRI Ra.80 Driver Meanwell or TUV/FCC/SAA Driver Warranty 5 Years / 3 Years Item Name 1000W LED Stadium Light Transport Package Export Carton with Foam Specification L. 920 * W. 570 * T. 130mm Trademark OED Origin China HS Code 9405409000 Production Capacity 8000/Month

Product Description

led flood light smd module led flood light 1000W waterproof led spot light with driver 85-265v

Product Parameter:

Item name	1000W LED Stadium Light IP65
Power consumption	1000W
Input voltage	AC85-265V / 50-60Hz
Light source	Filips SMD3030, 50W module x 20
LED Qty	48pcs x 20
Beam angle	60° / 90° / 70 x 140°
Lamp Dimensions	920 x 570 x 130MM
Color temperature	3000-3500K WW, 4000-4500K NW, 6000-6500K CW
CRI	> 80 Ra.
Power factor	> 0.95
Materials	Die-casting aluminum with black painting, PC lens
Lifetime	50,000 hours
Quality warranty	3 years / 5 years
Item N.W.	31KG
Q'ty / Carton	1PC
Carton Size / G.W.	119 x 63 x 18CM / 33KG
Certificates	CE, RoHS, EMC, LVD, TUV, FCC, SAA, UL, ISO9001
Applications	Bus station, airport, square, tunnel, stadium, warehouse, sports field etc.

Product Features:
1.Product Beam Angle:  60° / 90° / 70 x 140° for option.
2. Surge protection: 6KV.
3. 3 / 5 years warranty with different price.
4. 50W x 20pcs Standard LED module, each module with one power supply.  So there are 20pcs 50W LED modules and 20pcs LED Power supply combined. All modules and drivers are easy to replace.
5. 110LM/W to 120LM/W, PF.>0.95.
6. IP65 defend grade.
6. High power 50w, 100w, 200w, 300w, 400w, 500w, 600w, 800w, 1000W for your option.


Photos:

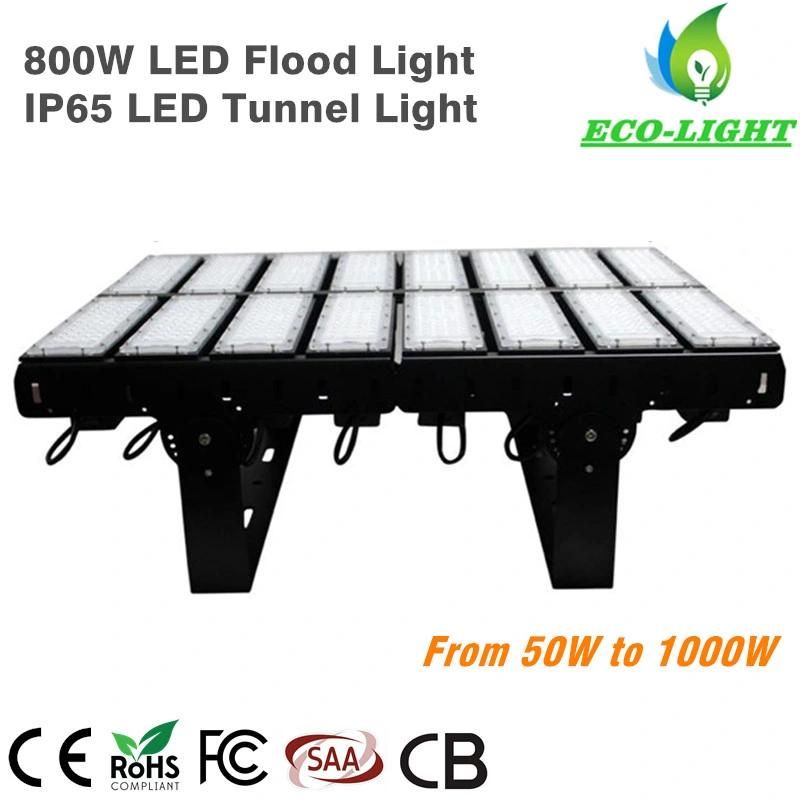

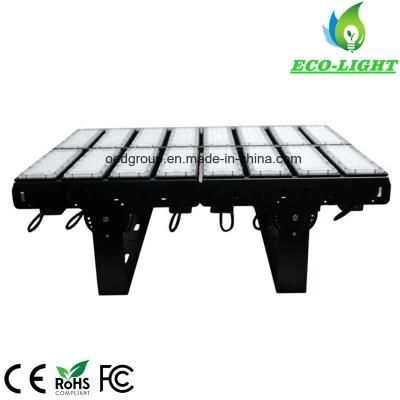

1000W LED Stadium Light:


Features:
-Die-cast Aluminum is combined with the Die-casting aluminum fin.
-Optical PC material lens, multi beam angles optional.
-Surface powder treatment, with anti corrosion,rust functions.
-IP65, dustproof and waterproof, to meet all kinds of outdoors harsh environment requirements.
-Surge protection: 6KV
-50W x 20pcs Standard LED module, each module with one power supply.  So there are 20pcs 50W LED modules and 20pcs LED Power supply combined. All modules and drivers are easy to replace.

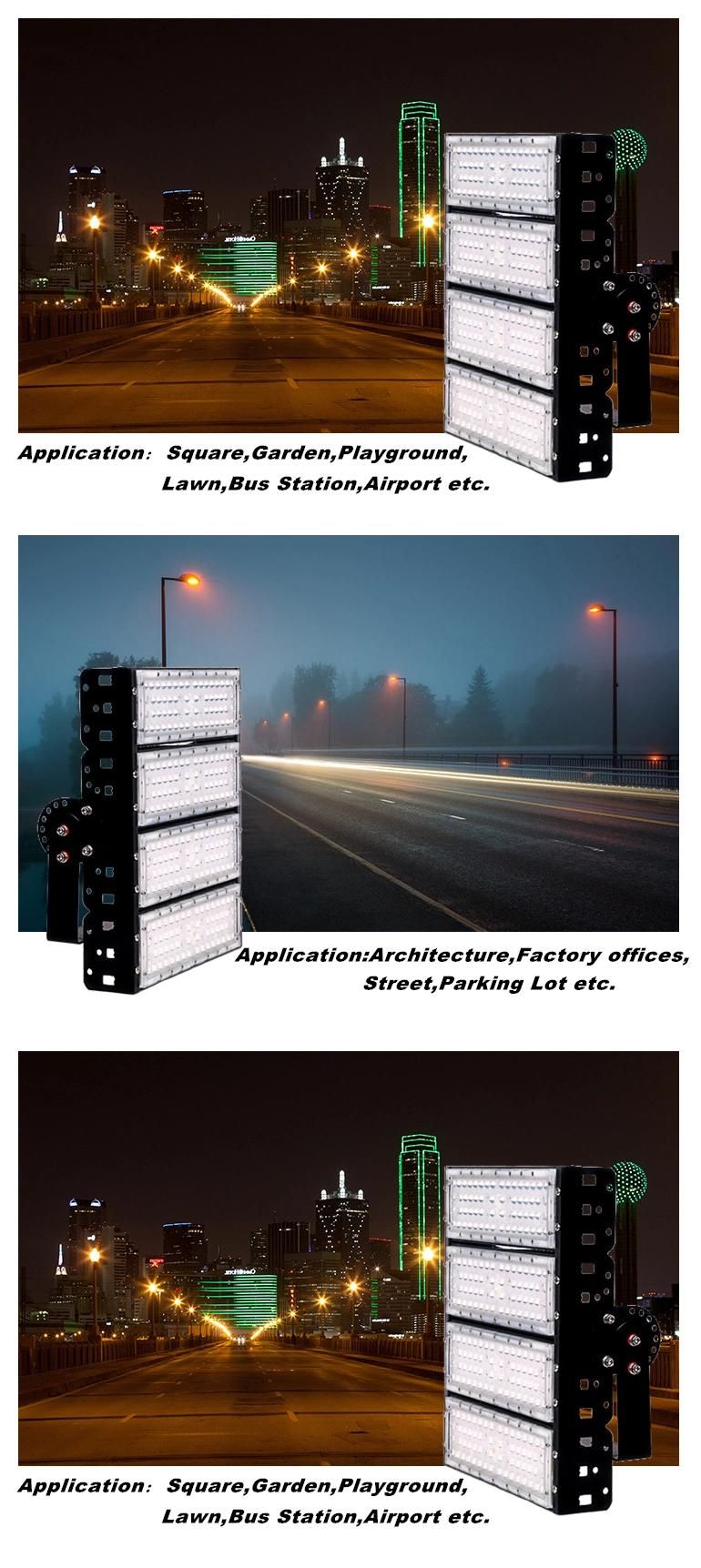

Application:
It can be widely used in Tunnel,Square,Plaza,Garden,Lawn,Playground,Tennis Stadium,Golf Course,Bus Station,Airport,Sculpture,Architecture,Arts Work,Street,Factory offices,Show Room,Work Shop,Parking lot etc.


Installation instructions:
1. Non-professional technicians, please do not repair or modify this product without authorization;
2. Please turn off the power before installation;
3. Before installation, please check whether the voltage marked on the high pole lamp is consistent with the input voltage to be connected;
4. In order to ensure the service life of the product, please do not use it in a place with strong acid mist;
5. Be mindful of shock protection during installation and transportation;
6. Install it in a flat place without continues shaking, no vibration and no fire hazard;
7. If the lamp fails, please place the lamp in one place and send it back to the company for inspection and repair.
8. If the lamp cable damaged, please stop using it immediately.

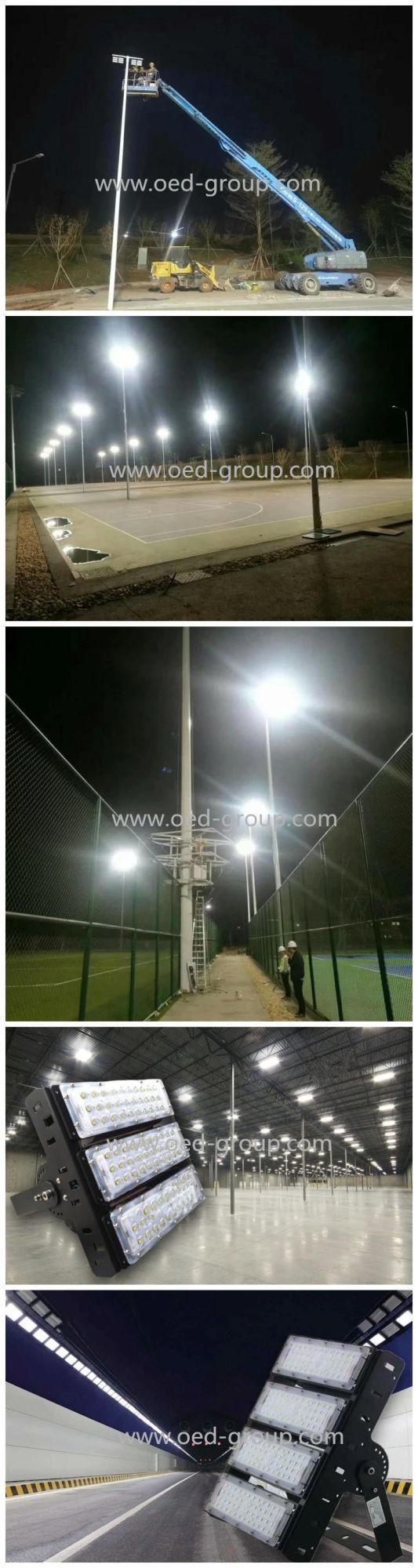

Installation effect:

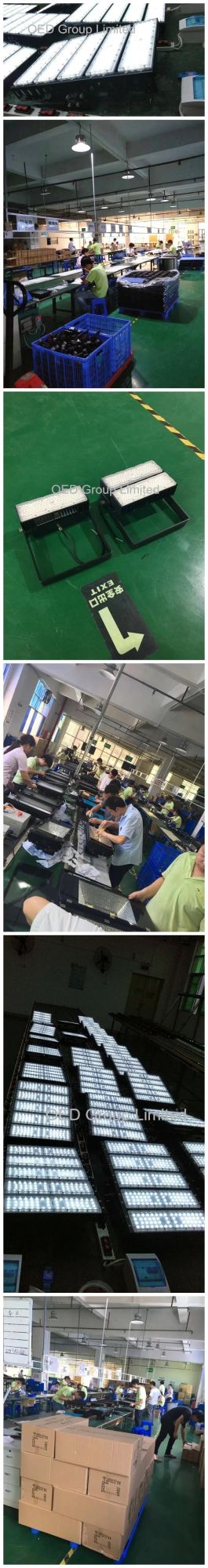

Our workshop:
We have 6 production lines at production department, including assembling, inspection and aging test lines.
Production ability: 3-5 days for 500pcs LED Stadium lights, and 10-15 working days for 3000pcs LED Stadium Lights at common requirements.
Each Lamp must pass 24 hours aging test and high voltage (6KV) surge test before we make packing and make delivery.


Lighting Fair:
We attend HK lighting Fair  in October and Canton Lighting Fair in June each year. And welcome to visit us there.


Our Services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. Excellent design team with designers of more than 12 years experience, can offer professional advice for practical application;
3. Production capacity 60,000pcs LED lamps per year, mainly export to European & American market, Russia, Australia, Kazakhstan, Turkmenistan, Zimbabwe, South Africa, etc;
4. Good OEM & ODM business ability, 6 production lines meet big capacity requirement planning;
5. Export seaport: Shenzhen, south China;
6. Discount offered is based on order quantity;
7. High quality component and material, Cree, Osram, Filips, Bridgelux and Epistar LED chip, MW driver or CE/ FCC/ SAA/ TUV listed LED driver, depends on your request.

Payment Terms:
TT Bank Transfer, support 30% deposit and 70% before delivery;
PayPal, western union, Alipay etc.
NO O/A.

Delivery time:
Samples and less than 100pcs in 3-5 working days;
500pcs in 7-8 working days;
3000pcs in 15 working days.

About Shipping:
Samples sent by DHL, TNT, Fed EX, UPS, SF Express, Aramex etc. Door to door, you may pay customs tax depends on your customs policy.
By air or by sea for bulky orders available.


FAQ:
1. Are you factory supplier?
Yes, we are manufacturer of LED lamps since 2008 and we have our own factory, supply duable super quality items and reliable after-sale service.

2. Do you supply OEM or ODM?
Yes, we can supply OEM and ODM serice with favorable price and we have our own mould workshop, your brand and logo can be printed on the items.

3. How long will it spend for our orders to be sent out?
It takes 3-5 days for samples at common requirements, and 10-15 days for big order such as 3000pcs IP65 LED tunnel lighting.

4. What about your after-sales servie and warranty policy?
We offer 3 years / 5 years warranty with different price for this tunnel light, by supplying you the lamp parts or new replacements for free during the warranty period for any non-human defective lamps.
