• Model NO.：Rb-Stc-300W
• Certification：CE, EMC, LVD, RoHS, VDE
• Input Voltage：100V-277V
• With Light Source：With Light Source
• LED Chips Brand：SMD3030
• Item No.：Rb-Stc-300W
• LED Chip：SMD3030 High Brightness LED Chip
• Driver：Meanwell Driver
• LED Efficiency：140lm,W
• CCT：2700-7000K
• Power Factor(PF)：>0.96
• Material：Pure Aluminum
• Fixture Efficiency：>95%
• Viewing Angle：140*80 Degree
• Color Rendering Index：Ra>80
• Transport Package：1PC,Carton
• Specification：CE,ROHS
• Trademark：Rayborn
• Origin：China
• HS Code：9405409000
• Production Capacity：40, 000PCS

300W LED Industrial Light Main Technical ParametersItem No.:RB-STC-300WInput Voltage:AC 100~277VFreqency Range:50Hz~60HzDriverMeanwellLed Chip:SMD3030Power Factor:>0.96Power Efficiency:>90%LED Power290WLED QTY: 144pcsLED Working Voltage:DC 36~42VSystem Consumption:298WLED Luminous FluxWarm White36000LMPure White38000LMCool White39000LMViewing Angle:140*80 degreeCenter IlluminanceHeight 10M57.9LUXHeight 15M25.8LUXHeight 20M14.5LUXIlluminance AreaHeight 10MDia.2057CM points visibleHeight 15MDia.3086CM points visibleHeight 20MDia.4115CM points visibleIlluminance Uniformity:>0.6Color TemperatureWarm White3000K~3500KPure White5000K~5700KCool White6000K~6500KColor Rendering IndexRa>80Light Distribution:LED points visible
Outdoor LED Street light Feature :
LED Chip: SMD3030 LED Chips which is the most famous Brand in chips field, high efficiency and long lifespan, high quality.

Power Supply: SUNPER LED Street light use Meanwell driver, IP65 and high quality, it improved lights performance. Power efficiency ≥92.

Color temperature: LED Street light provide a range of color temperatures from 3000, 4000,5000 and 6000 Kelvin helping to enhance a building's exterior.

Optics: hermetically sealed providing IP65.
Great light uniformity:  LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.

Housing: Die cast aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180oC.

Cable: silicon rubber cable for power input. Fasten with screw in the cable gland.

Warranty: 5 years. Do not attempt to take housing apart as this will ruin the seal and void all warranty.
Certification:  FCC CE RoHS approval.

Quality Control: Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance.

Angle Adjustable: Adjustable stainless steel mounting bracket allows you to direct light where you need it.


Outdoor LED Street light Competitive Advantage :
1. CE & RoHS & SAA IP65 approved, Quality Guaranteed
2. Imported original SMD3030 chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 3-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 5 years warranty and 50.000 hours lifespan

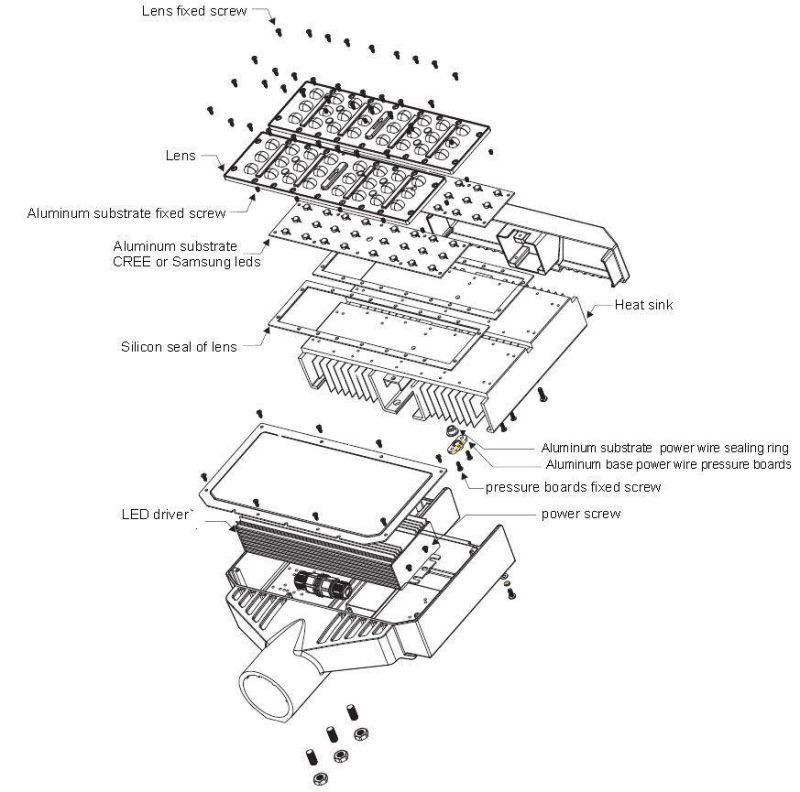

Outdoor LED Street light structure :

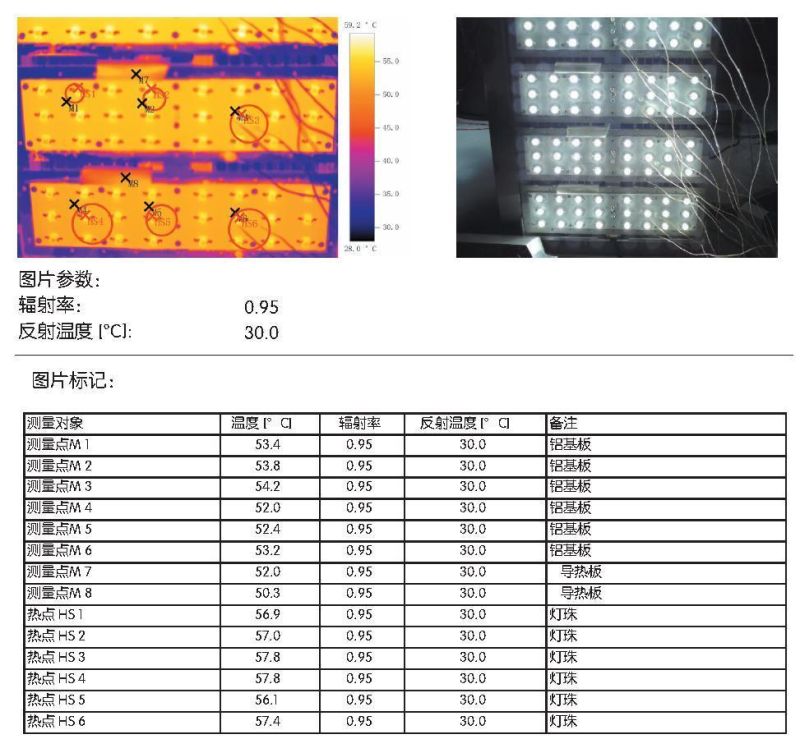

LED Street light Temperature testing :

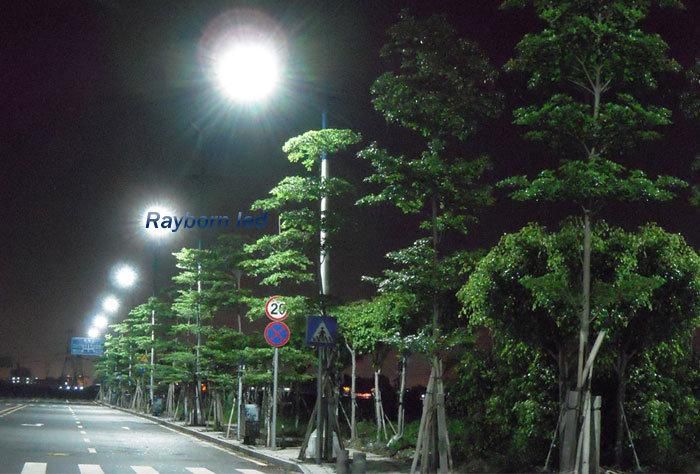

Outdoor LED Street Light Fixtures Applications:

1. Playground and stadium lighting.
2. Parking lot and airport lighting.
3. Highway and Railway tunnel lighting.
4. Bridge and culvert lighting.
5. Square,garden,and building lighting.

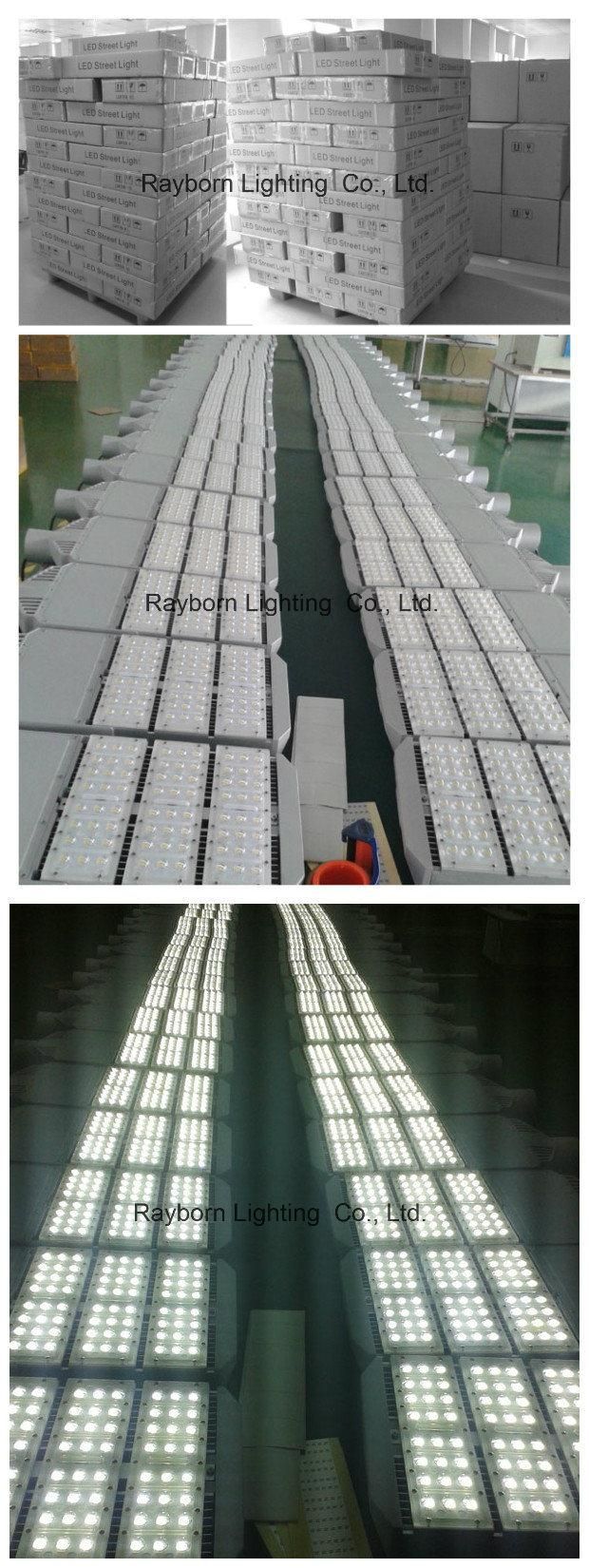

LED Street light  more than 24hours aging test :

Before shipping, all the LED streetlights will be over 24 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, defective rate is controlled  less than 0.1%. Quality is ensured, you can be assured.



Company viewing :
Rayborn Lighting Co.,Ltd is a professional manufacturer ,focus on Industrial LED lights and commerical LED lights research ,devolopment ,production,sales ,on service,was in High-end operation and service provider in High-power led .Under the country "saving "polics,we are striving to create environment protection ,energy saving ,long life lighting and earned a reputation of being a quality supplier of LED lighting .

 We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.

FAQ  :

 1. What is the general business process?
Answer : Send Inquiry to Rayborn. → Specification Confirmation → Quotation → Sample List Confirm → Proforma Invoice → Payment Bank Slip → Sample Delivery → Sample Satisfactory → Bulk Order List → Proforma Invoice → 30% Deposit Payment in Advance → Production Ready → 70% Balance bank slip → Delivery → After Sale Service

2. What is the warranty?
Answer : 5 years warranty is offered depending on different types of lights. If item fails due to quality problem during warranty, we can send new replacement with freight on ours immediately if urgently. Or we prefer to send replacement with next order.


3. What is the payment term?
Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable

4. Can I add my logo on the product label?
Answer : Yes, but order quantity is requested depending on different lights.

5. I don't know how many LED Street Light should I use, can you advise?
Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.

6. Do you have any MOQ limit for led light order?
Answer: Low MOQ, 1pc for sample checking is available .

7. How do you ship the goods and how long does it take to arrive?
Answer: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

8. How to proceed an order for led light ?
Answer : Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

9. How to deal with the faulty ?
Answer : Firstly, Our products are produced in strict quality control system and the defective rate < 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will send out new replacement to you immediately for you to solve the problem.
