• Model NO.：83311
• Light Source：With Light Source
• Beam Angle：8,15,25,30,45,60 Degrees
• Life Span：>50000rhs
• Glass：Tempered Glass T=3mm
• Power Cable：Rubber
• Front Cover：Aluminum and Tempered Glass
• Other Models：1W,2W,3W Single Color, RGB 3in1
• Transport Package：Shockproof Carton Box
• Specification：24PCS,CTN
• Trademark：JP Lighting
• Origin：Dongguan, Guangdong, China
• HS Code：9405409000
• Production Capacity：20000PCS,Month

Basic Info.

Model NO. 83311 Light Source With Light Source Beam Angle 8/15/25/30/45/60 Degrees Life Span >50000rhs Glass Tempered Glass T=3mm Power Cable Rubber Front Cover Aluminum and Tempered Glass Other Models 1W/2W/3W Single Color, RGB 3in1 Transport Package Shockproof Carton Box Specification 24PCS/CTN Trademark JP Lighting Origin Dongguan, Guangdong, China HS Code 9405409000 Production Capacity 20000PCS/Month

Product Description

Outdoor IP65 Waterproof 3W aluminum Led Garden spot Light DC24V

LED Garden Light, garden light with base, LED plaza light, LED flood light for park, LED Garden Spot Light, Outdoor Landscape Light, LED Landscape Spotlight, LED spike light, Aluminum Garden Light
Main Features
1. High power, high brightness 1x1W/1x2W/1x3W/1x3W RGB3in1 LED are available;

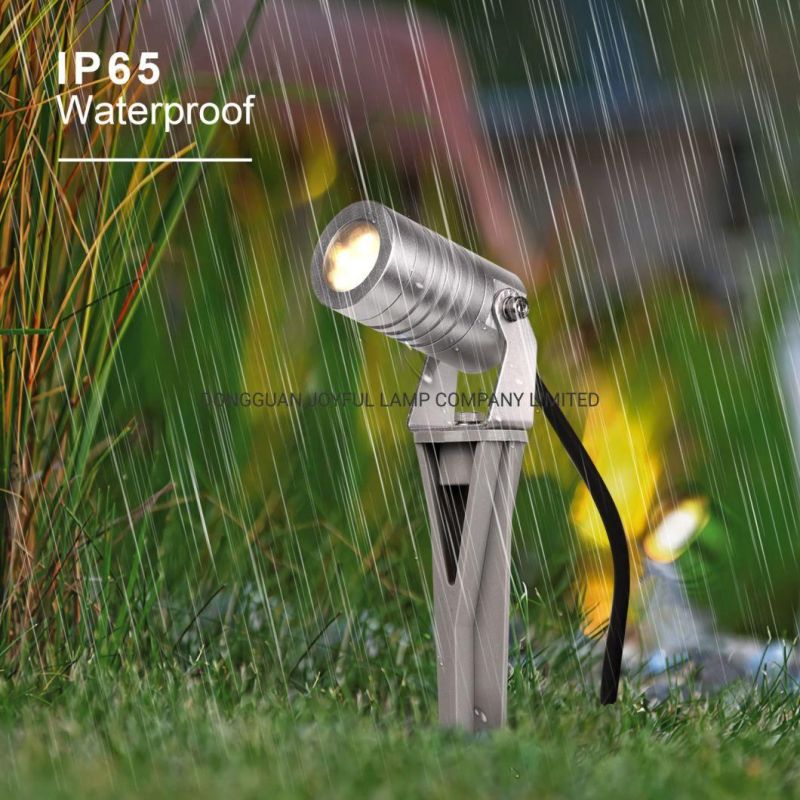

2. IP65 waterproof, dust-proof, explosion-proof and anti-corrosion;
3. Housing: Aluminum anodized finshing or powder painting;
4. Housing color option: Aluminum anodized, Sliver painting RAL9005, Matt black RAL9006, Support RGB color type;

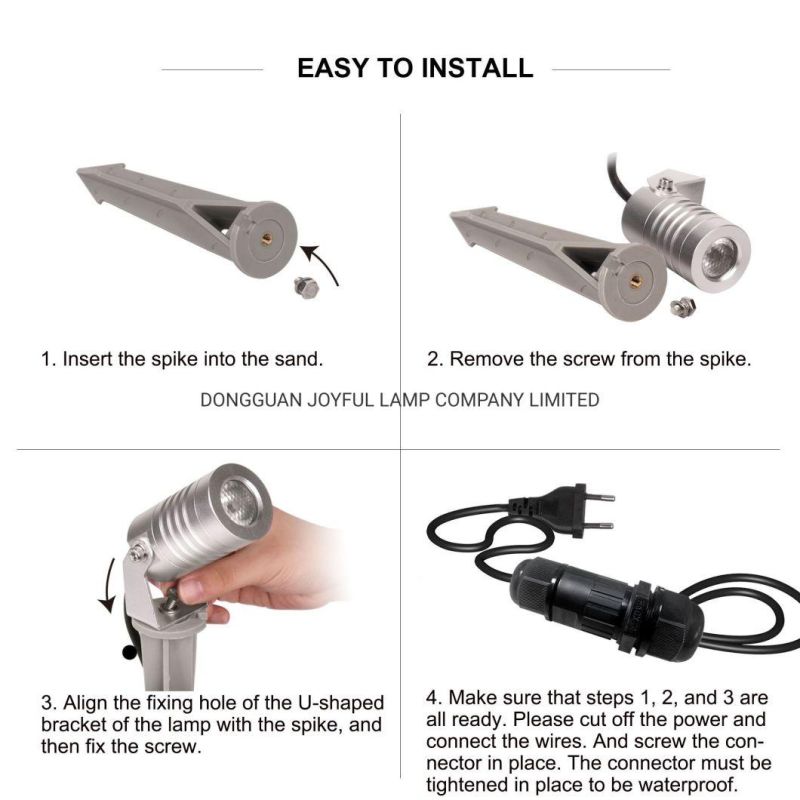

5. Easy to install and operate;
6. Energy-saving, low power consumption;
7. Tiny package and lighter, lower freight cost,more competitive in the market;
8. Using high-quality and high-precision material and structural waterproof, easy to maintain.

Main Specifications
Housing: Aluminum anodized finshing or powder painting
Glass: Tempered glass.T=3mm
Lens: Optical lens, efficiency≥85%
Cable gland: Copper and nickel coated
Gasket: Tooling shaped seal
LED: EDISON OR CREE power LED
PCB:  Excellent heat conductivity aluminum
coefficient of Heat Conductivity≥2.0w/mk

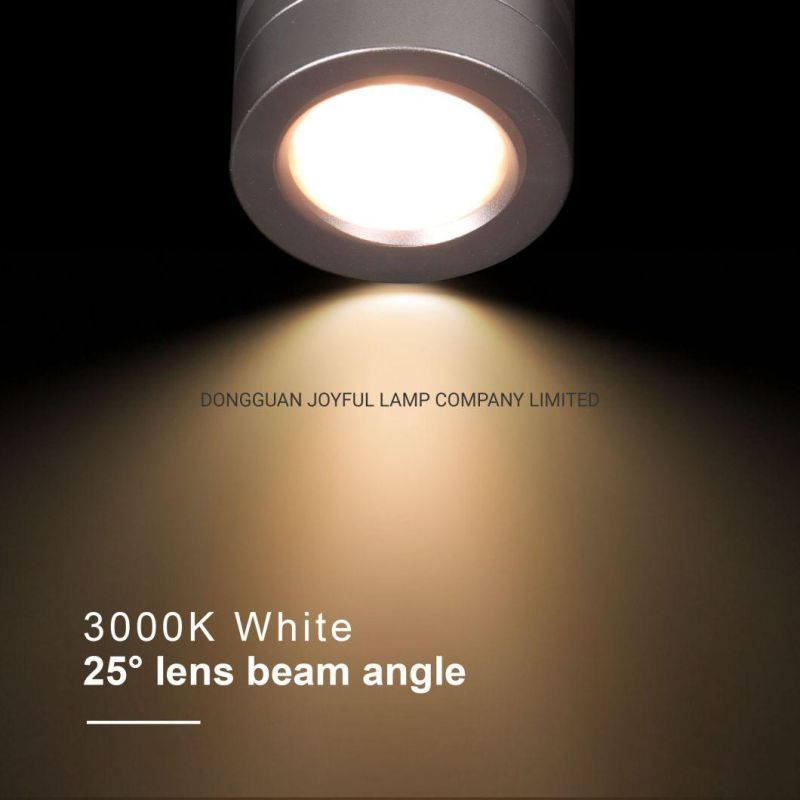

LED Colour Temperature: White 2700-6000K
Driver : Constant current output
            Single color LED=1-circuit output
            RGB 3in1 LED =3-circuit output
Power cable: H05RN-F2x0.75mm²,L=1m(low voltage)
                      H05RN-F3x0.75mm²,L=1m(high voltage)
                      H05RN-F4x0.75mm²,L=1m(for RGB)
Operating Temperature: -20ºC~40ºC

Product Models

Item No.	Light Source	Lens Beam Angle (°)	Consumption(Watt)	Input Voltage(V)	IK Rate
83311	1x1W	8°/15°/25°/30° /45°/60°	1.1	DC12/DC24V	02
83311H	1x1W	8°/15°/25°/30° /45°/60°	1.3	AC120V/AC240V	02
83312	1x2W	8°/15°/25°/30° /45°/60°	2.2	DC12/DC24V	02
83312H	1x2W	8°/15°/25°/30° /45°/60°	2.6	AC120V/AC240V	02
83316	1x3WRGB3in1	8°/15°/25°/30° /45°/60°	3.2	DC12/DC24V	02

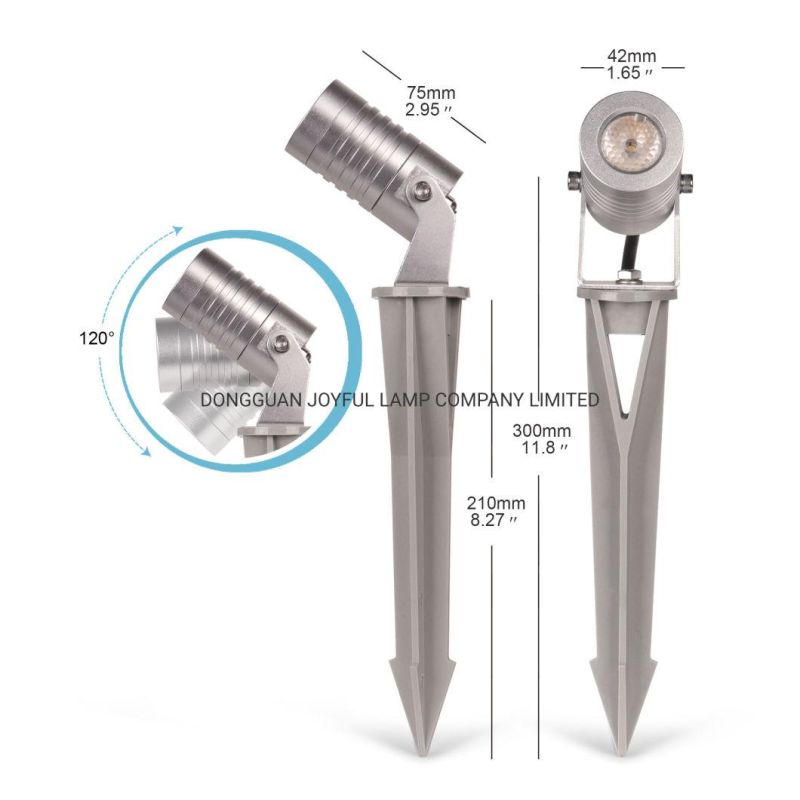

Product Dimension

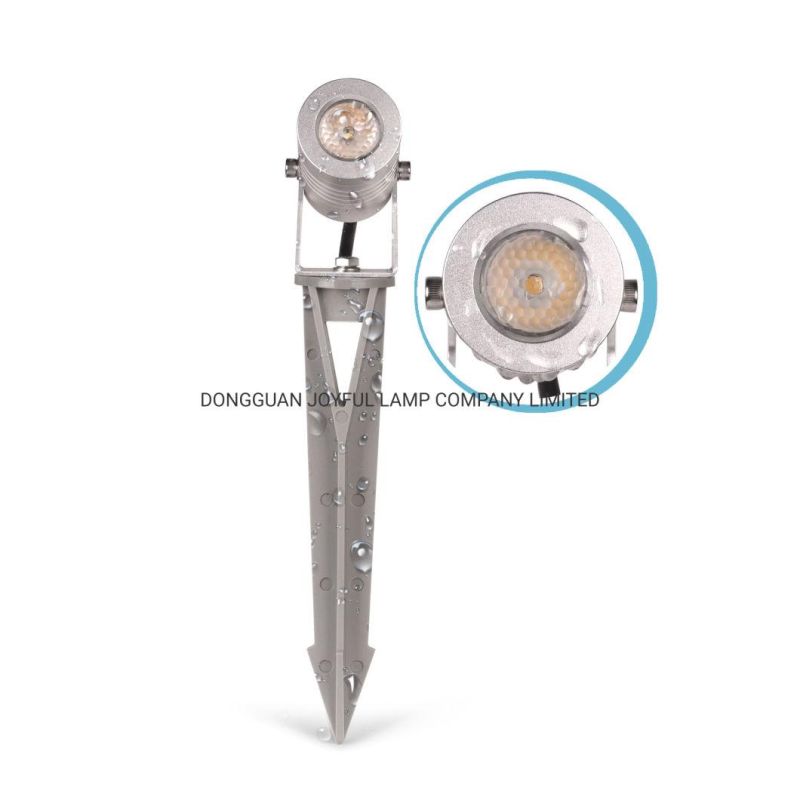

Product Image

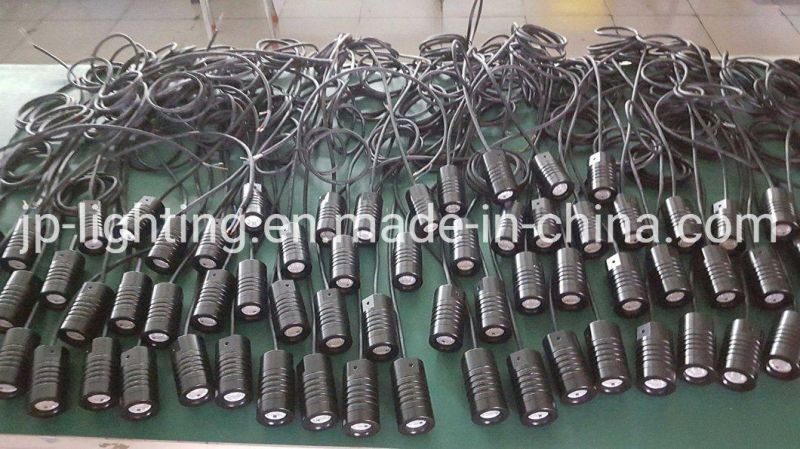

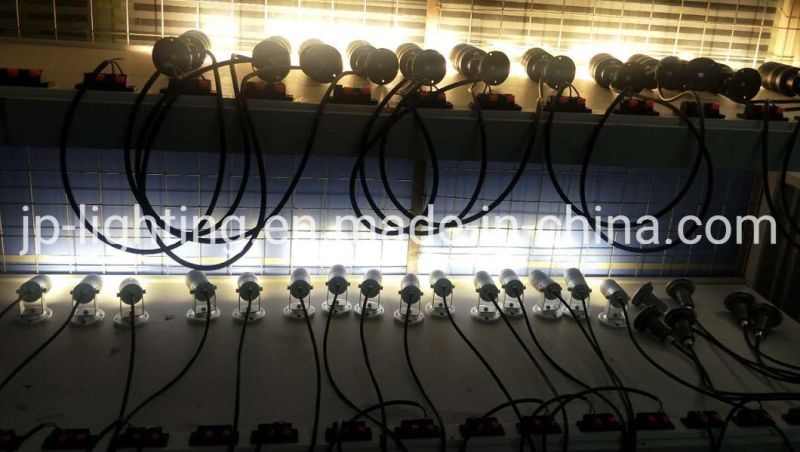

Production Test

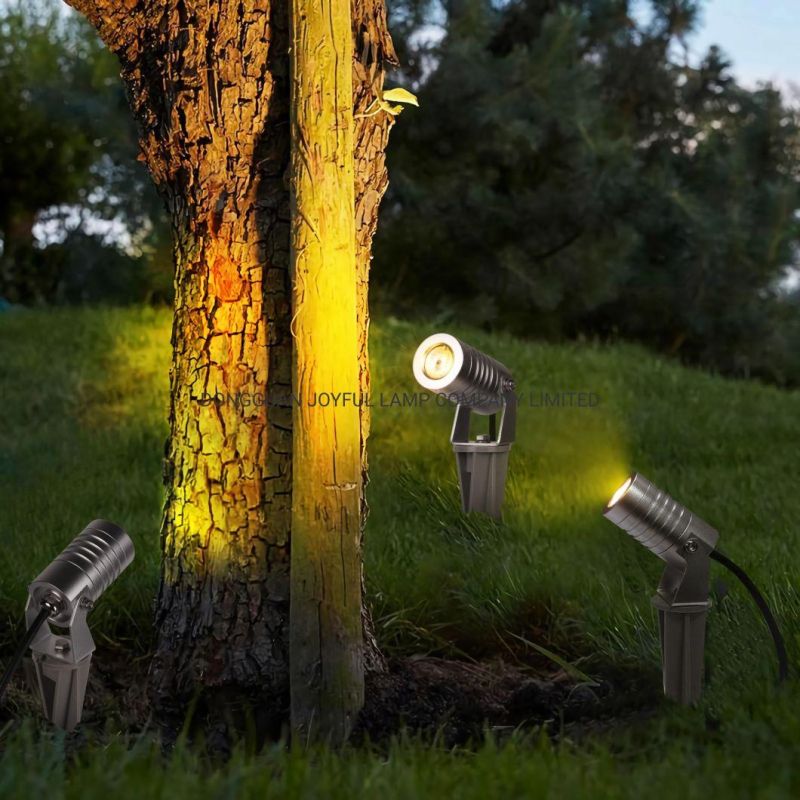

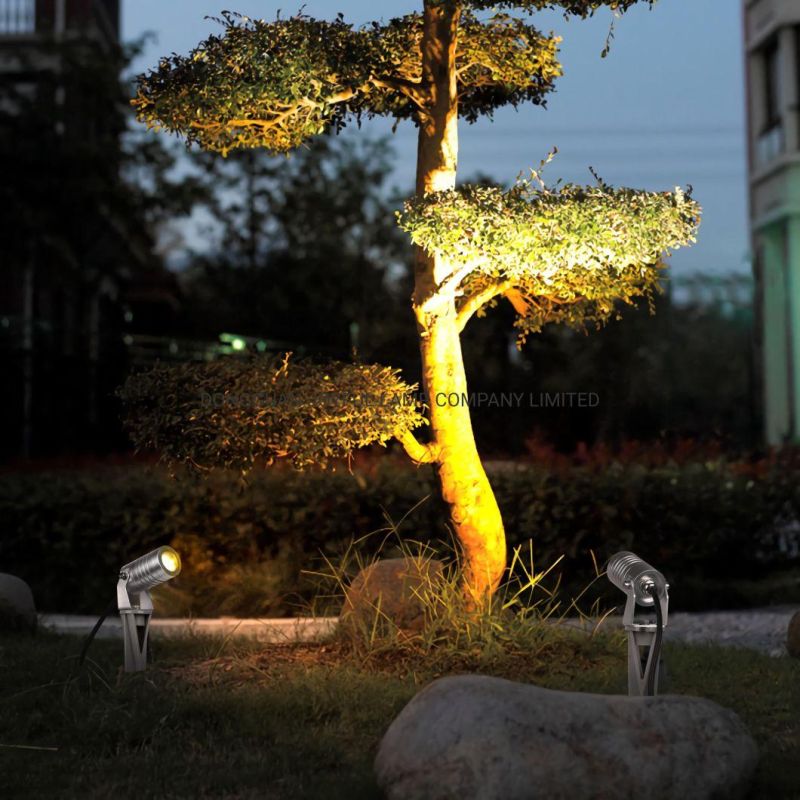

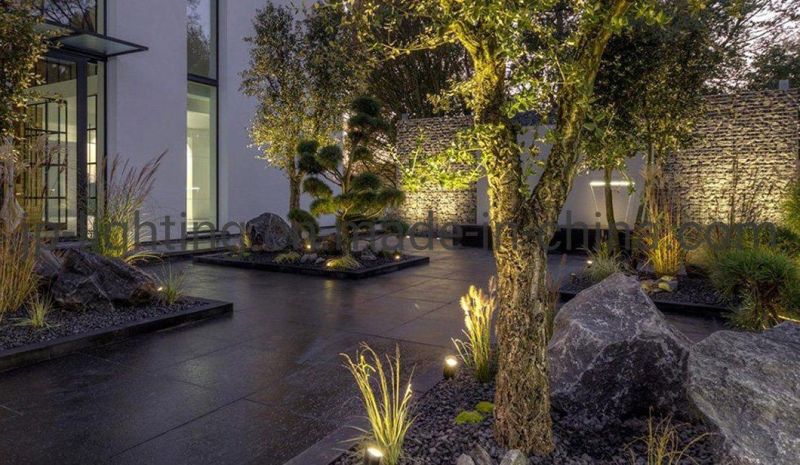

Product Application
Courtyard,Garden,Lawn,Sidewalk and other commercial/decorative illumination


FAQ

Are you a manufacturer?
Yes, We are a professional manufacturer with 15 years experience.

What are your main products?
1.Outdoor LED wall light
2.LED garden spot/spike light
3.LED inground light
4.LED underwater light(fountain light, swimming poool light, underwater spot light)
5.LED wall washer light

What is the company sample system?
1.Sample charge should prepaid.
2.Sample can be customized,If the order QTY is more than 1000Pcs.

How we can pay for?
1.30% advanced payment. 70% balance payment.
2.We accept L/C, T/T, Western Union, and Paypal.
3.Our shipping terms is EXW, FOB, CIF

How about the delivery time?
1.About 5 working days for sample making.
2.15-30 working days for mass products production time. It is up to the quantity.

What information should I let you know when I want to make a inquiry?
1.Which body color do you want?
2.What kind of light color do you prefer?
3.How long do you need about light cable?
4.Which voltage ( low voltage or high voltage)?
5.What kind of beam angle do you need?
6.What's the quantity do you need?


Why choose us?
1.One-stop services:  Innovative design, professional product light effect. Excellent product quality, sincere service concept. For exterior lighting provides an integrated, one-stop integrated lighting solution!

2.Experience R&D, production and sales team: We have an mature and experienced team. Some members have more than 15 years of work experience in the field of lighting. JP Lighting factory covers an area of 2,000 square meters and the annual sales of more thank $10 million.

3.Strict quality control process: JP lights use the high quality components. All material must be strictly screened. All JP lights will undergo strict testing before shipping, including integrating sphere testing, aging test, waterproof test, etc. Due to rich experience and professionalism, JP Lighting's product defect rate is strictly controlled within 1%.

4.Products worldwide with high reputation: We participate in various industry lighting exhibitions, our products are all over Asia, Europe, Oceania, Africa and Central and South America, Middle East. All products have got great comments for high quality and excellent service.
