Ik08 90W LED Roadway Light Street Lamp with 10kv Surge Protector
HANGZHOU ZGSM TECHNOLOGY CO., LTD.- Power Supply：AC 100-240V ,277VAC
- Color Temperature：3000K, 4000K, 5000K, 5700K
- Lamp Body Material：Aluminum
- Power：90W

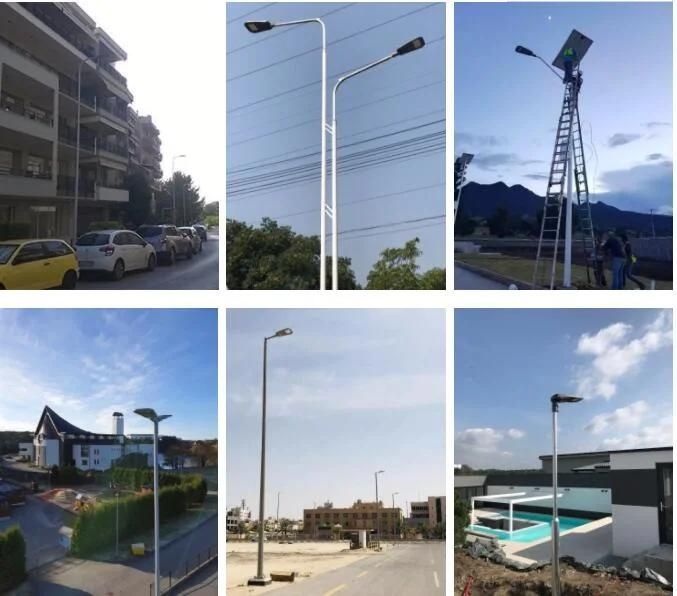

- Application：Square, Highway, Garden, Parking Lot, City Street
- IP Rating：IP66
Base Info
- Model NO.：ZGSM-LD90KM
- Certification：CE, EMC, LVD, RoHS
- Input Voltage：AC 100-240V ,277VAC
- With Light Source：With Light Source
- LED Chips Brand：Lumileds
- LED Driver：Meanwell Driver
- Luminous Efficiency：130lm,W
- CRI：Ra>70
- Ik Rating：Ik08
- Warranty：5 Years Warranty
- Transport Package：Export Cartons
- Specification：785 x415 x205 mm
- Trademark：ZGSM
- Origin：China
- HS Code：94054090
- Production Capacity：20000PCS,Month
Description
Basic Info.
Model NO. ZGSM-LD90KM Certification CE, EMC, LVD, RoHS Input Voltage AC 100-240V /277VAC With Light Source With Light Source LED Chips Brand Lumileds LED Driver Meanwell Driver Luminous Efficiency 130lm/W CRI Ra>70 Ik Rating Ik08 Warranty 5 Years Warranty Transport Package Export Cartons Specification 785 x415 x205 mm Trademark ZGSM Origin China HS Code 94054090 Production Capacity 20000PCS/MonthProduct Description
| Series No | Series K |
| Power | 25W, 35W, 55W, 60W, 90W,120W, 150W, 180W, 200W |
| Efficacy | 125-150lm/W |
| Input Voltage | 100-240/277 VAC, 50 / 60 Hz |
| Power Factor | >0.95 |
| Surge Protection | 10KV (Default) / 20KV (available on request) |
| IP Rating | IP66 |
| IK Rating | IK08 |
| CCT | 3000K, 4000K, 5000K, 5700K |
| CRI | Ra>70 (Default) / Ra>80 |
| Operating Temperature | -40°C to + 50°C |
| Beam Angle | Type I, Medium; Type II, Medium; Type III, Medium; |
| Mounting Option | Side entry or Vertical pole mounted |
| Warrantys | 5 Years |
| Certification | ENEC, CE, CB, ROHS, LM79, LM80, LM82, LM84, TM-21, ISTMT, IEC62471/62788 |
| Control | Photocell, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control |
