• Model NO.：RG-W18IB8-WX8AM
• Electric Current Type：AC
• Input Voltage：100-240V
• Name：8X10W RGBWA Wireless LED Wall Washer
• Main Material：Main Body:Aluminum+Iron , Plastic Knobs
• Control Mode：Stand-Alone Mode, DMX-512 Mode, Sound Active Mode
• DMX Channels：23 Standard DMX Channels , 5 Base DMX Channels
• LEDs：High Power LED 8W ,PCS , RGBWA 5in1 LED, 8PCS
• Lighting Beam Angle：45°
• Cycle Life：400,500 Times Charge and Discharge Cycles
• Charging Time：5 H 20 M (Default Charger)
• Effective Distance：400m (Unobstructed Distance)
• Transport Package：Carton & Flycase
• Specification：CE LVD EMC
• Trademark：RIGEBA
• Origin：Guangzhou, China
• HS Code：940960900
• Production Capacity：1000PCS Per Month

Basic Info.

Model NO. RG-W18IB8-WX8AM Electric Current Type AC Input Voltage 100-240V Name 8X10W RGBWA Wireless LED Wall Washer Main Material Main Body:Aluminum+Iron , Plastic Knobs Control Mode Stand-Alone Mode, DMX-512 Mode, Sound Active Mode DMX Channels 23 Standard DMX Channels , 5 Base DMX Channels LEDs High Power LED 8W /PCS , RGBWA 5in1 LED, 8PCS Lighting Beam Angle 45° Cycle Life 400/500 Times Charge and Discharge Cycles Charging Time 5 H 20 M (Default Charger) Effective Distance 400m (Unobstructed Distance) Transport Package Carton & Flycase Specification CE LVD EMC Trademark RIGEBA Origin Guangzhou, China HS Code 940960900 Production Capacity 1000PCS Per Month

Product Description

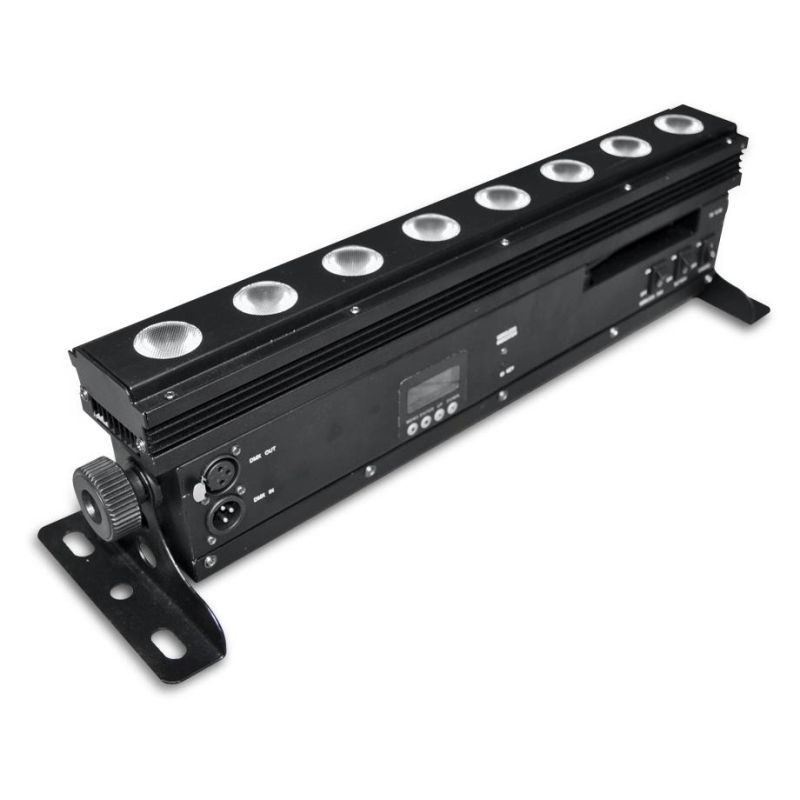

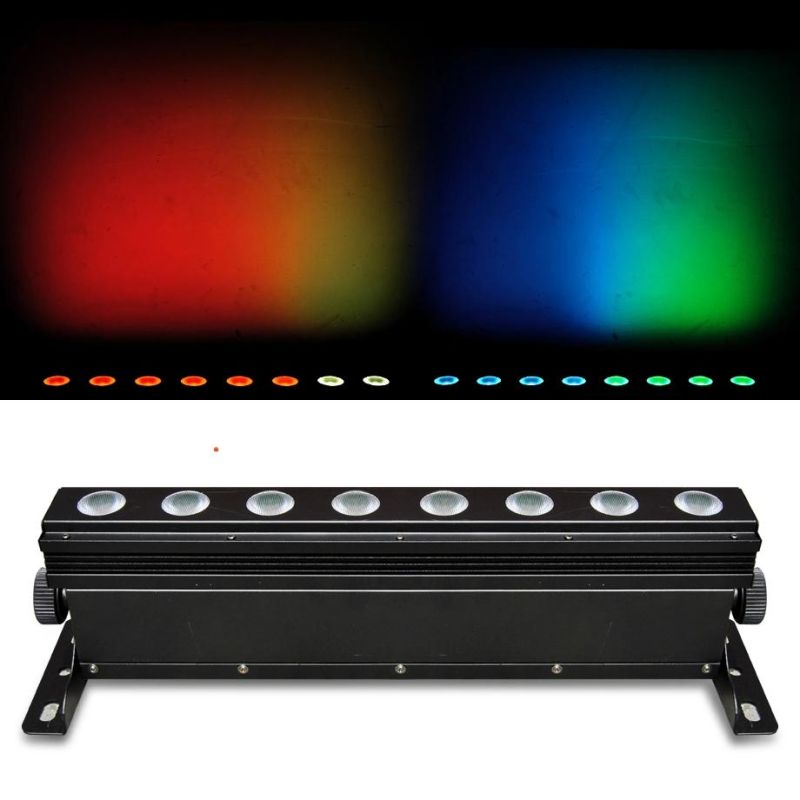

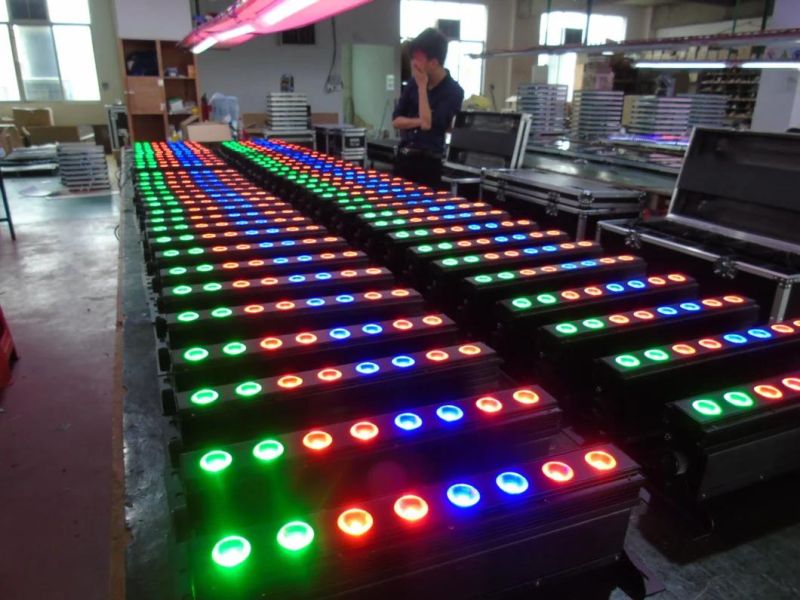

8x10w RGBWA Wireless LED Bar/ Wireless LED Wall Washer


1. PRODUCT FEATURES
Wireless DMX (WDMX) System
Built-in lithium-ion battery: 16Ah 12.6V
High power Led 8W /pcs, RGBWA 5IN1
Four section effect control
Three control modes: Sound active mode, DMX mode, Stand-alone mode
Unlimited programming effects
Professional color mixing
Soft light effect
Protection class IP30
LCD Digital Display
Quick and easy installation



2. TECHNICAL SPECIFICATIONS
Main Color Black
Main Material
Main body: Aluminum+iron, Plastic knobs
Control Mode
Stand-alone mode, DMX-512 mode, Sound active mode
DMX Channels 23 standard DMX Channels, 5 base DMX Channels
Gray Level 256 level
LEDs
High power Led 8W /pcs, RGBWA 5IN1 LED, 8Pcs
Service Life 50000 hours
Beam Angle 45°
Protect Level IP30
Power Adapter
Input Voltage AC100-240V 50/60HZ
Output Voltage DC12.6V 3A
Rated Power ≤ 64 W
Built-in Lion
Storage Power 16Ah 12.6V
Cycle Life 400/500 times charge and discharge cycles
Max Charging Voltage 12.6V
Min Discharging Voltage 8.25V
Charging Time 5 h 20 m (default charger)
Discharge Time ≥ 3 h
Wireless DMX transceiver
Effective Distance 400m (Unobstructed distance)
Fan DC5V 0.30A 4200rpm
Weights and Measures
Width 68mm, 136mm (including hanging bars)
Length 432mm, 500mm (including hanging bars)
