LED Outdoor Lighting

Home > Product > LED Street Light

Lumileds 3030 LED Chips High Efficacy and Economic Street Light

HANGZHOU ZGSM TECHNOLOGY CO., LTD.
  • Power Supply：AC
  • Color Temperature：4000-5700K
  • Lamp Body Material：Aluminum Alloy
  • Power：28
  • Application：Square, Highway, Garden
  • IP Rating：IP65

Base Info

  • Model NO.：ZGSM-LD28Kmini
  • Certification：CE, FCC, RoHS, Ce, FCC, RoHS, TUV, SGS
  • Input Voltage：100-240
  • With Light Source：With Light Source
  • Light Source：LED Light
  • Transport Package：Export Cartons
  • Specification：ISO 9001, ISO14001, CE, ROHS, FCC, TUV, SGS
  • Trademark：ZGSM
  • Origin：China
  • HS Code：94054090

Description

Basic Info.

Model NO. ZGSM-LD28Kmini Certification CE, FCC, RoHS, Ce, FCC, RoHS, TUV, SGS Input Voltage 100-240 With Light Source With Light Source Light Source LED Light Transport Package Export Cartons Specification ISO 9001, ISO14001, CE, ROHS, FCC, TUV, SGS Trademark ZGSM Origin China HS Code 94054090

Product Description

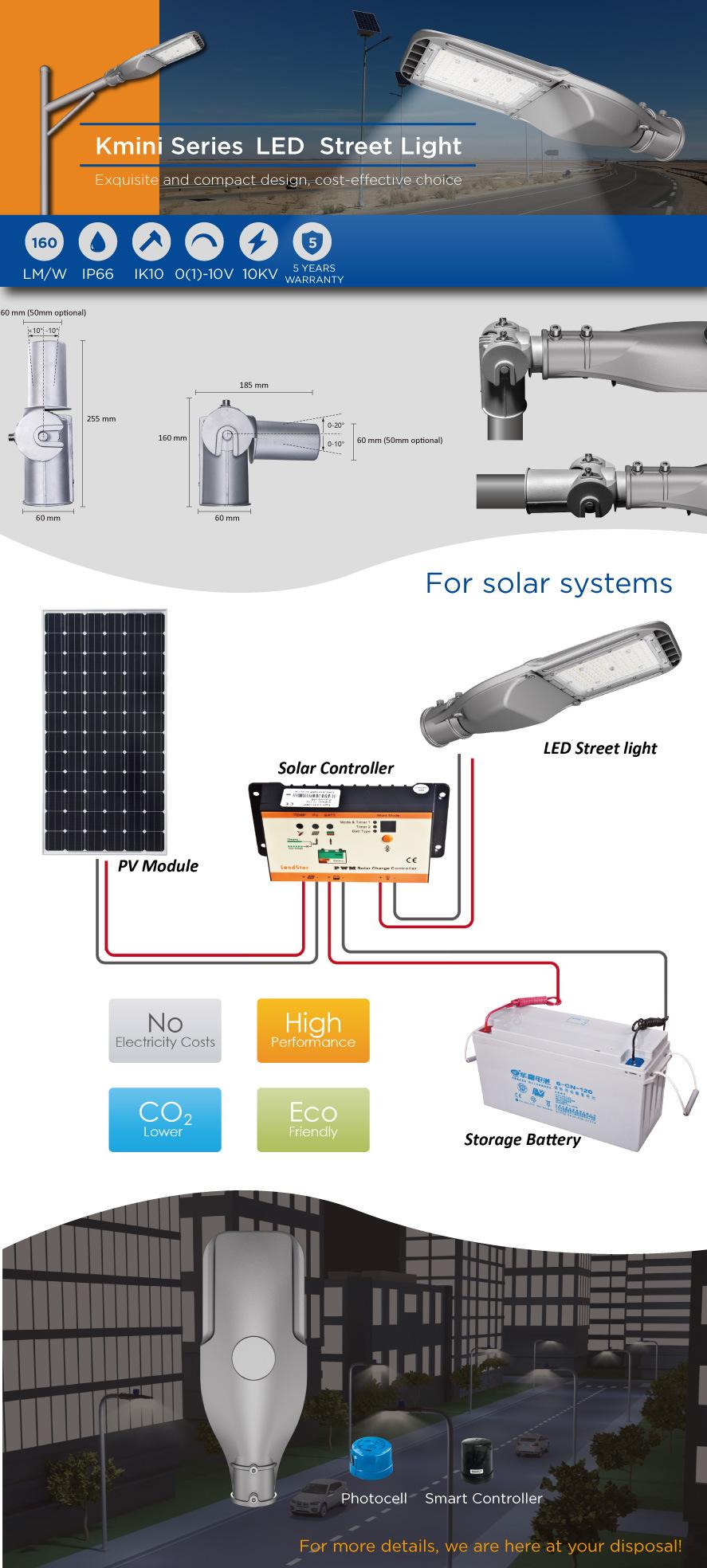

Series Kmini Smooth Body Street Light Led
Since its launch in 2017, Kmini series street light led has been selling well with its excellent quality, good performance, and favorable price. Currently, the product is leading the sales inside all our street lights.Kmini adopts high-quality LED chips and high transmittance PC optical lens, the luminous efficiency is up to 160lm/W. The elegant streamlined design and smooth body eliminate the risk of dust and dirt accumulation and harsh environment. Moreover, the Kmini street light led is small and easy to transport, which greatly reduces transportation costs. Compared to conventional lighting, the Kmini street lamp can save up to 70% of energy costs, making it ideal for urban street lighting, parking lots, industrial parks, and more.
Lumileds 3030 LED Chips High Efficacy and Economic Street LightLumileds 3030 LED Chips High Efficacy and Economic Street Light

Series NoSeries Kmini
Power20W, 28W, 30W,38W, 40W, 50W, 57W, 60W
Efficacy140-160lm/W
Input Voltage100-240/277 VAC, 50 / 60 Hz
Power Factor>0.95
Surge Protection10KV (Default) / 20KV (available on request)
IP RatingIP66
IK RatingIK10
CCT3000K, 4000K, 5000K, 5700K
CRIRa>70 (Default) / Ra>80
Operating Temperature-40°C to + 50°C
Beam AngleType II, Medium;
Mounting OptionSide entry or Vertical pole mounted ( with extra adapter)
Warranty5 Years
CertificationENEC, CE, CB, ROHS, LM79, LM80, LM82, LM84, TM-21, ISTMT, IEC62471/62788
ControlPhotocell, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, Timing Dimming, 1-10V Dimmable, Zigbee or LORA control
