• Shape：Ngon
• Irradiated Area：10-15m²
• Switch Type：Touch Switch
• Base Type：LED
• IP Rating：IP65
• Shade Type：Frosted Glass
• Certification：CCC, CE, EMC, ETL, FCC, GS, LVD, RoHS, SAA, UL
• Voltage：110--277
• Suitable Location：Wet
• Size：360*259*190
• Life Time：50000h
• Warranty：5 Years
• CRI：>70
• Lumen Efficiancy：100-130lm,W
• Transport Package：Carton
• Specification：AL+Glass
• Trademark：longlux
• Origin：China
• Production Capacity：500000

Basic Info.

Shape Ngon Irradiated Area 10-15m² Switch Type Touch Switch Base Type LED IP Rating IP65 Shade Type Frosted Glass Certification CCC, CE, EMC, ETL, FCC, GS, LVD, RoHS, SAA, UL Voltage 110--277 Suitable Location Wet Size 360*259*190 Life Time 50000h Warranty 5 Years CRI >70 Lumen Efficiancy 100-130lm/W Transport Package Carton Specification AL+Glass Trademark longlux Origin China Production Capacity 500000

Product Description

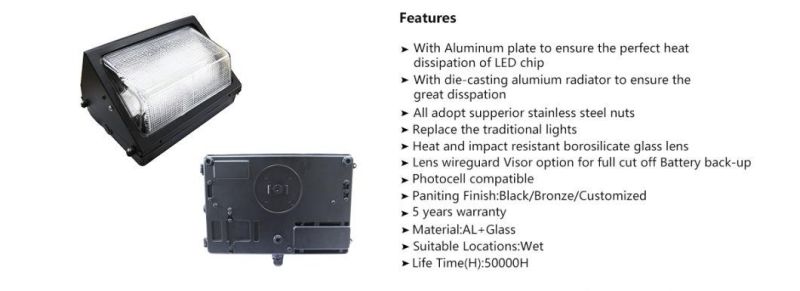

Feature
Longlux Wall Pack Light delivers energy savings and reduced maintennce costs when replacing up to 400W HID fixture. Semi-cutoff light output is ideal for exterior walls, entrance ways and pathways.
    Heat and impact resistant borosilicate glass lens
    Die cast aluminum housing
    Options: Lens wireguard
                    Visor option for full cut off
                    Battery back-up
    Photocell compatible
    CCT: 4000K-5700K
    Lumen range: 4000-15000 lumens, up to 129LPW
    Five year limited OEM warranty

Specification

Model	LLX-WL-40	LLX-WL-60	LLX-WL-80	LLX-WL-100	LLX-WL-120
Power (W)	40	60	80	100	120
Voltage (V)	110--277	110--277	110--277	110--277	110--277
Hz	50/60	50/60	50/60	50/60	50/60
CCT (K)	4000-5700	4000-5700	4000-5700	4000-5700	4000-5700
Luminous Flux @5000K, 120° (LM)	4400	6600	8800	11000	13200
CRI	70	70	70	70	70
Material	AL+Glass	AL+Glass	AL+Glass	AL+Glass	AL+Glass
Suitable Locations	wet	wet	wet	wet	wet
Beam angle	100°	100°	100°	100°	100°

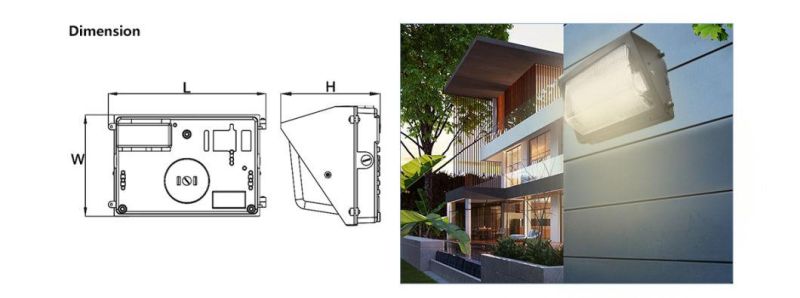

Size(MM)	360*259*190	360*259*190	360*259*190	463*232*235	463*232*235
Life Time (H)	50000	50000	50000	50000	50000

IMPORTANT SAFETY INFORMATION:
Input Voltage: AC 100-277V, 50/60Hz
Working Temperature: -25ºC~40ºC
This fitting must be wired in accordance with the National Electrical Code and applicable local codes and ordinances.
Installation and servicing this fitting should be performed by qualified electrician only.
Before installation or maintenance, turn off electric power and allow the fitting to be cool.
Proper grounding is required to insure personal safety. Carefully observe grounding procedure under installation section.
Ensure all electrical connections are secure & that there are no loose strands.
Install the fitting in a well-ventilated environment, keep away from corrosive/explosive materials, flammable gas or
electric dust.
Violent shaking or impact should be avoided when the fitting is working.
To weather proof your outdoor installation, be sure to seal all holes, conduit plugs with silicone caulking.

SUGGESTED METHOD OF INSTALLATION:
ALWAYS SWTICH OFF THE MAINS SUPPLY BEFORE INSTALLATION.

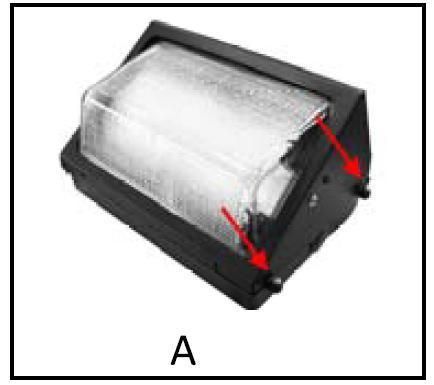

STEP 1: Open the Cover by unscrewing the Screws that are located on the side of the Wall Pack. (Fig. A).

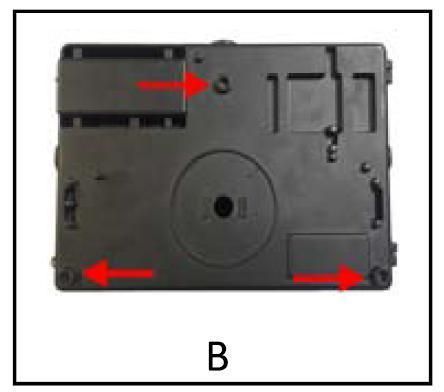

STEP 2: Drill Holes on Required Mounting Points (Fig. B)
NOTE: Holes Must not exceed 19/64" so that the structure of the Wall Pack is not compromised.
If holes exceed 19/64" or are made in any other part of the Wall Pack warranty will void.

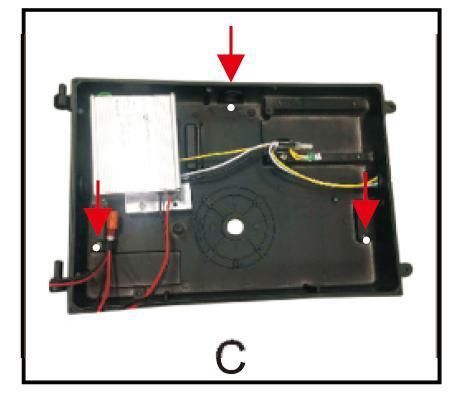

STEP 3: Mount Wall Pack by securing mounting screws (Not provided) on the drilled holes (Fig. C).
STEP 4: Do the wiring connections. (Refer to wiring instructions), and close the Cover by the Screws.




WIRING INSTRUCTION OF MAIN CABLE:

WARNING:
The product must be grounded and installed in accordance with the National Electrical Code and all local codes.
Failure to do so may increase the RISH OF PERSONAL INJURY, PROPERTY DAMAGE, FIRE AND DEATH.
