• Model NO.：FJ-TL60-G01
• Certification：CCC, CE, RoHS
• Operating Voltage：85-265V
• LED Chips Brand：Lumi LEDs,Epistar 2835
• Housing Color：Dark Grey,Black,White
• Housing Materials：Aluminum Ad12
• Warranty：5years
• HS：9405499000
• LED Driver：Osram Driver
• CIR：>70
• Ik：Ik08
• Lumen：>150lm,W
• Size：60*128*61mm
• Dimmable：0-10V,Dali
• Working Lifetime：50000 Hours
• Model Number：Fj-Tl60-G01
• Working Temperature：-20 - 50
• Power Factor：0.95
• Lens：60,90,120degree
• Transport Package：Carton
• Trademark：Fujing
• Origin：China
• HS Code：9405409000

Basic Info.

Model NO. FJ-TL60-G01 Certification CCC, CE, RoHS Operating Voltage 85-265V LED Chips Brand Lumi LEDs/Epistar 2835 Housing Color Dark Grey/Black/White Housing Materials Aluminum Ad12 Warranty 5years HS 9405499000 LED Driver Osram Driver CIR >70 Ik Ik08 Lumen >150lm/W Size 60*128*61mm Dimmable 0-10V/Dali Working Lifetime 50000 Hours Model Number Fj-Tl60-G01 Working Temperature -20 - 50 Power Factor 0.95 Lens 60/90/120degree Transport Package Carton Trademark Fujing Origin China HS Code 9405409000

Product Description



The FJ-Cynthia Series is designed for a variety of applications and mounting heights. Wide-angle optics, multiple lumen packages and color temperatures make it ideal for industrial, commercial, manufacturing, gymnasium and other applications, that utilize traditional linear fluorescent and HID fixtures. Suggested mounting heights are between 15 -25 feet. This high bay reduces up to 70% of the energy usage and has a life span of over 10 years. This fixture is available in a frosted or clear lens.


PRODUCT FEATURES
-Terse Design of appearance.
-Aluminum profile shell design.Good heat dissipation effect.
-The protection level is IP30 and IK07.
-Strobo-free stable optical output.
-Power factor 0.9Maintain the stability of the power grid.
-Can be wire supended,pip suspended,surface mounted and hoop

Efficacy (lm/W)	150 lm/W
Power (W)	60 W, 75 W, 120 W, 150 W, 180 W
CCT (K)	3000K, 4000K, 5000K, 6000K
Voltage	AC 100-277 V 50/60 Hz

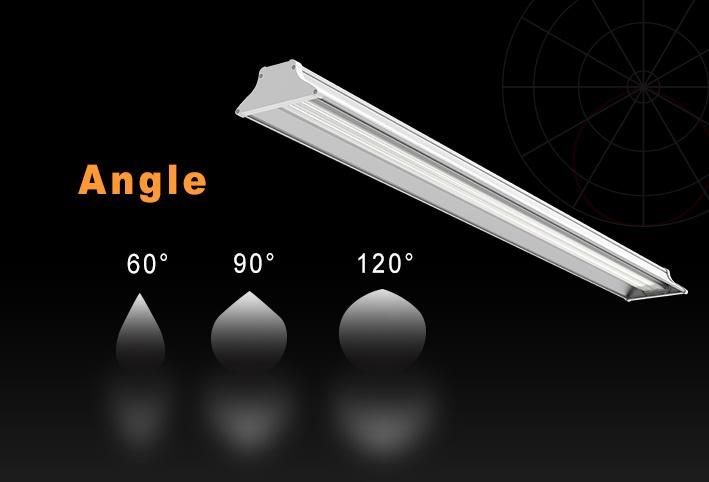

Beam Angle	60°,90°,120°
CRI	Ra>70 (Default) / Ra>80
Power Factor(PF)	PF>0.9
THD	<15%
IP Rating	IP30
IK Rating	IK07
Working Environment	'-20ºC~+50ºC,10%~90%RH'
Lifespan L70 at 25ºC	>50,000hrs
Body Material	Aluminum alloy
Housing Color	Dark Grey/Black/Light Grey/Silver (available on request)
Cover Material	UV-resistant Polycarbonate

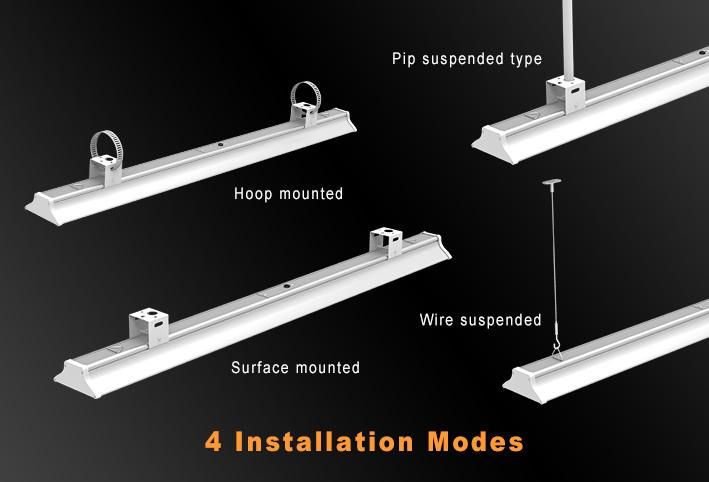

Mounting Type	Wire suspened,Pipe suspended,Surface mounted,Hoop mounted
Dimmable	1-10V Dimming (Optional)
Protection Class	ClassI (Defauit)/Class II
Standards	CE, RoHS, ENEC, CB, LM79, LM80, TM-21, IK09
Available on request	Photocell, Motion sensor, DALI Dimming
Reasonable tolerance	Watt: ±10%,CCT: ±500K, Lumen efficiency: ±5%



Special service:

• Free Dialux Simulation
• Free AGI 32 Simulation
• Free Relux Simulation
• Free Calculux Simulation
