• Model NO.：BD-HML001
• IP Rating：IP65
• Certification：CCC, CE, CQC, FCC, RoHS, SASO, UL
• Input Voltage：220V
• LED Chips Brand：Bridgelux
• Height of The Pole：15m 18m 20m 22m 25m 30m 35m 40m 50m
• Material of The Steel Pole：Q235 or Q345 Steel
• Allocation Design：According to Clients Requirement
• Pole of Color：According to Clients Requirement
• Height of Pole：15m-50m
• Shape：Round or Polygon
• Surface Treatment：Galvanized or Powder Coating
• Tolerance：+-2%
• Transport Package：Carton or Crate
• Specification：CE, ROHS, FCC SASO
• Trademark：LUYOU
• Origin：Yangzhou, Jiangsu Province
• HS Code：940540900
• Production Capacity：5000sets One Month

Basic Info.

Model NO. BD-HML001 IP Rating IP65 Certification CCC, CE, CQC, FCC, RoHS, SASO, UL Input Voltage 220V LED Chips Brand Bridgelux Height of The Pole 15m 18m 20m 22m 25m 30m 35m 40m 50m Material of The Steel Pole Q235 or Q345 Steel Allocation Design According to Clients Requirement Pole of Color According to Clients Requirement Height of Pole 15m-50m Shape Round or Polygon Surface Treatment Galvanized or Powder Coating Tolerance +-2% Transport Package Carton or Crate Specification CE, ROHS, FCC SASO Trademark LUYOU Origin Yangzhou, Jiangsu Province HS Code 940540900 Production Capacity 5000sets One Month

Product Description

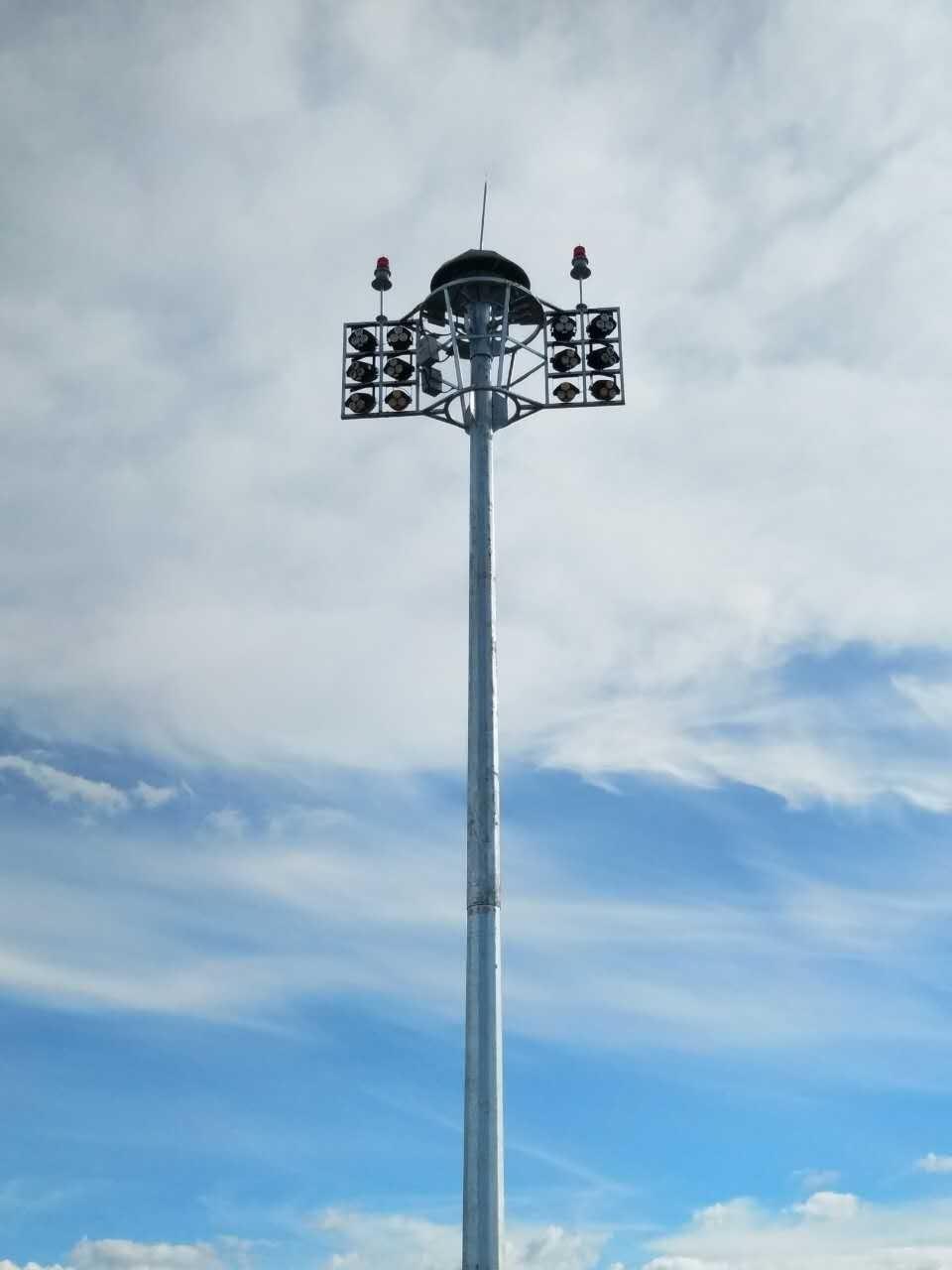

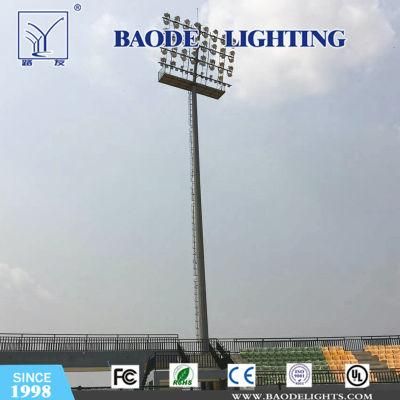

Prices of 20m High Mast Lighting for Football Pitch






Jiangsu Street Lighting Pole prices of Steel Pole manufacturer 15m, 18m, 20m, 22m, 25m, 30m ,35m,40m,50m high
FEATURES

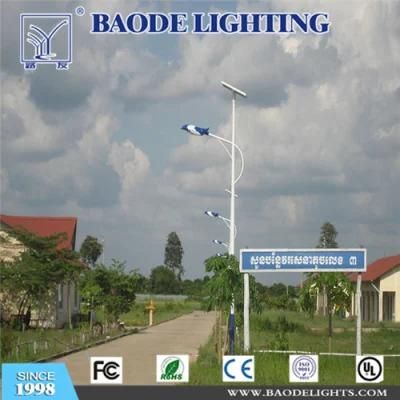

Hot galvanized street light post
Good looking street lighting poles
Customized powdered painting
15m 18m 20m 22m 25m 30m 40m 50m
WE ARE MANUFACTURER SINCE 1998
Experience: Our company was set up in 1998, having over 15 years of production experience in galvanized street light poles.
Production Capacity: We manufacture galvanized street light poles from 3M-35M at the capacity of 20, 000 poles per month.
Production lines: For galvanized street lighting poles we carry on vertical production to get good control of quality and cost
PAKAGAING
Bulb wrappings for street lighting poles for FCL goods, felt wrapping first and then bulb wrappings for LCL street light poles.

SPECIFICATION

Material
High-quality steel Q235/SS400 from BAOSTEEL Group
Welding Technique
Automatic submerged arc welding
Surface Treatment
Hot dip galvanizing and powder painting
Welding Standard
GB11345 Grade II
Thickness of Zinc Coating
≥ 86um
Adhesive Force of Zinc Coating
GB2694-88
Anti-wind Capacity
36.9m/s
Anti-corrosion Lifetime
≥ 20 years
Coating Layer
Thickness
≥ 100um
Adhesive force
GB9286-880
Hardness
≥ 2H
Steel Pole Height Options
15m~50m
Street Lighting Poles Type Options
Conical, polygonal

Height	From 18 m to 50m
Suit for	Airport ,seaport,plaza,stadium ,square,highway station,street way ,etc
Shape	round or polygon
Material	Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2
Torrance of dimension	+- 2%
Lighting Source	400 W- 5000 W high pressure sodium flood light,light extension :up to 30 000 m²
Light plate	Various figure of selection ,material with hot dip galvanization steel frame
Lifting system	Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute  Equipped e;antiferromagnetism brake and break -proof device,manual operation applied under power cut
Electric appliance control device	Electric appliance box to be be the hold of the pole ,lifting operation could be 5 meter away from the pole through wire .Time control and light control could be equipped to realize full-load lighting mode and part lighting mode
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles	Insert mode,inner flange mode,face to face joint mode .
Design of pole	Against earthquake of 8 grade
Wind Speed	80 Km/Hour
Welding	We has past flaw testing.Internal and external double welding makes the welding  in shape
Thickness	6 mm to 20 mm

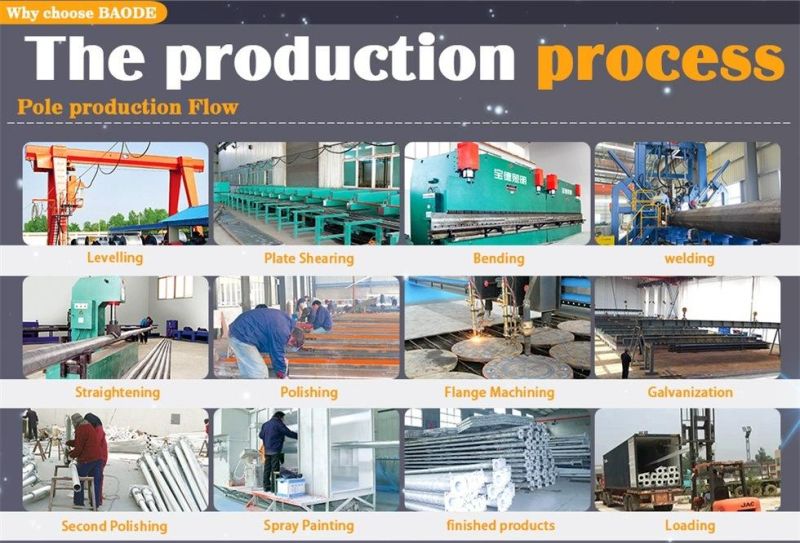

Production Process	Raw material test→Cutting→Molding or bending →Welding (longitudinal )→Dimension verify→Flange welding→Hole drilling→Calibration→Deburr→Galvanization or powder coating ,painting→Recalibration→Thread→Packages
Packages	Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required

Delivery Time
Generally 20 working days for 100 galvanized steel light poles.

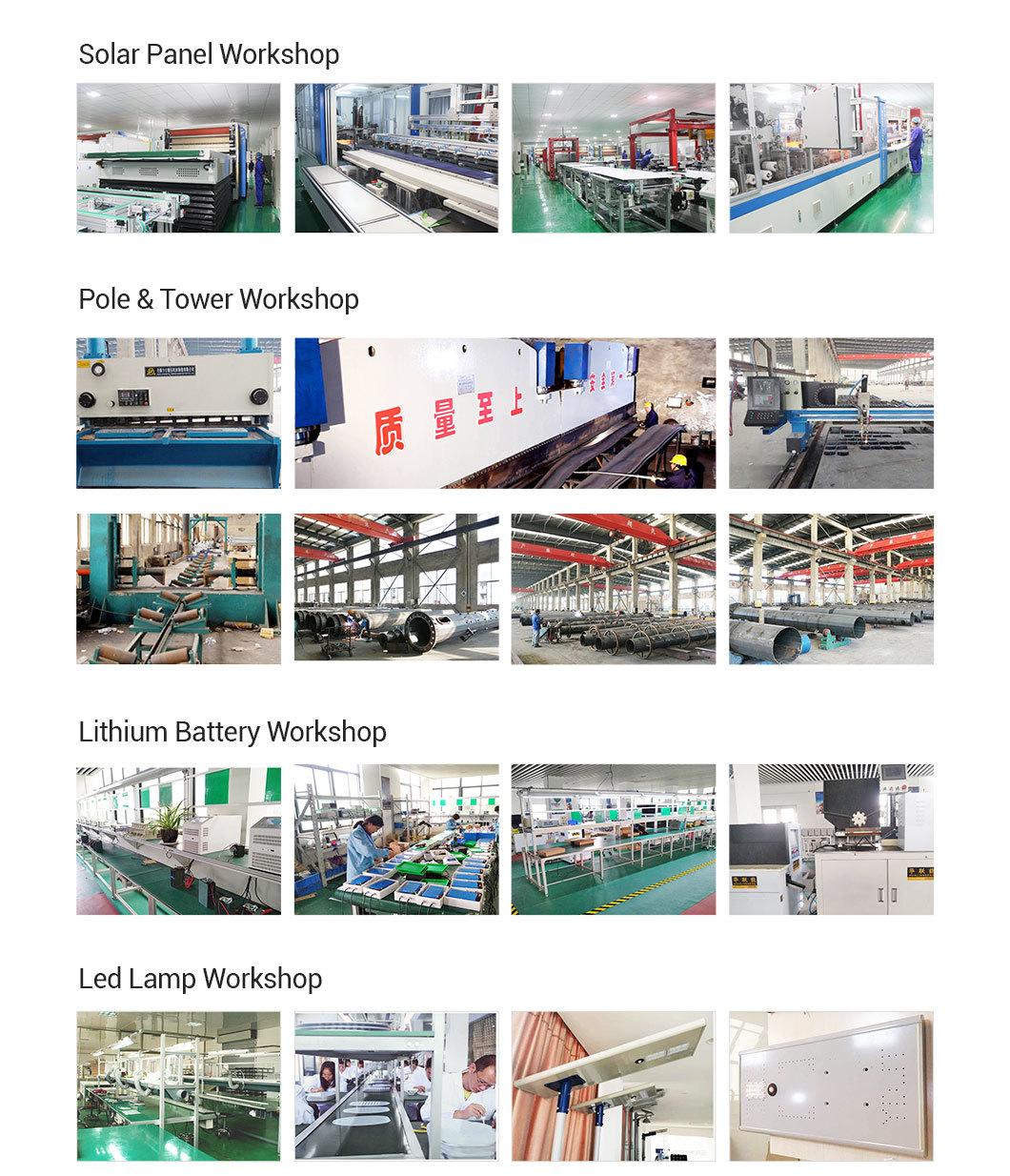

We have plate cutting line--plate bending line-- auto. Welding line--polishing line--spray painting line--packaging line






baode lights,light up your way


Company Information

21 Years Manufacturing Experience
 Since 1998, we have started manufacturing street lighting. The 21 years' experiences have been a persuasive insurance for us to offer reliable products.

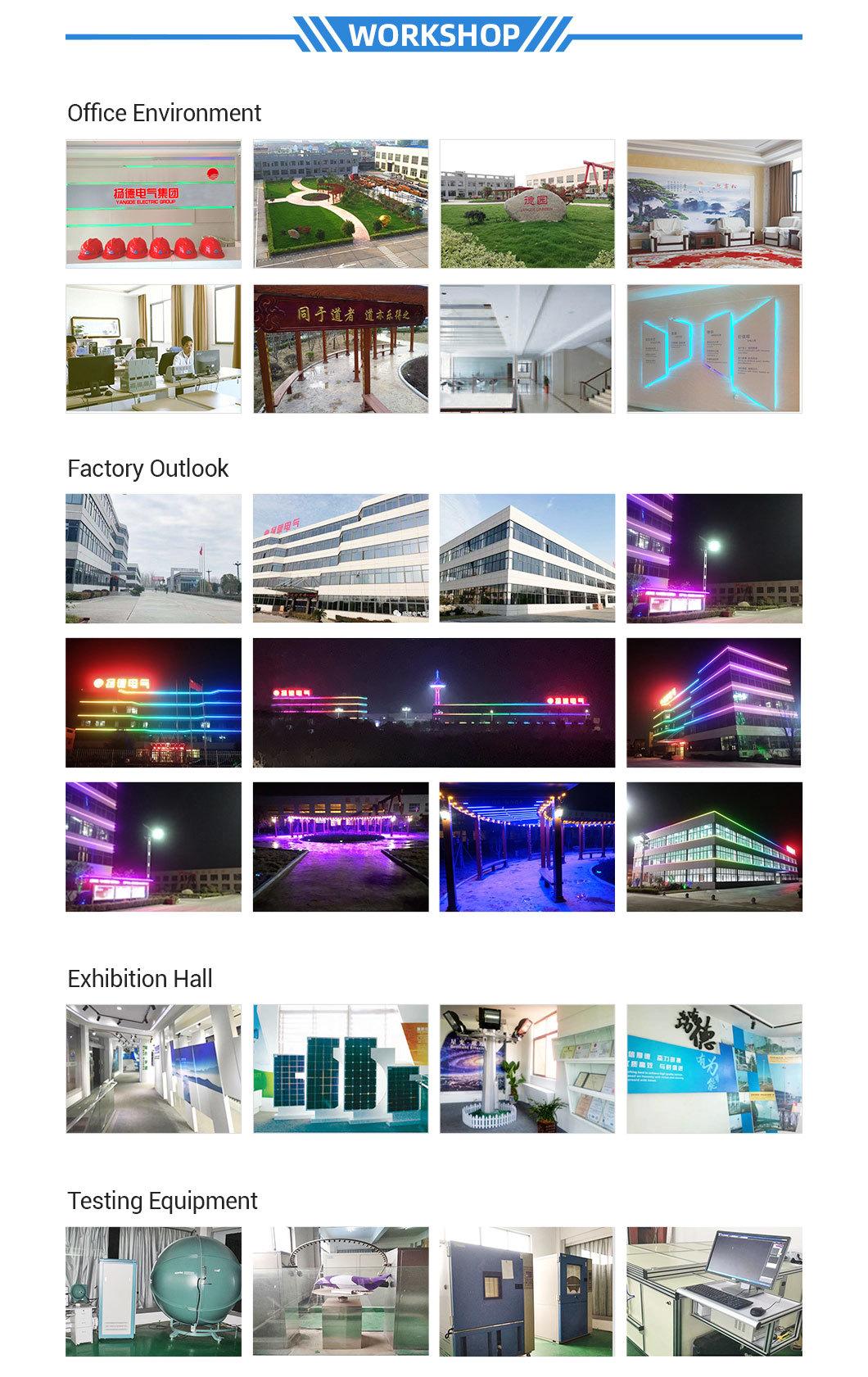

 Large Factory with Complete Facility
 We have 400 staffs with factory area 6000 m2.  We also equipped with complete production and testing equipments, such as Steel Pole Rolling Machine, Spray Machine, Pressure Machine, Integrating Sphere, Lighting Simulating Machine and Weather-ability Testing Machines, etc . .
  Our 60 experienced engineering team work with the PV institute of Shanghai FUDAN University , Shenzhen Foxconn to R&D outdoor lighting products. We have obtained over 20 national patents and built our own brand LUYOU.
  Manufacturing main components to save cost. BAODE manufactures the solar panel, light fixture and pole to control the cost and quality.
  Factory outlet. There's no middleman between the manufacturer BAODE and domestic and oversea buyers.
