• Model NO.：82842
• Certification：CE, RoHS
• Input Voltage：DC12V,DC24V,AC100-240V
• Light Source：With Light Source
• LED Chips Brand：CREE
• Ik Rate：09
• Driver：Built-in Constant Current Output
• Glass：Tempered Glass T=8mm
• LED Source：4*1W,4*2W*4*3W LEDs
• Body Size：L125*W125*H75mm
• Transport Package：31*31*25mm,CTN(8PCS,CTN, 12kg,CTN))
• Specification：8PCS,CTN
• Trademark：JP Lighting
• Origin：Dongguan, Guangdong, China
• HS Code：94054090
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. 82842 Certification CE, RoHS Input Voltage DC12V/DC24V/AC100-240V Light Source With Light Source LED Chips Brand CREE Ik Rate 09 Driver Built-in Constant Current Output Glass Tempered Glass T=8mm LED Source 4*1W/4*2W*4*3W LEDs Body Size L125*W125*H75mm Transport Package 31*31*25mm/CTN(8PCS/CTN, 12kg/CTN)) Specification 8PCS/CTN Trademark JP Lighting Origin Dongguan, Guangdong, China HS Code 94054090 Production Capacity 10000PCS/Month

Product Description

Outdoor Led Underground Light LED Ground Light IP67 Underground Lighting Linear LED Light

Feature and Benefits:
1. IP67 waterproof for outdoor square/parking lot/garden lighting use.
2.Optional accessory--Diffused glass for Soft light distribution creates comfortable environment.
3.Input Voltage 24 VDC or 100-240VAC.
4.SUS 304/316 stainless steel front ring and aluminum lamp housing.
5.Using high-quality and high-precision material and structural waterproof, easy to maintain.

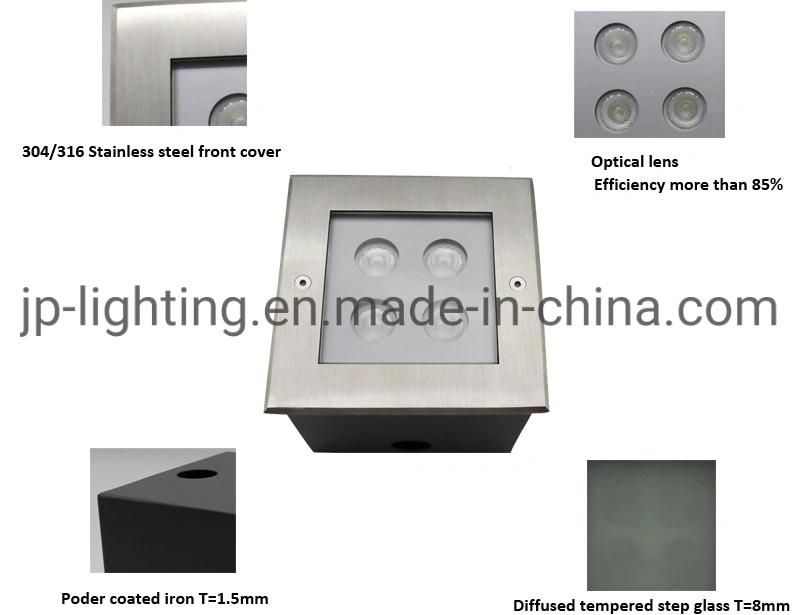

Main Specification:
Housing: Outdoor powder coated aluminum T=60-80um Adhesion of ISO class1 /ASTM class 4B
Front Cover: 304# or 316# Stainless Steel
LED Source: 4x1W/4x2W/4x3W CREE LEDS
Lens: Optical lens, efficiency ≥85%
Glass: Tempered step glass T=8mm
Glass pressure capacity:  Full area= 2500kgs
Gasket: Molding shaped silicone seal
Operating temperature: -20ºC to 40ºC
Power cable: H05RN-F 2x0.75mm² L=0.5m (low voltage)
                      H05RN-F 3x0.75mm² L=0.5m (Single color/high voltage)
Mounting sleeve: Poder coated iron T=1.5mm

Products Model:

Item No.	Lighting Source	Lens beam angle (°)	Consumption(Watt)	Input Voltage(V)	IK rate
82841	4x 1W CREE LED	15°/30°/45°/60°	4.4	DC12V/DC24V	09
82841H	4x 1W CREE LED	15°/30°/45°/60°	4.4	AC100-240V	09
82842	4x 2W CREE LED	15°/30°/45°/60°	8.5	DC12V/DC24V	09
82842H	4x 3W CREE LED	15°/30°/45°/60°	12.0	AC100-240V	09

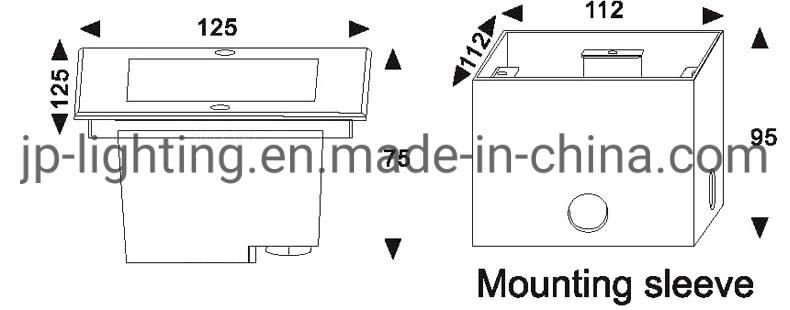

Products Size(MM):

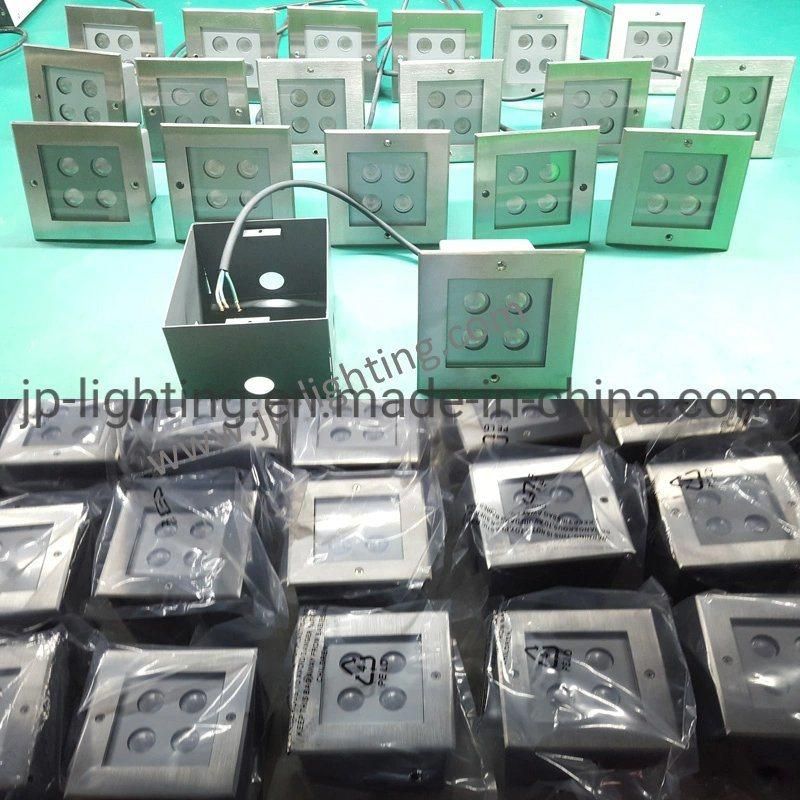

Products Picture:

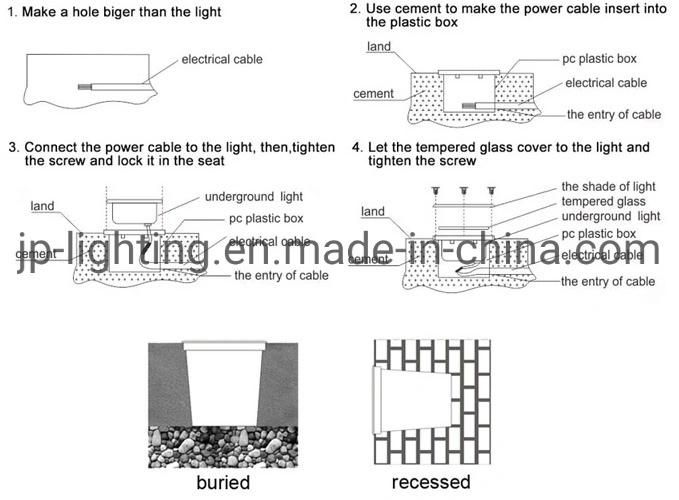

Products Installation:

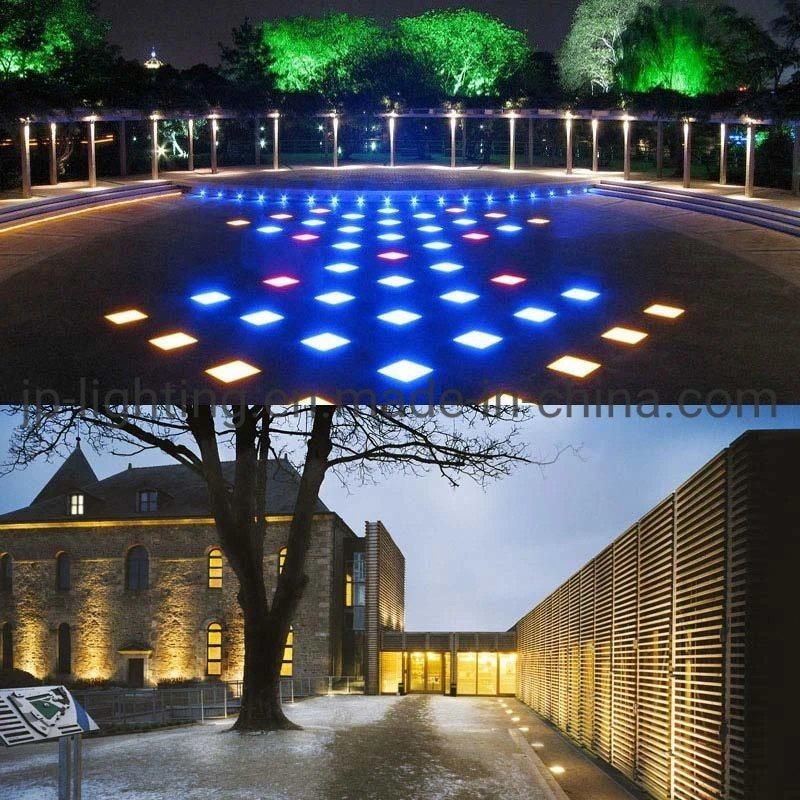

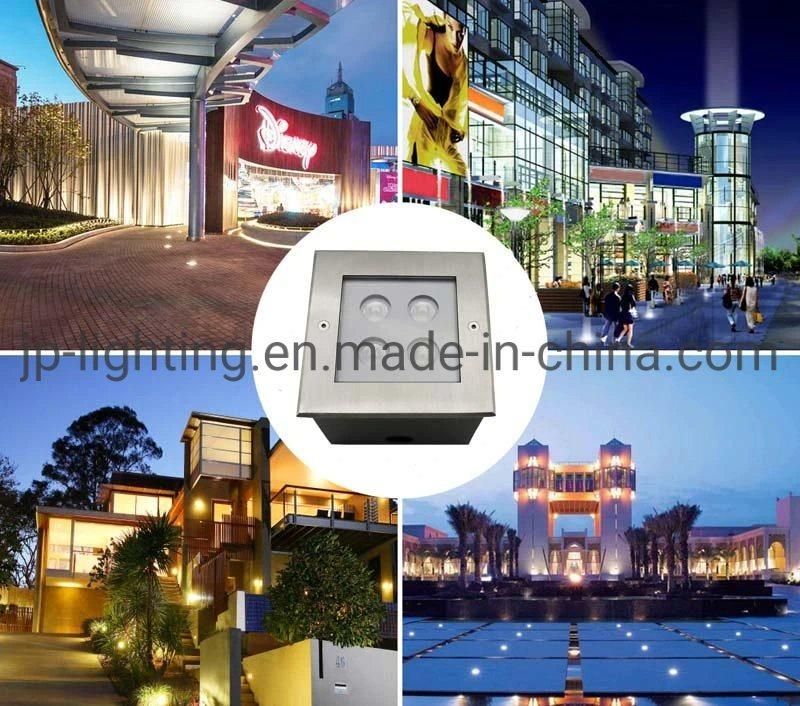

Application:
Used for Park,Garden, Corridor, Pathway, Road and other outdoor lighting.

FAQ

Are you a manufacturer?
Yes, We are a professional manufacturer with 15 years experience.

What is your main product?
1.Outdoor LED wall light
2.LED garden spot/spike light
3.LED inground light
4.LED underwater light(fountain light, swimming poool light, underwater spot light)
5.LED wall washer light

What is the company sample system?
1.Sample charge should prepaid.
2.Sample can be customized,If the order QTY is more than 1000Pcs.

How we can pay for?
1.30% advanced payment. 70% balance payment.
2.We accept L/C, T/T, Western Union, and Paypal.
3.Our shipping terms is EXW, FOB, CIF

How about the delivery time?
1.About 5 work days for sample making
2.15-30 work day for mass products production time. It is up to the quantity

What information should I let you know when I want to make a inquiry?
1.Which body color do you want?
2.What kind of light color do you prefer?
3.How long did you need about light cable?
4.Which voltage ( low voltage or high voltage)?
5.What kind of beam angle did you need?
6.How many quantity do you need?

Why choose us?
1.One-stop services:  Innovative design, professional product light effect. Excellent product quality, sincere service concept. For exterior lighting provides an integrated, one-stop integrated lighting solution!

2.Experience R&D, production and sales team: We have an mature and experienced team. Some members have more than 15 years of work experience in the field of lighting. JP Lighting factory covers an area of 2,000 square meters and the annual sales of more thank $10 million.

3.Strict quality control process: JP lights use the high quality components. All material must be strictly screened. All JP lights will undergo strict testing before shipping, including integrating sphere testing, aging test, waterproof test, etc. Due to rich experience and professionalism, JP Lighting's product defect rate is strictly controlled within 1%.

4.Products worldwide with high reputation: We participate in various industry lighting exhibitions, our products are all over Asia, Europe, Oceania, Africa and Central and South America, Middle East. All products have got great comments for high quality and excellent service.
