• Model NO.：S83312
• IP Rating：IP65
• Certification：CE, EMC, LVD, RoHS
• Voltage：DC12V,DC24V,AC100-240V
• Light Source：With Light Source

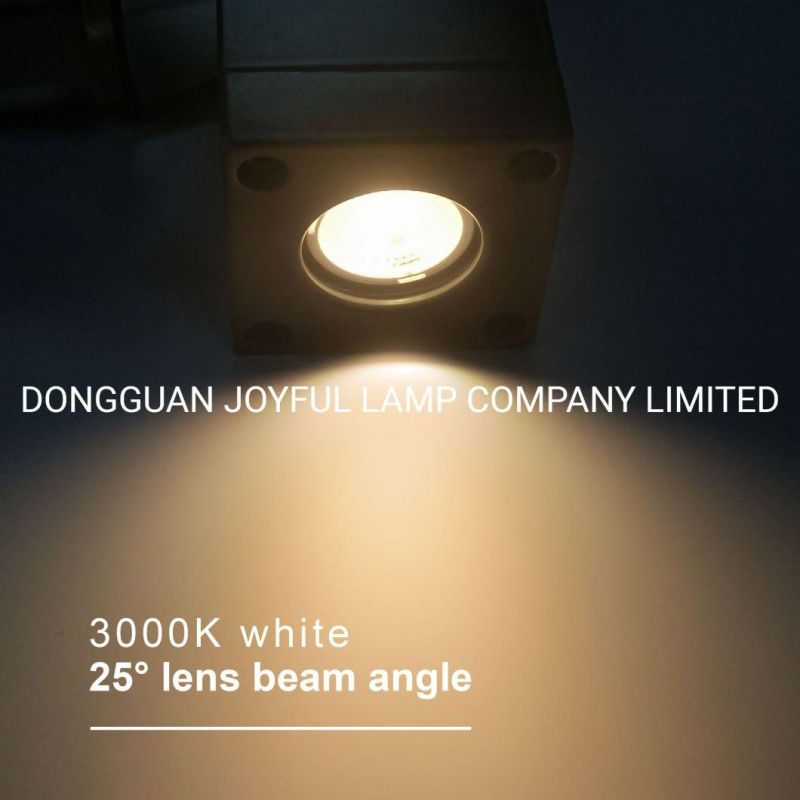

• Beam Angle：8,15,25,30,45,60,90 Degree
• Lignting Source：1*1W,1*2W,1*3W LED
• Optional Accessories：Aluminum Anti-Glare Hood
• Housing Color：Black,Silver,Customized
• Transport Package：Shockproof Carton Box
• Specification：25X25X23cm, 4.5kg(8PCS,CTN
• Trademark：JP Lighting
• Origin：Dongguan, Guangdong, China
• HS Code：94054090
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. S83312 IP Rating IP65 Certification CE, EMC, LVD, RoHS Voltage DC12V/DC24V/AC100-240V Light Source With Light Source Beam Angle 8/15/25/30/45/60/90 Degree Lignting Source 1*1W/1*2W/1*3W LED Optional Accessories Aluminum Anti-Glare Hood Housing Color Black/Silver/Customized Transport Package Shockproof Carton Box Specification 25X25X23cm, 4.5kg(8PCS/CTN Trademark JP Lighting Origin Dongguan, Guangdong, China HS Code 94054090 Production Capacity 10000PCS/Month

Product Description

IP65 Outdoor Lighting Spot Lights Waterproof Led Spotlight Garden Light

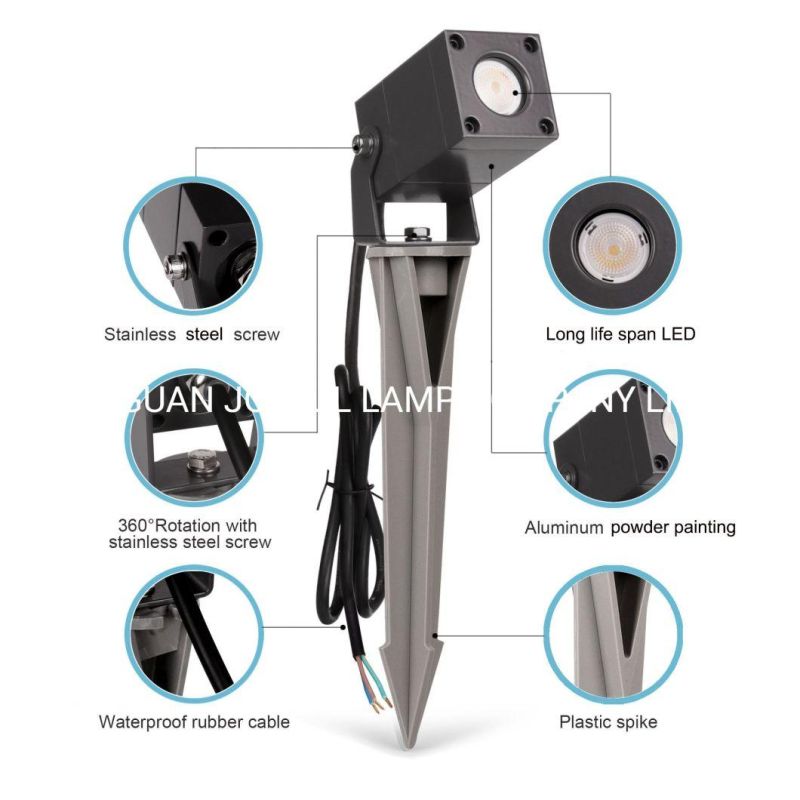

 Feature and Benefits:
1. High power, high brightness 1x1W /1x3W/1x3W RGB3in1
2. IP65 waterproof ,dust-proof ,explosion-proof and anti-corrosion.
3. Housing: Aluminum anodized finshing or powder painting
4. Housing color option: Aluminum anodized,Sliver painting RAL9005,MATT black RAL9006,Support RGB color type
5. Easy to install and operate,optional accessories-plastic spike or aluminum base
6. Energy-saving, low power consumption
7. Tiny package and lighter,lower freight cost,more competitive in the market.

Main Specifications:
Housing: Aluminum anodized finshing or powder painting
Glass: Tempered glass.T=3mm
Lens: Optical lens, efficiency≥85%
Cable gland: Copper and nickel coated
Gasket: Tooling shaped seal
PCB:  Excellent heat conductivity aluminum,
coefficient of Heat Conductivity≥2.0w/mk
Driver :  Constant current output
Single color LED=1-circuit output
RGB 3in1 LED =3-circuit output
Power cable: H05RN-F 2x0.75mm²,L=1m(low voltage)
                      H05RN-F 3x0.75mm²,L=1m(high voltage)
                      H05RN-F 4x0.75mm²,L=1m(for RGB)
Operating Temperature: -20~40 Degree

Products Model:

Item No.	Light source	Lens beam angle(°)	Consumption(watt)	Input voltage(V)	IK rate
S83311	1x1W	8°/15°/20°/30°/45°/60°/90°	1.1	DC12/DC24V	02
S83311H	1x1W	8°/15°/20°/30°/45°/60°/90°	1.3	AC120V/AC240V	02
S83312	1x2W	8°/15°/20°/30°/45°/60°/90°	2.2	DC12/DC24V	02
S83312H	1x2W	8°/15°/20°/30°/45°/60°/90°	2.6	AC120V/AC240V	02
S83316	1x3W RGB 3in1	8°/15°/20°/30°/45°/60°/90°	3.2	DC12/DC24V	02

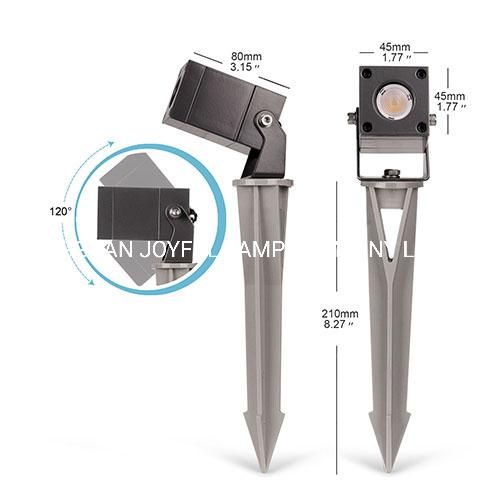

Products Size:

Products Picture:

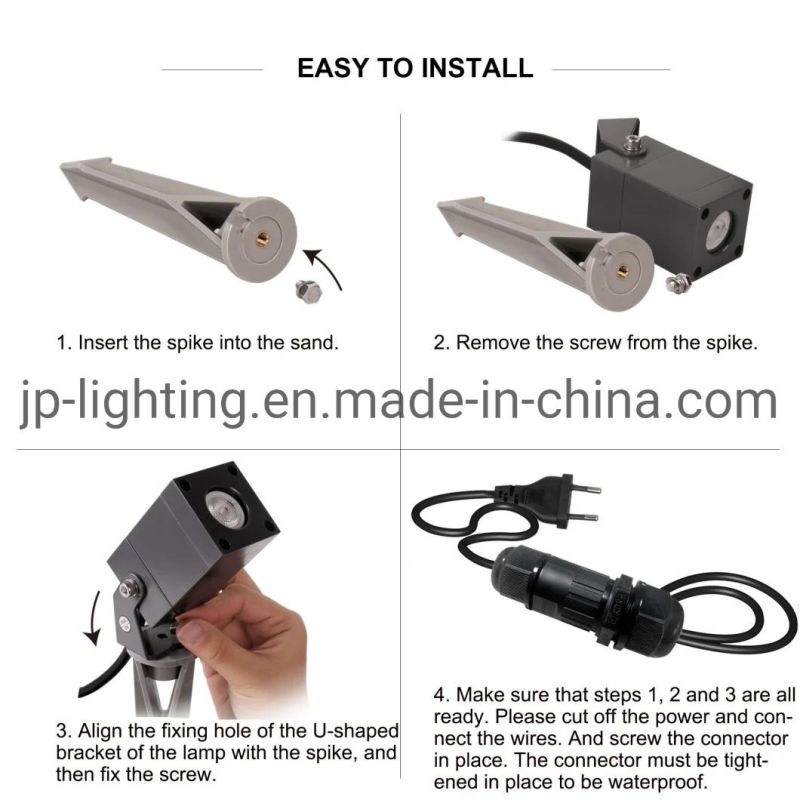

Product Installation:

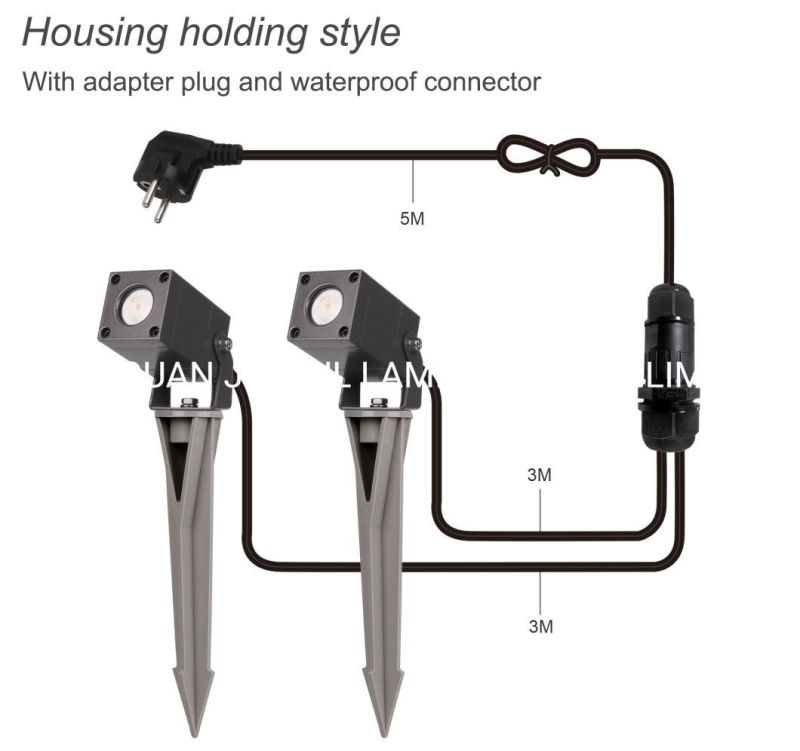

Note: Standard light without waterproof connector.

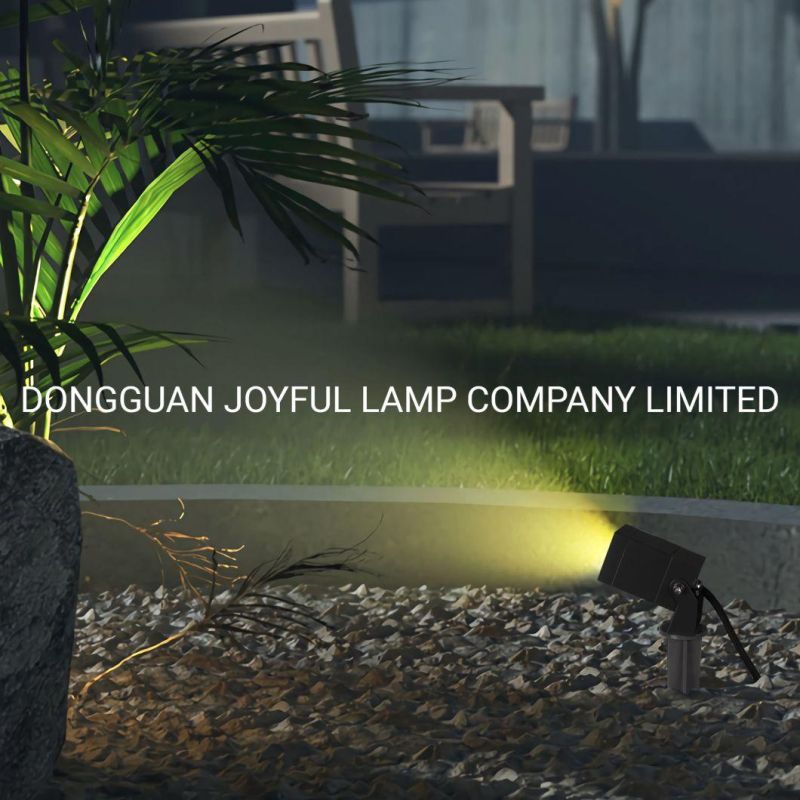

Application:Garden lighting, Park lighting, Residential lighting, Square lighting and so on.

FAQ

Are you a manufacturer?
Yes, We are a professional manufacturer with 15 years experience.

What is your main product?
1.Outdoor LED wall light
2.LED garden spot/spike light
3.LED inground light
4.LED underwater light(fountain light, swimming poool light, underwater spot light)
5.LED wall washer light

What is the company sample system?
1.Sample charge should prepaid.
2.Sample can be customized,If the order QTY is more than 1000Pcs.

How we can pay for?
1.30% advanced payment. 70% balance payment.
2.We accept L/C, T/T, Western Union, and Paypal.
3.Our shipping terms is EXW, FOB, CIF

How about the delivery time?
1.About 5 work days for sample making
2.15-30 work day for mass products production time. It is up to the quantity

What information should I let you know when I want to make a inquiry?
1.Which body color do you want?
2.What kind of light color do you prefer?
3.How long did you need about light cable?
4.Which voltage ( low voltage or high voltage)?
5.What kind of beam angle did you need?
6.How many quantity do you need?

Why choose us?
1.One-stop services:  Innovative design, professional product light effect. Excellent product quality, sincere service concept. For exterior lighting provides an integrated, one-stop integrated lighting solution!

2.Experience R&D, production and sales team: We have an mature and experienced team. Some members have more than 15 years of work experience in the field of lighting. JP Lighting factory covers an area of 2,000 square meters and the annual sales of more thank $10 million.

3.Strict quality control process: JP lights use the high quality components. All material must be strictly screened. All JP lights will undergo strict testing before shipping, including integrating sphere testing, aging test, waterproof test, etc. Due to rich experience and professionalism, JP Lighting's product defect rate is strictly controlled within 1%.

4.Products worldwide with high reputation: We participate in various industry lighting exhibitions, our products are all over Asia, Europe, Oceania, Africa and Central and South America, Middle East. All products have got great comments for high quality and excellent service.
