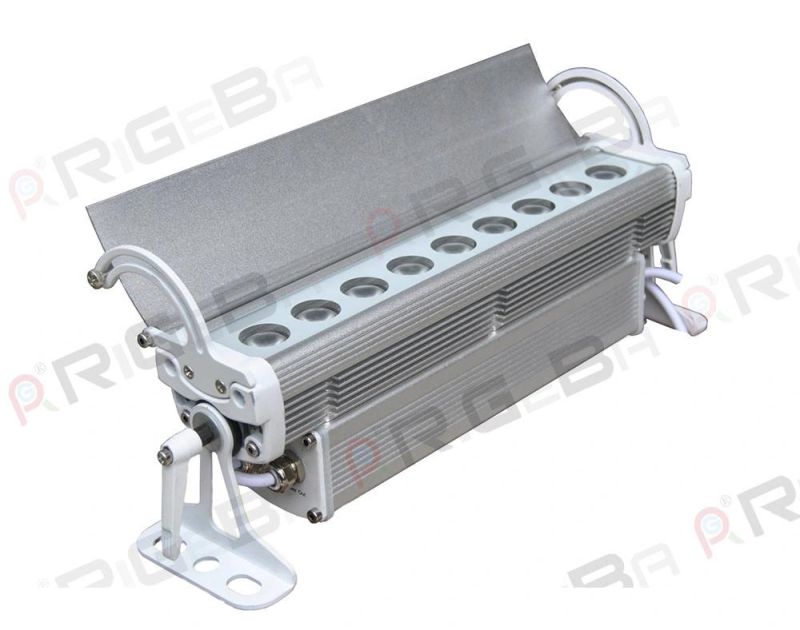

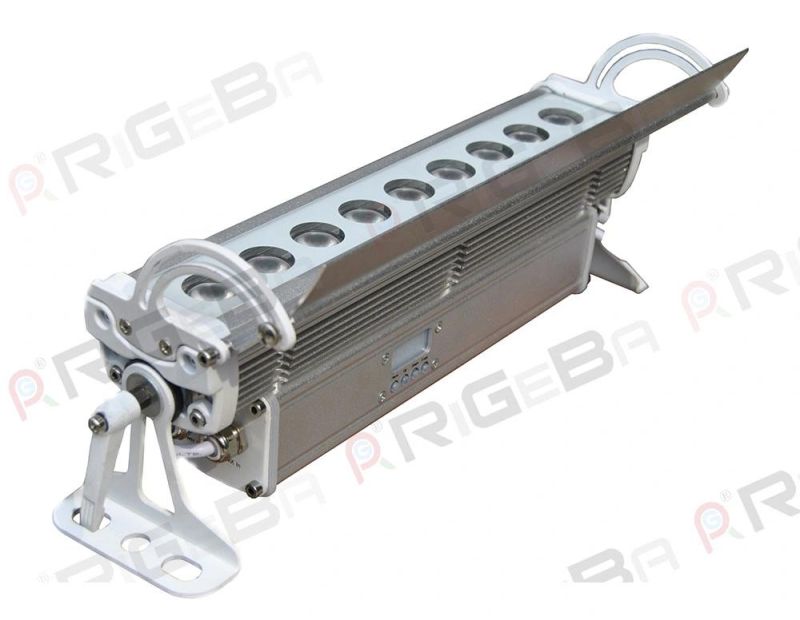

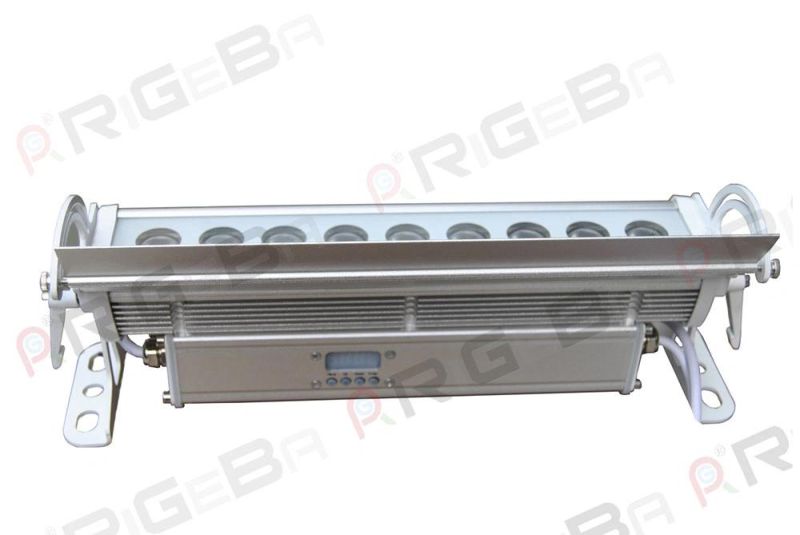

Waterproof IP65 9LEDs 3W RGB or RGB 3in1 Outdoor LED Spot Light and LED Wall Washer Light

Guangzhou Geliang Lighting Technology Co., Ltd.
  • Emitting Color：RGB
  • Power：30W
  • IP Rating：IP65
  • Diffuser：Polycarbonate
  • Beam Angle：-20~+40
  • Lifespan：50000 hours

Base Info

  • Model NO.：RG-W12TB3-SRf9
  • Warranty：1 Year
  • Certification：CE, GS, RoHS, SAA
  • Electric Current Type：AC
  • Input Voltage：100 - 240V
  • Size：389X90X105mm
  • Net Weight：2.4kg
  • Gross Weight：3.0kg
  • LEDs：Red 3, Green 3, Blue 3, 3W,PCS Total 9PCS
  • Color：Silvery White
  • Material：Aluminum
  • Control Mode：Auto-Run Mode, DMX-512 Mode, Sound Active Mode
  • DMX Channels：3,6CH
  • Use Environment：Use Outdoor
  • Rated Power：27W
  • Transport Package：Carton,Flightcase
  • Specification：CE, RoHS
  • Trademark：RIGEBA
  • Origin：China Mainland
  • HS Code：9405409000
  • Production Capacity：2000PCS,Month

Description

Item NORG-W12TB3-SRf9ALED Qty(Red 3, Green 3,Blue 3),3W/Pcs Total 9PcsRated Power27WInput VoltageAC 100-240V 50/60HzWorking Llife50000HrsGray Level256Control modeAuto-run-mode,DMX 512,Sound Active ModeDMX Channels3/6CHBeam Angle45°Dimensions389x90x105mm  389x130.5x172mm(Contain Light Barrier)Net Weight2.4kgGross Weight3kgMain MaterialAluminumBody ColorSilvery whiteAmbient Temperature-20ºC~+40ºCUse EnvironmentOutdoor
4.DMX Channel6 Channels Mode (dn.00)ChannelValues Channel values valuesDescriptionCH10-255Total dimmingCH20-255Red dimmingCH30-255Green dimmingCH40-255Blue dimming


CH50-9Off10-50Strobe51-91Color fade effect92-132Color jump change effect133-173Auto run effect174-214Sound active (color jump change)215-255Sound active (color flash)CH60-255Speed(from slow to fast)CH54 Channels Mode (dn.01)ChannelValuesDescriptionCH10-255Red dimmingCH20-255Green dimmingCH30-255Blue dimming
