• Model NO.：FJ-SL102
• Certification：CCC, CE, EMC, LVD, RoHS, SAA, SASO
• Operating Voltage：85-265V
• LED Chips Brand：Epistar
• Housing Color：Dark Grey,Black,White
• Housing Materials：Aluminum Ad12
• SPD：10kv,15kv,20kv,40kv
• Warranty：5years
• HS：9405499000
• LED Driver：Meanwell,Osram,Inventronic,Sosen
• CIR：>70
• Ik：Ik09
• Lumen：>130lm,W
• Dimmable or Not：Yes
• Working Lifetime：50000 Hours
• Model Number：Fj-SL102-80W
• Working Temperature：-20 - 50
• Power Factor：0.95
• Beam Angle：140*70°
• Transport Package：Carton + EPE
• Trademark：Fujing
• Origin：China
• HS Code：9405499000

Basic Info.

Model NO. FJ-SL102 Certification CCC, CE, EMC, LVD, RoHS, SAA, SASO Operating Voltage 85-265V LED Chips Brand Epistar Housing Color Dark Grey/Black/White Housing Materials Aluminum Ad12 SPD 10kv/15kv/20kv/40kv Warranty 5years HS 9405499000 LED Driver Meanwell/Osram/Inventronic/Sosen CIR >70 Ik Ik09 Lumen >130lm/W Dimmable or Not Yes Working Lifetime 50000 Hours Model Number Fj-SL102-80W Working Temperature -20 - 50 Power Factor 0.95 Beam Angle 140*70° Transport Package Carton + EPE Trademark Fujing Origin China HS Code 9405499000

Product Description



- SL-102 series luminaire is the ideal solution that fufils requirements of functional street lighting and residential areas, which working with outstanding heat dissipation and compacting system. Equipped with high-quality electrical components, long lifetime is assured. Tool-free design and disconnector device, enables easy, safe and minimal cost for maintenance. Effcient system aslo to reduce energy consumption and to create a more attractive urban living environment and visual comforts for public and residential areas. - With patented housing design and range of optics, SL-102 series luminaire is also a perfect choice for project oriented usage.


PRODUCT FEATURES
-The protection grade is IP66 and IK08.
-Up to 100, 000hrs @ L70, low maintenance cost.
-Toughened glass with good light transmition rate.
-V-shaped radiating fins on the top of the lamp prevent the accumulation of dust and debris.
-ADC12 high-pressure cast aluminum one-piece shell great help for heat dissipation.
-The horizontal installation can be adjusted by±5°,and the vertical installation can be adjusted by +10°, which can meet the lighting needs of different angles.
-Type I/II/III/IV/V light distribution can meet the different requirements of road lighting.
-Strobo-free stable optical output, power factor 0.95 Maintain the stability of the power grid.

Efficacy (lm/W)	130lm/w
Power (W)	30W,50W,60W,80W,100W,120W,150W,200W,220W,240W
CCT (K)	3000K, 4000K, 5000K, 6000K
Voltage	AC 100-240 V 50/60 Hz
Beam Angle	145*70°
CRI	Ra>70 (Default) / Ra>80
Power Factor(PF)	PF>0.9
IP Rating	IP66
IK Rating	IK08
Working Environment	-20ºC~+50ºC,10%~90%RH
Lifespan L70 at 25ºC	>50,000hrs
Holder	50mm/60mm
Body Material	High pressure die-cast aluminum
Housing Color	Dark Grey/Black/Light Grey (available on request)
Cover Material	UV-resistant Polycarbonate
Mounting Type	Side entry or Vertical pole mounted ±15°
Dimmable	1-10V Dimming /Timer Dimming/Dali Dimming
Protection Class	Class I(Defauit)/Class II
Standards	CE, RoHS, ENEC, CB, LM79, LM80, TM-21, IP66, IK08
Available on request	NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, Knife switch, NTC,OLC, Solar Compatible, DALI Dimming
Reasonable tolerance	Watt: ±10%,CCT: ±500K, Lumen efficiency: ±5%

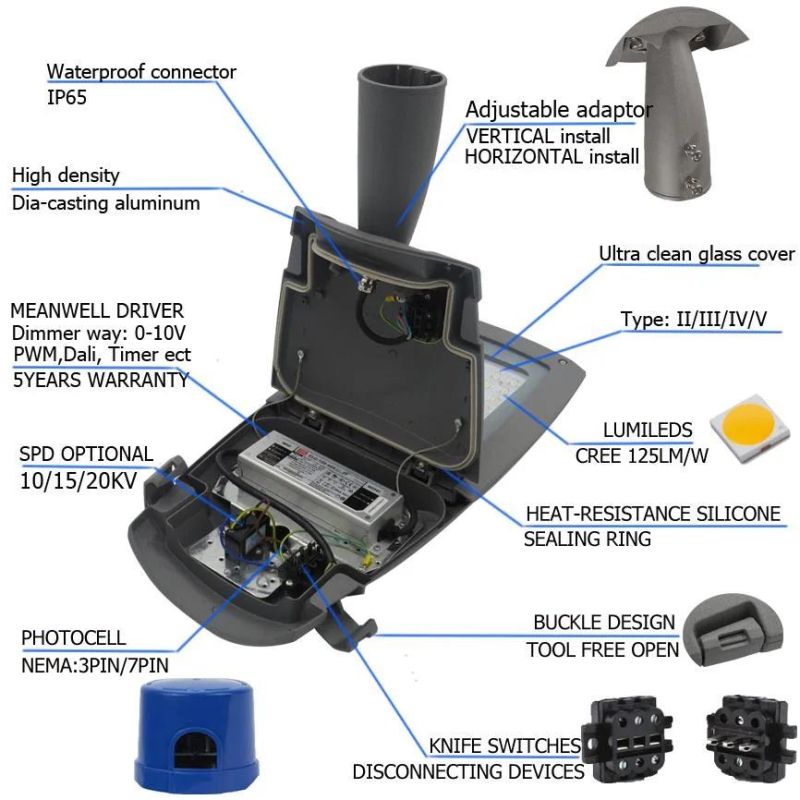

Details Photo:


VERSATILE INSTALL: Vertical installation & Horizontal Installation
Fujing Street features multiple wattages and optics which provide the ability to accommodate various mounting heights and methods.

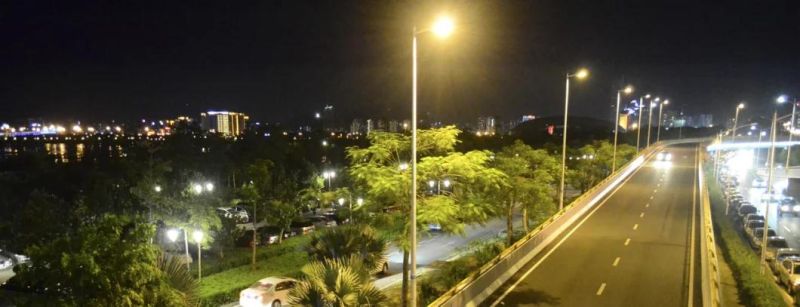

Application



Widely used in road lighting for trunk roads, secondary trunk roads, branch roads, factories, schools, gardens, city squares,
parks, courtyards, etc.



Suitable for installationInstalled in urban roads, rural roads, garden squares, underground parking lots and other outdoor open spaces

Our Services



1. Enquiry will be replied within 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available. OEM&ODM are welcome.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.

5. Special discount and protection of sales are provided to our distributor.





After-sales


1. We offer 3 or 5 years warranty base on different price and products.

2. Any quality issue, we will replace for free within guarantee period.

3. Any accessories, we always support our customers.

1. Payment: 30% deposit, 70% balance before shipment by T/T or Western Union.

2. Lead time: 3-15days for normal order, instant delivery from regular inventory.

3. Sample: can be delivered within SEVEN working days.

4. Shipping freights are quoted under your requests.

5. Shipping port: Shanghai China.

6. MOQ: 1 PCS.

7. Discounts are offered based on order quantities.



Why choose us when you need



1.Advanced machinery, well trained workers.

2.8 years experience in LED lighting industry.

3.Unique designed, good quality, competitive price.

4.Full range of indoor and outdoor LED lighting solution.

5.ZERO improper after-sales service if any quality issue happened





FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
