• Model NO.：ZGSM-GS04-150B
• Operating Voltage：100-240V, 277V AC
• LED Chips Brand：Lumileds
• LED Driver：Inventronics
• Ik Rating：Ik10
• Beam Angle：25, 60, 90, 120 Degrees or Asymmetrical
• Color：White
• Transport Package：1unit, Carton
• Specification：365 x361 x77 mm
• Trademark：ZGSM
• Origin：Hangzhou, China
• HS Code：9405409000
• Production Capacity：1200 PCS,Day

Basic Info.

Model NO. ZGSM-GS04-150B Operating Voltage 100-240V/ 277V AC LED Chips Brand Lumileds LED Driver Inventronics Ik Rating Ik10 Beam Angle 25, 60, 90, 120 Degrees or Asymmetrical Color White Transport Package 1unit/ Carton Specification 365 x361 x77 mm Trademark ZGSM Origin Hangzhou, China HS Code 9405409000 Production Capacity 1200 PCS/Day

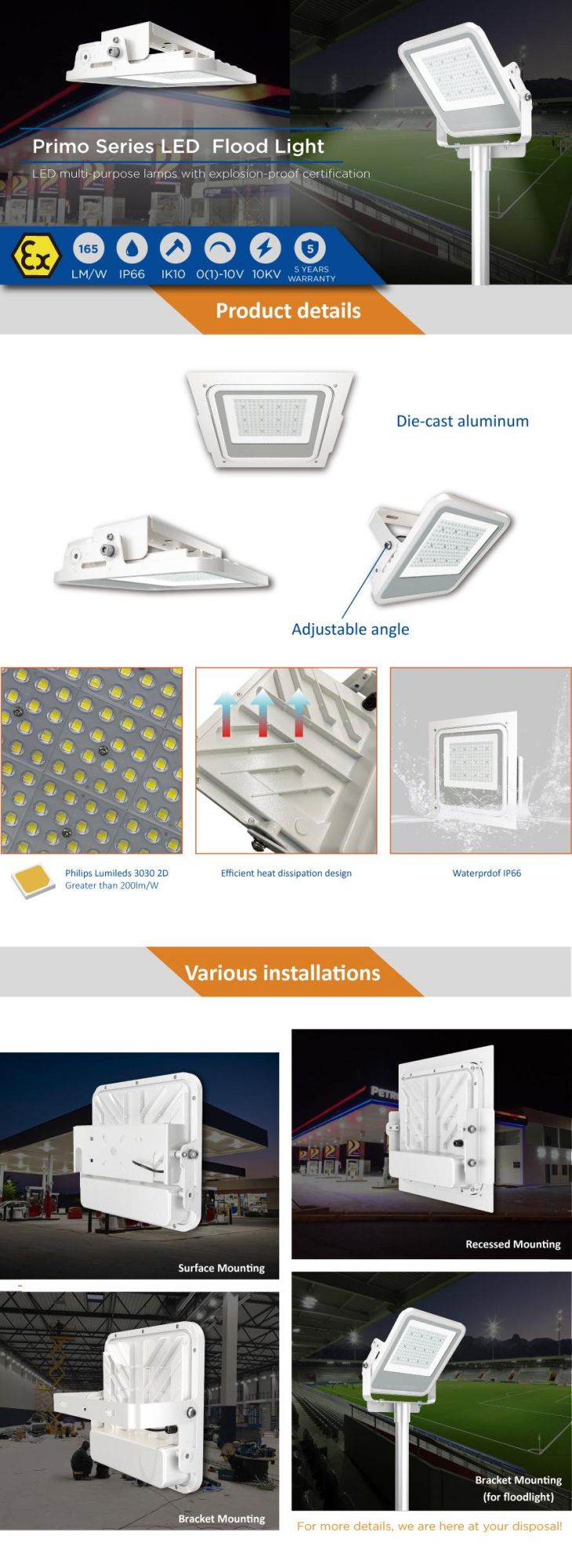

Product Description

Series No	Series Primo
Power	80W, 100W,120W,150W
Efficacy	155-165lm/W
Input Voltage	100-240/277 VAC, 50 / 60 Hz
Power Factor	>0.95
Surge Protection	10KV (Build-in Driver) /Extra 10KV SPD (Available on request)
IP Rating	IP66
IK Rating	IK10
CCT	3000K, 4000K, 5000K, 5700K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	25°, 60°, 90°, 120° or Asymmetrical
Mounting Option	Recessed, surface and bracket mounted
Warranty	5 Years
Certification	CE, CB, ROHS, LM79, LM80, LM82, LM84, TM-21, ISTMT, IEC62471/62788
Control	Photocell, DALI Dimmable, Motion Sensor, Non-Dimmable, 1-10V Dimmable

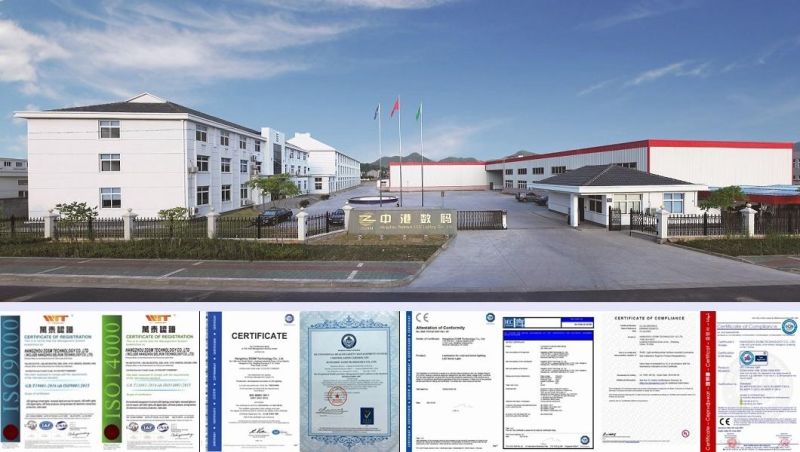

Our Company

FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Samples within 3 days, big order within 1-2 weeks.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-7 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%. Secondly, during the warranty period, we will repair or replace defected products.
