• Model NO.：4E84312
• Input Voltage：DC12V,DC24V,AC100-240V
• Light Source：With Light Source
• LED Chips Brand：CREE,Bridgelux,Osram
• Mounting Sleeve：ABS
• Diameter：Dia.70mm*90mm
• Glass：PMMA Diffuser
• Front Cover：304#,316# Stainless Steel

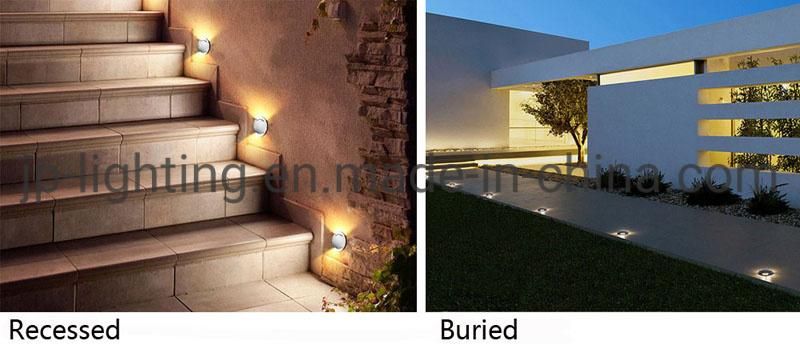

• Installation Method：Recessed and Buried
• Transport Package：Shockproof Carton Box
• Specification：1PC,Inner Box, 8PCS,CTN, 4.5kgs,CTN
• Trademark：JP Lighting
• Origin：Dongguan, Guangdong, China
• HS Code：94054090
• Production Capacity：30000PCS,Month

Basic Info.

Model NO. 4E84312 Input Voltage DC12V/DC24V/AC100-240V Light Source With Light Source LED Chips Brand CREE/Bridgelux/Osram Mounting Sleeve ABS Diameter Dia.70mm*90mm Glass PMMA Diffuser Front Cover 304#/316# Stainless Steel Installation Method Recessed and Buried Transport Package Shockproof Carton Box Specification 1PC/Inner Box, 8PCS/CTN, 4.5kgs/CTN Trademark JP Lighting Origin Dongguan, Guangdong, China HS Code 94054090 Production Capacity 30000PCS/Month

Product Description

Side View LED Inground Light Drive-over Light With Four-Directional Cover

LED inground light, LED underground light, LED Floor Recessed Light, LED Floor Up Light, LED walk over light, LED Outdoor Spot, LED spot light, IP67 LED Fitting, LED Floor Luminaire



 Feature and Benefits:

1. IP67 waterproof for outdoor walk/path/ parking lot/Garden lighting use;2. High bright Cree COB LED Optional
3. Input Voltage:12V/24VDC standard (High voltage 100-240VAC can be available);
4. Rich Color for options: Single Color and RGB Color;
5. RGB version can be worked with DMX+DMX Decoder or remote controller.
6. 316 Stainless steel front cover+tempered glass+aluminum alloy can be withstand car traffic.7. One side emitting,two side emitting and four side emitting optional.8. Using high-quality and high-precision material and structural waterproof, easy to maintain



Main Specifications
Housing: Outdoor dark grey powder coated aluminum T=60-80um Adhesion of ISO class/ASTM class 4B
Front Cover: Hard chrome plate 304# or 316# Stainless Steel
LED Source: 1x1W/1x2W/1x3W Cree/Bridgelux
Lens: Optical lens, efficiency ≥85%
Glass: PMMA diffuser
Glass pressure capacity: >1800kgs
Gasket: Molding shaped silicone seal
Operating temperature: -20ºC to 40ºC
Power cable: H05RN-F 2x0.75mm² L=0.5m (low voltage)
                      H05RN-F 3x0.75mm² L=0.5m (Single color/high voltage)
                      H05RN-F 4x0.75mm² L=0.5m (for RGB)
Mounting sleeve: ABS

Product Models



Item No.	Lighting Source	Consumption(Watt)	Input Voltage(V)	IK Rate
1E84311/2E84311/4E84311	1x 1W LED	1.2	DC12V/DC24V	10
1E84311H/2E84311H/4E84311H	1x 1W LED	1.2	AC100-240V	10
1E84312/2E84312/4E84312	1x 2W LED	2.6	DC12V/DC24V	10
1E84312H/2E84312H/4E84312H	1x 2W LED	2.6	AC100-240V	10
1E84316/2E84316/4E84316	1x 3W RGB3in1  LED	3.1	DC12V/DC24V	10

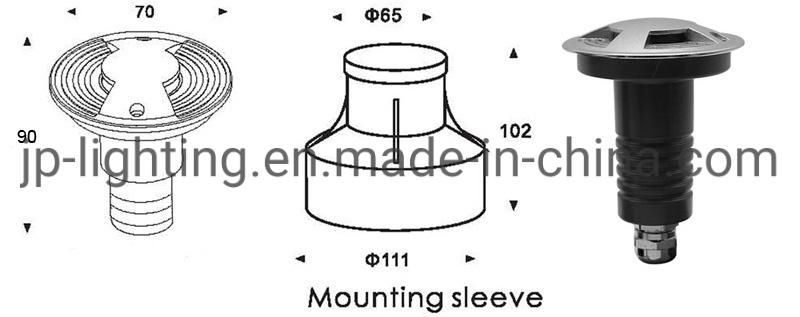

Product Size (Unit: MM)

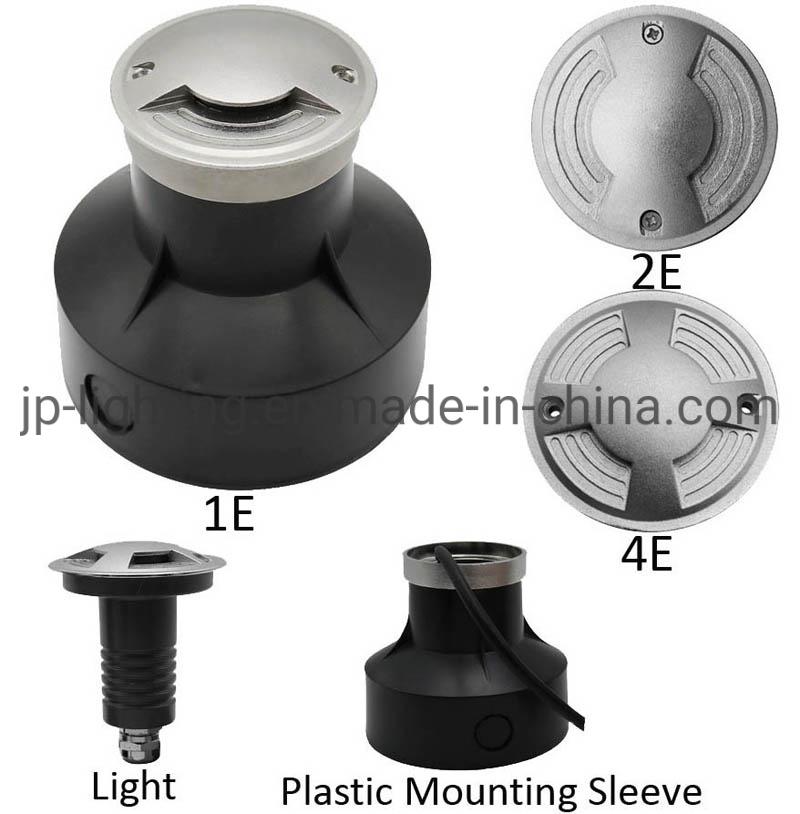

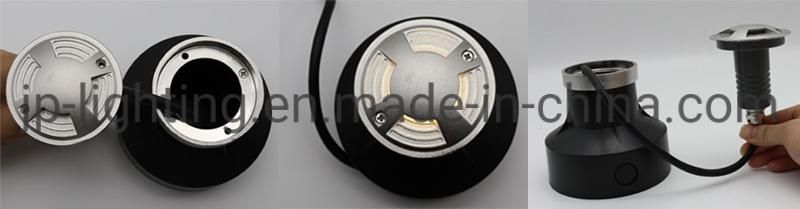

Product Pictures

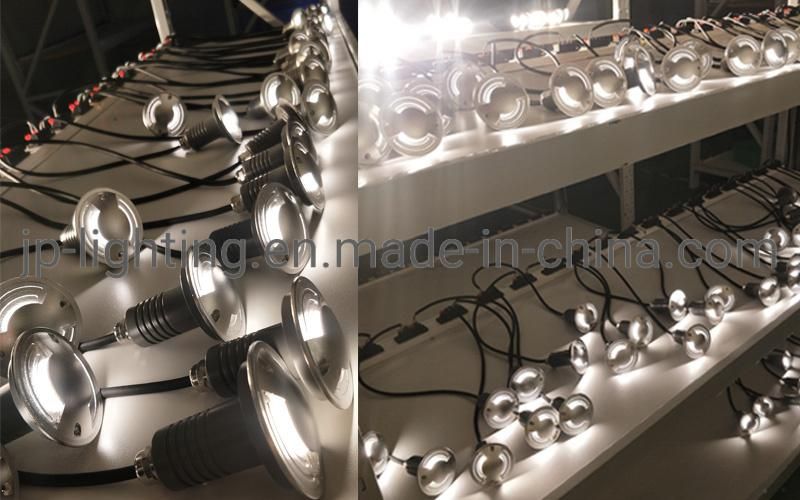

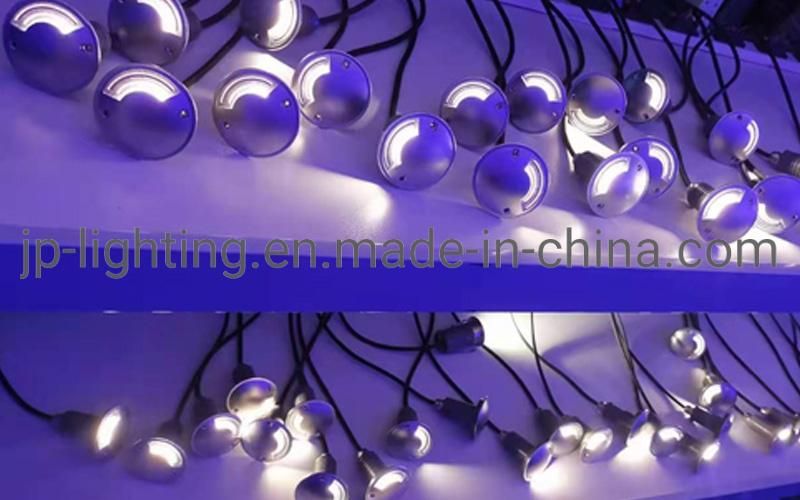

Production and Test

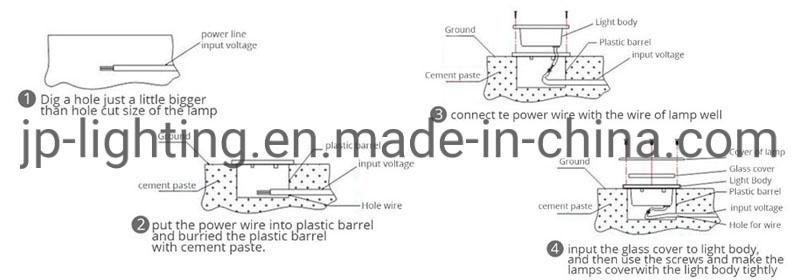

Product Installation:
Application:
Used for Park,Garden, Corridor, Pathway, Road and other outdoor lighting.
