• Model NO.：817187
• Base Type：LED+MPCB
• IP Rating：IP65
• Shade Type：Clear Glass
• Certification：CE, EMC, LVD, RoHS
• Voltage：DC24V,AC100-240V
• Body Size：L160mm*W160*H79mm
• Working Temperature：-20-+40 Centigrade
• Luminous Flux：80-90lm,W
• LED Sources：SMD3528 X 18PCS
• Working Lifetime：50000hrs
• Transport Package：Shockproof Carton Box
• Specification：4PCS,CTN
• Trademark：JP Lighting
• Origin：Dongguan, Guangdong, China
• HS Code：94054090
• Production Capacity：3000PCS,Month

Basic Info.

Model NO. 817187 Base Type LED+MPCB IP Rating IP65 Shade Type Clear Glass Certification CE, EMC, LVD, RoHS Voltage DC24V/AC100-240V Body Size L160mm*W160*H79mm Working Temperature -20-+40 Centigrade Luminous Flux 80-90lm/W LED Sources SMD3528 X 18PCS Working Lifetime 50000hrs Transport Package Shockproof Carton Box Specification 4PCS/CTN Trademark JP Lighting Origin Dongguan, Guangdong, China HS Code 94054090 Production Capacity 3000PCS/Month

Product Description

High Quality Square Recessed Waterproof Outdoor Led Stair Step Light

Feature and Benefits1.IP65 outdoor stair/wall/step/corn/stairway/park lighting use;2.Input Voltage: High voltage 100-240VAC and low voltage DC24V are available;3.IP65 rating with CE certificated;4.Rated Lifespan: 50,000+ hours;5.Excellent heat conductivity aluminum, high efficiency constant current drivers;6.Packing detail:1pc/inner box,4pcs/ctn,G.W:8.0kgs;7.Housing color option:Gray painting RAL9007, Silver painting RAL9005, Matt black RAL9006, Customized Colors.
Main Specification

Housing	Die-casting outdoor powder coated aluminum
Face cover	Die-casting outdoor powder coated aluminum
Glass	3MM Tempered glass

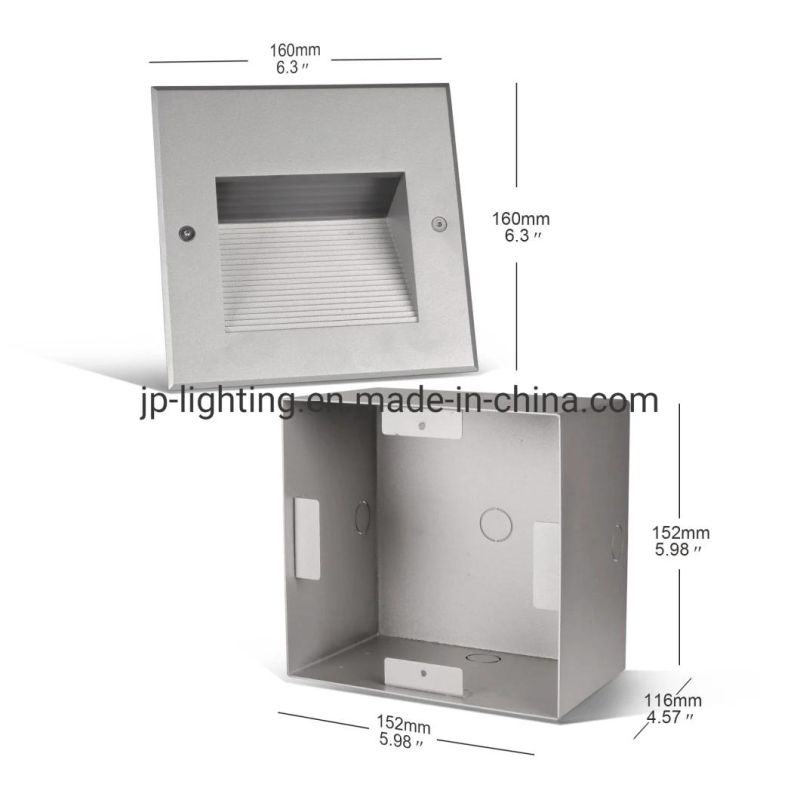

Product Dimension	L160mmxW160mmxH79mm
LED	SMD LED or Customized LED
Cable gland	IP67 Cooper and nickel coated
Gasket	Tooling shaped seal
Operating temperature	-20ºC to 40ºC
Power cable	H05RN-F2x1.0mm2L=2m(low voltage)  H05RN-F3x1.0mm2L=2m (high voltage)

Product Model


Item No.	Lighting Source	Lens Beam Angle (°)	Consumption(Watt)	Input Voltage(V)	IK Rate
817187	18xSMD3030	120°	2.5	AC100-240V	10
817068	1x6W COB LED	120°	6.4	DC24V/AC100-240V	10

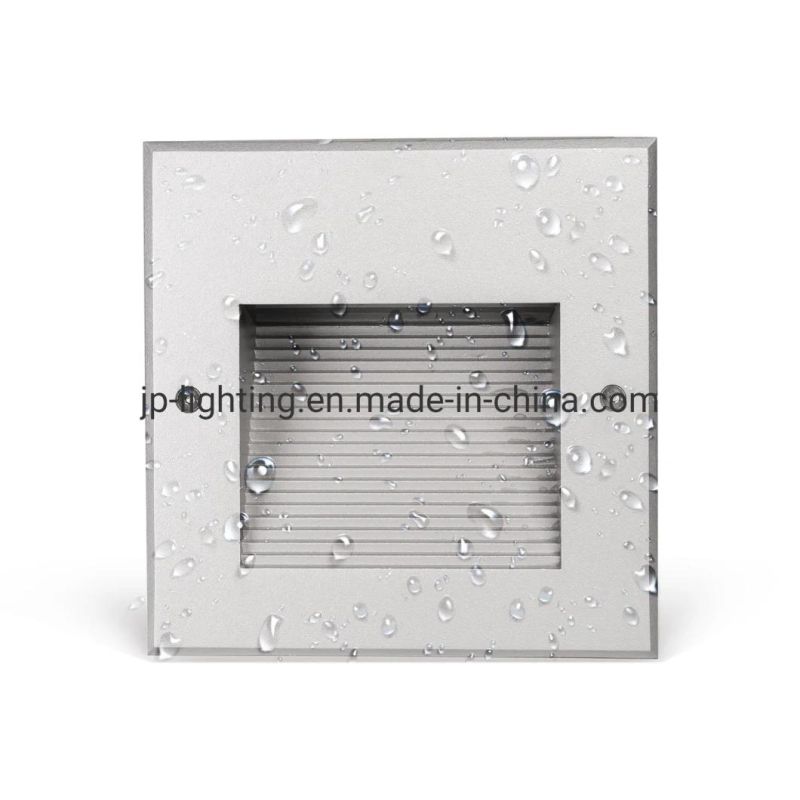

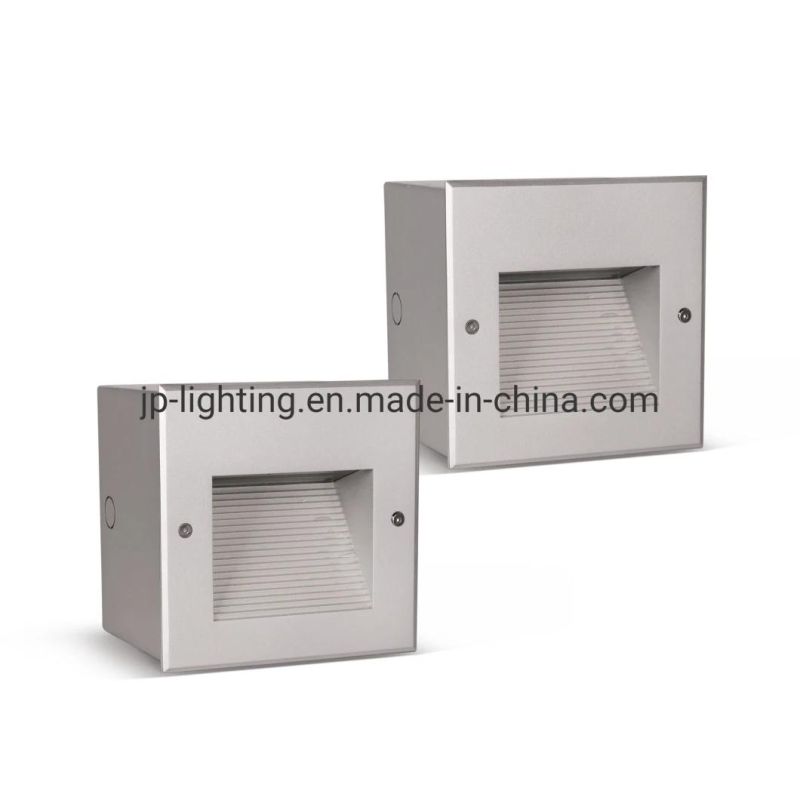

Product Picture

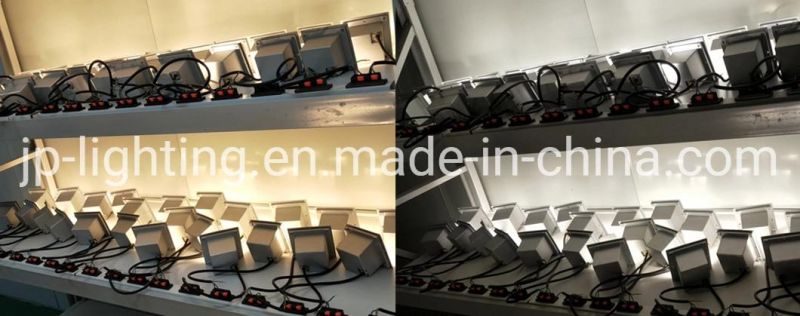

Production Test:

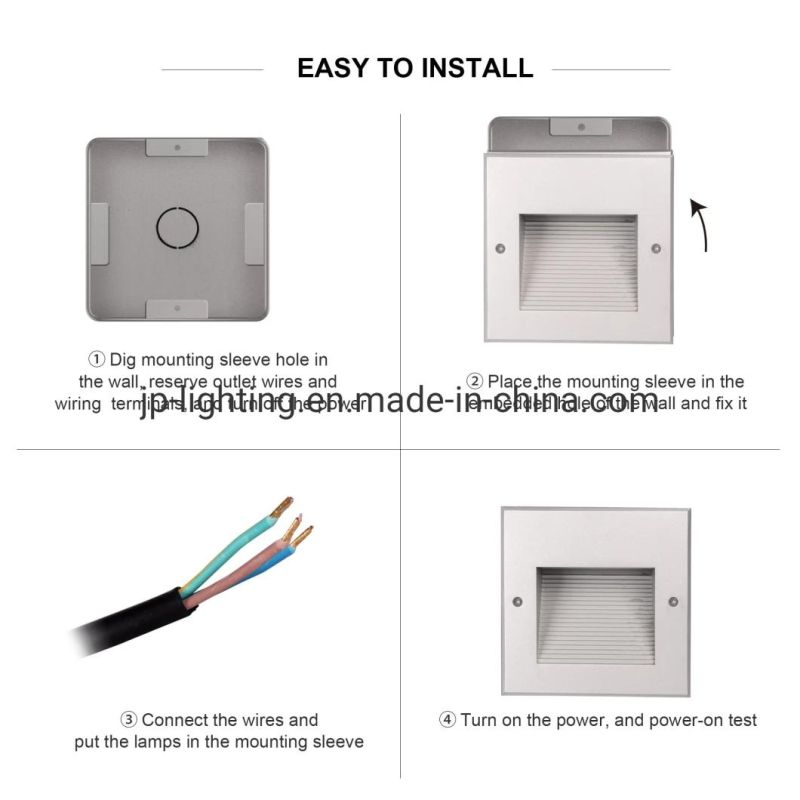

Production Installtion

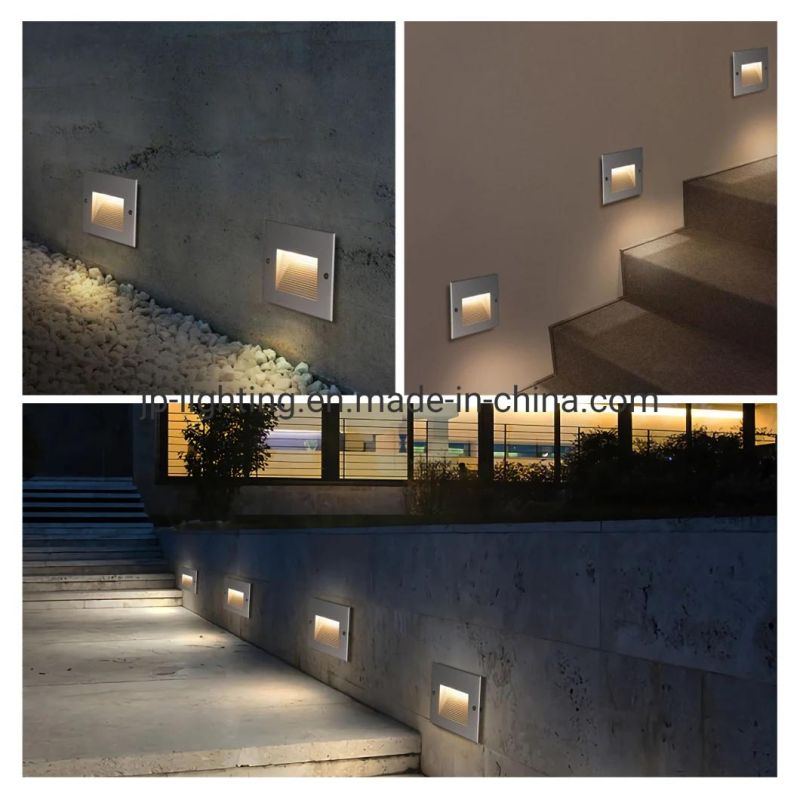

Product Application
Used for Wall, sidewalk, parking lot and other commercial or decorative illumination.

FAQ

Are you a manufacturer?
Yes, We are a professional manufacturer with 15 years experience.

What are your main products?
1.Outdoor LED wall light
2.LED garden spot/spike light
3.LED inground light
4.LED underwater light(fountain light, swimming poool light, underwater spot light)
5.LED wall washer light

What is the company sample system?
1.Sample charge should prepaid.
2.Sample can be customized,If the order QTY is more than 1000Pcs.

How we can pay for?
1.30% advanced payment. 70% balance payment.
2.We accept L/C, T/T, Western Union, and Paypal.
3.Our shipping terms is EXW, FOB, CIF

How about the delivery time?
1.About 5 working days for sample making.
2.15-30 working days for mass products production time. It is up to the quantity.

What information should I let you know when I want to make a inquiry?
1.Which body color do you want?
2.What kind of light color do you prefer?
3.How long do you need about light cable?
4.Which voltage ( low voltage or high voltage)?
5.What kind of beam angle do you need?
6.What's the quantity do you need?

Why choose us?
1.One-stop services: Innovative design, professional product light effect. Excellent product quality, sincere service concept. For exterior lighting provides an integrated, one-stop integrated lighting solution!

2.Experience R&D, production and sales team: We have an mature and experienced team. Some members have more than 15 years of work experience in the field of lighting. JP Lighting factory covers an area of 2,000 square meters and the annual sales of more than $10 million.

3.Strict quality control process: JP lights use the high quality components. All material must be strictly screened. All JP lights will undergo strict testing before shipping, including integrating sphere testing, aging test, waterproof test, etc. Due to rich experience and professionalism, JP Lighting's product defect rate is strictly controlled within 1%.

4.Products worldwide with high reputation: We participate in various industry lighting exhibitions, our products are all over Asia, Vietnam, Australia, Egypt, Romania, Slovakia, U.S ect.
