Module Desgined High Lumen Output 280W 300W LED Street Light
HANGZHOU ZGSM TECHNOLOGY CO., LTD.- Power Supply：AC or DC
- Color Temperature：3000K-5000K
- Lamp Body Material：Aluminum Alloy
- Power：280W
- Application：Square, Highway, Garden
- IP Rating：IP66
Base Info
- Model NO.：ZGSM-LD300H6
- Certification：CE, EMC, GS, LVD, RoHS, SAA, UL, Dlc, CB
- Input Voltage：100-240V,277V,347V,480V AC
- With Light Source：With Light Source
- Light Source：LED Light
- LED Luminous Source：Lumileds Tx
- LED Driver：Meanwell Inventronics
- Working Lifetime(Hour)：100000 Hours
- Transport Package：Strengthening Cartons
- Specification：ISO 9001, ISO14001, CE, ROHS, FCC, TUV, SGS
- Trademark：ZGSM
- Origin：China
- HS Code：85414000
- Production Capacity：50000PCS,Month
Description
1. Major advantages of our H Series LED street light:
1. LUXEON 3030 2D or 5050 luminous source with LM-80 report.
2. High Reliable Inventronics or Meanwell driver with 7 Years Warranty.
3. Over then 100,000 hours operation lifetime.
4. Have TypeI Medium,TypeII Medium ,TypeIII Mediumand TypeV Short four Photometric Types suitable to different road conditions.
5. IK10&IP66.
6. Have UL DLC ROHS, CE, GS, CB, ENEC TUV Mark certificated..
7. Patent product with 7 patent certificates.
8. 7 years Warranty.
9. Wide voltage Input: 100-240V/277V, 347V, 480V AC
2. Data Sheet
| Specifications | |
| Model | ZGSM-LD300H6 |
| LED Brand | LUXEON® 3030 2D/5050 |
| Driver Brand | Meanwell HLG/ELG series/ Inventronics Driver |
| Norminal Wattage | 300W |
| LED Module Quantity | 5 modules |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >125lm/w-155lm/w |
| Lamp Rated Lumen output | 37500-46500lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K,4000K,5000K,5700K |
| Photometric Type | Type I Medium;Type II Medium;Type III Medium,TypeV,Short |
| Optimal Operating Temperature | 25° |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body and Shell Materials | Anodized Aluminum |
| IP Rating | IP66 with test report |
| IK Rating | IK10 with test report |
| Certification | CE,ROHS,ENEC,GS,CB,UL,cUL,DLC,LM-79,LM-80 |
| Optional Function | 1-10V DC or PWM Signal or Resistance Dimming |
| Timer/Photocell Control | |
| Warranty | 7 years |
| Packing Details | |
| Fixture Dimension | 723x316 x136 mm |
| Fixture Weight | 9.0 kg |
| Packing Dimension | 780 x370 x200 mm |
| Packing Weight | 10.6 kg |
3. Application

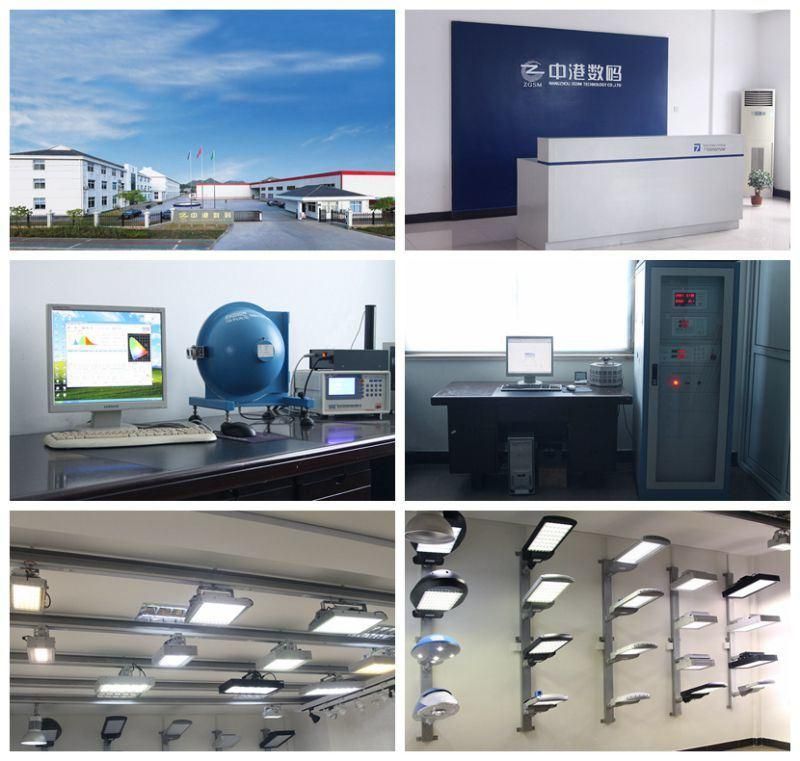

4. Factory show
5. Exhibition show
6. Certificate Show

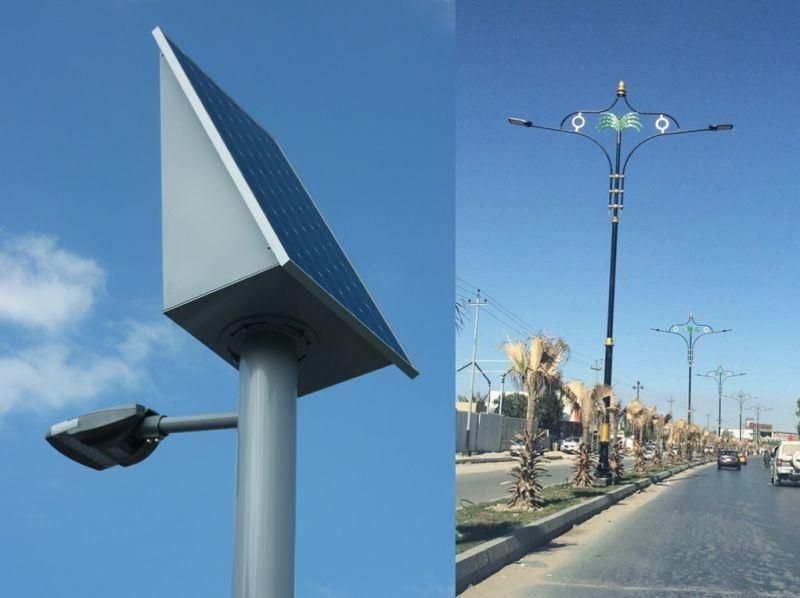

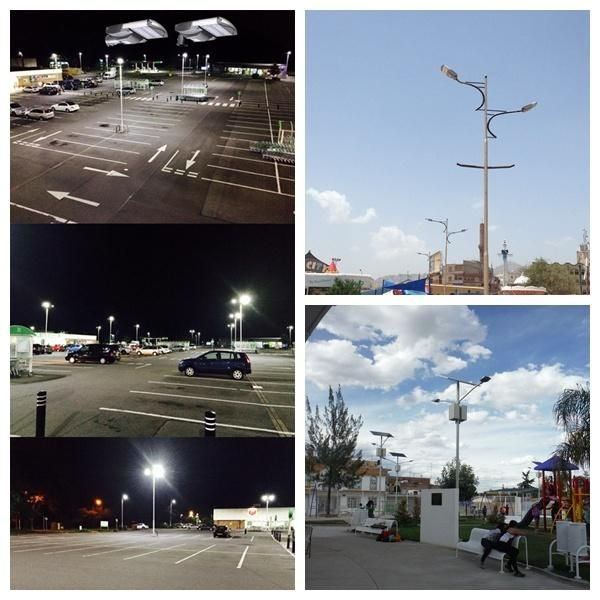

Project show

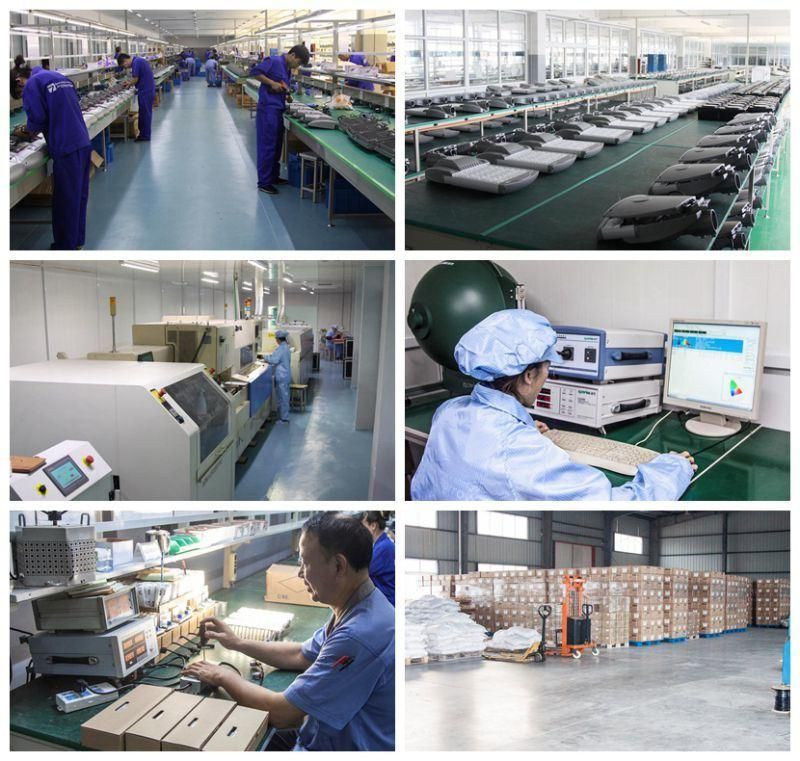

Factory show
